SEQURE 3625 high performance outer rotor brushless motor with small size and high torque suitable for 1/10 RC climbing vehicle rocky crawler vehicle

DJ0003625
$34.99
Type :
$34.99

If you need WiFi-Link For SQESC ESCape32 ESC, you can buy it through this link: https://bit.ly/4dwdcWo


If you need SQESC ESCape32 ESC, you can buy it through this link: https://bit.ly/4cdQykI



Product Description:

(1) SEQURE 3625 is a high-performance brushless outer rotor motor specially designed for 1/10 remote-controlled climbing crawler cars. Features with the smallest size, highest power, and largest torque.
(2) The motor has a volume of 36*25mm and adopts a 12-slot stator of 30*12mm, combined with high-purity copper wire winding, which greatly improves the motor power and explosive force.
(3) The ultra-strong magnetic array composed of 14-pole curved high-temperature resistant magnets provides extraordinary rotor torque and powerful and fast braking response.
(4) The shell is made of high-hardness aluminum alloy and high-precision CNC processing, and the structure is stable and reliable.
(5) High-strength stainless steel motor shaft, high-precision high-quality bearings, the motor is durable.
(6) Eight-angle mounting holes eliminate any interference in the installation space.
(7) Silent and denoise design to lower the operating noise greatly. No worry about the breaking wind noise at high speed.

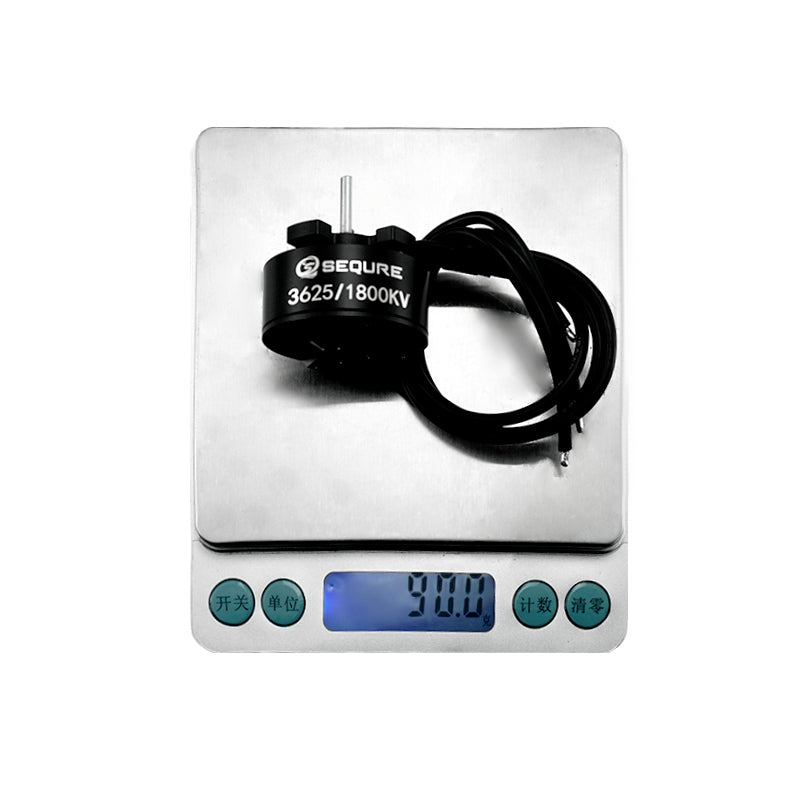

(8) Lightweight design, weight about 90g (including 16AWG 200mm motor wire), maximizes the reduction of vehicle weight and lowers the center of gravity.



Parameters of Product:

Model

SEQURE 3625 Brushless Motor

Working Voltage

2-4S Lipo

Slot Pole/Magnetic Pole

12N/14P

Stator Size

30*12mm

Output Shaft Diameter

3.17mm

KV Value

1800KV

Motor Wire

16AWG 200mm

Mounting Hole Spacing

24.5mm

Banana Plug

3.5mm Male

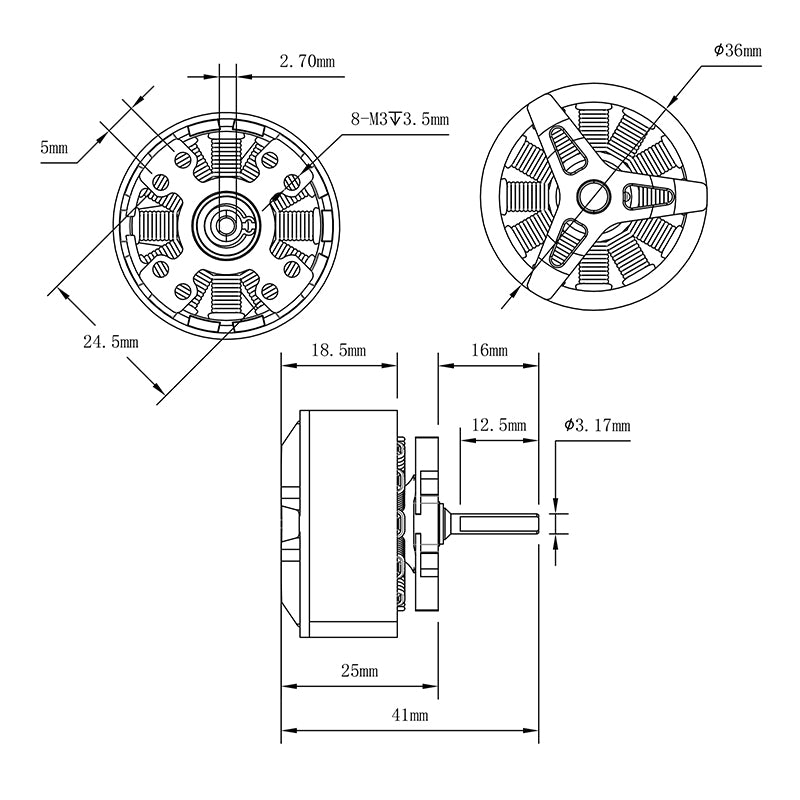

Size(Without Shaft )

36*25mm

WeightWith Wire

90g

Recommend ESC

70A ESC (or above)

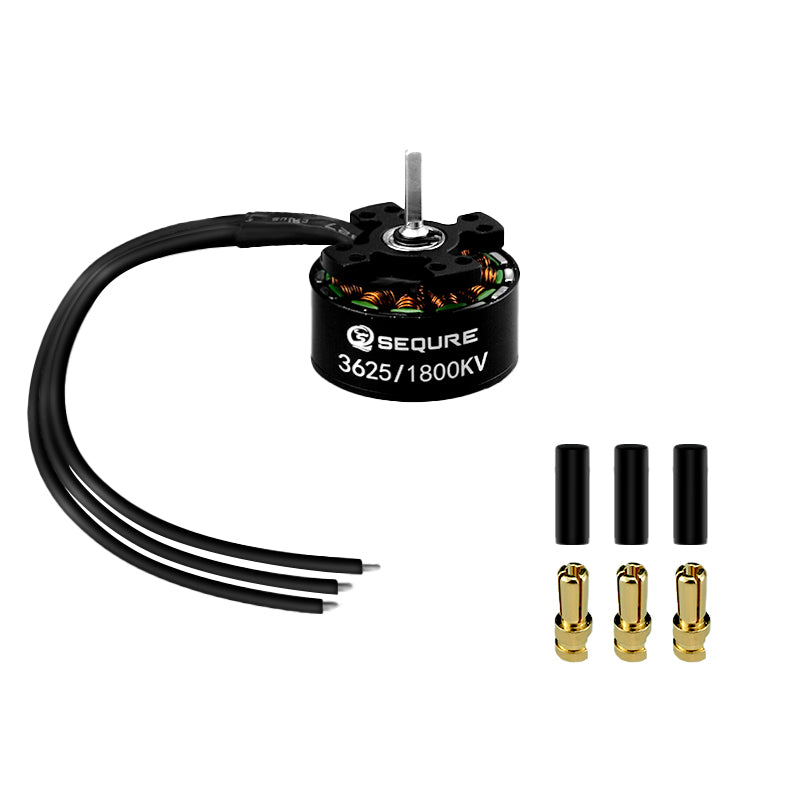

3625 Motor Package included:

SEQURE 3625 brushless motor × 1
3.5mm banana plug × 3
Heat shrink tube × 3

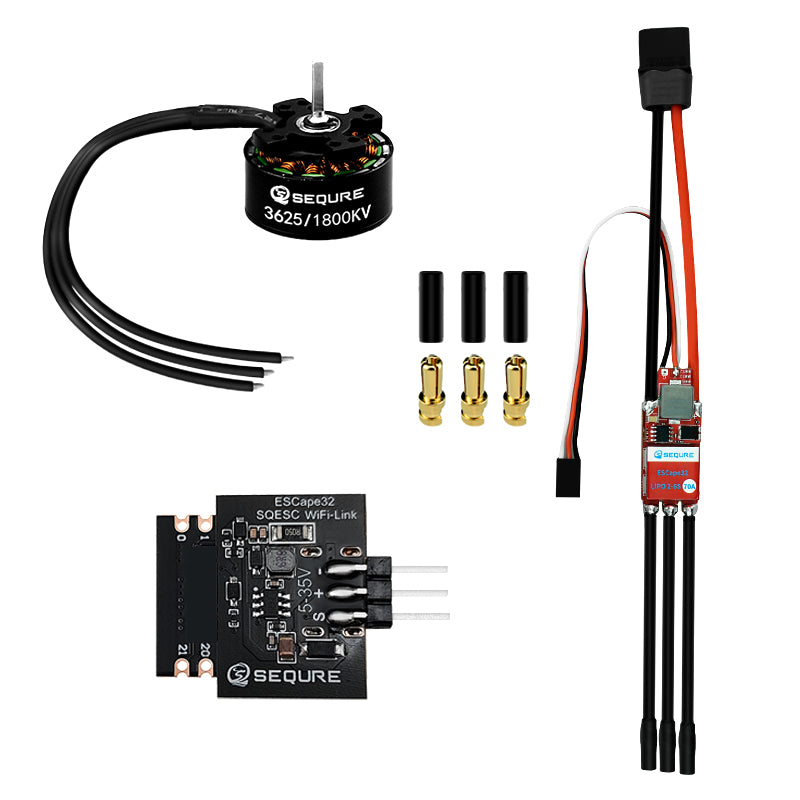

3625 Motor & WiFi-Link & 2670 ESCape32 + BEC  Package included:

SEQURE 3625 brushless motor × 1
3.5mm banana plug × 3
Heat shrink tube × 3
2670 ESCape32 + BEC  × 1
WiFi-Link  × 1



Overall Dimension:

(1) Product Size: /
      Net Weight Of Product: 90g
(2) Package Size: 65*65*40mm
      Packing Weight: 115g
(3) Package Size (Including Outer Carton):150*150*50mm
      Packing Weight (Including Outer Carton):170g
