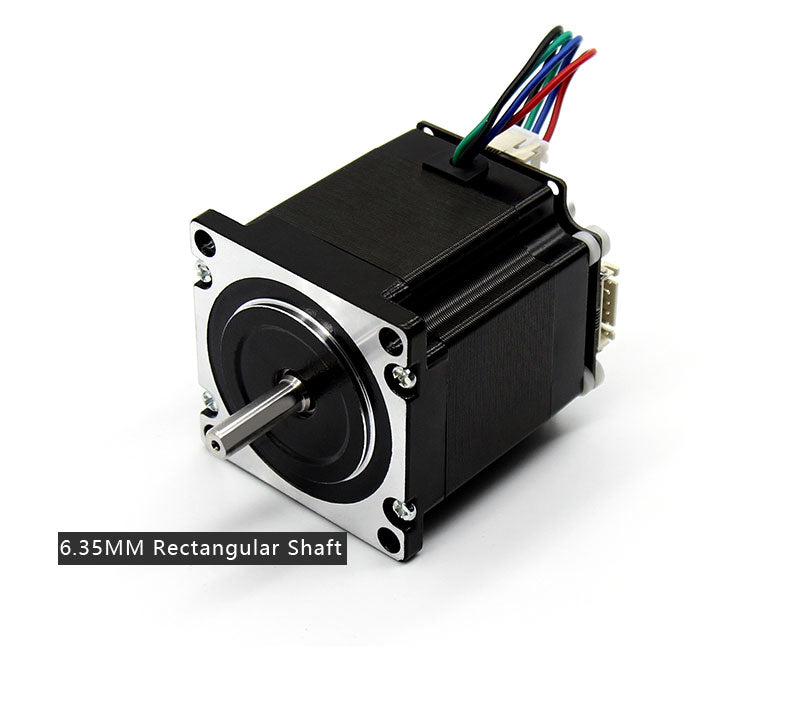

      Nema 23 Stepper Motor STM32 Closed-loop 57 Servo Stepper Motor Kit With Driver Board | Suitable for 3D Printing | Compatible Mechaduino

       Stepper Motor pdf

      Motor Parameters:
      Product Name: 57 two-phase stepper motor
      Step angle: 1.8 °
      Driving voltage: 24V
      Rated current: 3A
      Rotor inertia: 300g.cm²
      Maximum speed: 1000rpm (recommended load 600rpm)
      Static moment: 1.2N.m
      Motor length: 56mm
      Phase inductance: 2.5mH
      Phase resistance: 0.9Ω

      Wiring Instructions:
      1. VCC : Connect 12-30V power supply ( Refer to the working voltage of the motor, general 24V )
      2. GND: Ground wire
      3. CLK : Control signal (Connected to pulse input )
      4. DIR: Direction control signal ( Floating forward, ground reverse )
      5. ENA: Connect to enable signal ( Default enable, grounding stops working )
      6. P2: Connect one phase to the motor on each side ( Refer to the motor parameter description,   the motor is divided into two phases AB, pins 1 and 2 are connected to one phase, and pins 3 and 4 are connected to the other phase. )

      Products Details

      The use of high-quality raw materials and high-standard permanent magnet silicon steel, with 1000-line high-precision encoder, completely overcome the open-loop stepper motor stepping problems.

      Stepper Motor Controllers

      Stepper Motor Controllers
      stepper motor driver arduino
      stepper motor instrument cluster
      stepper motor vs servo motor
      applied motion stepper motor wiring diagram
      stepper motor working principle
      stepperonline closed loop

      stepper closed loop
      stepper online review
      where to buy stepper motors near me
      Motor parameter requirements:
      1. Phase: 2 phases
      2. Step angle: 1.8°
      3. Working voltage: 12-30V
      4. Current: maximum 3.5A
      5. Control method: Pulse control
      DIP switch {ON (1) / OFF (0)}:
      1. Div1, Div2 control pulse frequency division

               (1) 00: 4  subdivision

               (2) 10: 8  subdivision

               (3) 01:16  subdivision

               (4) 11:32  subdivision

      1. Ctl setting control mode, open-loop / closed-loop

                (1) 0 :  Open-loop mode

                (2) 1 :  Closed-loop mode

      1. AC setting calibration

      Turn the AC to position 1, and turn on the power. The LED blinks 3 times to start automatic calibration. The motor shaft rotates counterclockwise for one cycle and then clockwise for one cycle. The system automatic calibration complete and the LED continues to flash. The AC dial returns to position 0, and then restart power.

      Application examples:

    • 3D printing with fine closed-loop positioning
    • Optical precision aiming (Laser, telescope, camera gimbal, etc.)
    • Speed loop record player
    • Force feedback / impedance control robot
    • Force feedback of game controller
    • Adjustable mechanical impedance: virtual spring, damper, etc.
    • Electric transmission device between two axes such as CNC machine tools
    • Gravity elimination (eg: offset gravity torque on the robot arm, etc.)
    • Load detection and feature description (Used as a balance, etc.)
    • Paper towel / TP distributor
    • Variable load (Brake, generator, etc.)
    • Valve control (Automated garden hose, etc.)

      Package includes :

      1× complete machine

      1× 6P cable

      1× instruction manual

      Note: The product is installed and tested by our professional staff, and you can use it
      normally when you receive the goods.


      Motor Size Detail:
      Product size: 90 (length) * 60MM (maximum diameter)
      Net weight: 680g
      Box size: 135 * 80 * 90mm
      Weight after packing: 730 G
