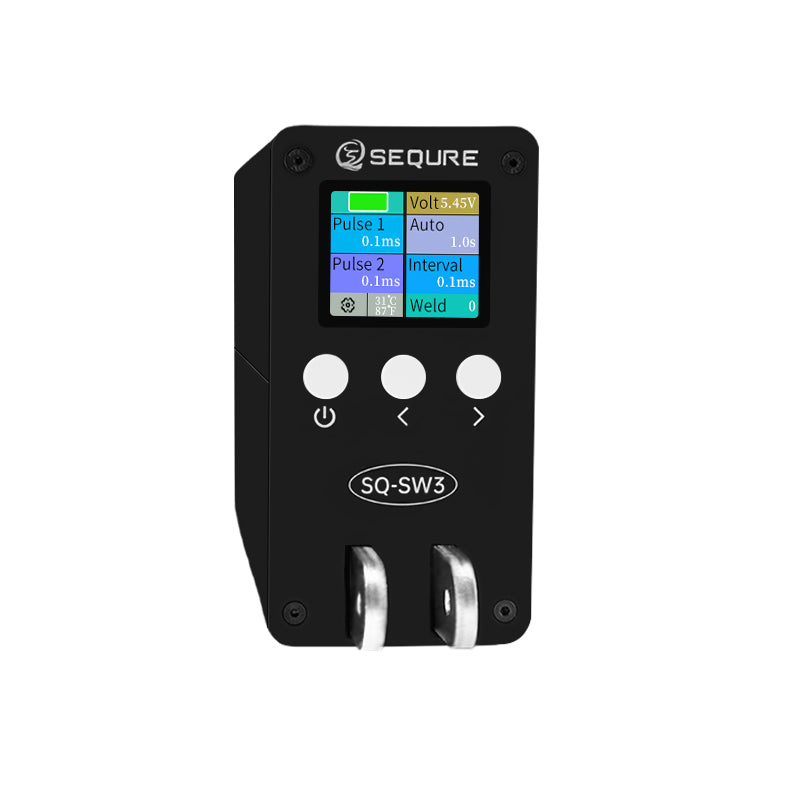

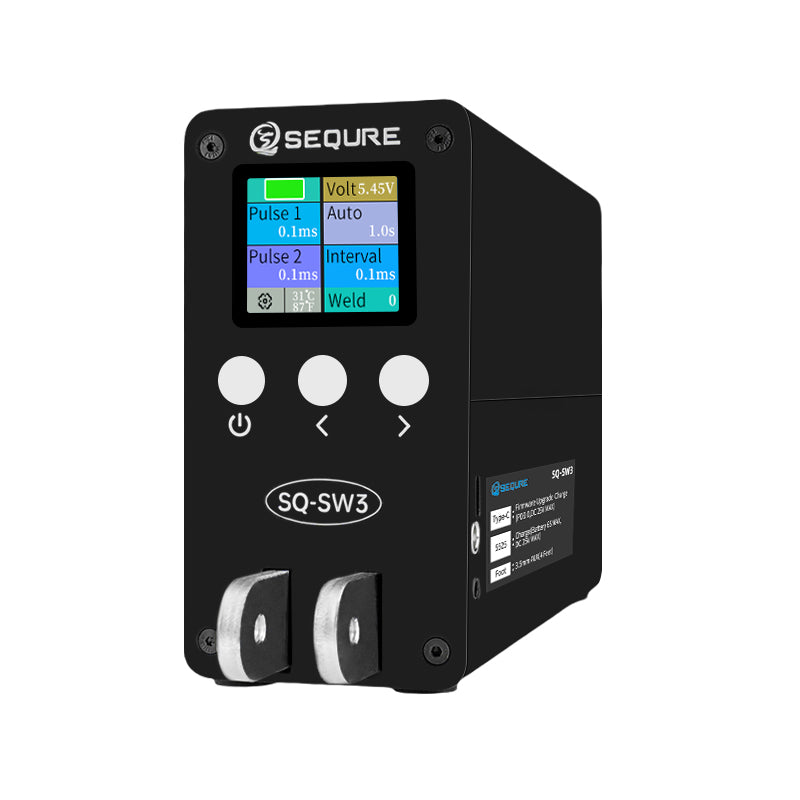

SEQURE SQ-SW3 Capacitor Energy Storage Spot Welder 18650 / 21700 Lithium Battery Nickel Strip Copper Strip Spot Welding DIY Power Battery Pack

SW3SWP25US
$199.00
Style :
$199.00

SW3 Spot Welder Review by 자작꾼TV:


Product Description:

(1) Adopts high quality low-resistance MOS with a max working current of 2500A, this spot welder is suitable for spot welding of nickel plating, pure nickel, and copper sheet.
(2) SQ-SW3 supports multiple charging methods such as fast/slow charging, and battery charging. Quickly replenishes power, and works continuously without interruption, greatly improving the stability of continuous spot welding.
(3) All-metal aluminum shell body, fast heat dissipation, super farad energy storage capacitor, large energy, long life, safe and reliable.
(4) 2 Trigger modes: auto & manual. Features with multiple functions like solder point counting, temperature detection, LED light, firmware upgrade, etc.

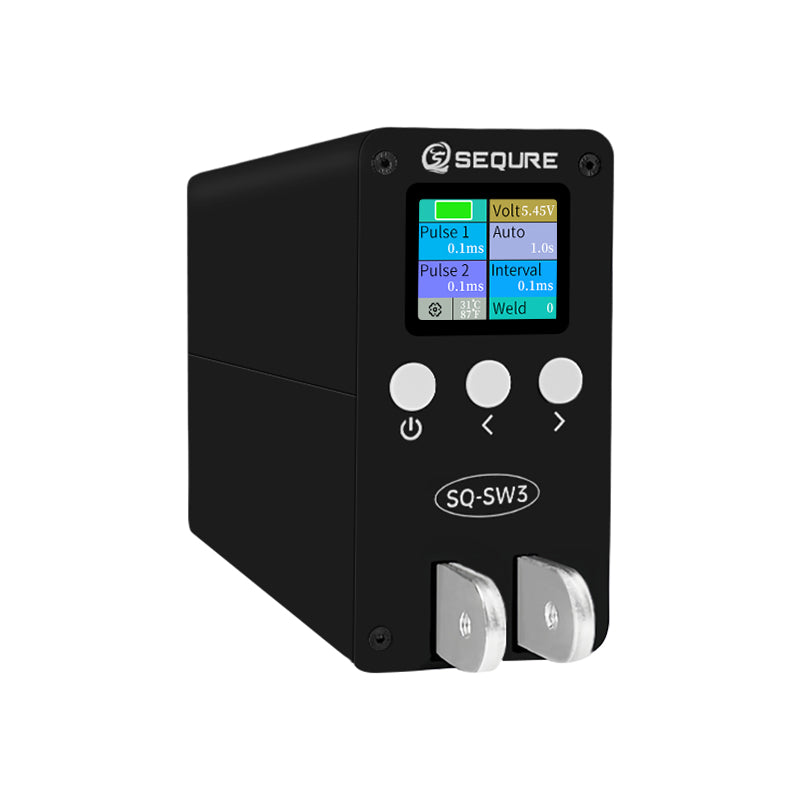

(5) HD LCD color screen, multi-language menu, supports Chinese, English, and Russian.

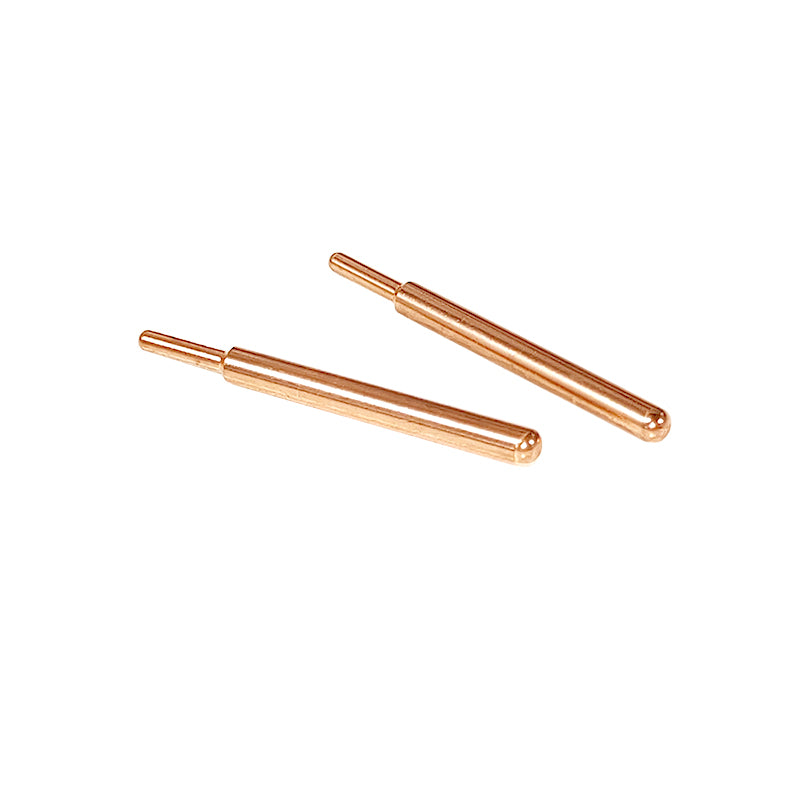

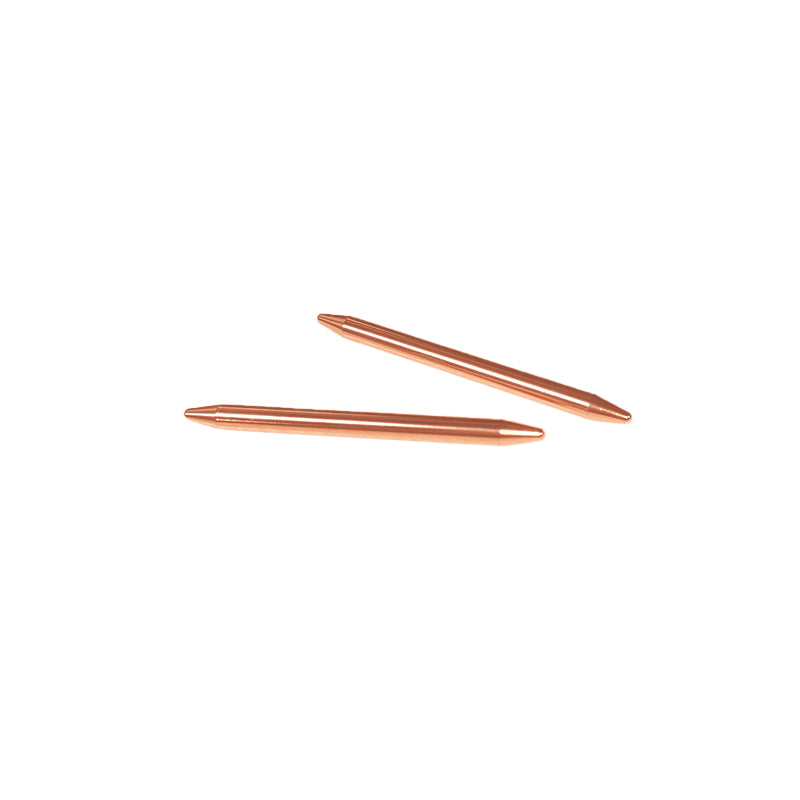

(6) Aluminum oxide copper welding pins are hard, durable, and long-lasting. The copper on the welding pin will not melt, so it will not stick to the nickel strip during spot welding. Double head design improves utilization.

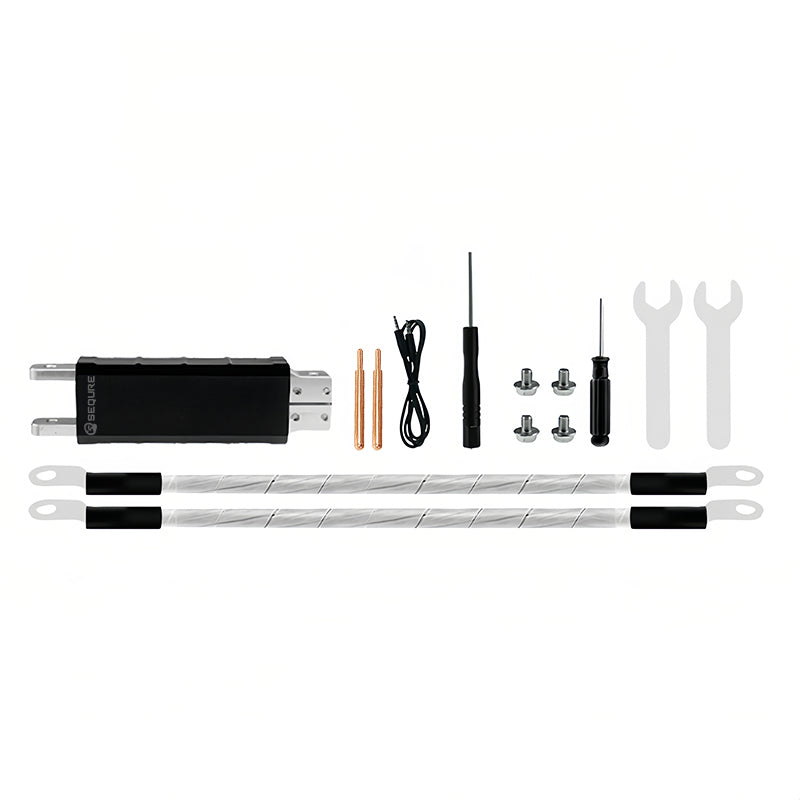

(7) Two types of spot welding handles: split handle SWP25 and integrated handle WP30. They are made of 25mm² ultra-soft multi-strand copper wire with nickel plating. They are soft to the touch, anti-oxidation, low resistance, large overcurrent, and durable.



Parameters of Product:

Model

SQ-SW3 Capacitor energy storage spot welder

Screen Size

1.8-inch color high-definition LCD

Trigger Mode

Automatic mode / Manual mode

Output Voltage

5.6V(Max)

Output Current

2500A(Max)

Nickel Plating Thickness

≤0.5mm

Pure Nickel Thickness

≤0.3mm

Copper Sheet Thickness

≤0.2mm

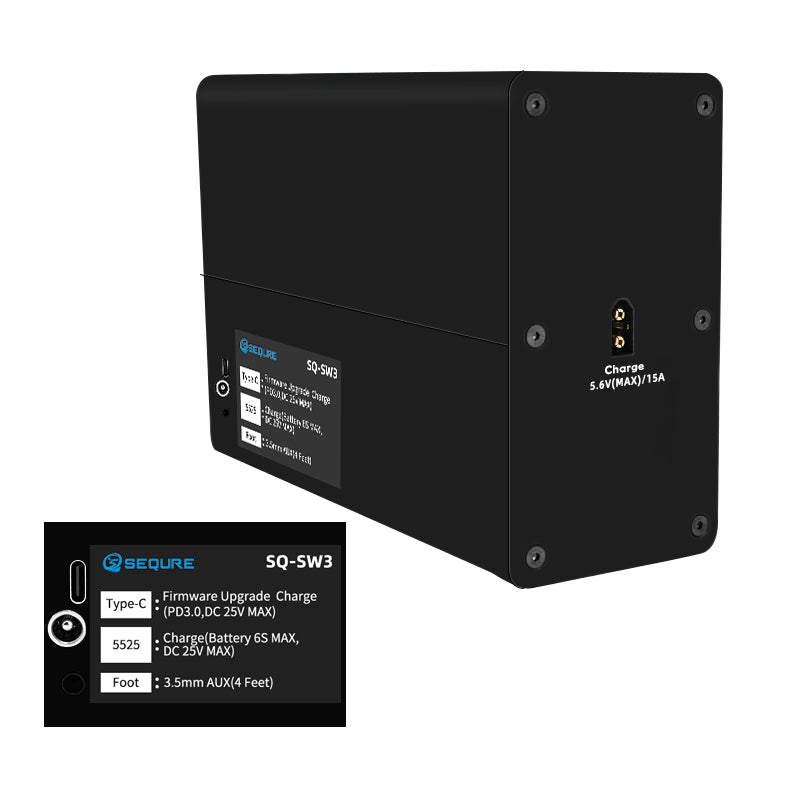

Charging Method

AC, DC, fast charging, slow charging, battery charging

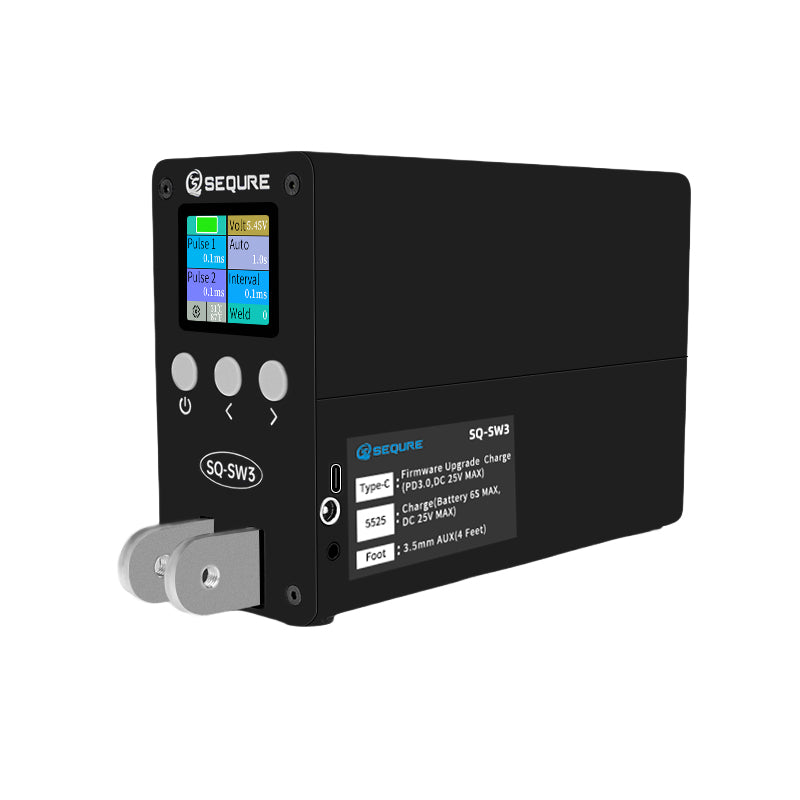

XT60IE-M

Charging (5.6V 15A Max)

Type-C

Firmware upgrade, charging (PD3.0, DC 25V Max)

5525

Charging (DC 25V Max, battery 6S Max)

Foot

3.5mm AUX(4 Feet)

Product Size

223*133*68mm(L*W*H)

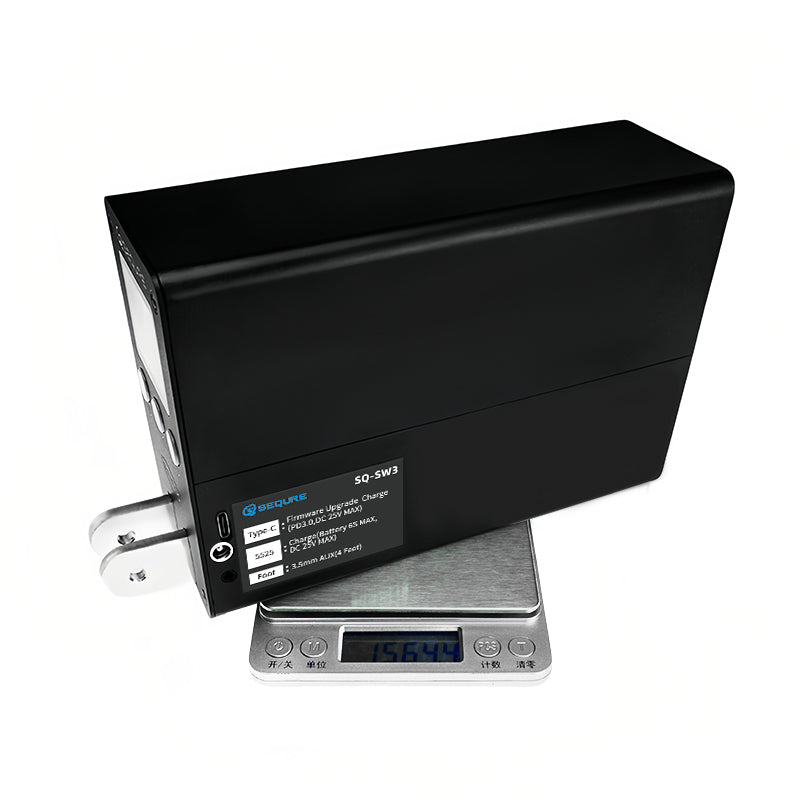

Product Weight

1565g

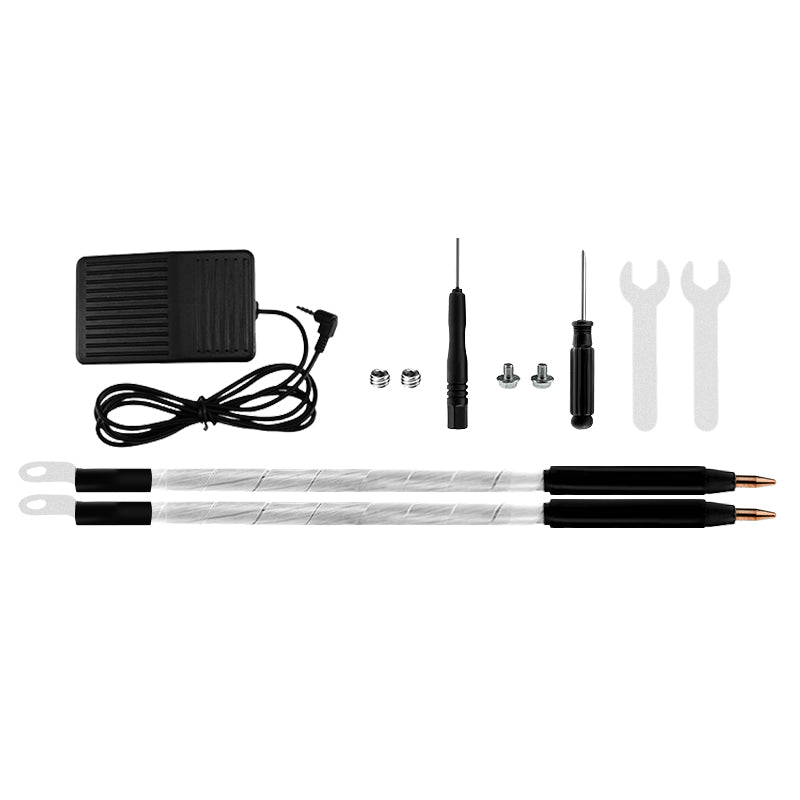

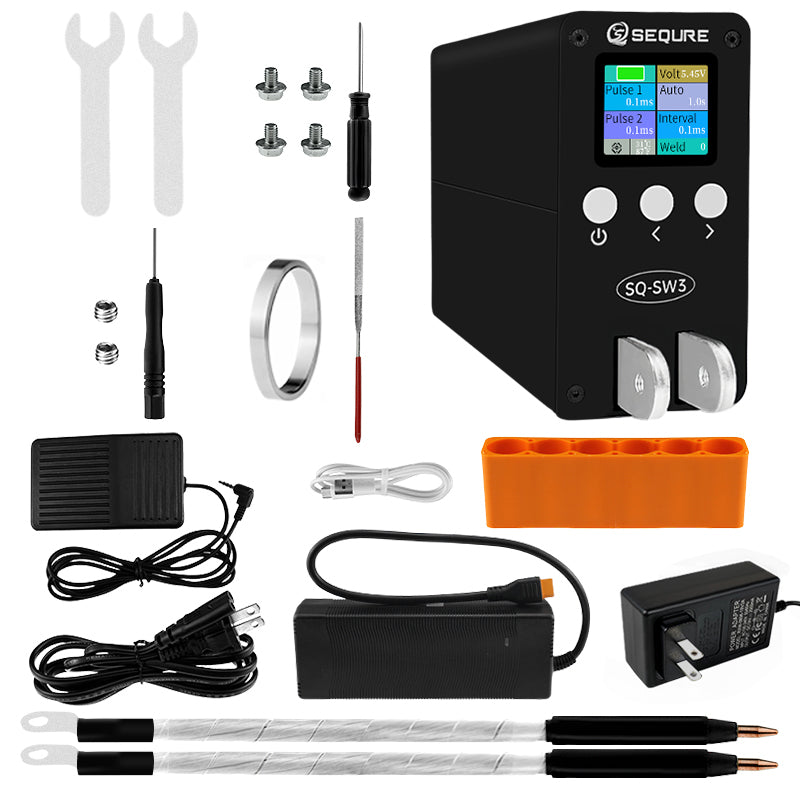

Package included:

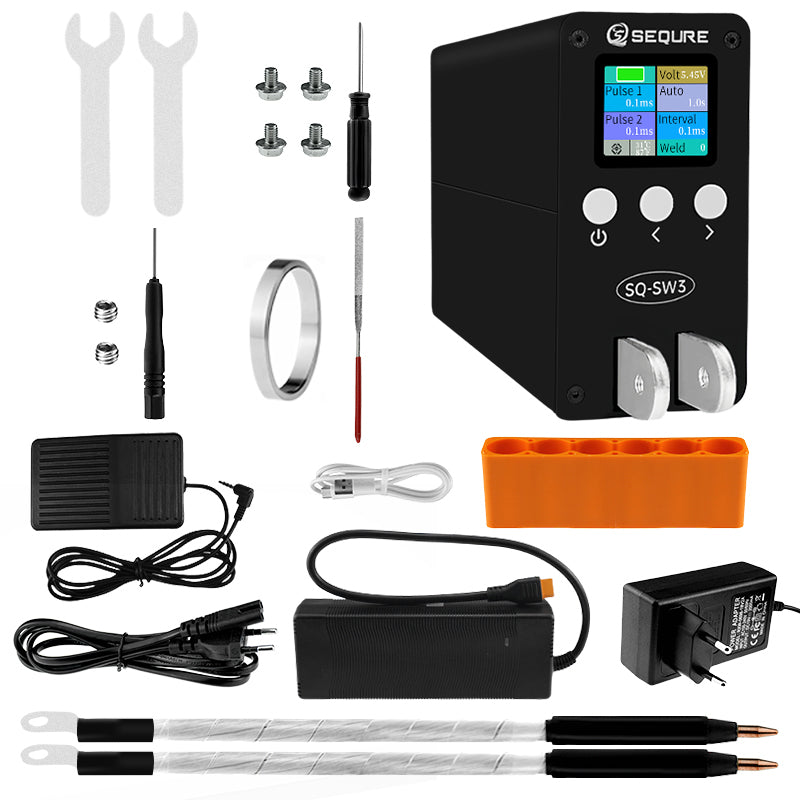

SQ-SW3 (SWP25 US Plug), SQ-SW3 (SWP25 EU Plug)

SQ-SW3 spot welder × 1
5.6V 15A charger × 1
19V 2A charger × 1
USB cable × 1
18650 battery fixture × 1
0.1*8mm pure nickel (5m) × 1
File × 1
SWP25 split handle × 2

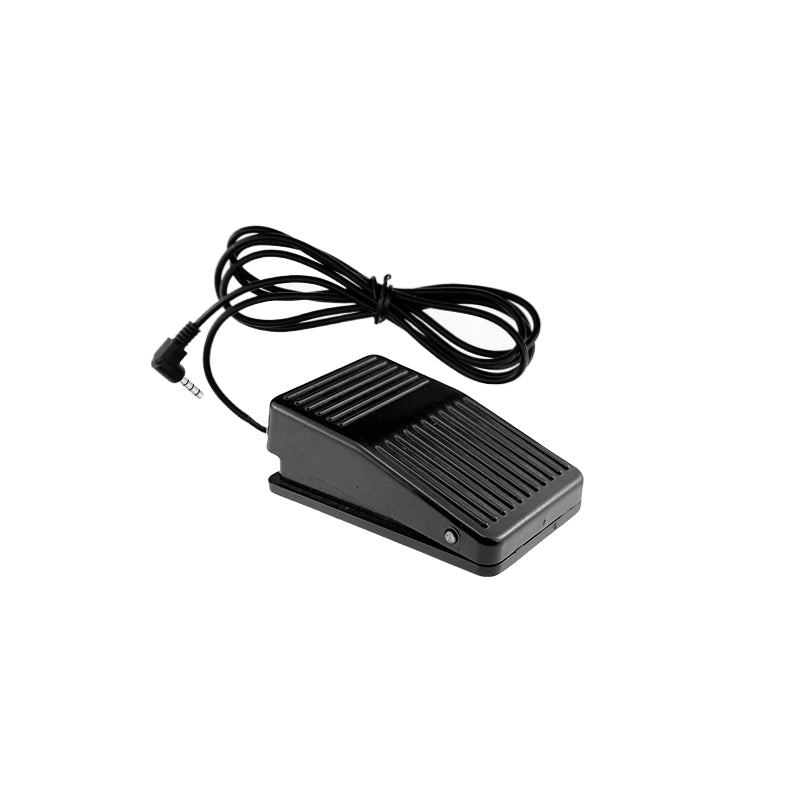

Foot pedal × 1
M3*2 screw × 2
1.5mm hexagon screwdriver × 1
M6*8 screw × 4
4.0mm cross screwdriver × 1
10mm hexagon open-end wrench × 2

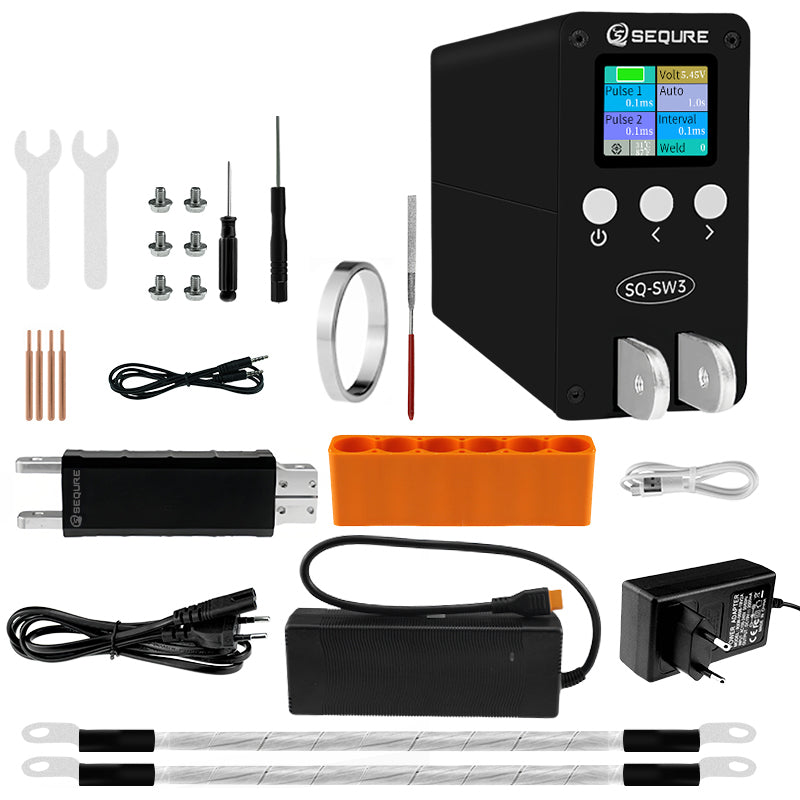

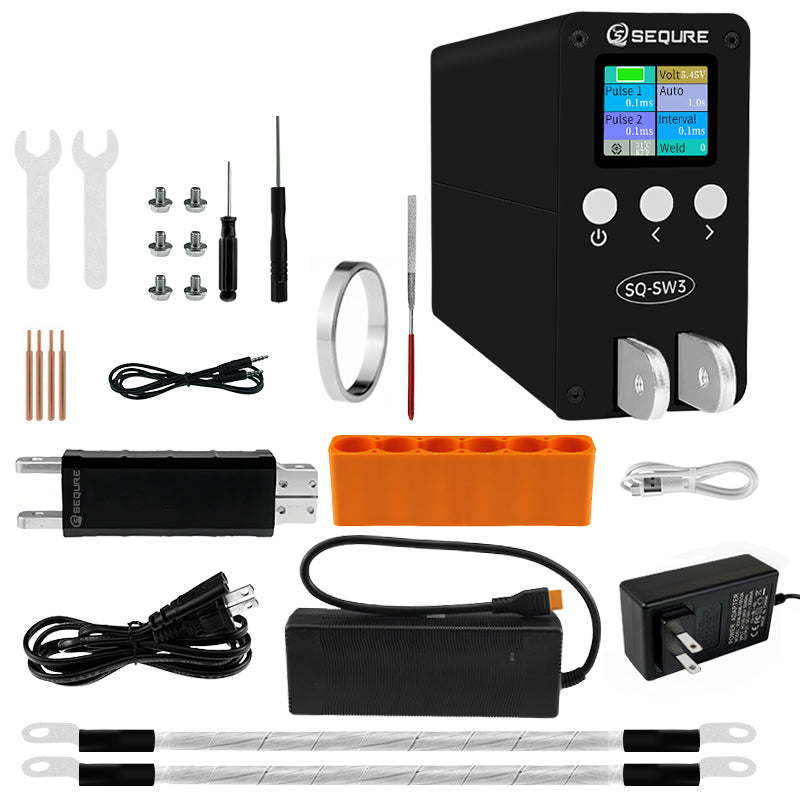

SQ-SW3 (WP30 US Plug), SQ-SW3 (WP30 EU Plug)

SQ-SW3 spot welder × 1
5.6V 15A charger × 1
19V 2A charger × 1
USB cable × 1
18650 battery fixture × 1
0.1*8mm pure nickel (5m) × 1
File × 1
WP30 integrated handle × 1
500mm 25 square copper wire × 2
3*35mm welding pin × 4
Audio cable × 1
2.0mm hexagon screwdriver × 1
M6*8 screw × 6
4.0mm cross screwdriver × 1
10mm hexagon open wrench × 2

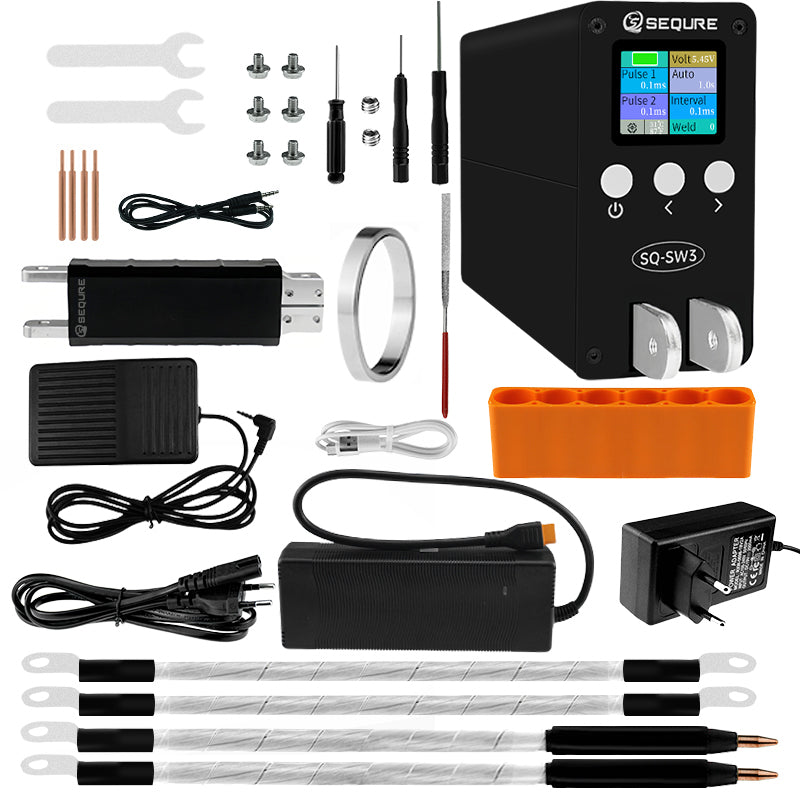

SQ-SW3 (SWP25+WP30 US Plug), SQ-SW3 (SWP25+WP30 EU Plug)

SQ-SW3 spot welder × 1
5.6V 15A charger × 1
19V 2A charger × 1
USB cable × 1
18650 battery fixture × 1
0.1*8mm pure nickel (5m) × 1
File × 1
SWP25 split handle × 2
Foot pedal × 1
M3*2 screw × 2
1.5mm hexagon screwdriver × 1
M6*8 screw × 6
4.0mm cross screwdriver × 1
10mm hexagon open wrench × 2
WP30 integrated handle × 1
500mm 25 square copper wire × 2
3*35mm welding pin × 4
Audio cable × 1
2.0mm hexagon screwdriver × 1

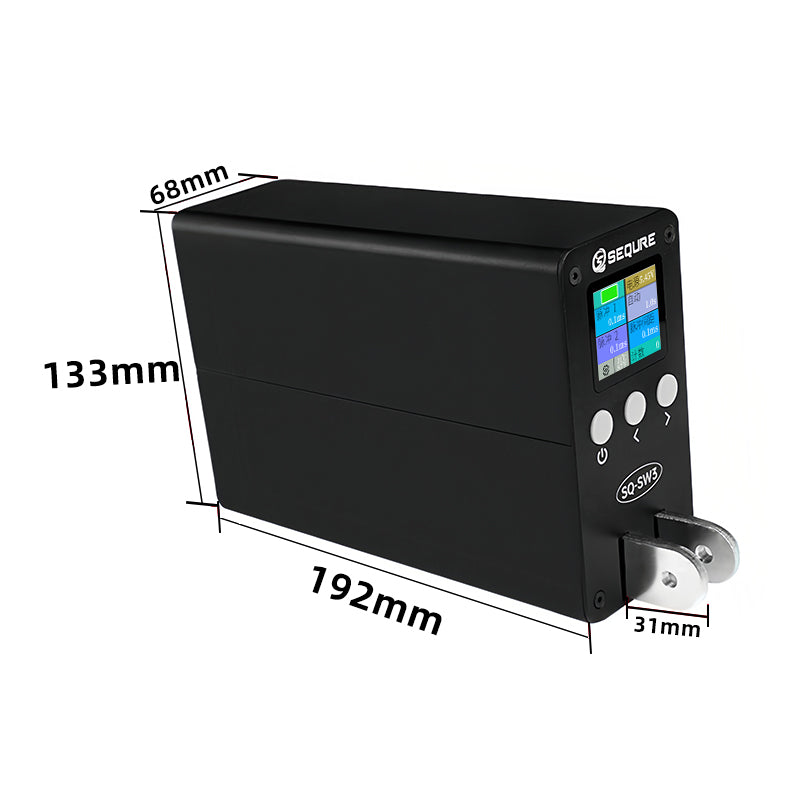

Overall Dimension:

SQ-SW3 (SWP25 US Plug), SQ-SW3 (SWP25 EU Plug)

(1) Product Size: 223*133*68mm
     Net Weight Of Product: 1565g

(2) Package Size: 270*230*240mm
     Packing Weight: 3425g

(3) Package Size (Including Outer Carton):270*230*240mm
     Packing Weight (Including Outer Carton):3425g



SQ-SW3 (WP30 US Plug), SQ-SW3 (WP30 EU Plug)

(1) Product Size: 223*133*68mm
     Net Weight Of Product: 1565g

(2) Package Size: 270*230*240mm
     Packing Weight: 3460g

(3) Package Size (Including Outer Carton):270*230*240mm
     Packing Weight (Including Outer Carton):3460g



SQ-SW3 (SWP25+WP30 US Plug), SQ-SW3 (SWP25+WP30 EU Plug)

(1) Product Size: 223*133*68mm
     Net Weight Of Product: 1565g

(2) Package Size: 270*230*240mm
     Packing Weight: 3861g

(3) Package Size (Including Outer Carton):270*230*240mm
     Packing Weight (Including Outer Carton):3861g
