SEQURE SQESC 2670 Brushless ESC 2-6S Lipo powered 70A Firmware BLHeli_32 / AM32 Supports 128KHz PWM Frequency Suitable for FPV Racing Drone Multi-axis Drones Fixed-wing UAV Model Boats Climbing Vehicles

DT2670B032
$41.00 $0.92
Style :
$32.20

If you need SEQURE 3625 Brushless Motor, you can buy it through this link: https://bit.ly/3yn1ajv

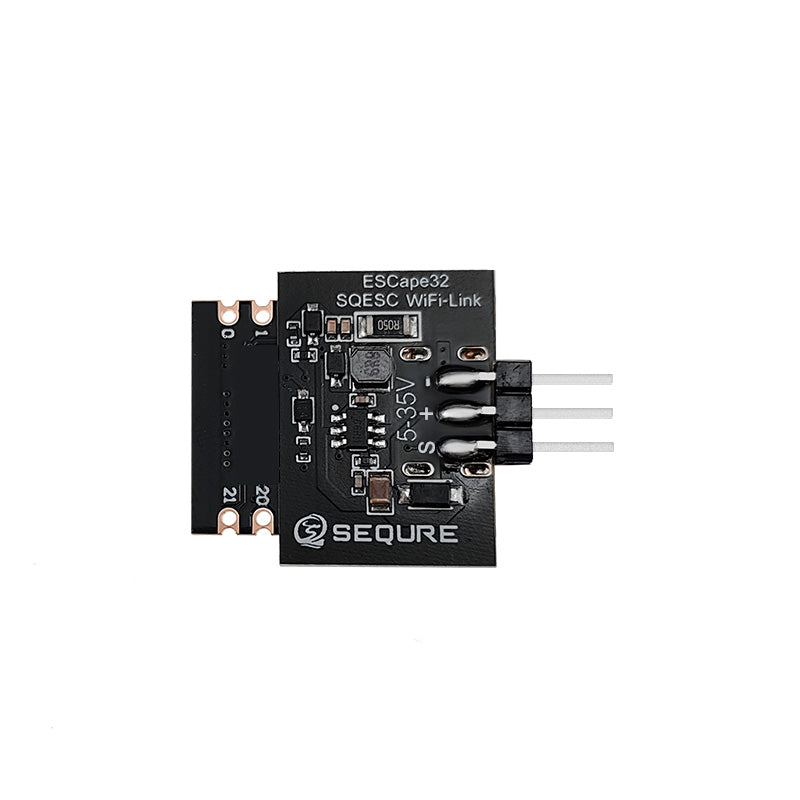

If you need WiFi-Link For SQESC ESCape32 ESC, you can buy it through this link: https://bit.ly/4dwdcWo





2670 Brushless ESC Product Description:

(1) Adopting 32-bit high-performance processor STM32G071, with a working frequency of up to 64MHz and maximum support 128KHz motor PWM frequency.
(2) PCB adopts 8-layer 3OZ immersion gold process, high-power MOS combined with metal heat sink, which can effectively dissipate heat under high current load and continue to work stably.
(3) Supports multiple motion modes such as unidirectional, bidirectional, and braked motors.
(4) Supports multiple protections such as low voltage protection, temperature protection, locked rotor protection, and current protection.
(5) The ESC automatically detects the throttle signal when it is powered on, supports all Dshot signals, and also supports signal protocols such as PWM, Oneshot and Multishot.
(6)BEC supports adjustable outputs of 5V/4A, 6V/4A, 7.2V/4A, 8.2V/4A, and 12V/3A, which can directly supply power to external devices such as receivers and servos, making the application of ESCs more extensive and flexible.
(7) Visual programming parameter adjustment tool supports motor timing, throttle calibration, current detection, motor steering, telemetry signal and other settings.
(8) Onboard RGB LED color light settings, multiple LED colors can be customized.
(9) Widely used in FPV racing drone,multi-axis drones, fixed-wing, model ships, climbing vehicles, model cars and other scenarios.

Parameters of 2670 Brushless ESC:

Model

SQESC 2670

Processor

STM32G071

Input voltage

DC 7V-25.2V(2-6S Lipo)

Continuous current (good heat dissipation)

70A

Maximum current  (good heat dissipation)

110A

Support firmware

BLHeli_32,AM32

BLHeli_32 firmware

SEQURE_G071_01

AM32 firmware

SEQURE_G071

Signal protocol

Dshot (All), PWM, Oneshot, Multishot, etc.

Programming parameter adjustment

Support

Throttle calibration

Support

Timing angle setting

Support

Current detection

Support

Telemetry signal

Support

Motor steering settings

Support

RGB LED color lights

Support

BEC (if any)

5V/4A,6V/4A,7.2V/4A,8.2V/4A,12V/3A adjustable

Application scenarios

FPV racing drones, multi-axis drones, fixed-wing  UAV, model ships, climbing vehicles, model cars, etc.

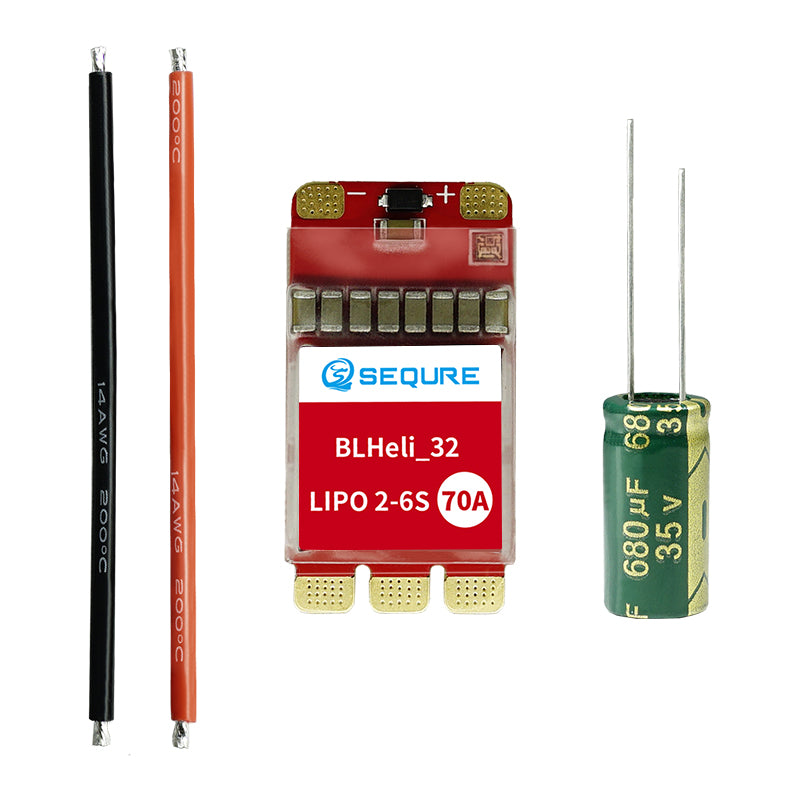

2670(BLHeli_32) Package included:
(as image)

SEQURE SQESC 2670 Shipping Contents

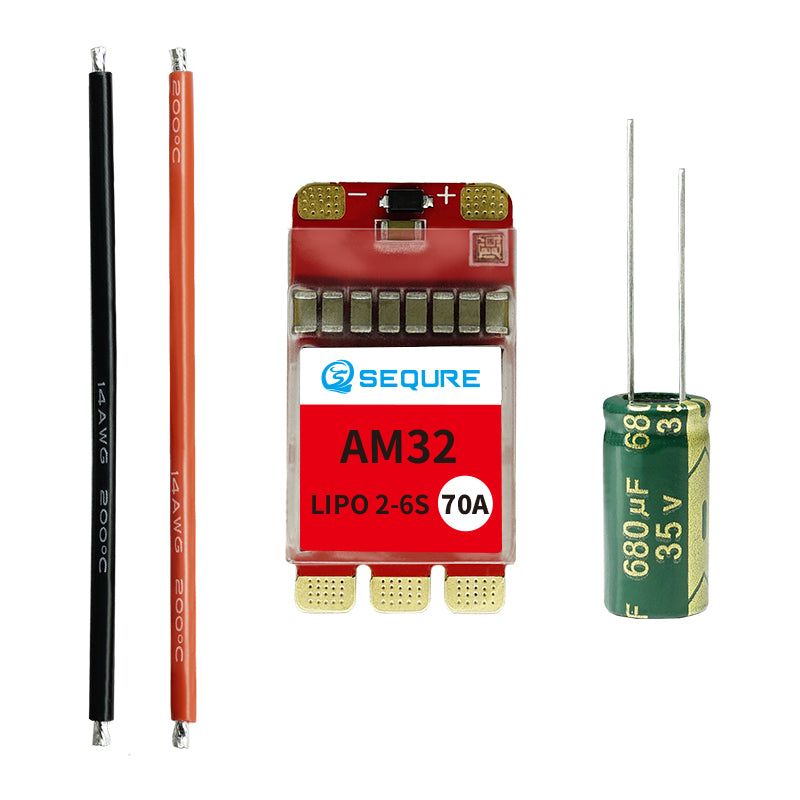

2670(AM32) Package included:
(as image)

SQESC 2670 Shipping Contents


2670(BLHeli_32)+BEC Package included:
(as image)

2670 Shipping Contents

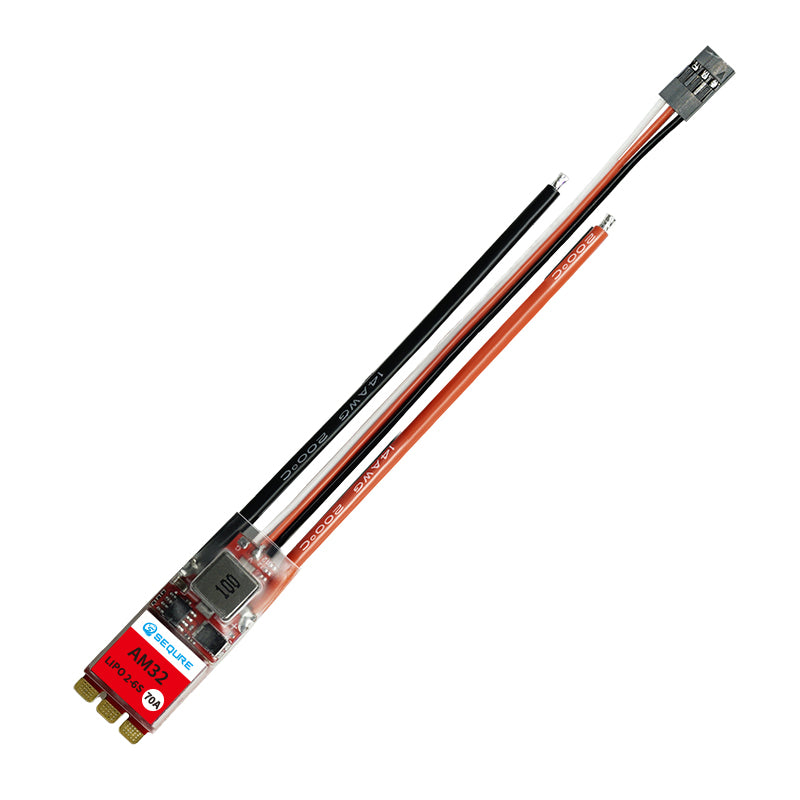

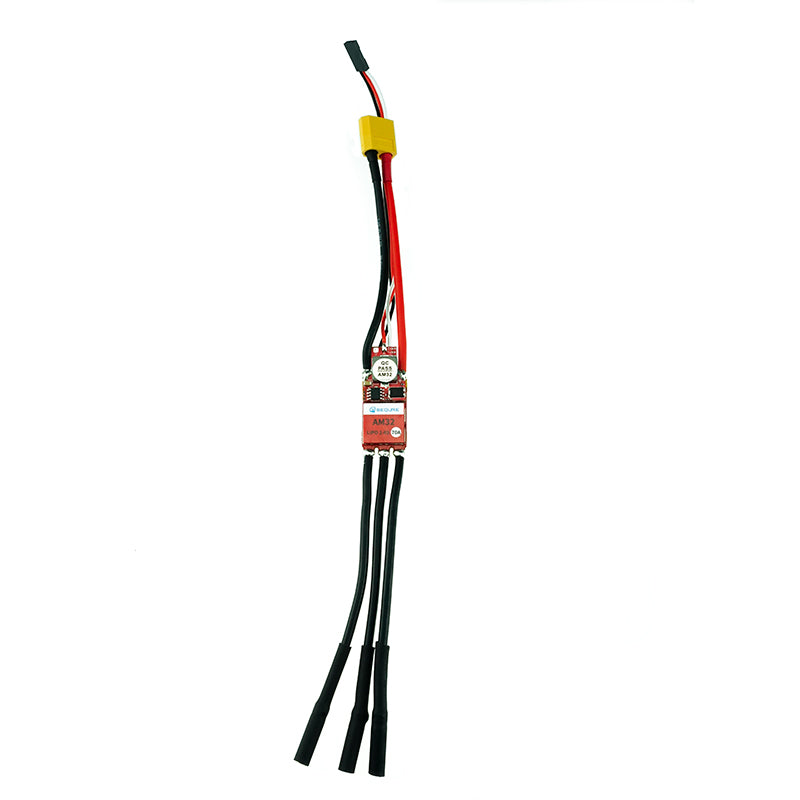

2670(AM32)+BEC Package included:
(as image)

SEQURE 2670 Shipping Contents

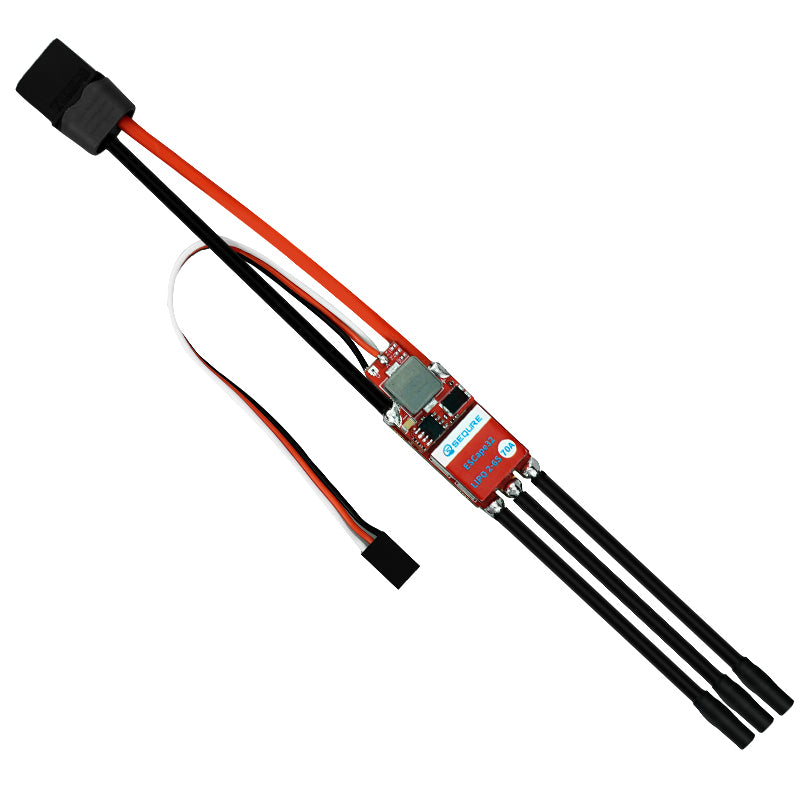

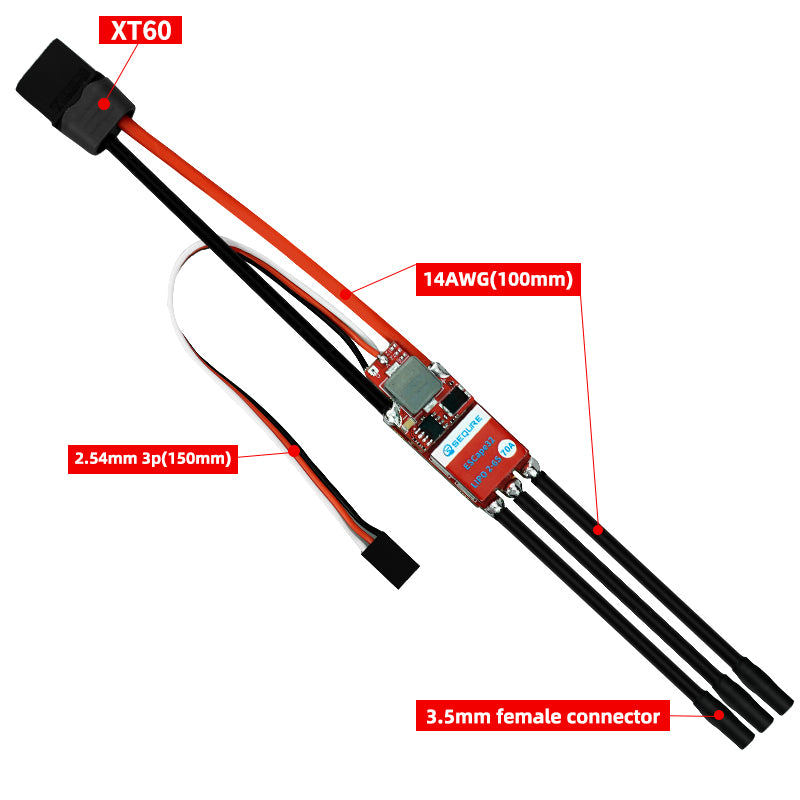

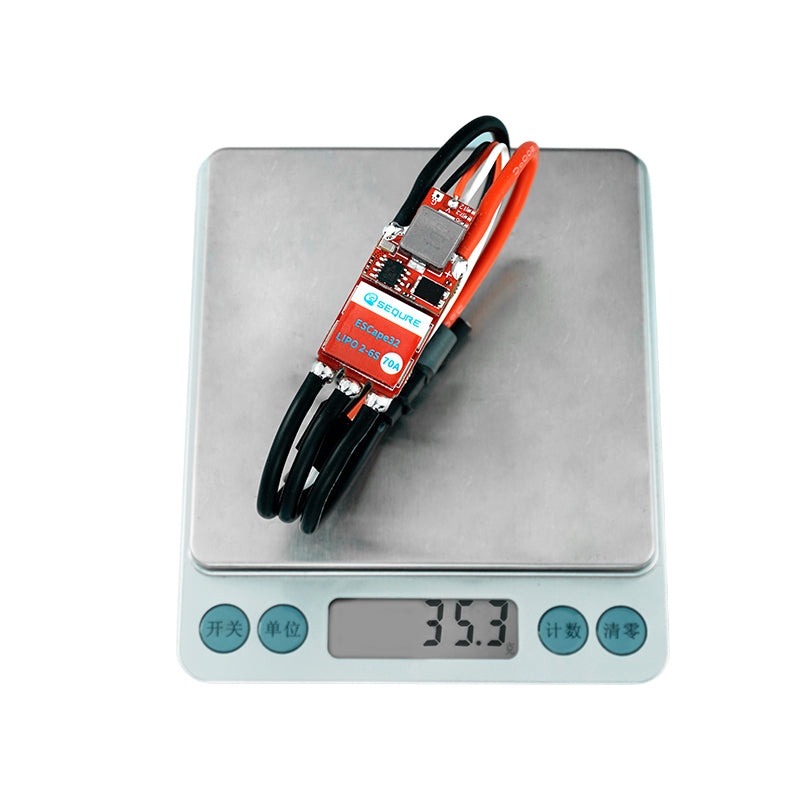

2670(ESCape32)+BEC Package included:

(as image)

SEQURE 2670 Shipping Contents

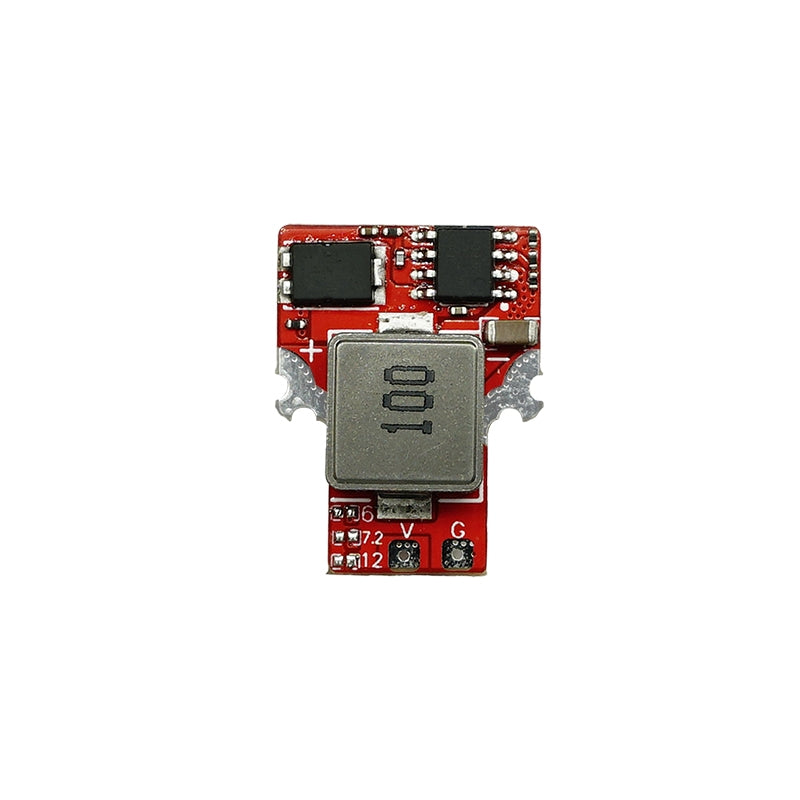

BEC(6-35V)Package included:
(as image)

BEC Shipping Contents

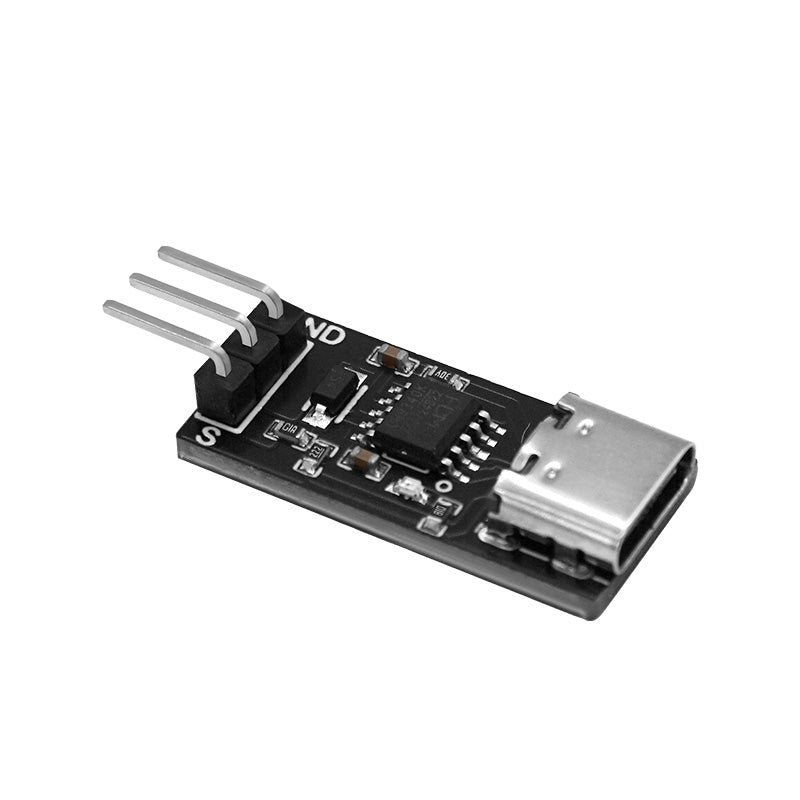

ESC-LINK Package included:
(as image)

ESC-LINK Shipping Contents

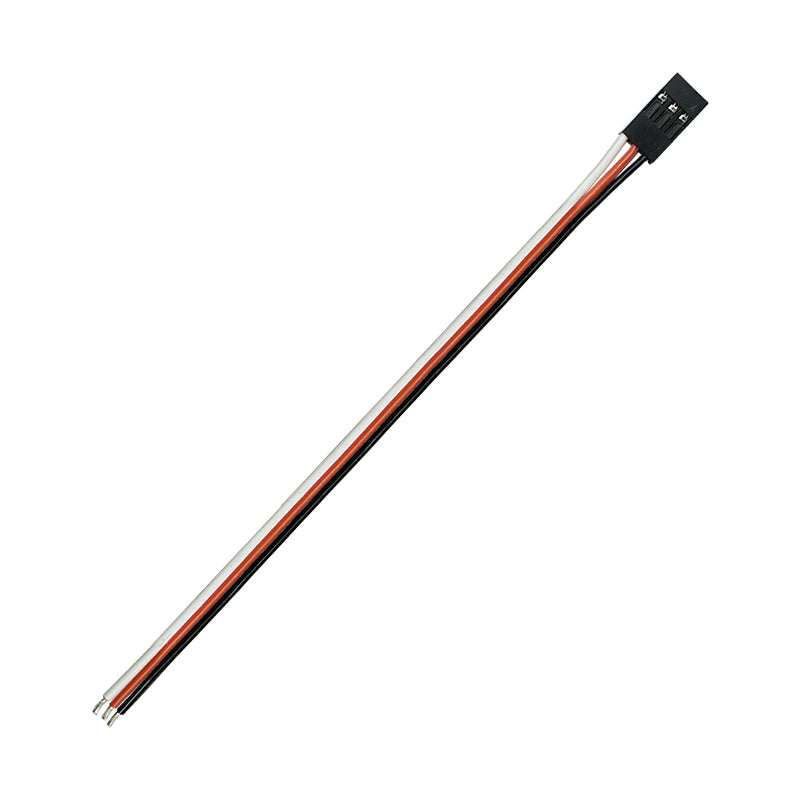

3P Cable Package included:
(as image)



3P Cable Shipping Contents

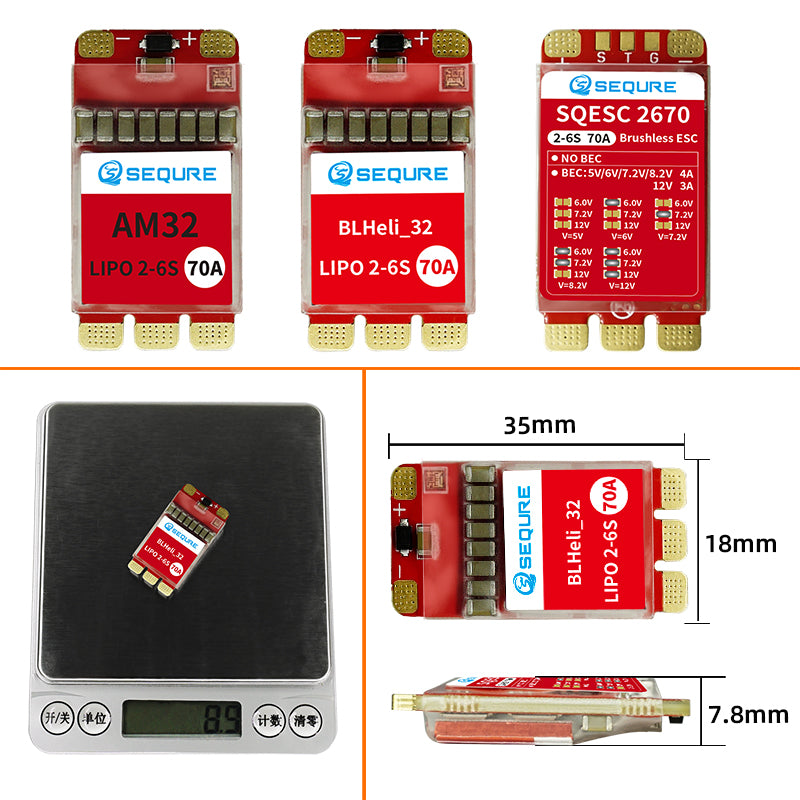

Overall Dimension

2670(BLHeli_32)/ 2670(AM32)
Product Size: 35*18*8mm
Net Weight Of Product: 9g
Package Size: 110*70*10mm
Packing Weight: 18g
Package Size (Including Outer Carton):200*110*40mm
Packing Weight (Including Outer Carton):62g

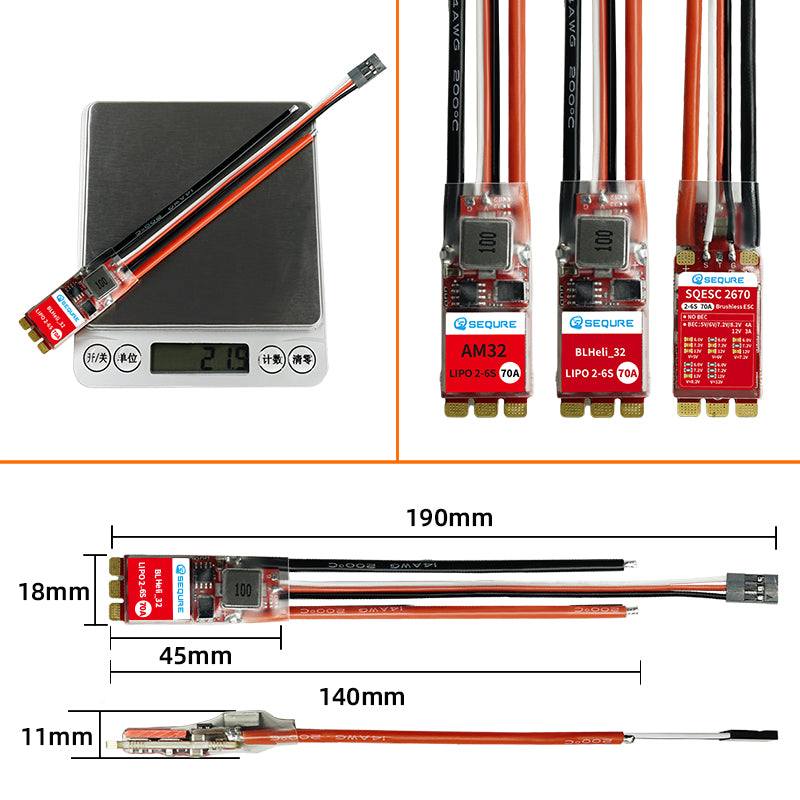

2670(BLHeli_32)+ BEC / 2670(AM32)+ BEC
Product Size: 190*18*11mm
Net Weight Of Product: 22g
Package Size: 150*100*12mm
Packing Weight: 24g
Package Size (Including Outer Carton):200*110*40mm
Packing Weight (Including Outer Carton):68g

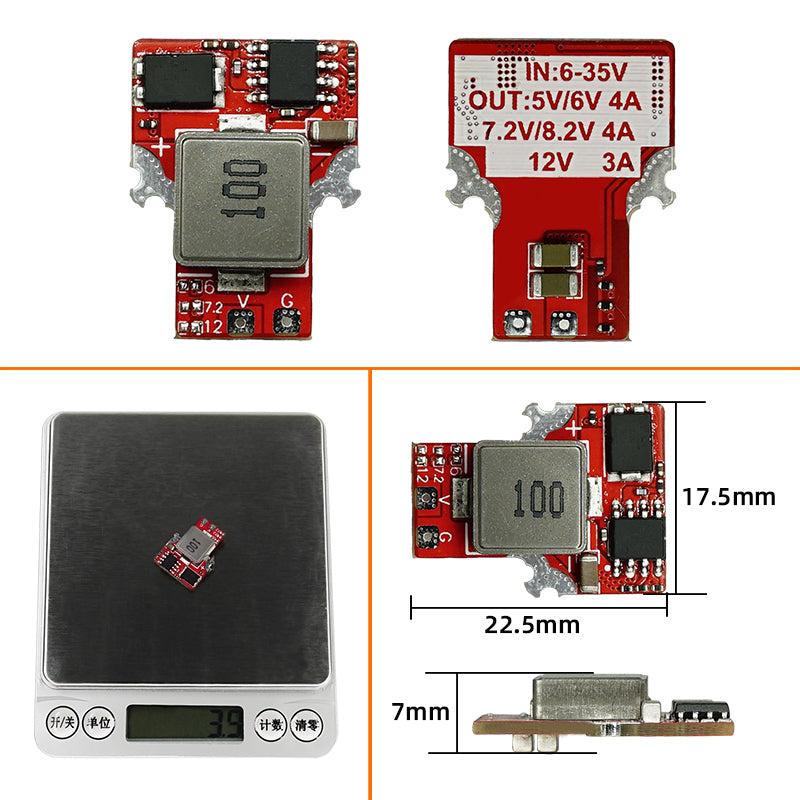

BEC(6-35V)
Product Size: 23*18*7mm
Net Weight Of Product: 4g
Package Size: 80*70*8mm
Packing Weight: 5g
Package Size (Including Outer Carton):200*110*40mm
Packing Weight (Including Outer Carton):49g

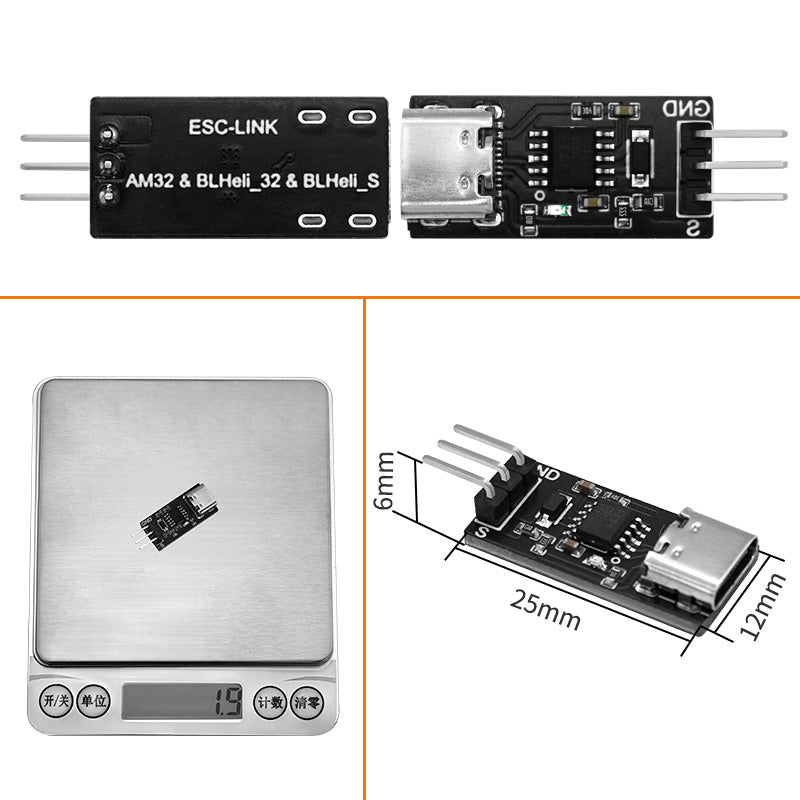

ESC-LINK
Product Size: 25*12*10mm
Net Weight Of Product: 2g
Package Size: 80*70*11mm
Packing Weight: 3g
Package Size (Including Outer Carton):200*110*40mm
Packing Weight (Including Outer Carton):47g

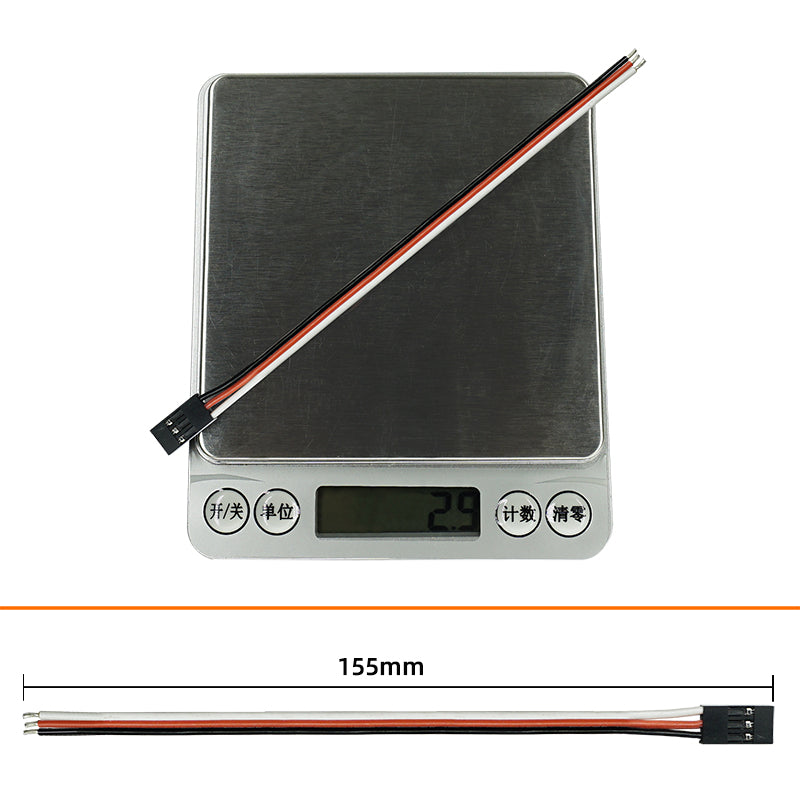

3P Cable
Product Size: 155mm
Net Weight Of Product: 3g
Package Size: 110*70*8mm
Packing Weight: 4g
Package Size (Including Outer Carton):200*110*40mm
Packing Weight (Including Outer Carton):48g

 SEQURE 2670 Brushless ESC
