SQ-SW2 Mini Portable Rechargeable Spot Welding Machine LCD Color Screen Display DIY Battery Pack Welding

SKU: SW00200US

$84.00

Shipping calculated at checkout.

Style US standard EU standard

Out of stock

Quantity

Share this product

The SW2 is currently discontinued. If you're interested in purchasing a spot welder, we recommend you check out the SW3: https://sequremall.com/products/sequre-sw3-energy-storage-spotwelder-lithium-battery-spotwelding

SEQURE SQ-SW3 Capacitor Energy Storage Spot Welder

Parameters of Product:

Model: SQ-SW3 Screen Size: 1.8-inch color high-definition LCD

Trigger Mode: Automatic mode / Manual mode Output Voltage: 5.6V（Max）

Output Current: 2500A(Max) Nickel Plating Thickness: ≤0.5mm

Pure Nickel Thickness: ≤0.3mm

Copper Sheet Thickness: ≤0.2mm

Charging Method: AC, DC, fast charging, slow charging, battery charging

XT60IE-M: Charging (5.6V 15A Max)

Type-C: Firmware upgrade, charging (PD3.0, DC 25V Max)

5525: Charging (DC 25V Max, battery 6S Max)

Foot: 3.5mm AUX（4 Feet）

Product Size: 223*133*68mm(L*W*H)

Regarding the EU VAT:
Sequre will prepay the VAT to logistics companies for common products. So recipients don't need to pay the VAT.
However, the batteries and SW2 are pure batteries, which are shipped by other logistics channels. Sequre cannot prepay the VAT when using that channel, so the recipients need to pay the VAT.

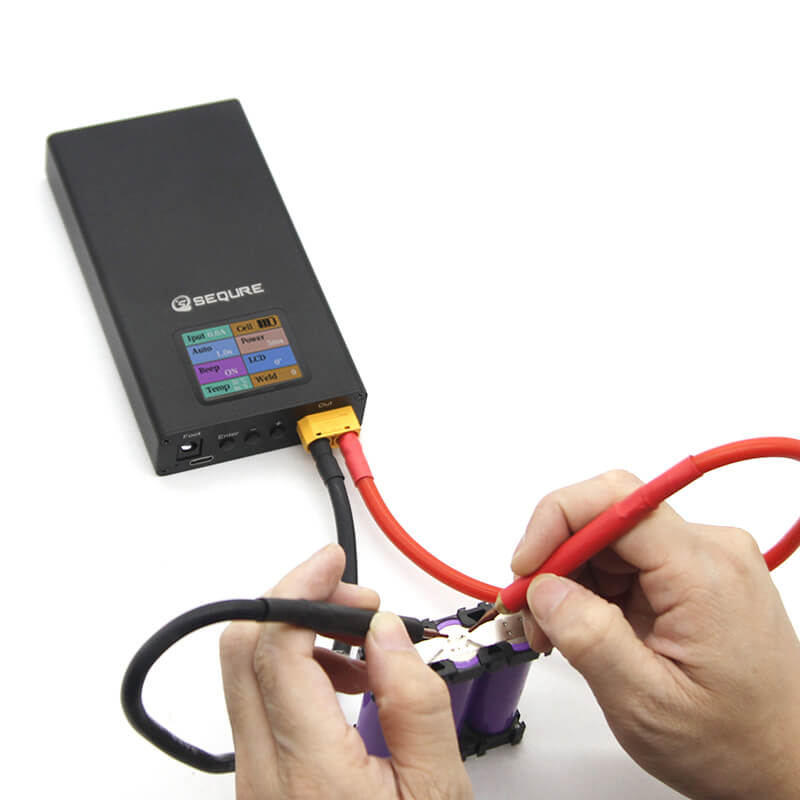

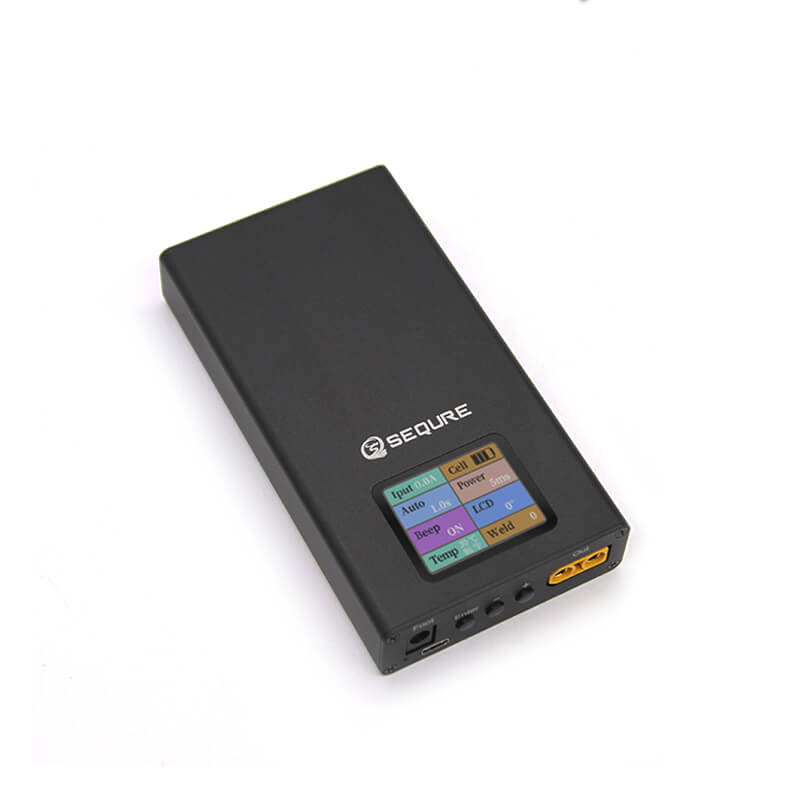

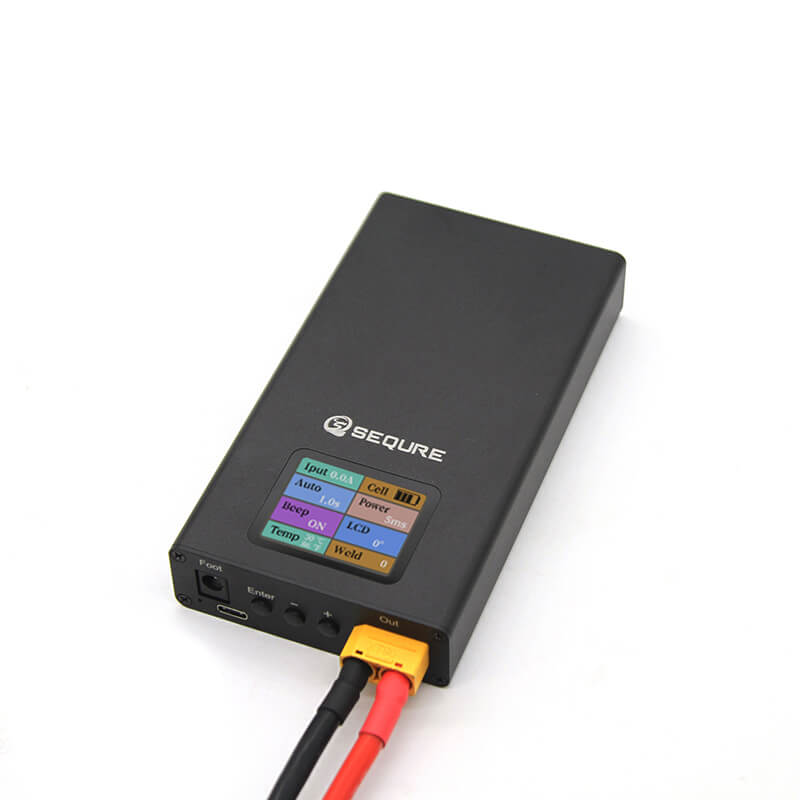

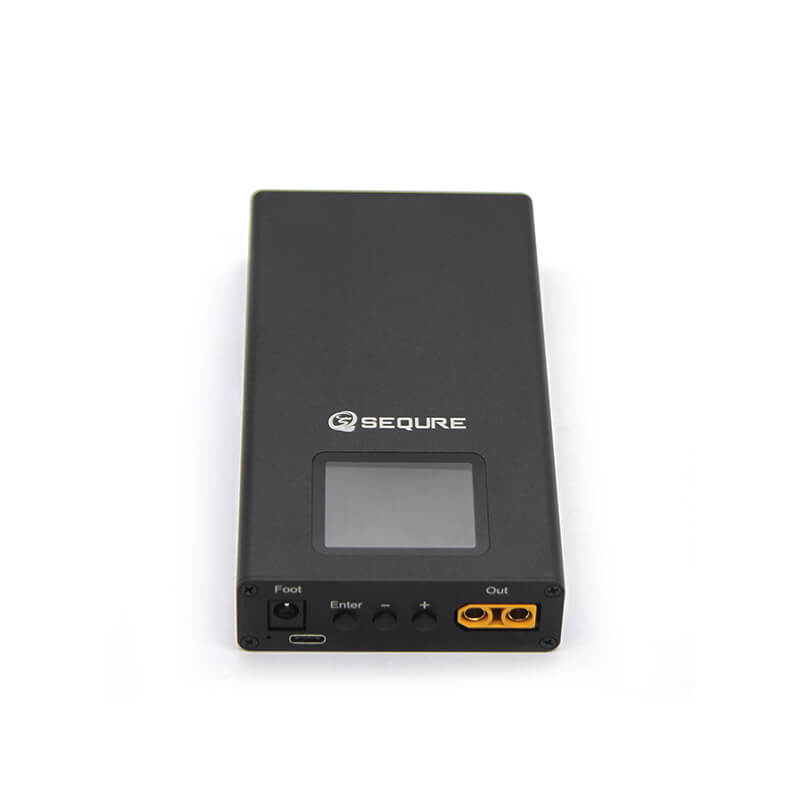

The SQ-SW2 spot welder has a 1.8-inch LCD color screen display, supports automatic/manual working mode, with functions of low battery charge reminder, real-time circuit board temperature monitoring and high-temperature reminder, screen display flip, welding spot count, automatic shutdown, firmware upgrade, etc.

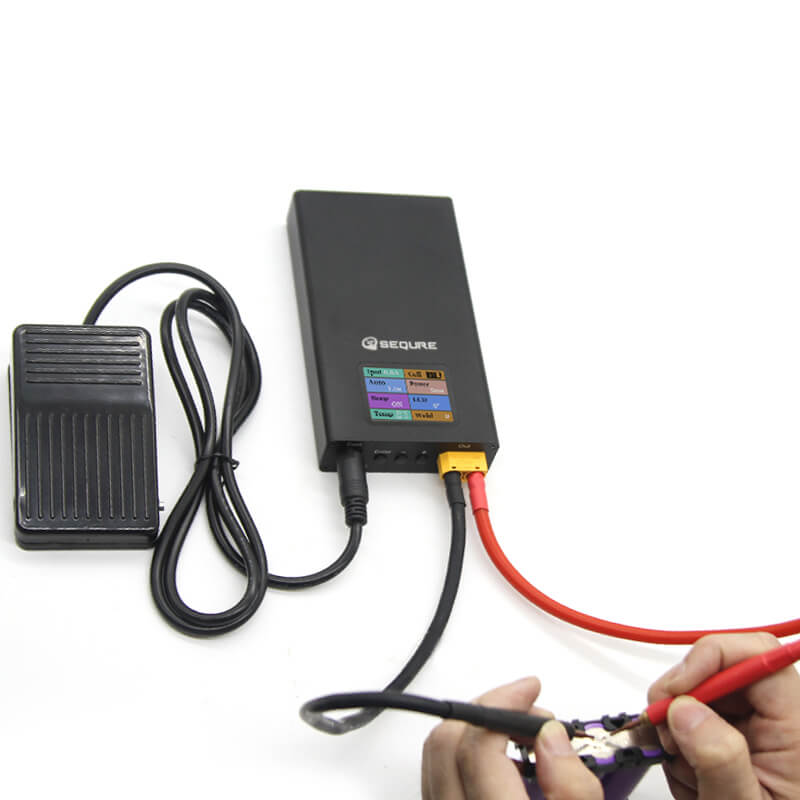

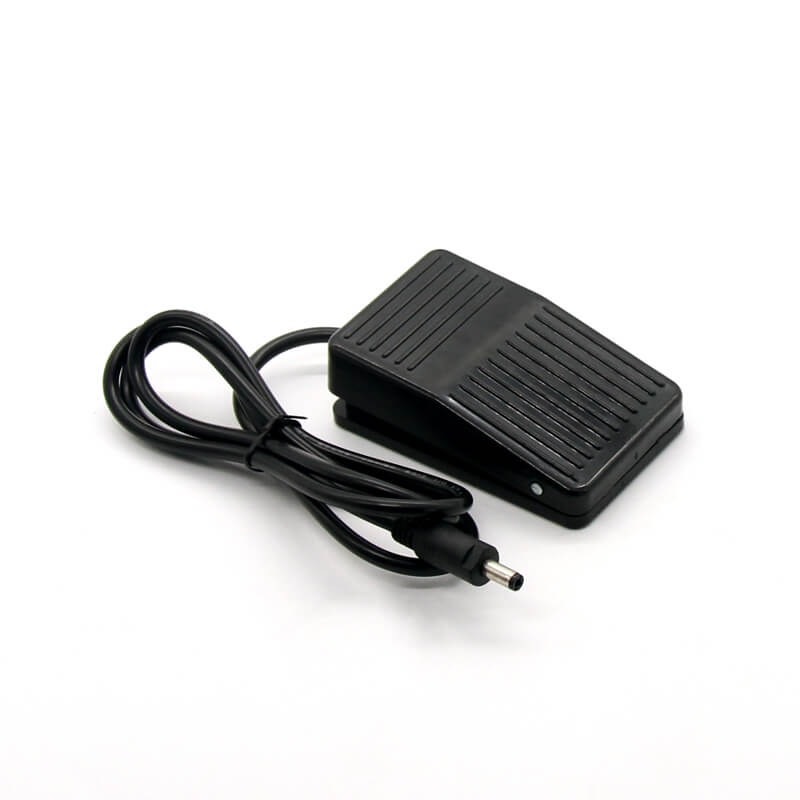

>>>Foot Pedal Switch<<<

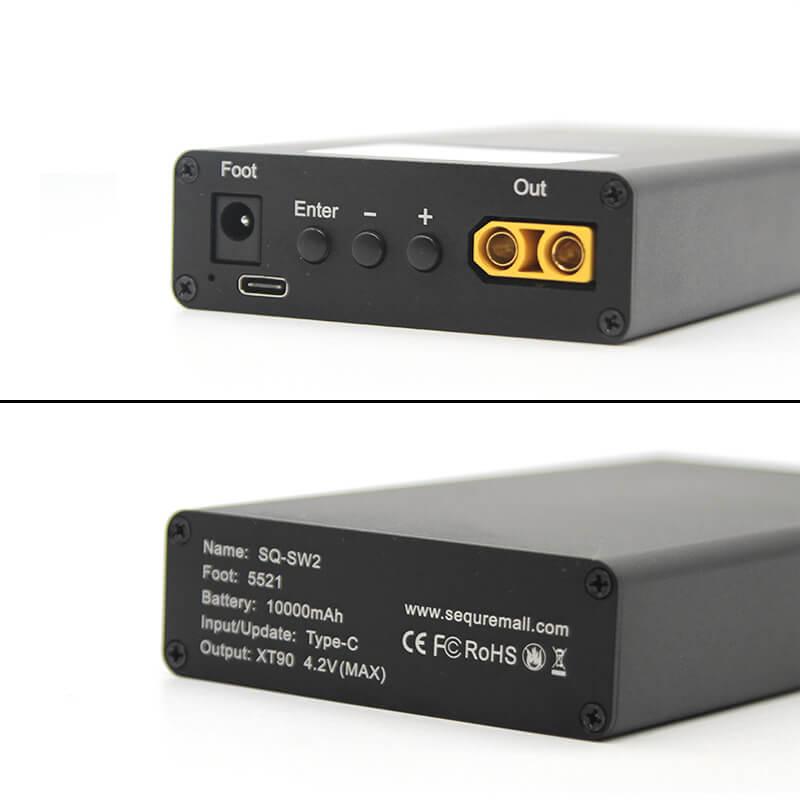

Technical Parameters
Recommended nickel strip thickness: 0.1-0.2mm nickel plated, 0.1-0.15mm pure nickel
Menu display: 1.8 inch color LCD
Working mode: automatic/manual
Built-in battery: 10000mAh
Shell material: aluminum alloy
Thickness of soldering pen wire: 8AWG
Cycle charging: support
Protection reminder: support
Firmware upgrade: support
Automatic shutdown: support
Power display: support
Temperature detection: support
