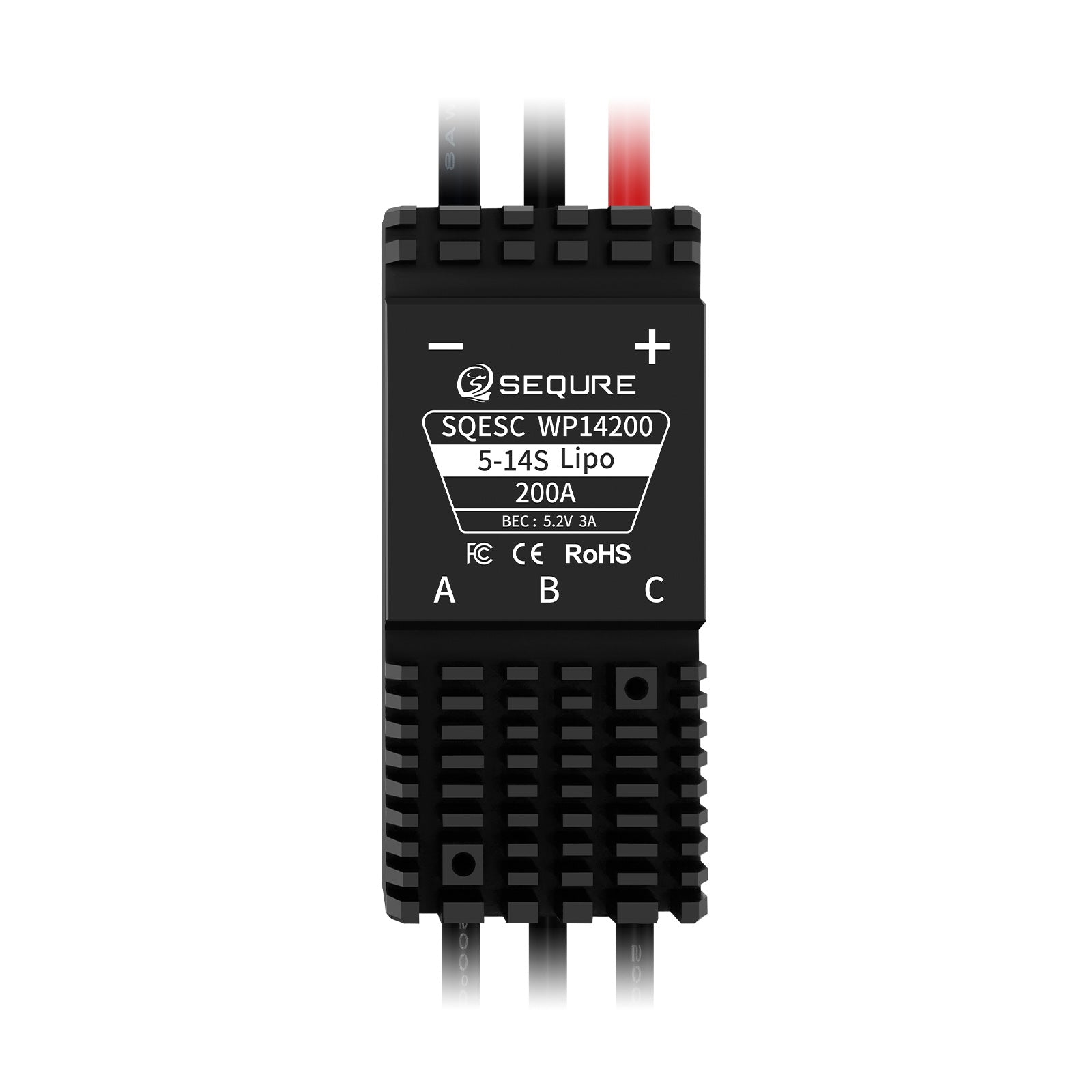

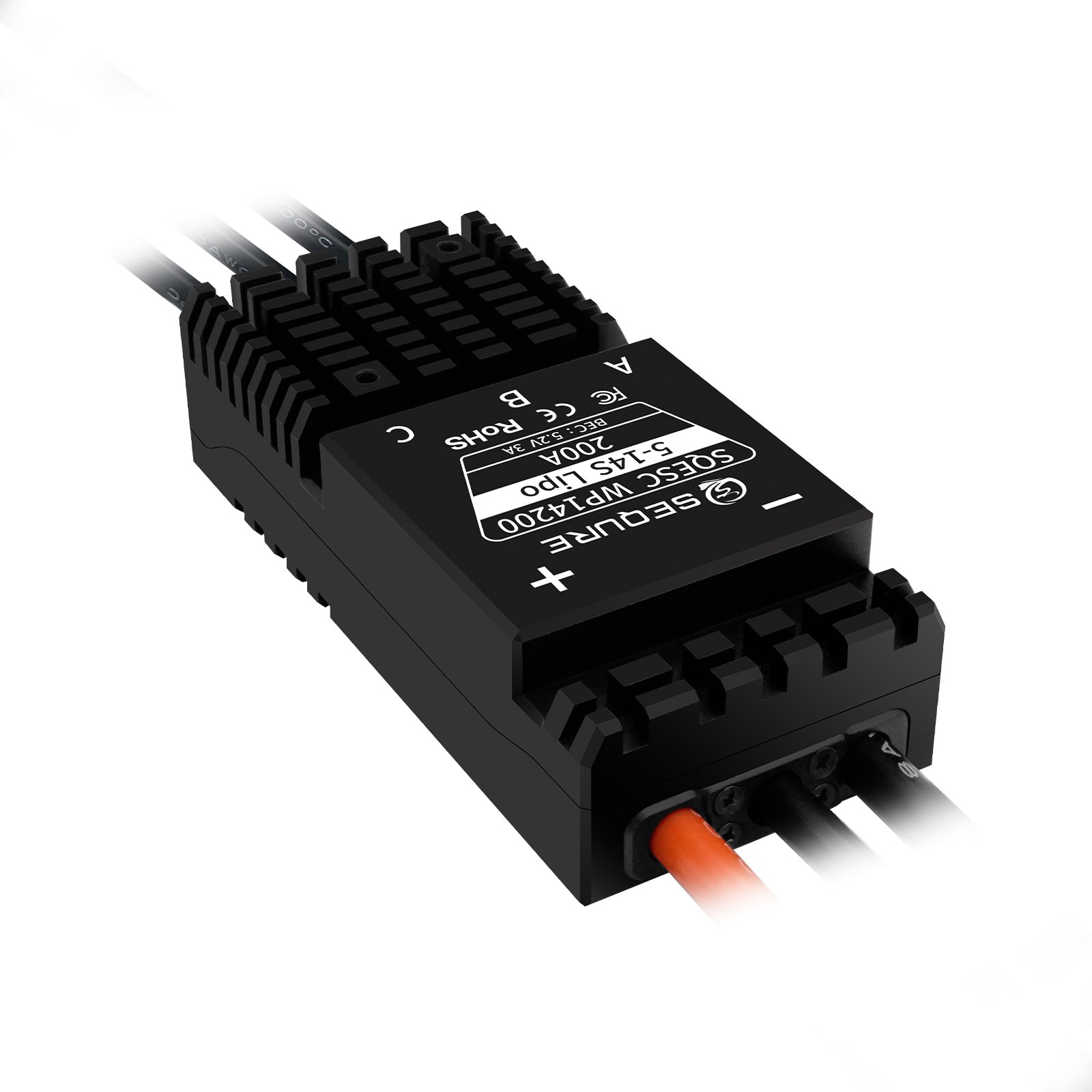

SEQURE WP14200 200A 5-14S IP68 Waterproof Brushless ESC for eFoil/Surfboard/RC Models
If you need WiFi-Link/ESC-Link parameter configuration tool, you can buy it through this link: https://bit.ly/4jvXvmn
Product Description:
(1) IP68 waterproof ESC, with deep sealing design, can work completely underwater.
(2) Featuring a high-performance 32-bit processor, high-power MOSFET, and a metal aluminum heat sink, it delivers enhanced performance and stability.
(3) With a built-in BEC of 5.2V 3A continuous output, it can directly power receivers, servos, and other external devices, making applications more flexible and extensive.
(4) It uses 8AWG power cord to steadily carry large current, and 10AWG motor wire for efficient transmission, ensuring continuous power output.
(5) Supports multiple operating modes, such as one-way, two-way, and brakes, to meet the needs of different scenarios.
(6) Supports multiple protections such as low voltage protection, over temperature protection, locked rotor protection, and current protection.
(7) A return function supports detecting voltage, current, speed, temperature, and other data in real time.
(8) Visual programming parameter adjustment tool supports motor timing, throttle calibration, current detection, motor steering, telemetry signal and other settings.
(9) The ESC automatically detects the throttle signal when it is powered on, supports all Dshot signals, and also supports signal protocols such as PWM, Oneshot and Multishot.
(10) Two fixing methods, cable ties and screws, are reserved for easy installation.
(11) Widely used in multi-axis drones, fixed-wing aircraft models, agricultural drones, helicopters, multi-rotor drones, climbing vehicles, off-road model cars, model boats, electric surfboards, underwater thrusters, water sport products, etc.
Parameters of Product：
|
Model |
SQESC WP14200 |
|
Processor |
STM32G071 |
|
Input Voltage |
DC 18V-59V(5-14S Lipo) |
|
Continuous Current (Good Heat Dissipation) |
200A |
|
Maximum current (Good Heat Dissipation) |
350A |
|
Support Firmware |
BLHeli_32，AM32，ESCape32 |
|
Signal Protocol |
Dshot(all), PWM, Oneshot, Multishot, etc |
|
RPM Signal Line |
BLHeli_32(NO), AM32(YES), ESCape32(YES) |
|
Waterproof Level |
IP68 Waterproof |
|
Programming Parameter Adjustment |
Support |
|
Throttle Calibration |
Support |
|
Timing Angle Setting |
Support |
|
Current Detection |
Support |
|
Telemetry Signal |
Support |
|
Motor Steering Settings |
Support |
|
BEC |
5.2V 3A Continuous(Other voltages can be customized) |
|
Cable Specification |

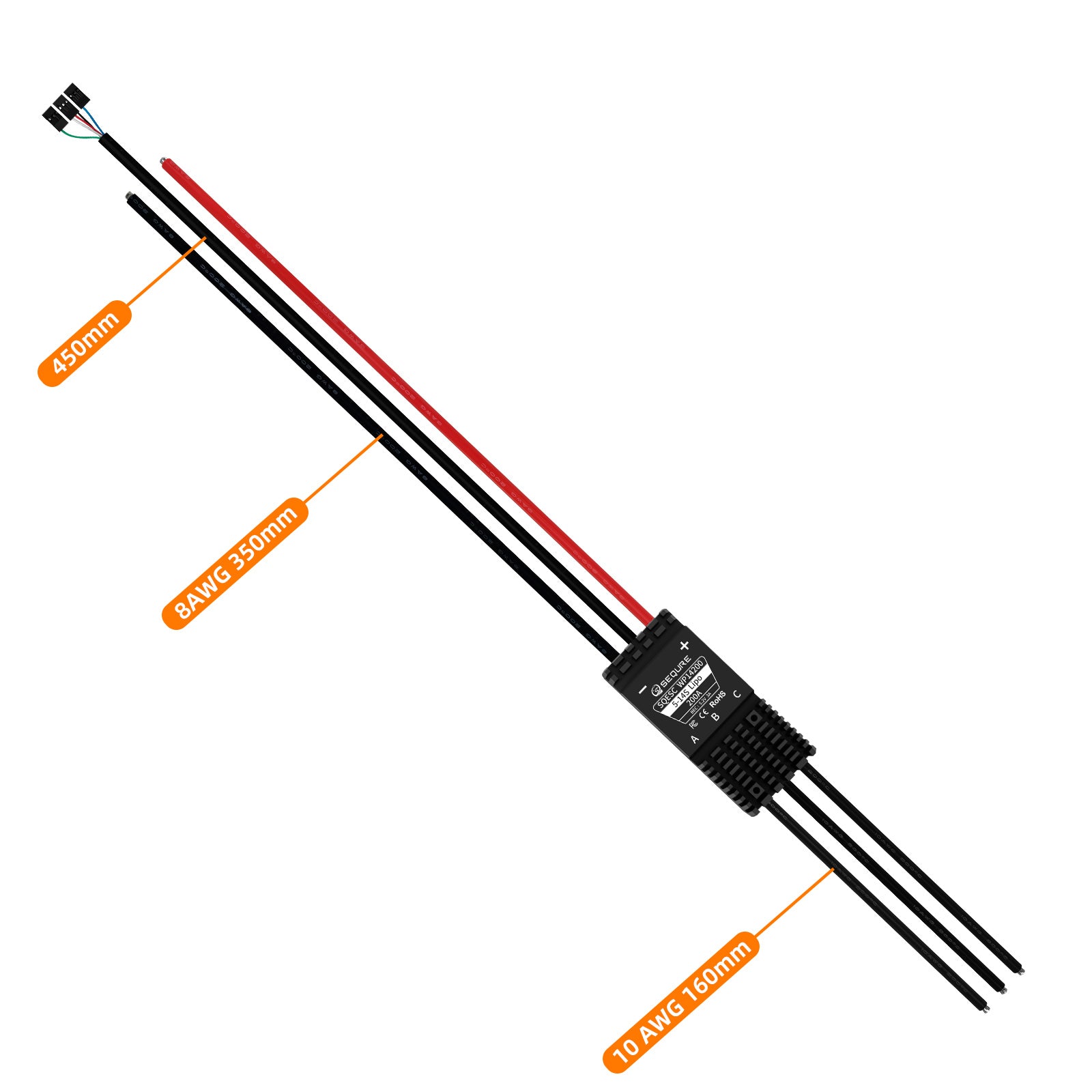

WP14200 A: Power cable(8AWG silicone wire 350mm), Motor cable(10AWG silicone wire 160mm), Signal cable(5-core 450mm) |
|
Product Size |

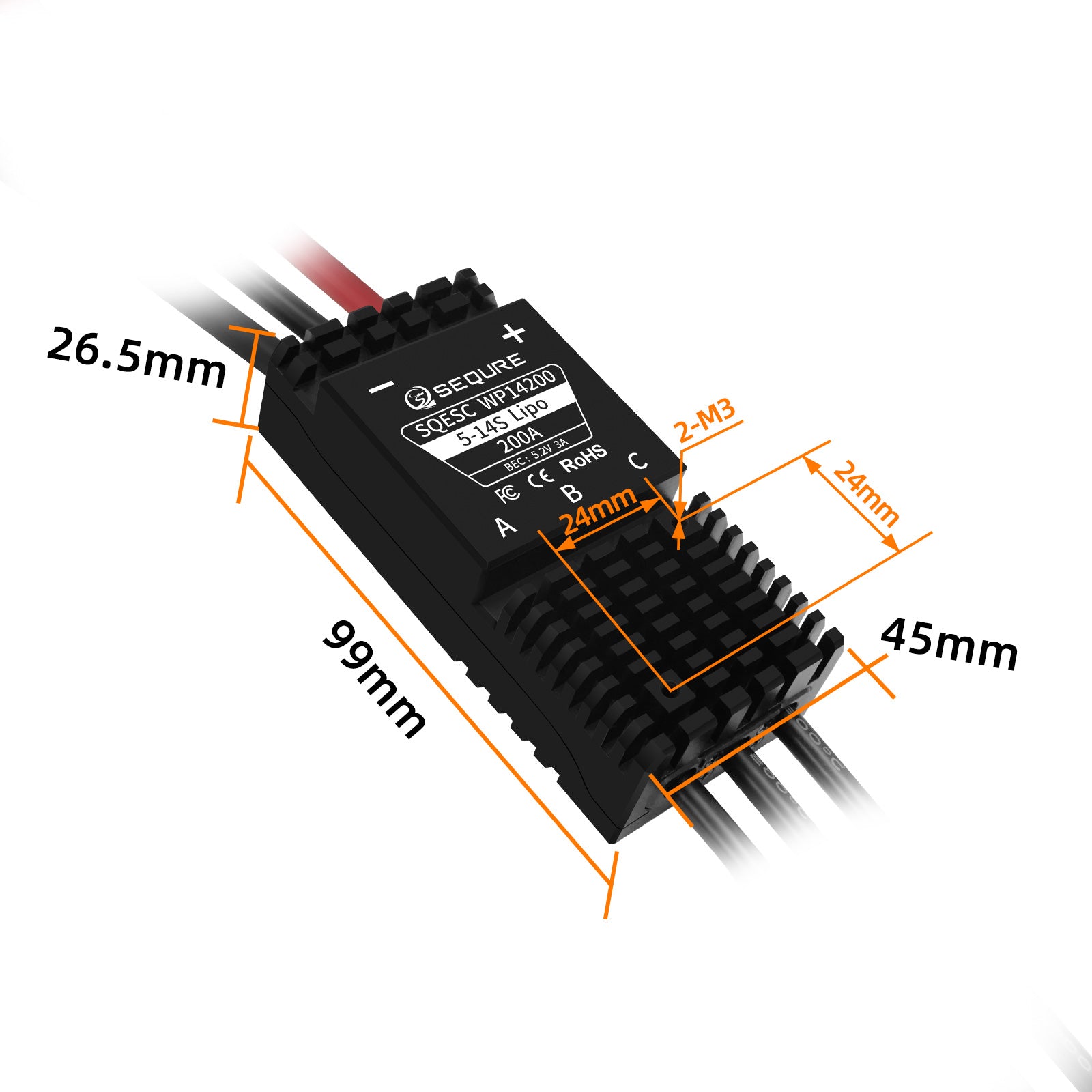

99*45*26.5mm (L*W*H，excluding wire) |
|
Product Weight |
WP14200 A: 365g(including wire) |
|
Application Scenarios |
Multi-axis drones, Fixed-wing aircraft models, Agricultural drones, Helicopters, Multi-rotor drones, Climbing vehicles, Off-road model cars, Model boats, Electric surfboards, Underwater thrusters, Kayak SUP board, Jetboards, Water sport products, etc. |

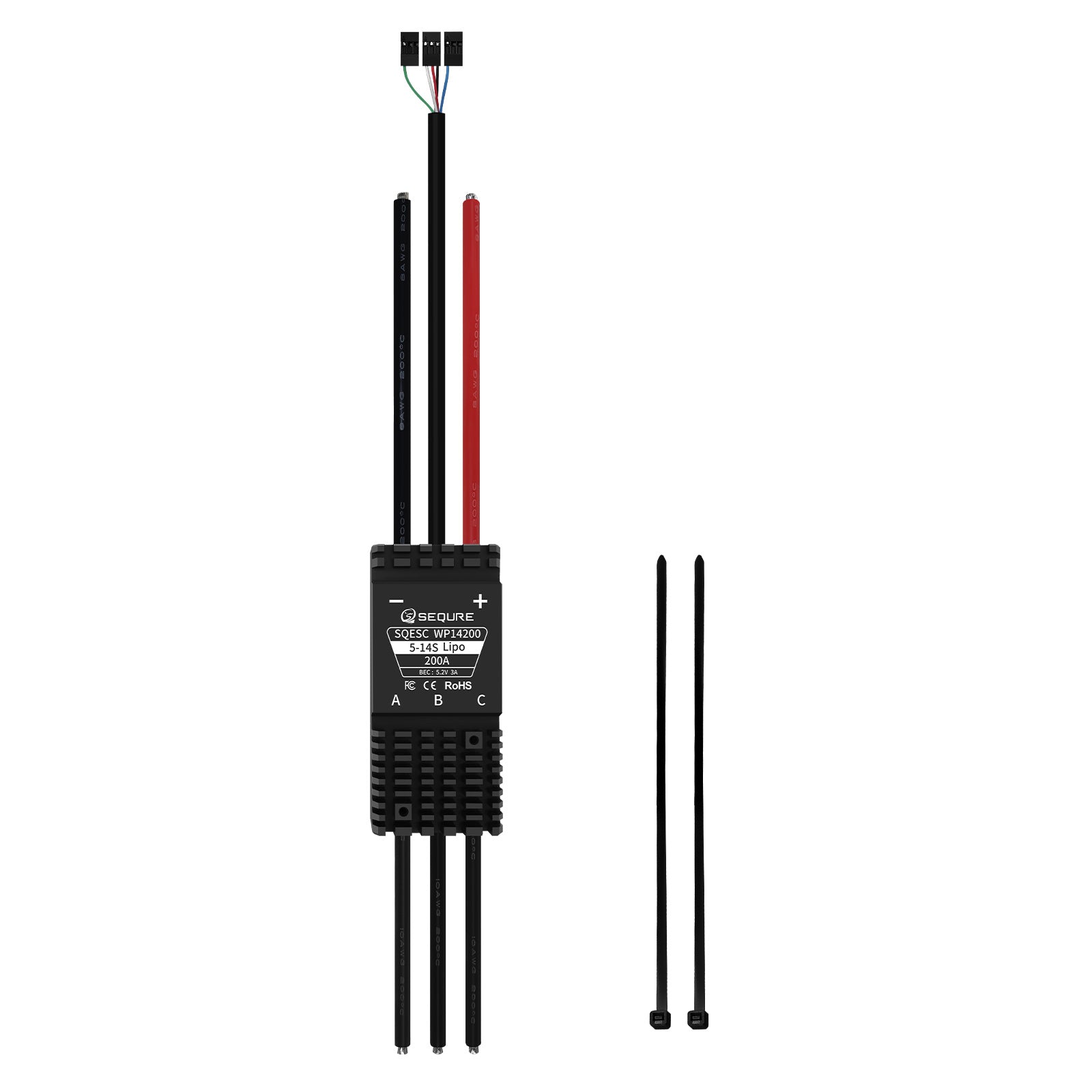

WP14200 A/B/C Package included:
WP14200 ESC×1
250mm Black Tie Straps×2
Mounting Plate 1/2 Package included:
Mounting Plate Only – ESC Not Included
Overall Dimension：
WP14200 A（AM32）/WP14200 A（ESCape32）/ WP14200 A（BLHeli_32）,Optional
(1) Product Size:/

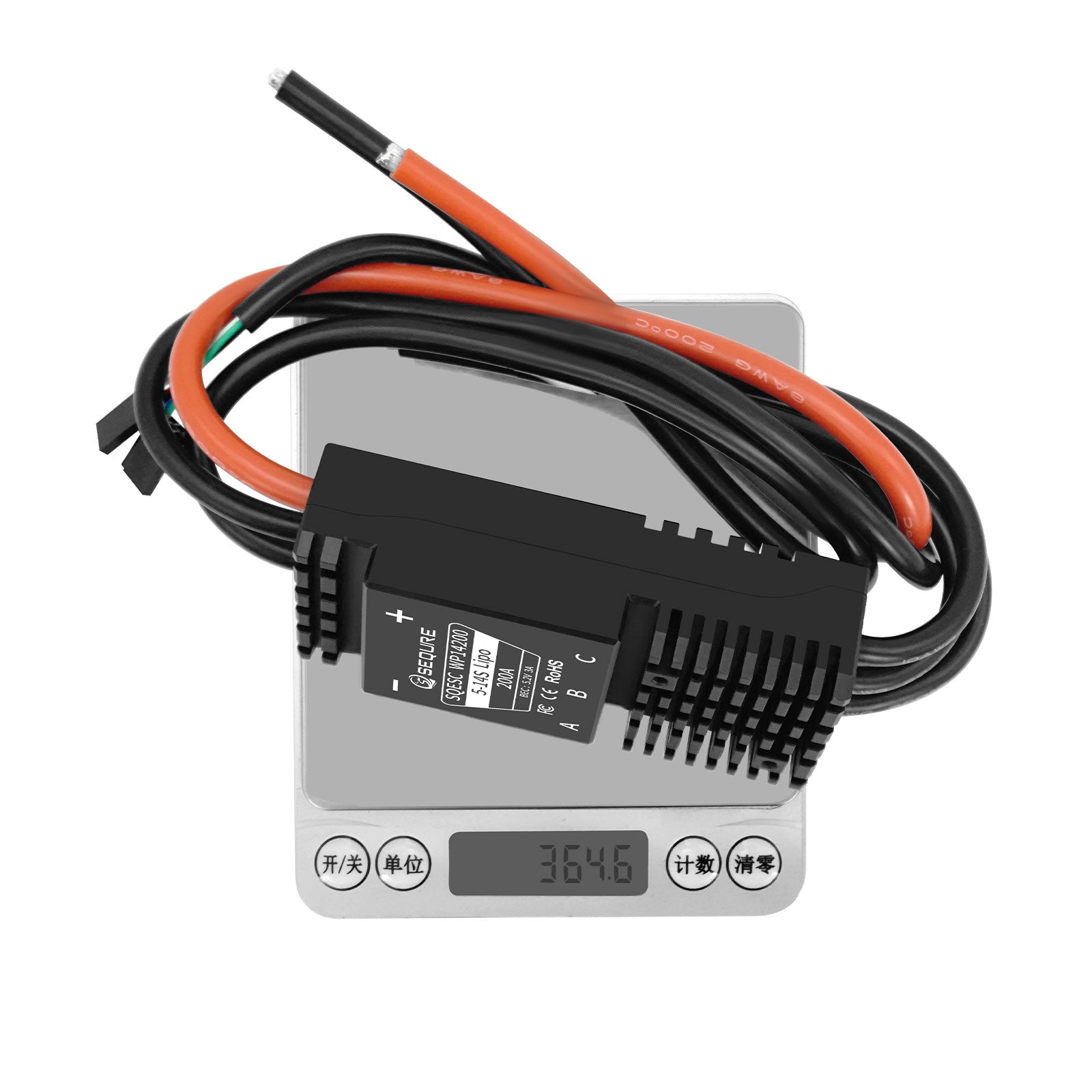

Net Weight Of Product: 365g
(2) Package Size: 200*130*60mm
Packing Weight: 375g
(3) Package Size (Including Outer Carton)：205*135*65mm
Packing Weight (Including Outer Carton)：445g

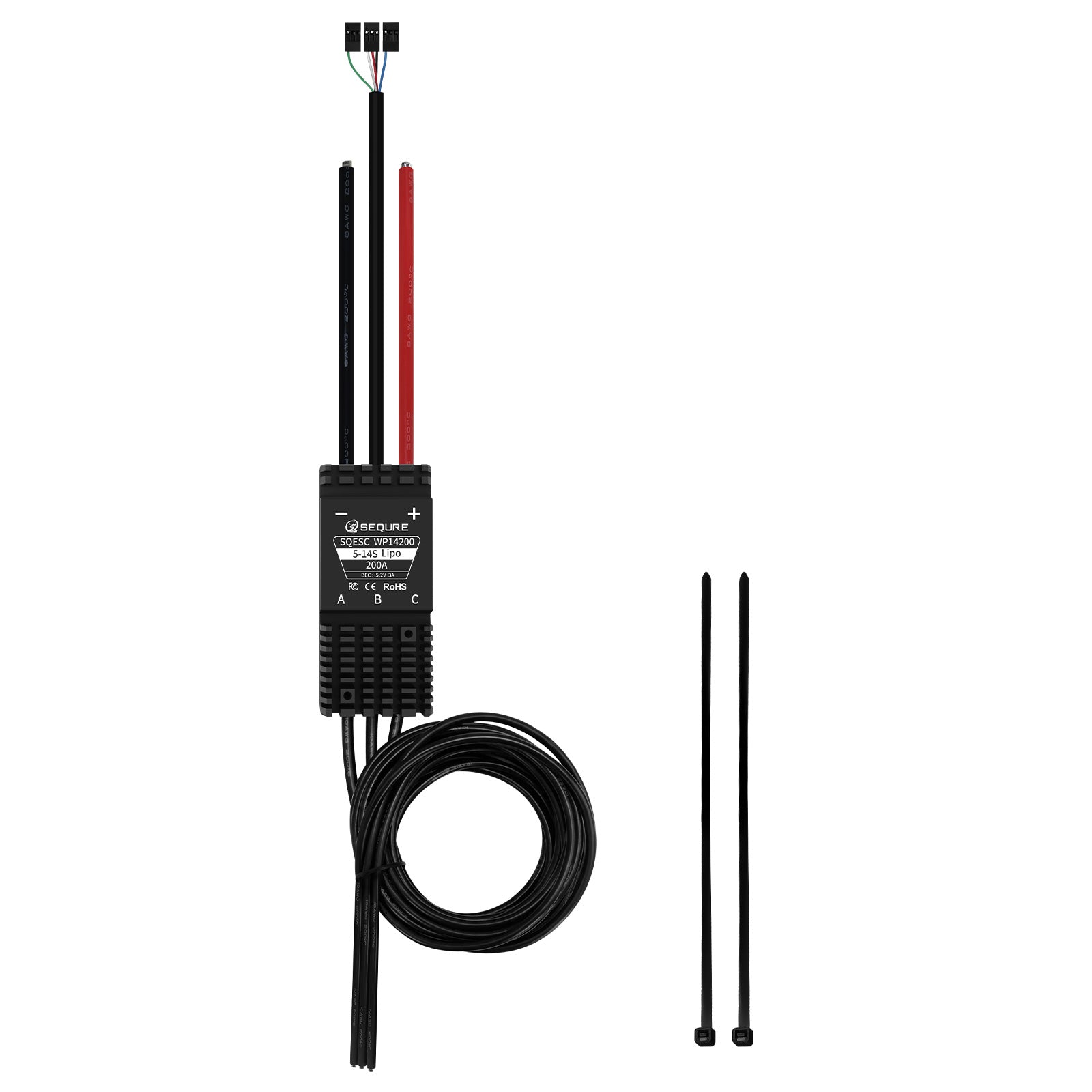

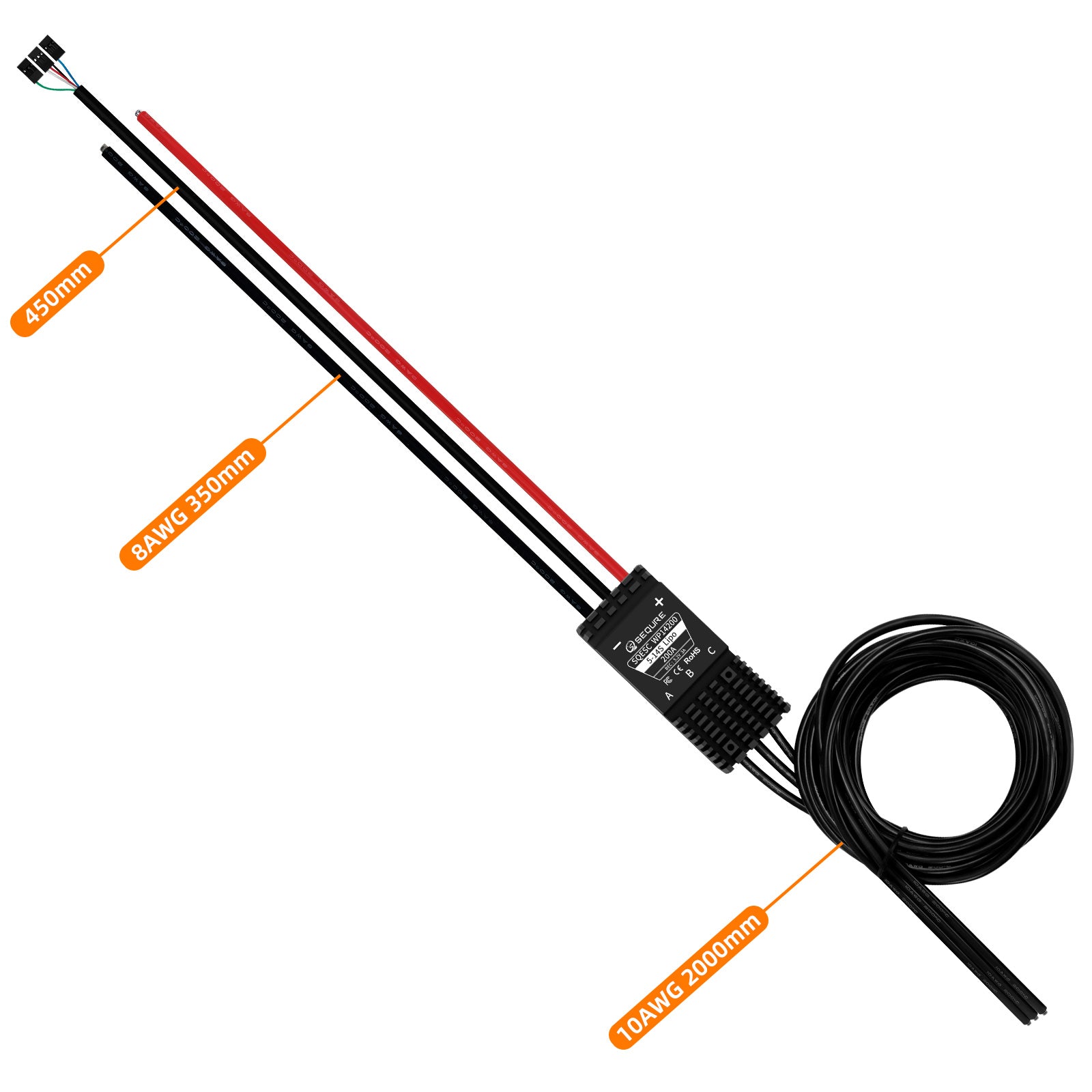

WP14200 B（AM32）/WP14200 B（ESCape32）/ WP14200 B（BLHeli_32）,Optional
(1) Product Size: /

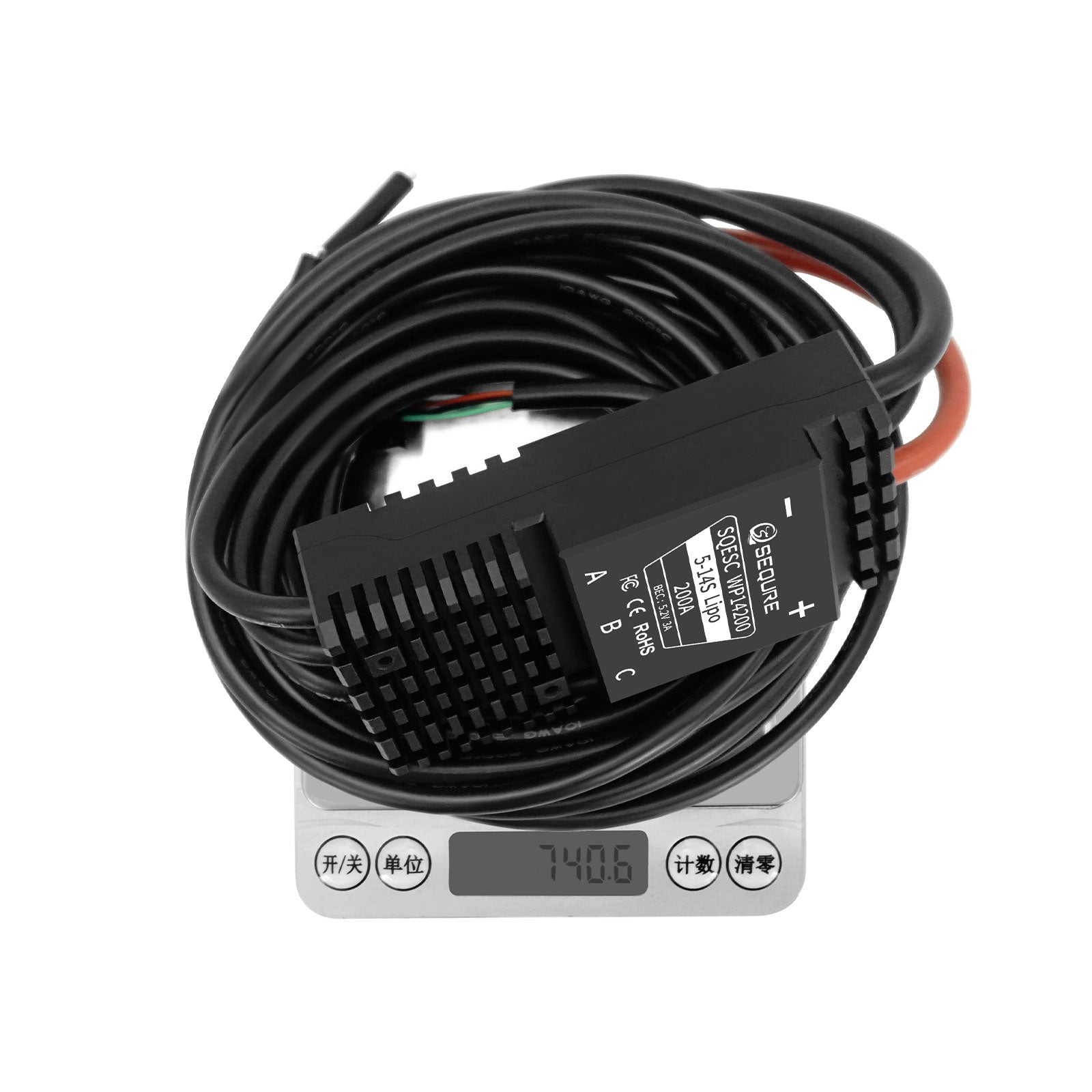

Net Weight Of Product: 740g
(2) Package Size: 230*160*45mm
Packing Weight: 754g
(3) Package Size (Including Outer Carton)：235*165*50mm
Packing Weight (Including Outer Carton)：835g

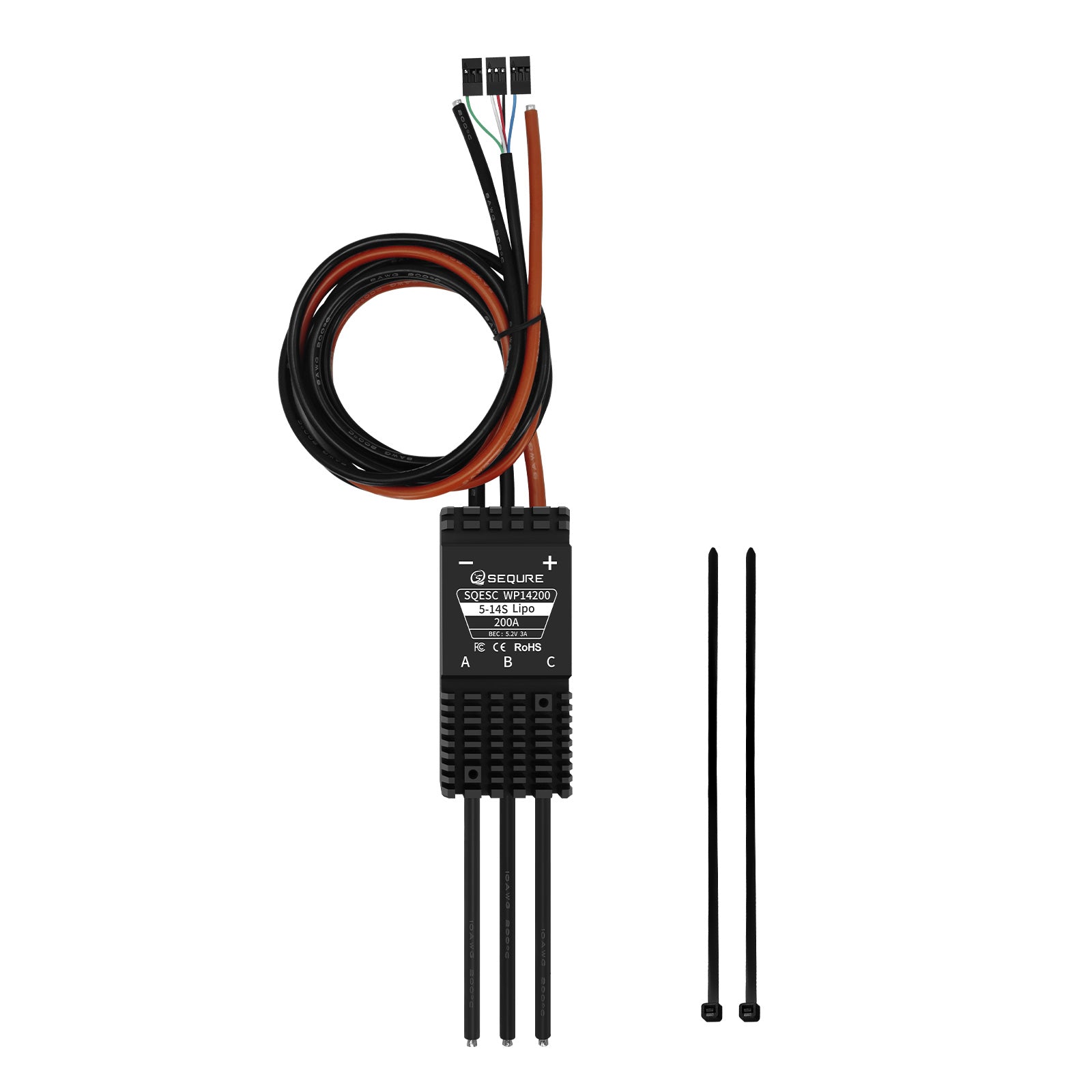

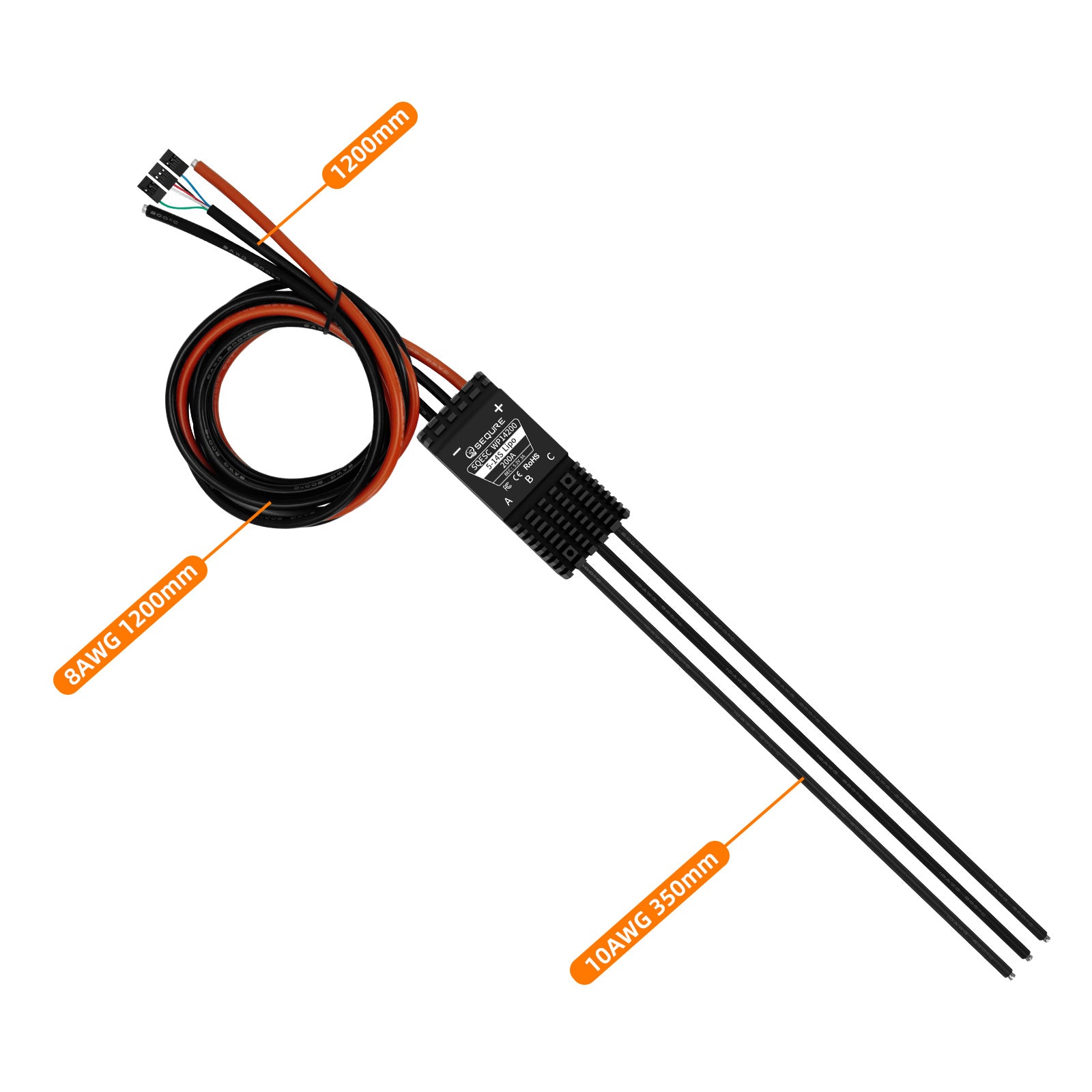

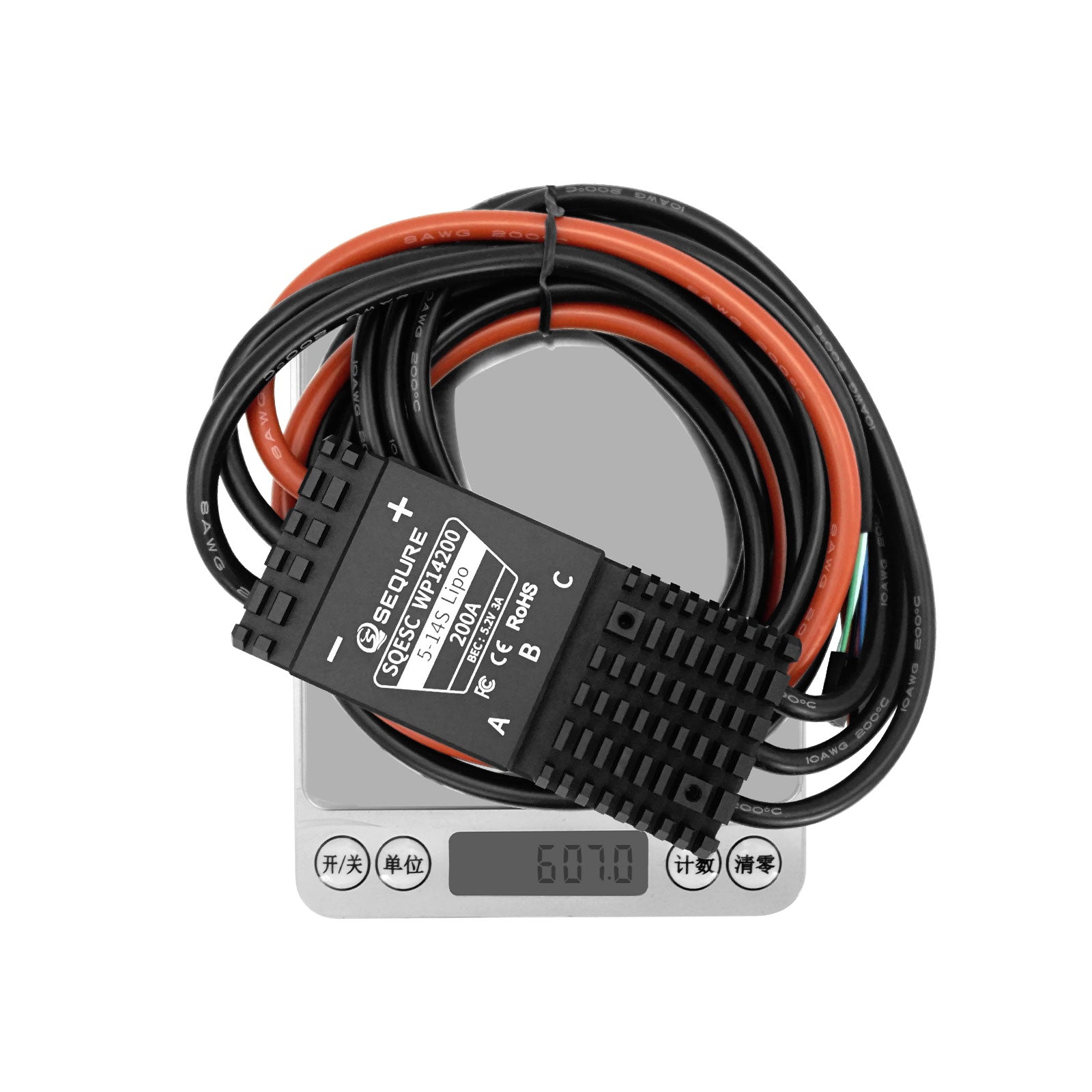

WP14200 C（AM32）/WP14200 C（ESCape32）/ WP14200 C（BLHeli_32）,Optional
(1) Product Size: /
Net Weight Of Product: 607g
(2) Package Size: 230*160*45mm
Packing Weight: 620g
(3) Package Size (Including Outer Carton)：235*165*50mm
Packing Weight (Including Outer Carton)：700g

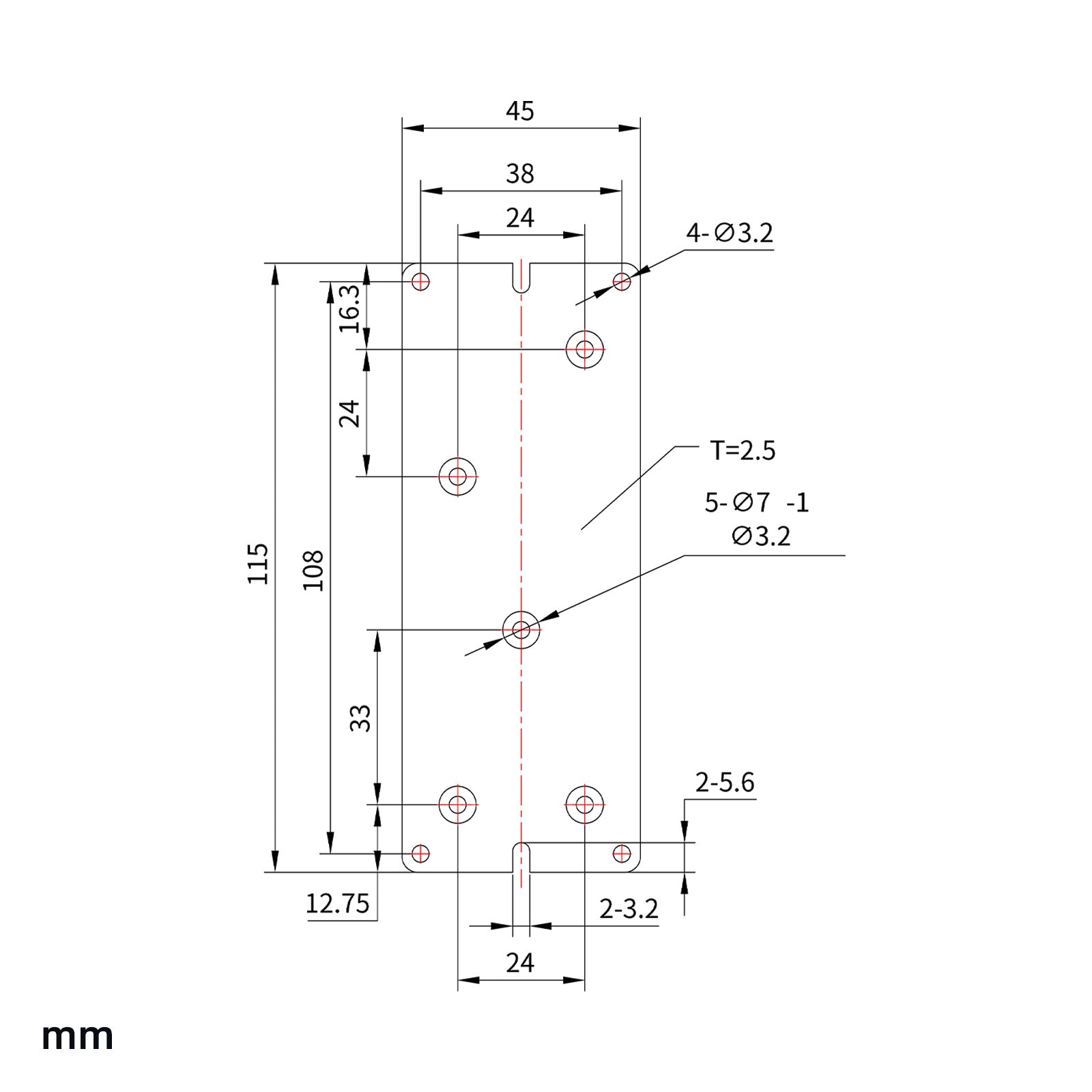

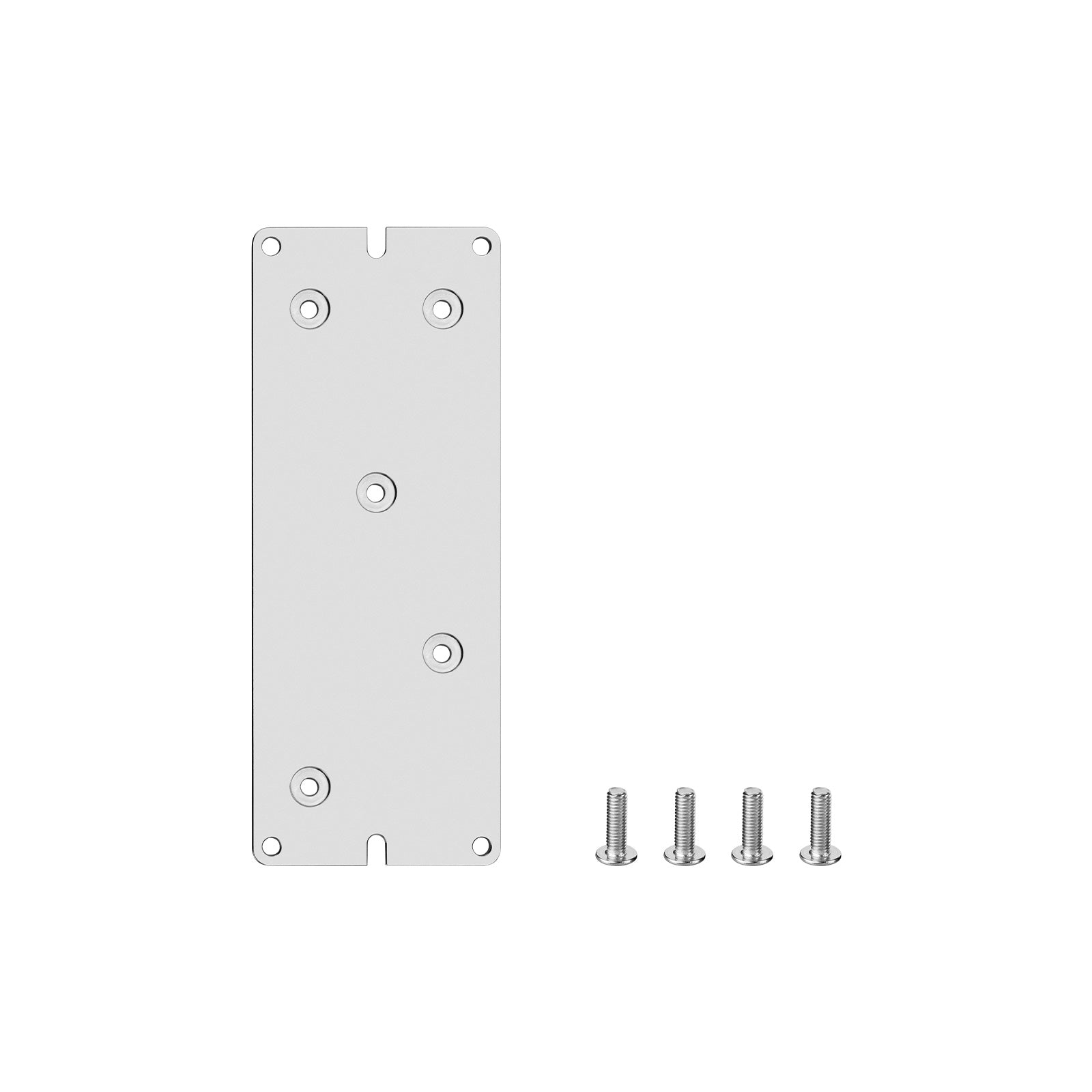

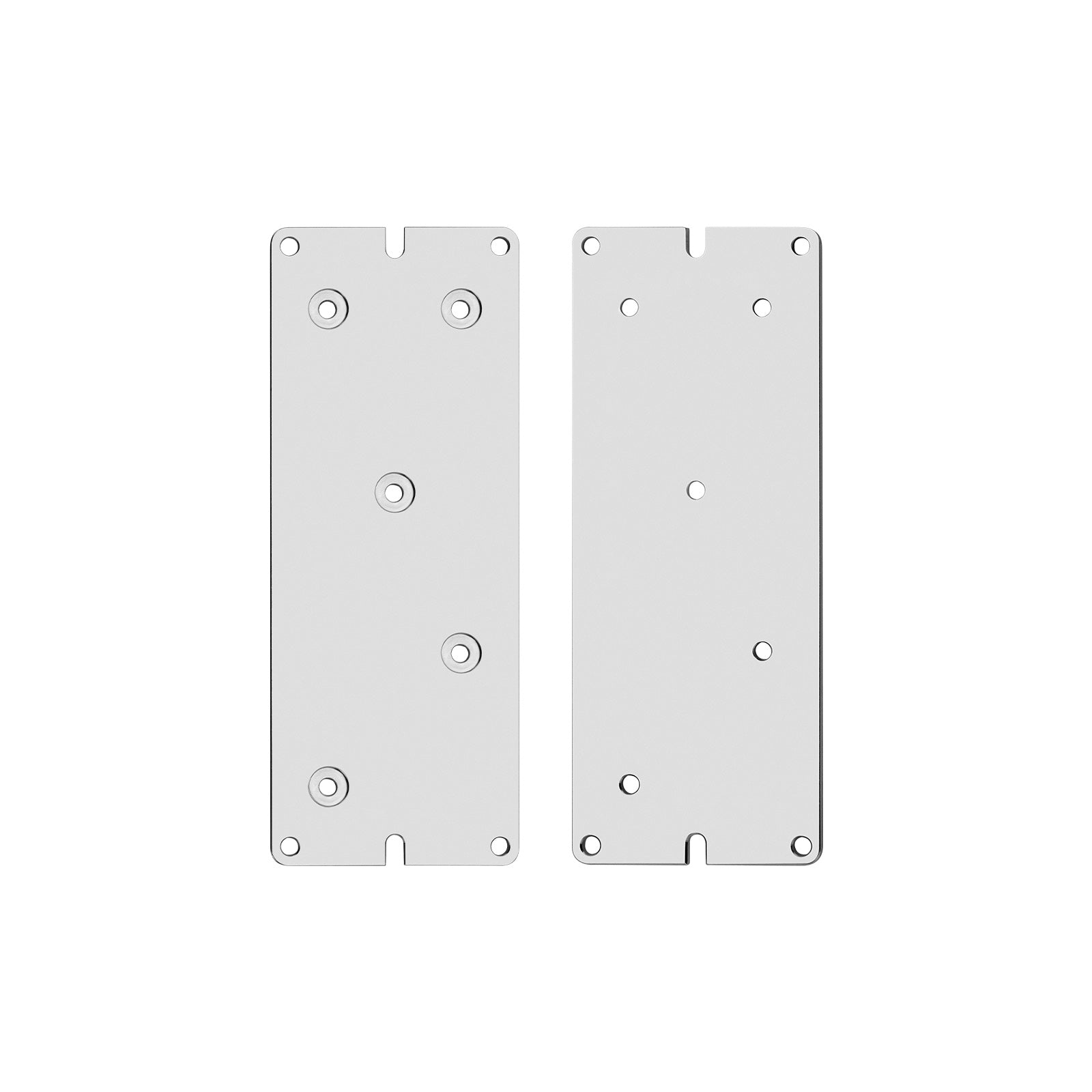

Mounting Plate Option 1
(1) Product Size: 115*45*2.5mm
Net Weight Of Product: 97g
(2) Package Size: 150*100*5mm
Packing Weight: 102g
(3) Package Size (Including Outer Carton)：155*105*45mm
Packing Weight (Including Outer Carton)：144g

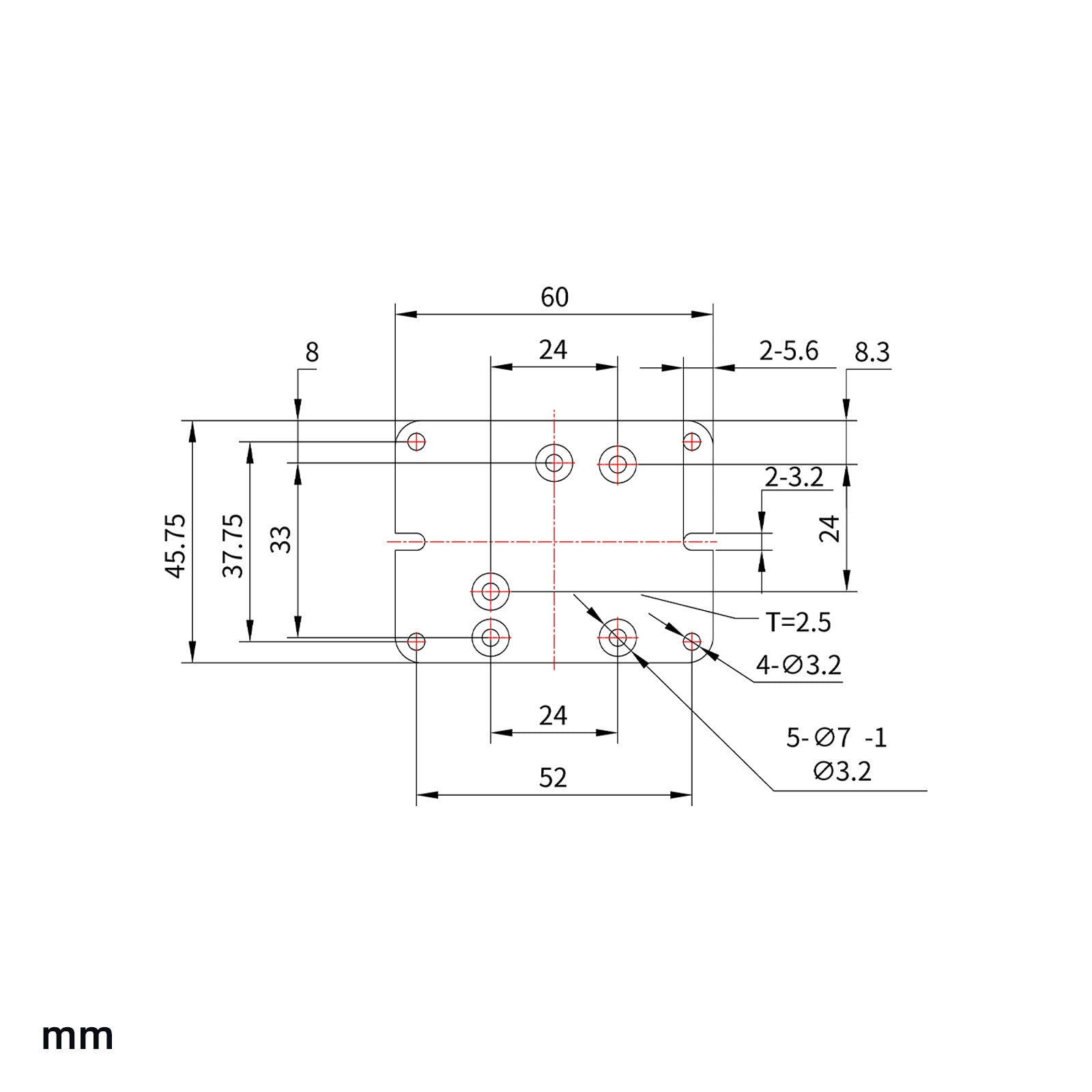

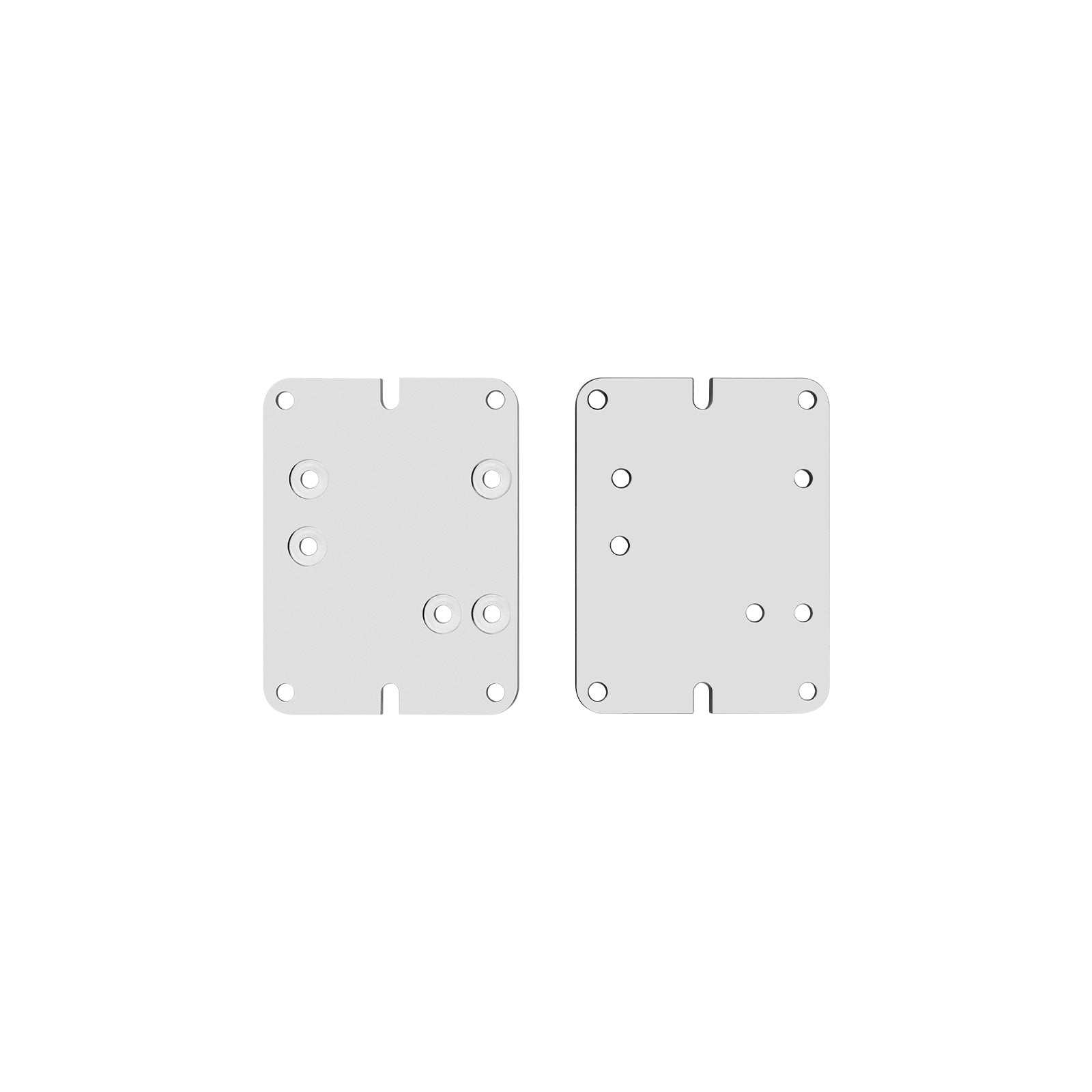

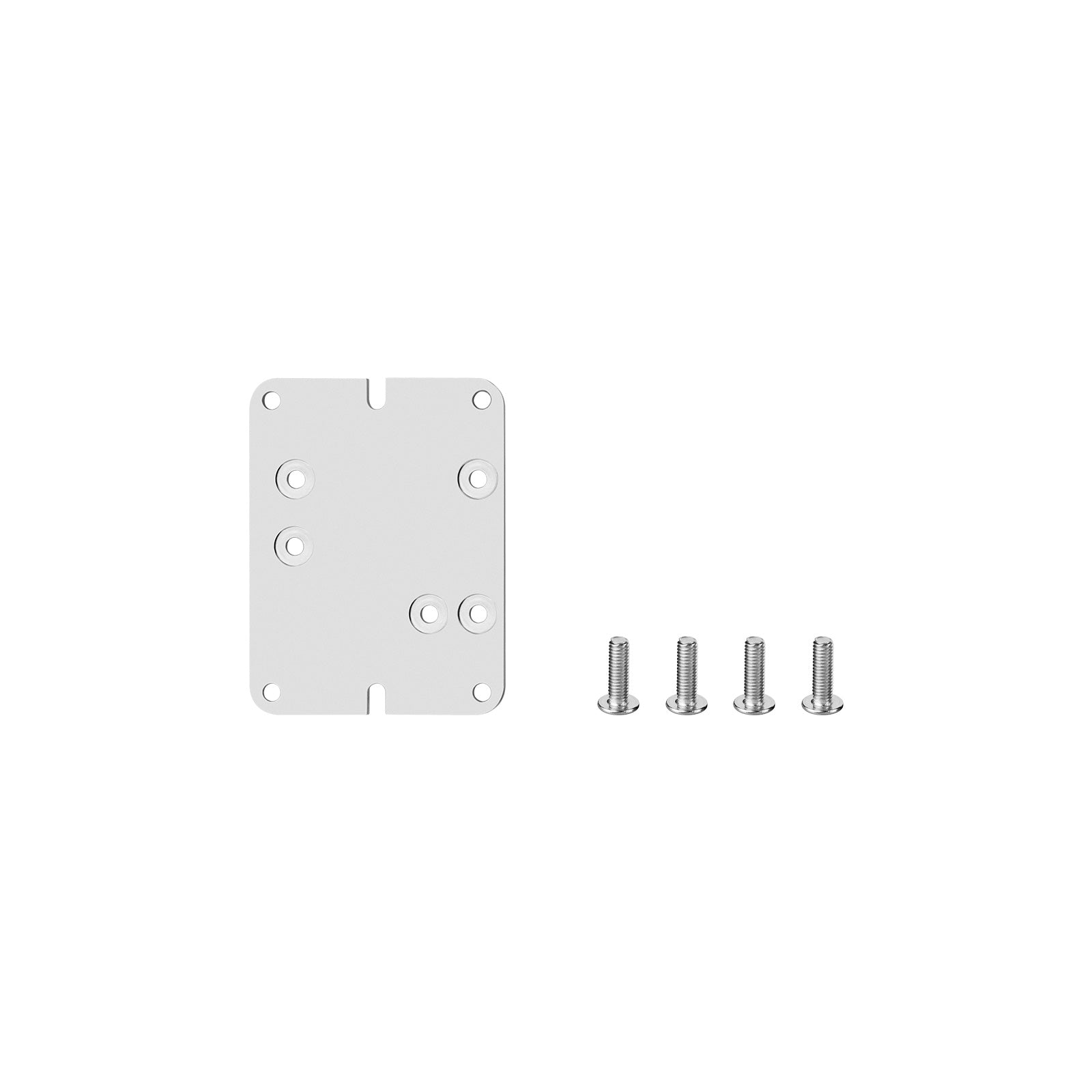

Mounting Plate Option 2
(1) Product Size: 60*45.8*2.5mm
Net Weight Of Product: 50g
(2) Package Size: 150*100*5mm
Packing Weight: 55g
(3) Package Size (Including Outer Carton)：155*105*45mm
Packing Weight (Including Outer Carton)：97g
