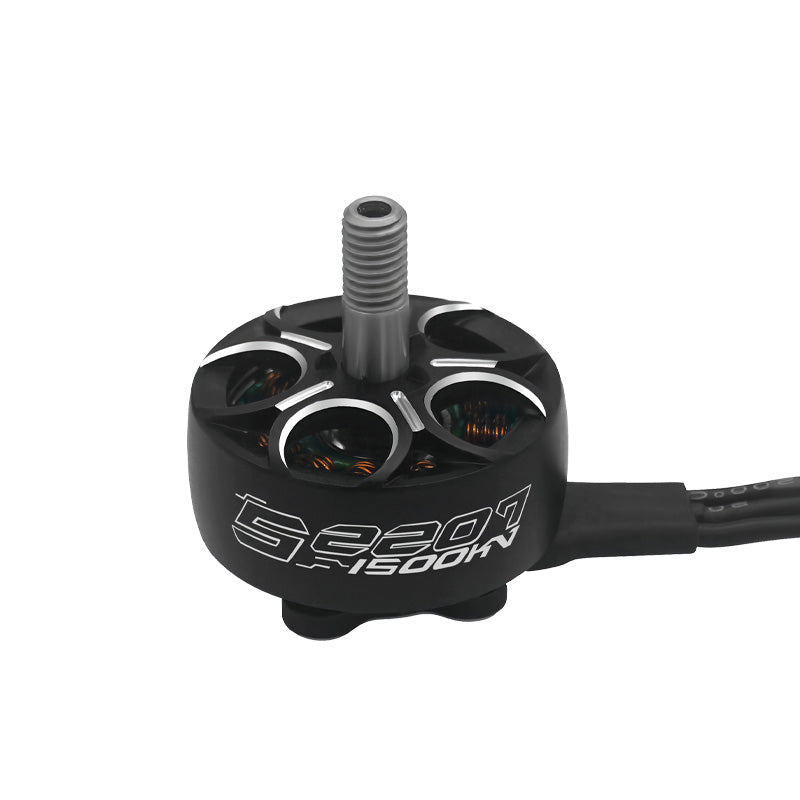

SEQURE S2207 6S 8S Brushless Aeromodelling Motor High Efficiency High Torque For 5 Inch FPV Drones Violent Racing And Long Range Drones
Product Description:
(1) SEQURE S2207 comes from the styling design of the race track, with powerful visual impact, suitable for 5-inch FPV drones.

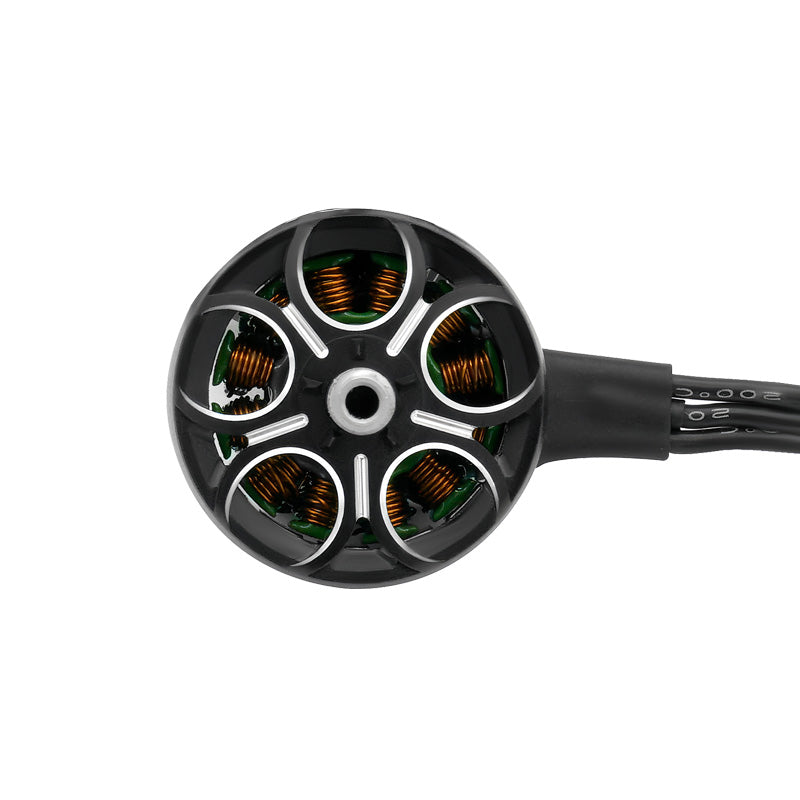

(2) The motor adopts 22*7mm 12-slot stator and combines with high-purity copper wire winding, greatly improving the power and explosive force of motor.
(3) Adopting a super strong magnetic array consisting of 14-pole curved high-temperature resistant magnets to provide extraordinary rotor torque and powerful swift response.
(4) The shell is made of high-hardness aluminum alloy and processed with high-precision CNC, ensuring a stable and reliable structure.
(5) High-strength stainless steel motor shaft, and high-precision & high-quality bearings offer you a durable and long-lasting motor.
(6)Precision processing and fine assembly, small air gap, high efficiency.
Parameters of Product:
|
Model |
S2207 |
|
KV Value |
1500KV，1850KV，2100KV |
|
Slot Pole |
12N14P |
|
Shaft Diameter |
5mm |
|
Stator Size |
22*7mm |
|
Specification of Silicone Wire |
20awg，150mm |
|
Motor Weight( include wire) |
35g |
|
No Load Current (10V) |
1500KV（1A），1850KV（1.1A），2100KV（1.2A） |
|
Working Voltage |
1500KV（4-8S），1850KV（4-6S），2100KV（4-6S） |
|
Test Voltage |
1500KV（33.6V），1850KV（25.2V），2100KV（25.2V） |
|
Maximum Current |
1500KV（36A），1850KV（37.3A），2100KV（45A） |
|
Maximum Power |
1500KV（1210W），1850KV（940W），2100KV（1134W） |

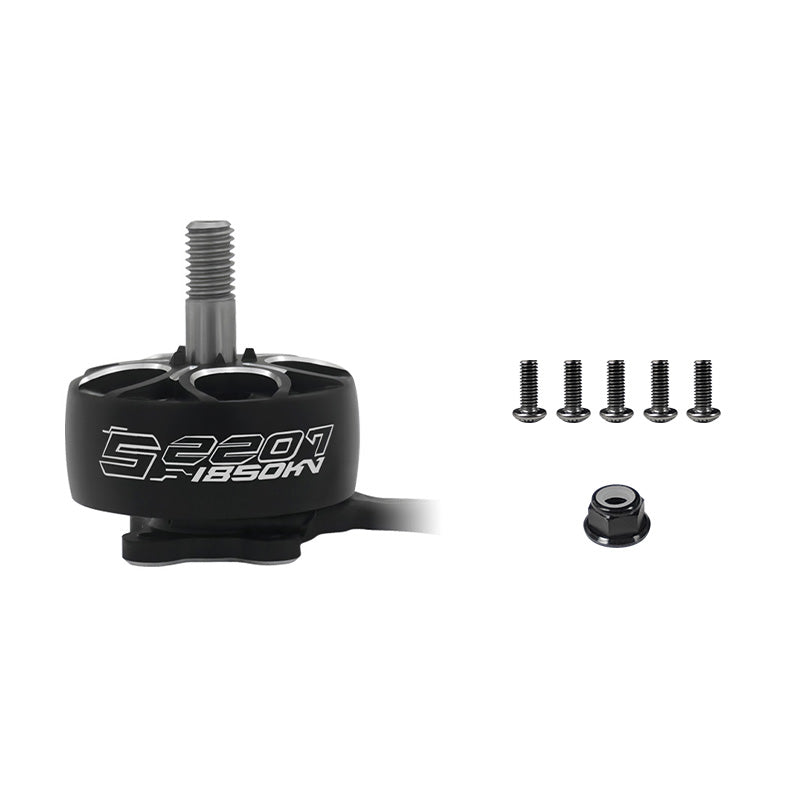

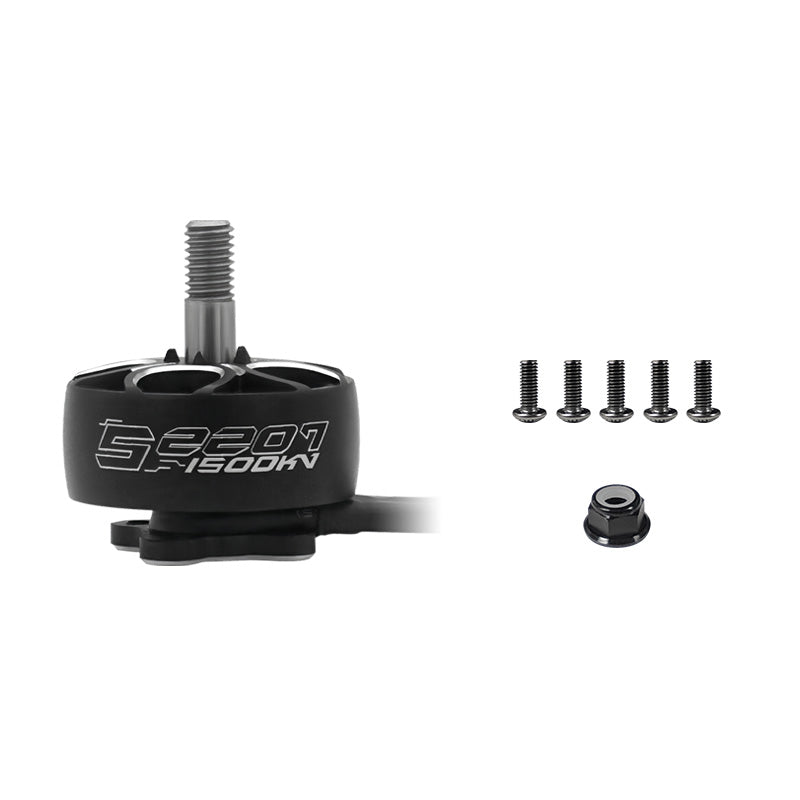

Package included:
SEQURE S2207 brushless motor × 1
M5 Lock Nut × 1
M3*8 semi-round hex socket screws × 5

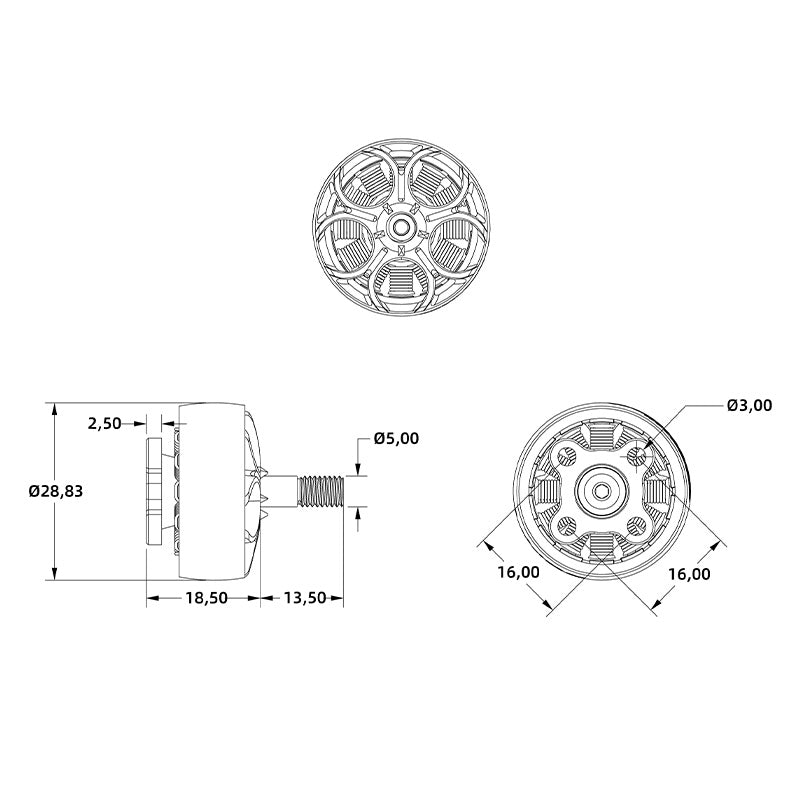

Overall Dimension:
（1）Product Size: /

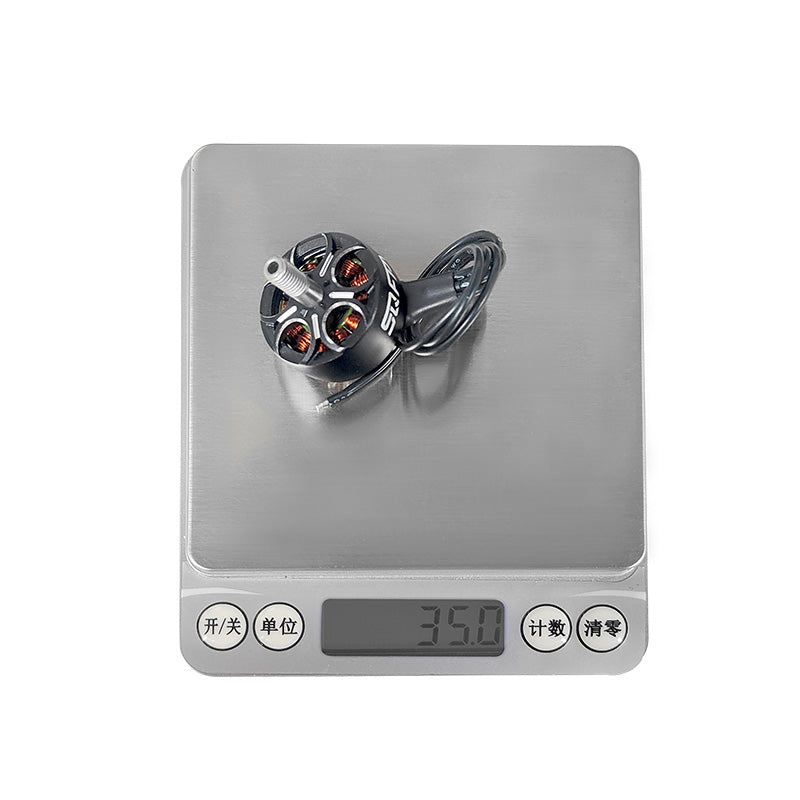

Net Weight Of Product: 35g
（2）Package Size:55*55*35mm
Packing Weight: 60g
（3）Package Size (Including Outer Carton)：150*100*40mm
Packing Weight (Including Outer Carton)：87g
