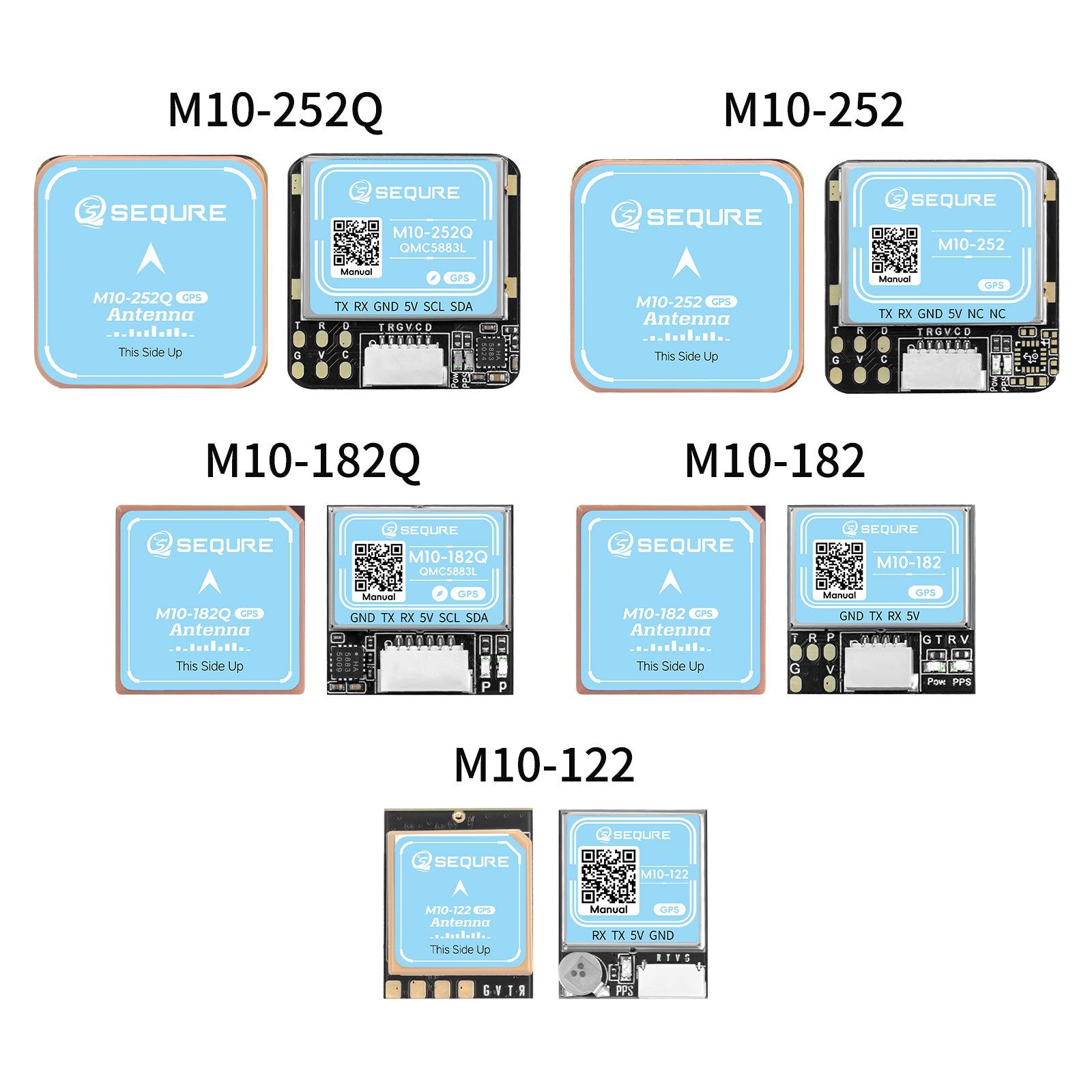

SEQURE M10-122 / M10-182 / M10-182Q / M10-252 / M10-252Q GPS Small Size Fast Positioning Betaflight INVA Ardupilot Fixed-wing Racing Drone FPV Return QMC5883 Compass
Product Description:
(1) SEQURE M10 second-generation GPS is designed with a 10th-generation chip optimization solution and GPS+BDS+GALILEO positioning system, supporting NMEA/UBLOX protocol. It has a faster positioning speed and stronger anti-interference.
(2) High-quality ceramic antenna with strong performance and effective reception of satellite signals.

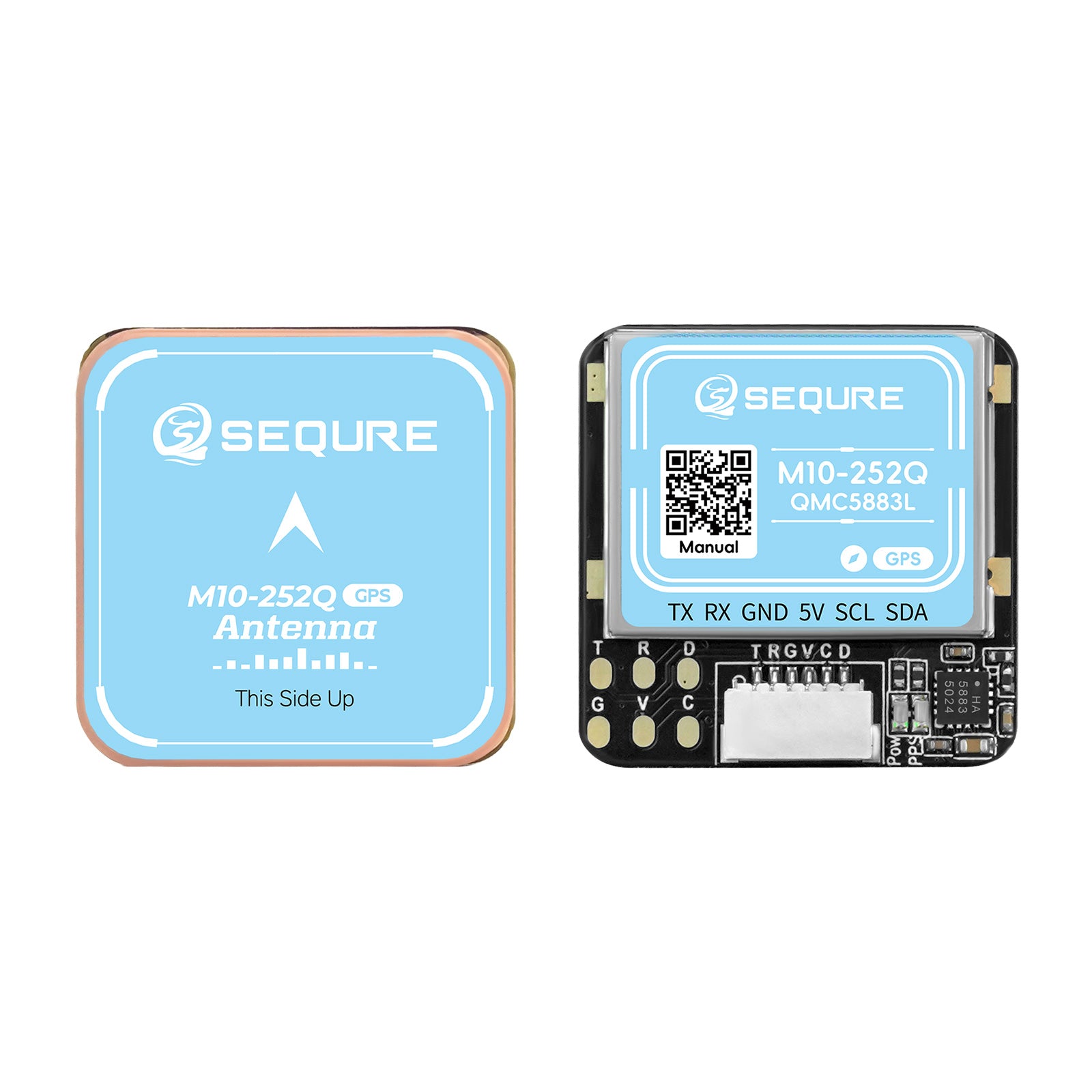

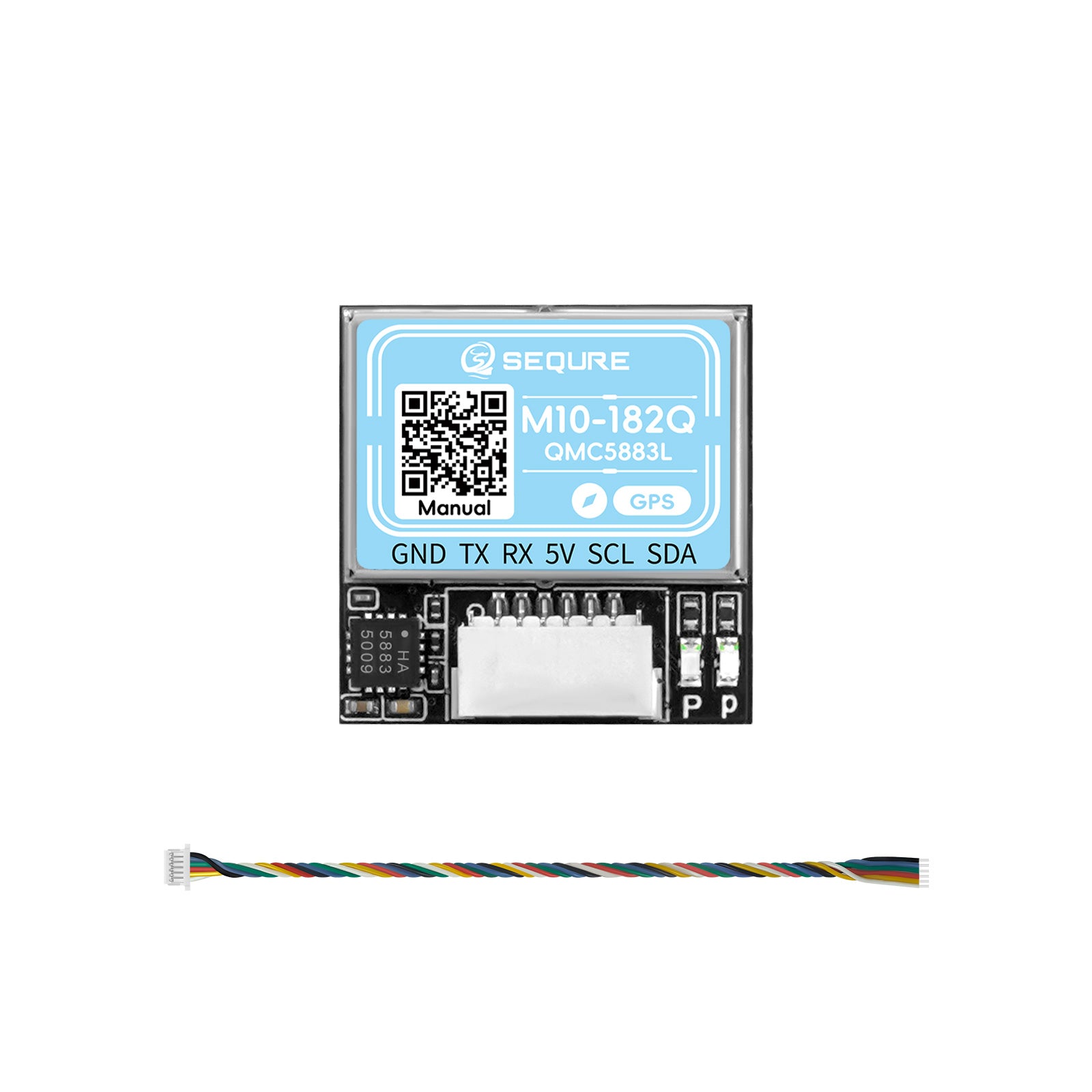

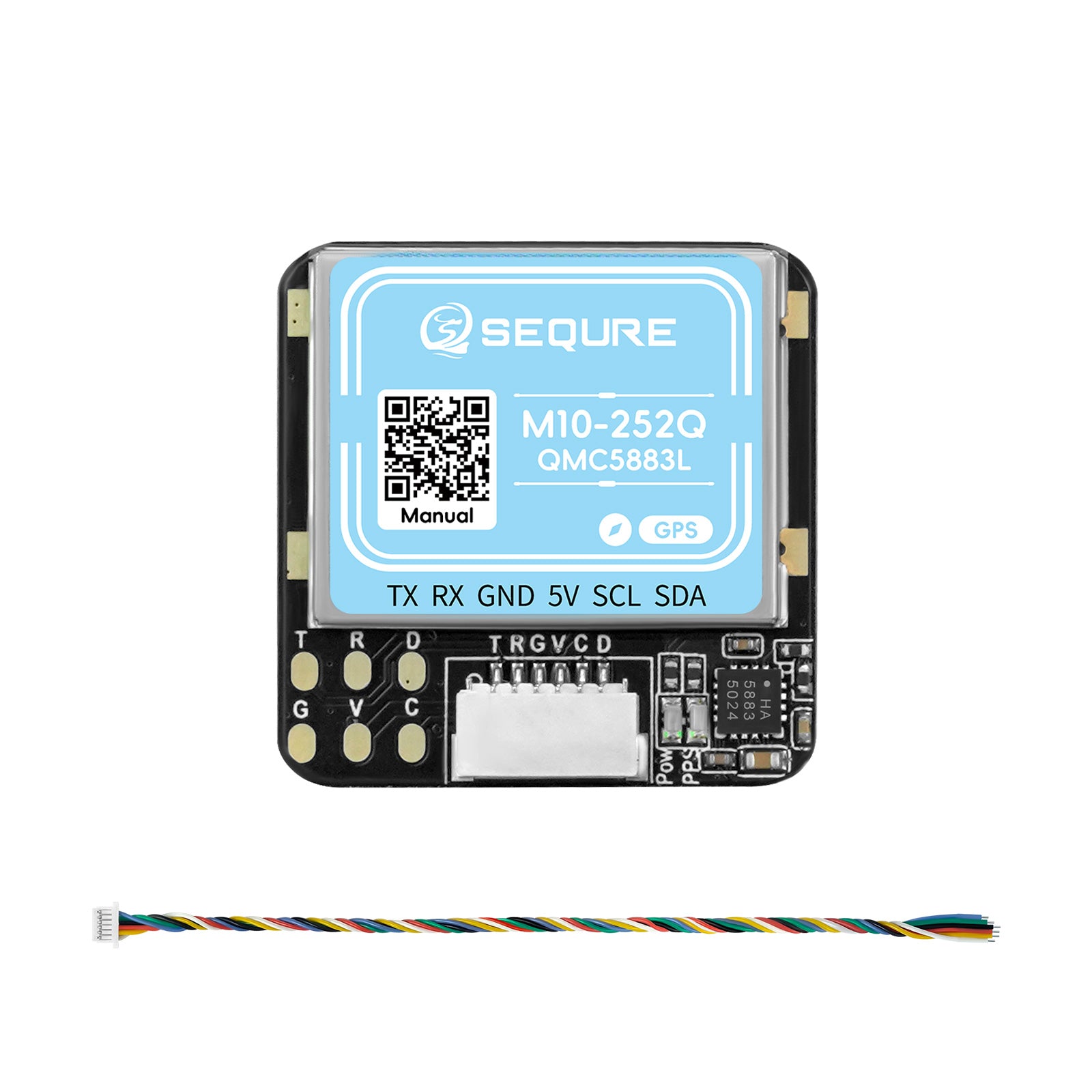

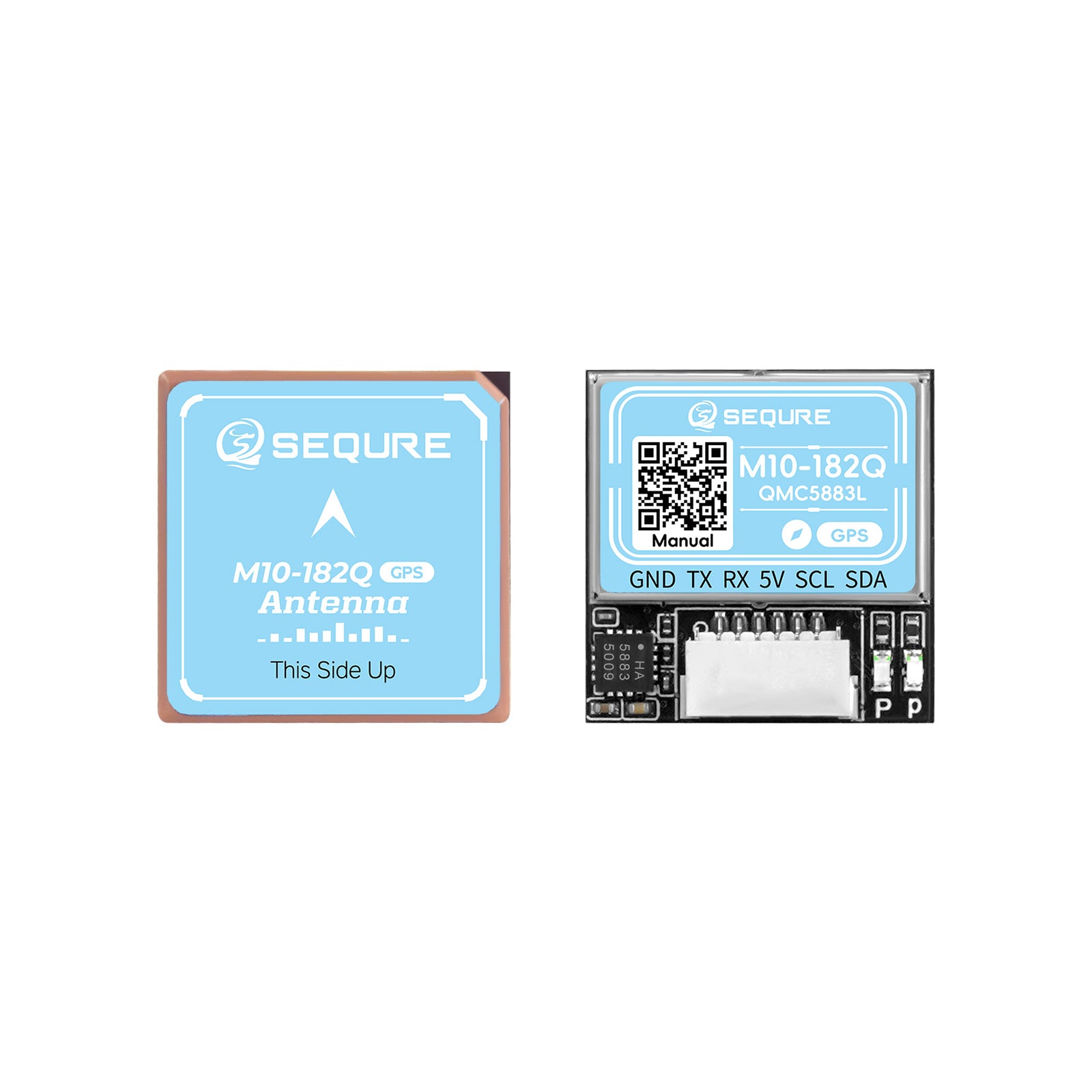

(3)M10-182Q, M10-252Q respectively integrate QMC5883 compass for a wider range of applications
(4) Miniaturization multi-specification design for easy installation, accommodating drones of various sizes available on the market.
(5) Supports two connection methods: direct plug-in and soldering pad, with strong compatibility.
（6）The full range of GPS is compatible with a variety of mainstream FC firmware on the market: Betaflight, INVA, Ardupilot, etc.
Parameters of Product:
|
Model |
M10-252Q |
M10-252 |
M10-182Q |
M10-182 |
M10-122 |
|
Chip |
M10050 |
M10050 |
M10050 |
M10050 |
M10050 |
|
Working System |
GPS+BDS+GALILEO |
GPS+BDS+GALILEO |
GPS+BDS+GALILEO |
GPS+BDS+GALILEO |
GPS+BDS+GALILEO |
|
Auxiliary System |
SBAS, QZSS |
SBAS, QZSS |
SBAS, QZSS |
SBAS, QZSS |
SBAS, QZSS |
|
Working Voltage |
3.3V-5V |
3.3V-5V |
3.3V-5V |
3.3V-5V |
3.3V-5V |
|

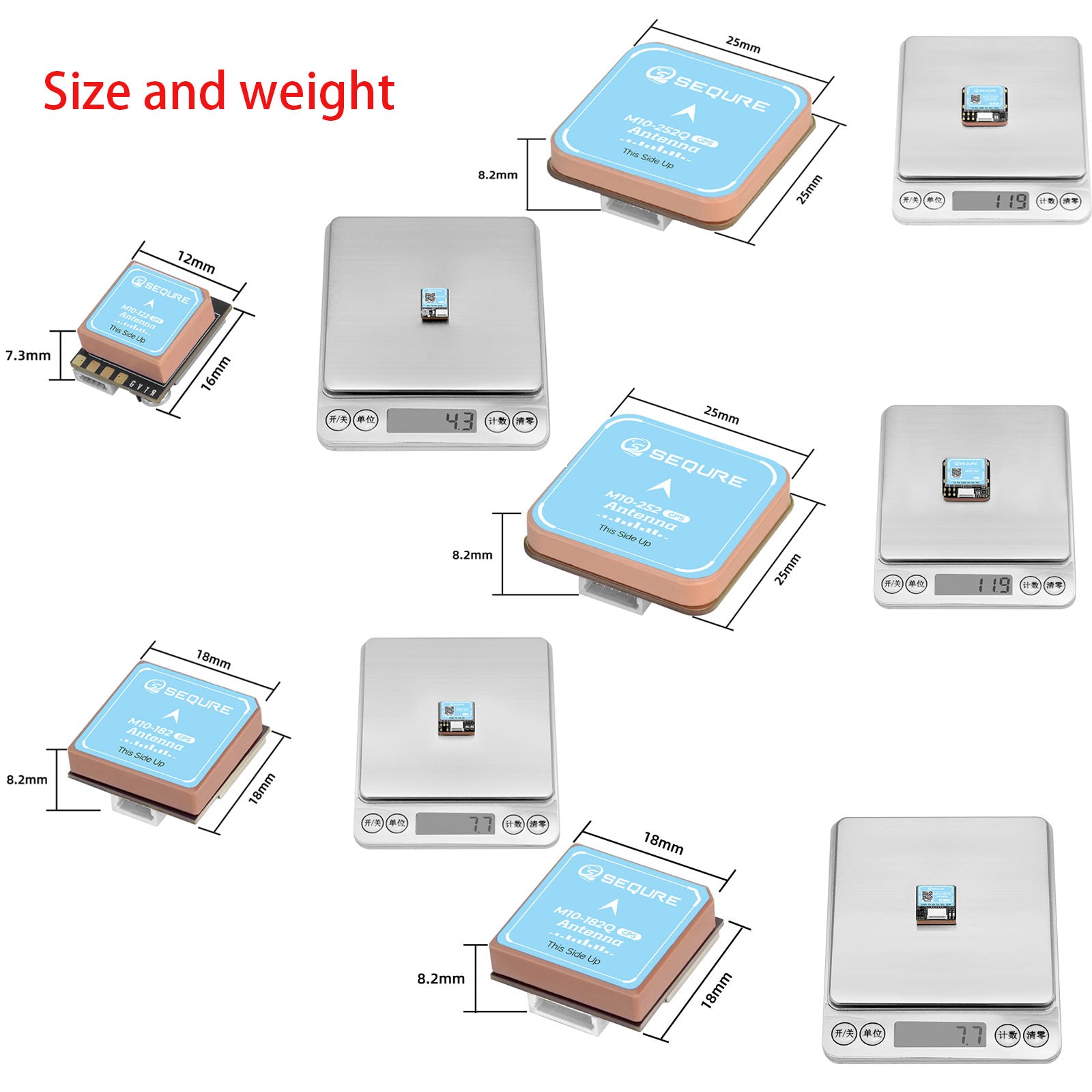

Size |
25*25*8.2mm |
25*25*8.2mm |
18*18*8.2mm |
18*18*8.2mm |
16*12*7.3mm |
|
Weight |
12g |
12g |
8g |
8g |
4.3g |
|
Interface |
PCB pad、 |
PCB pad、 |
sh1.0 6pin straight socket |
PCB pad、 |
PCB pad、 |
|
Antenna |
Ceramic antenna |
Ceramic antenna |
Ceramic antenna |
Ceramic antenna |
Ceramic antenna |
|
Receive Channel |
72 search channels |
72 search channels |
72 search channels |
72 search channels |
72 search channels |
|
Baud Rate |
115200 |
115200 |
115200 |
115200 |
4800-921600， |
|
Output Protocol |
NMEA、UBLOX |
NMEA、UBLOX |
NMEA、UBLOX |
NMEA、UBLOX |
NMEA、 |
|
Compass |
QMC5883L |
/ |
QMC5883L |
/ |
/ |
|
Output Frequency |
1Hz-10Hz, default 10Hz |
1Hz-10Hz, default 10Hz |
1Hz-10Hz, default 10Hz |
1Hz-10Hz, default 10Hz |
1Hz-18Hz, default 10Hz |
|
Speed Accuracy |
0.05m/s |
0.05m/s |
0.05m/s |
0.05m/s |
0.05m/s |
|
Horizontal Positioning |
2D ACC1.5m（open air） |
2D ACC1.5m（open air） |
2D ACC1.5m（open air） |
2D ACC1.5m（open air） |
2D ACC1.5m（open air） |
|
Receive Sensitivity |
Trace-162dBm、 |
Trace-162dBm、 |
Trace-162dBm、 |
Trace-162dBm、 |
Trace-162dBm、 |
|
Working Temperature |
-40℃ ～ +85℃ |
-40℃ ～ +85℃ |
-40℃ ～ +85℃ |
-40℃ ～ +85℃ |
-40℃ ～ +85℃ |
|
Storage Temperature |
-40℃ ～ +105℃ |
-40℃ ～ +105℃ |
-40℃ ～ +105℃ |
-40℃ ～ +105℃ |
-40℃ ～ +105℃ |
