SEQURE ELRS 915MHz/868MHz Dual RX True Diversity Dual Antenna Receiver FPV Racing Drone Fixed Wing Small Size Long Distance Low Latency
Product Description:

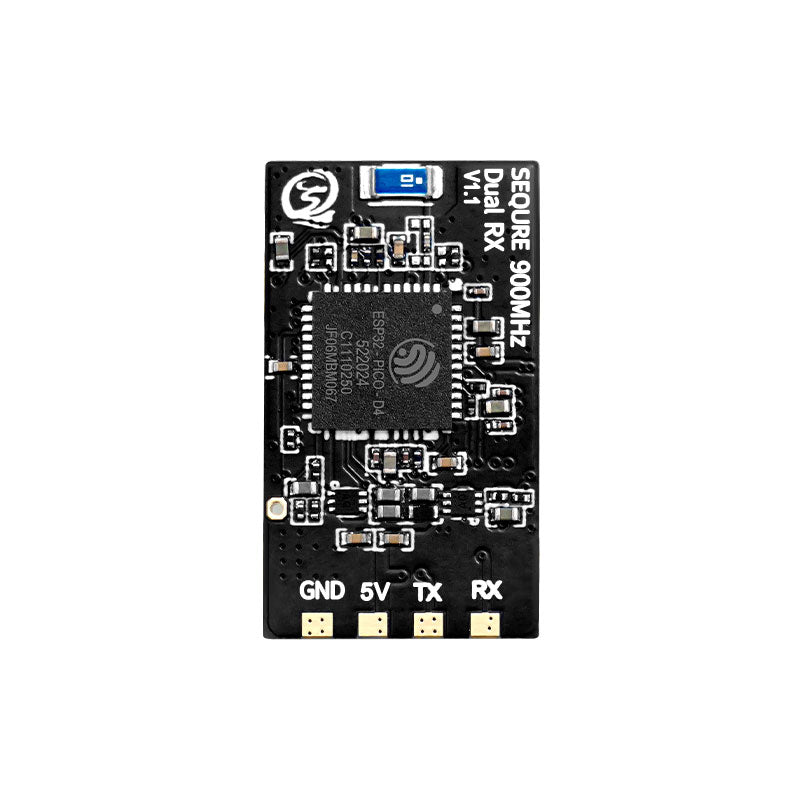

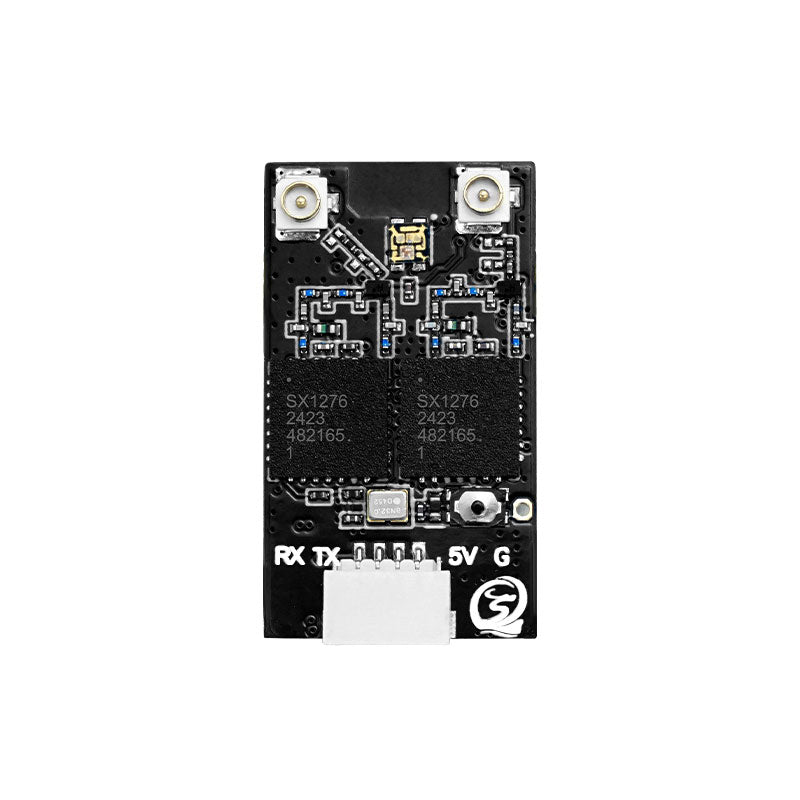

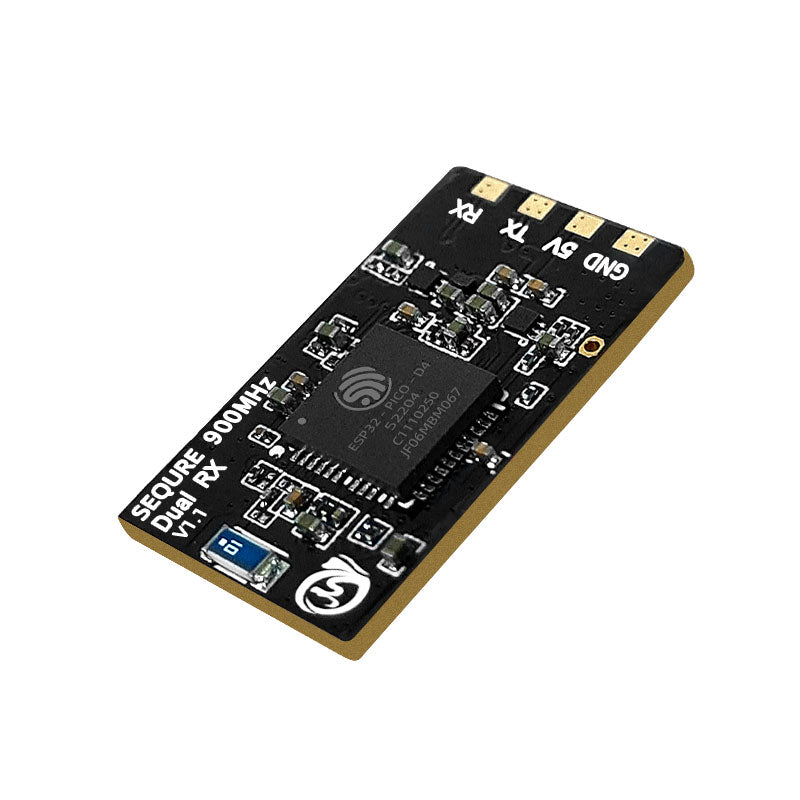

(1) High-performance ESP32-PICO-D4 master control, dual-frequency SX1276 chip, true diversity dual antenna receiver.
(2) Operates at 915MHz & 868MHz frequency with strong diffraction capability and long flight range.
(3) Onboard temperature-compensated crystal oscillator (TCXO), refuses ambient temperature to affect flight, maintains stable operation in high or cold environments, making flight safer.
(4) Support 50mW (17dBm)*2 telemetry feedback, the return of flight data is more stable.
(5) Onboard RGB color indicator, quickly identify different working status.
(6) Support SH1.0-4P socket and 2.54-4P pad, two connection methods to meet various scenarios.
Parameters of Product：
|
Model |
SEQURE 900MHz Dual RX |
|
Factory Firmware |
SEQURE 900MHz Dual RX_3.5.0 |
|
MCU |
ESP32-PICO-D4 |
|
RF Chip |
SX1276*2 |
|
Crystal Oscillator Type |
Temperature Compensated Crystal Oscillator（TCXO） |
|
Telemetry Power |
50mW（17dBm）* 2 |
|
Indicator Light |
Colorful RGB Light |
|
Frequency Band |
915MHz FCC / 868MHz EU |
|
Protocol |
CRSF |
|
RF Mode |
Dual /True Diversity/True diversity dual antenna |
|
Antenna Interface |
Ipex1*2 |
|
Receiver Interface |
SH1.0-4P connector, 2.54-4P pad |
|
Working voltage |
5V |
|
Weight |
1.6g |
|
Size |
24.8*13.8*5mm |

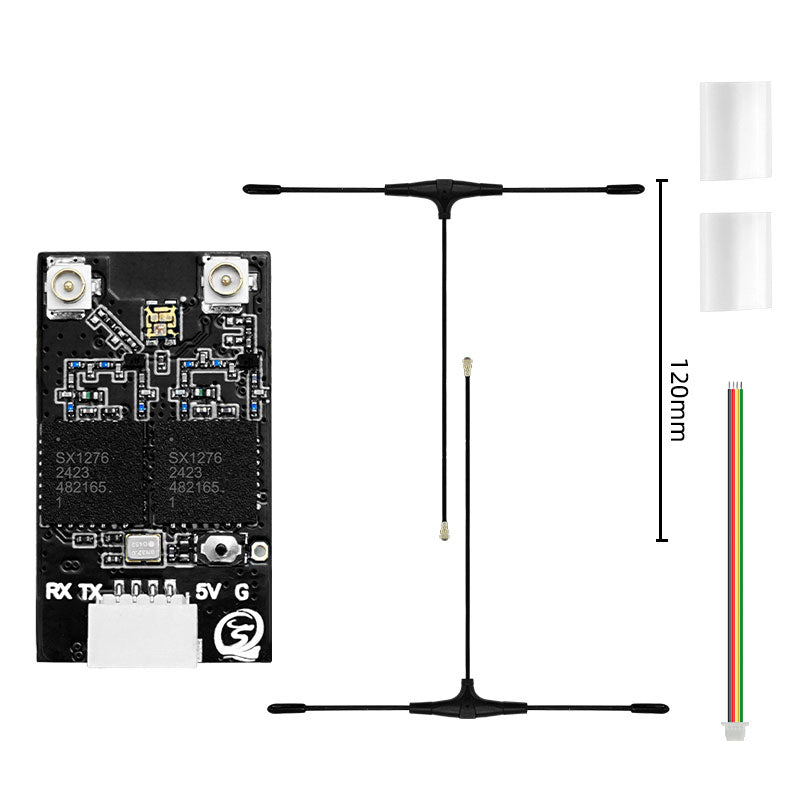

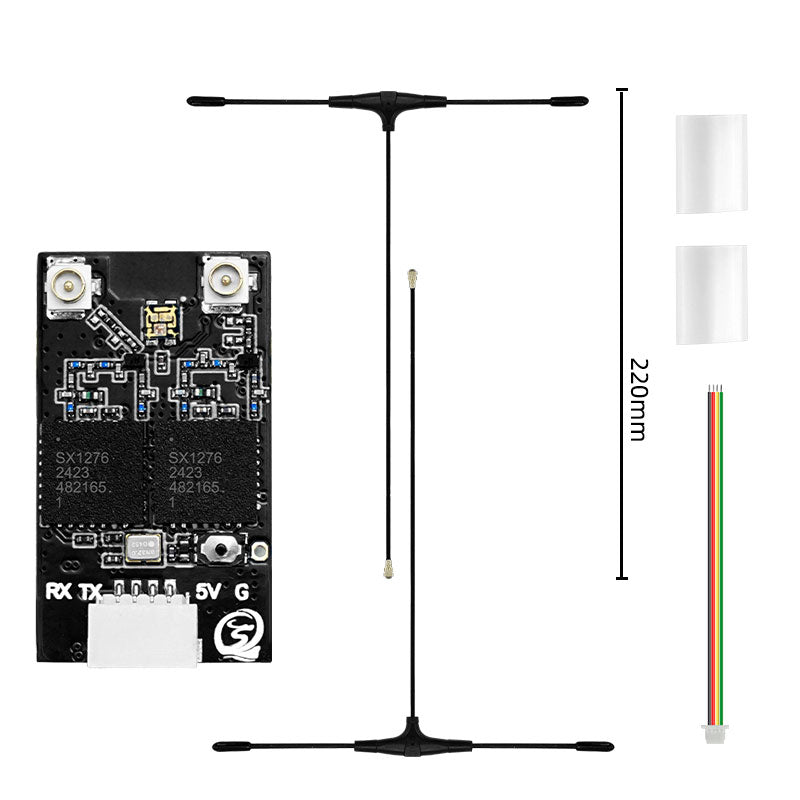

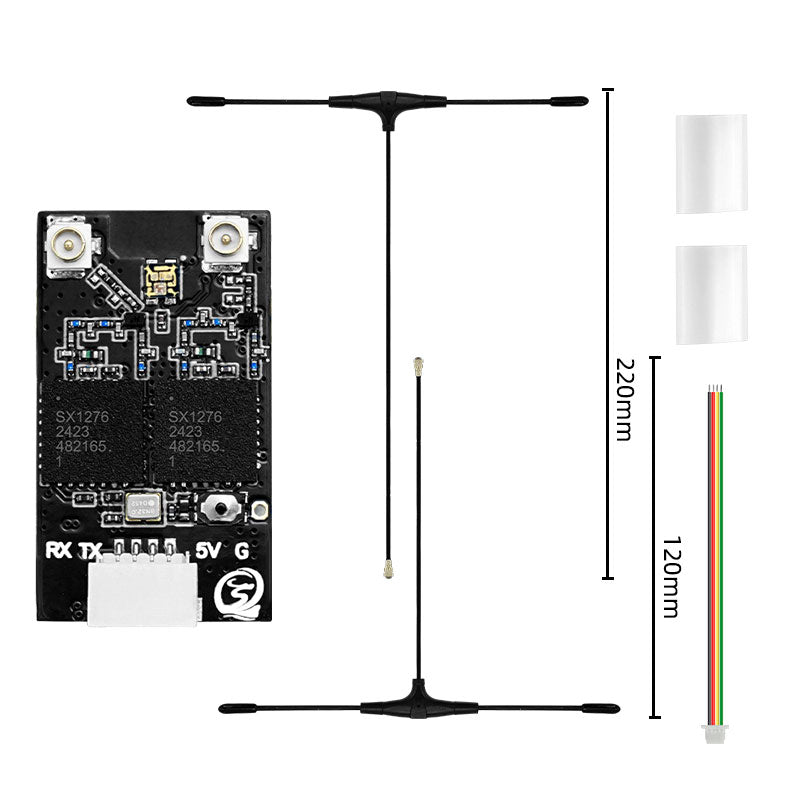

Package included:
SEQURE 900MHz Dual RX×1
900M antenna×2
30AWG 100mm single-end SH1.0-4P cable×1
12*30mm heat shrink tube×2

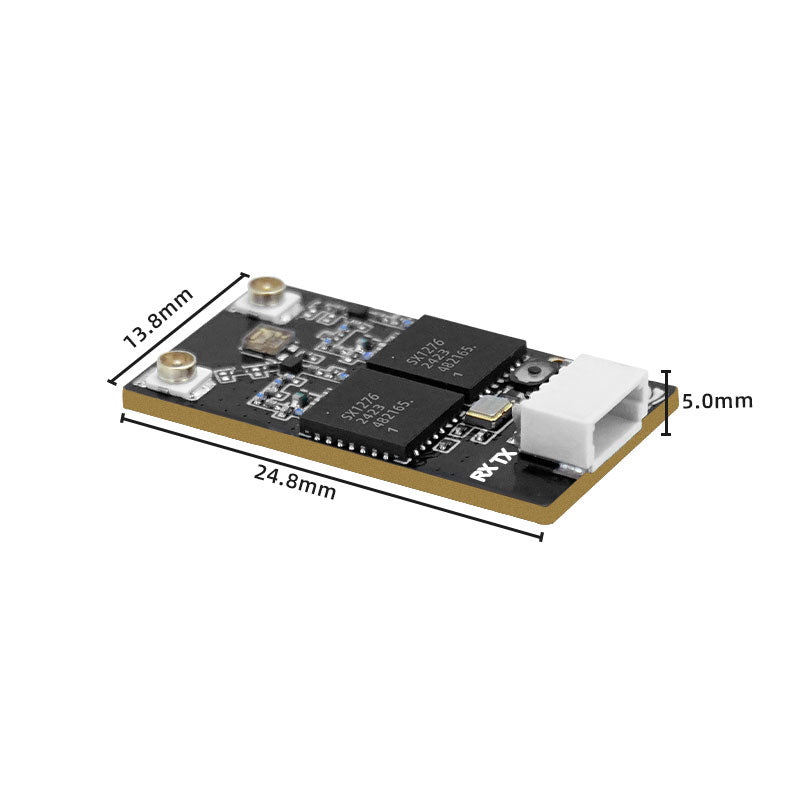

Overall Dimension：
(1) Product Size: 24.8*13.8*5mm

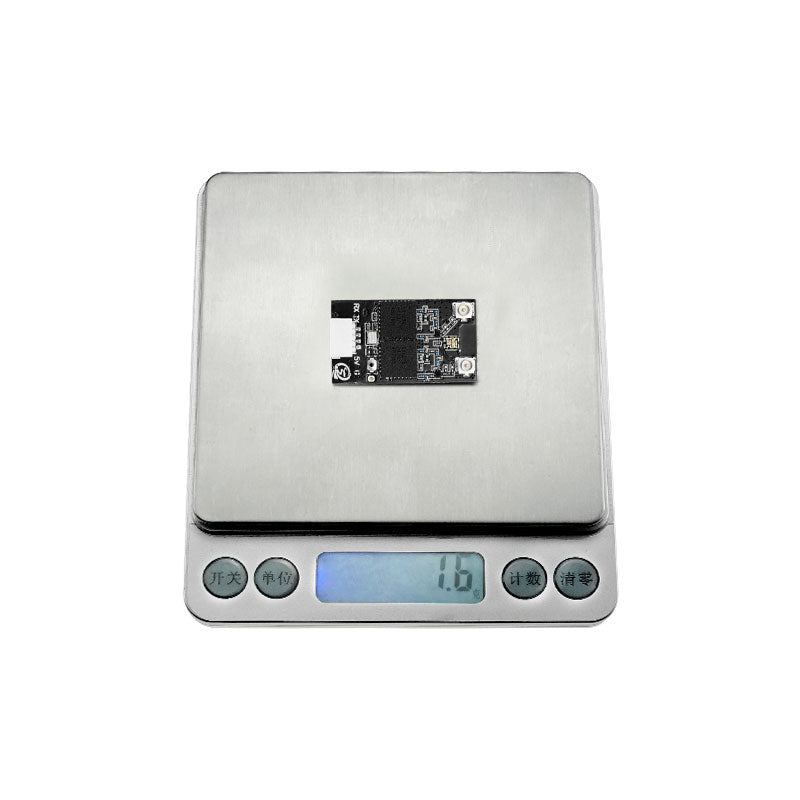

Net Weight Of Product: 1.6g
(2) Package Size: 150*100*15mm
Packing Weight: 15g
(3) Package Size (Including Outer Carton)：155*103*43mm
Packing Weight (Including Outer Carton)：50g
