SEQURE ANT ESC V2 / 1520 Motor 2-4S 60A High Performance Outer Rotor Brushless Power Kit Programmable BEC 5A Small Size Suitable for 1/24, 1/18, 1/16 RC Climbing Car Crawler Car
Product Description:
(1)SEQURE ANT ESC V2 & 1520 Motor is an outer rotor brushless power kit specially designed for 1/24, 1/18, and 1/16 climbing cars. Mini size perfectly fits the small-scale cars, which not disrupt the original car's counterweight and center of gravity balance.
(2)Sealed glue filling design for PCB and metal aluminum box radiator make it waterproof and dustproof, offering comprehensive protection.

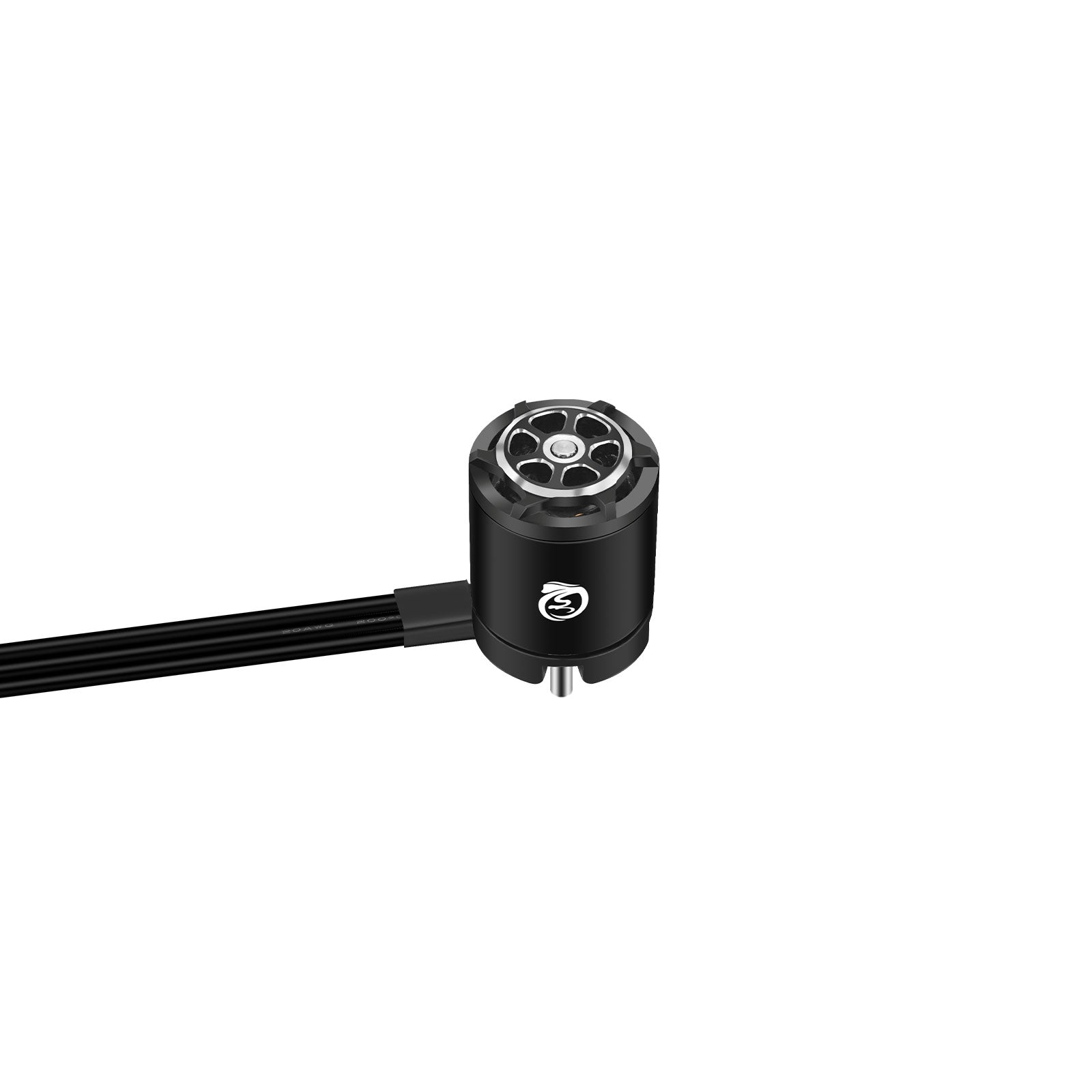

(3)Features with high-quality bearings, hardened motor shaft, reinforced metal outer rotor, extra-soft silicone wire, high-temperature resistant magnets, and enameled wire, the 1520 motor has high efficiency, low consumption, and higher energy conversion.
(4)Upgraded electronic switch design, say goodbye to the wear and tear of traditional mechanical switches, easily start and stop with a press, with sensitive response and longer life.
(5)Intelligent parameter adjustment system, just connect to a mobile phone or computer at will to adjust various parameters such as motor timing, brake force, throttle mode, low voltage protection, over-temperature protection, etc. Freely adjust the performance of the climbing car to create a unique car.

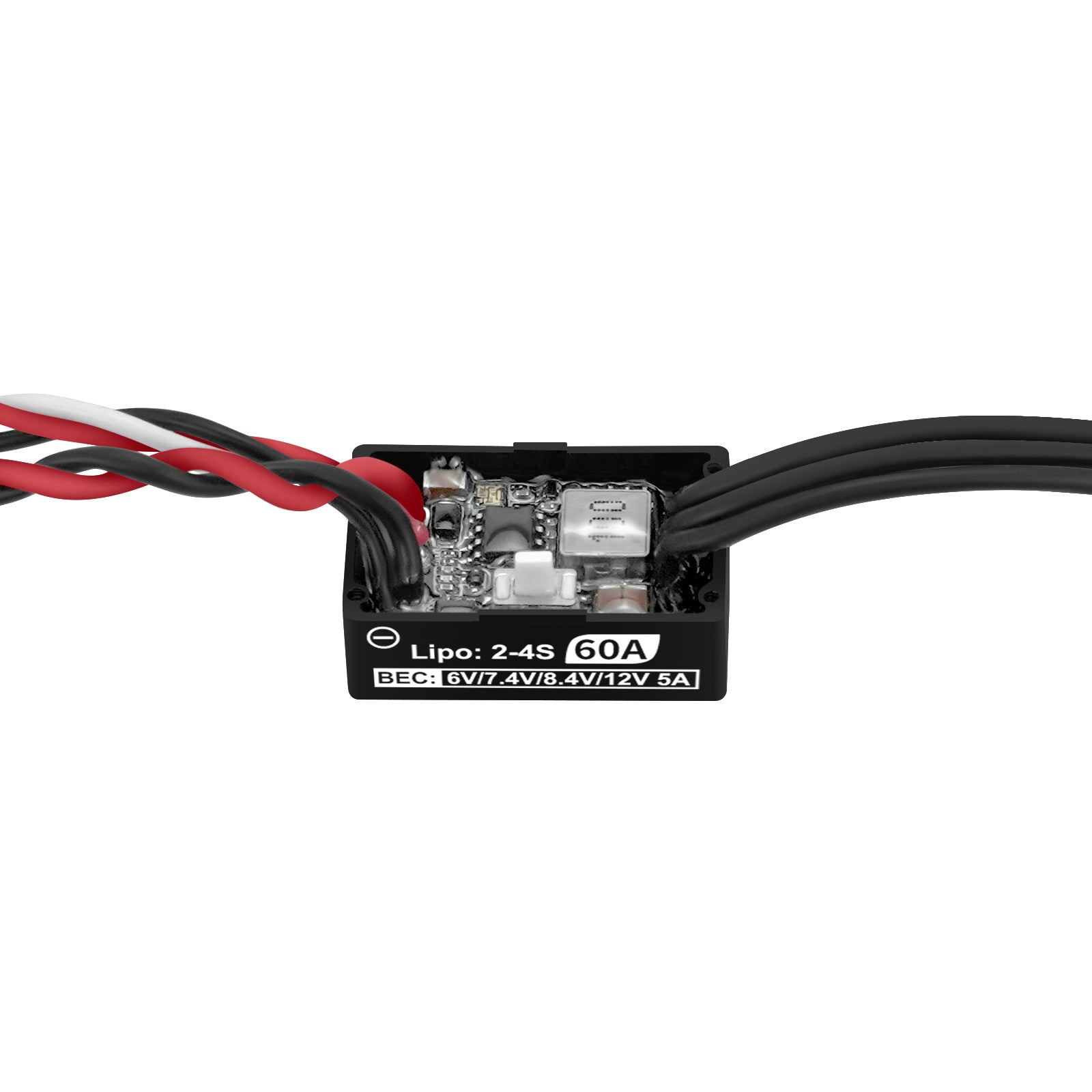

(6)The ESC features a built-in BEC with 5A highly stable output, supporting programmable settings for 6V, 7.4V, 8.4V, and 12V. When paired with a powerful steering engine, it delivers more decisive turning and more power.
(7)Plug and play, equipped with a variety of battery adapter cables to meet the needs of various car models on the market.
Parameters of Product:
|
Model |
ANT ESC V2 |
|
Input voltage |
DC 7V-17V（2-4S Lipo） |
|
Continuous current (good heat dissipation) |
60A |
|
Maximum current (good heat dissipation) |
120A |
|
Firmware |
ESCape32 |
|
Signal protocol |
Dshot (all), PWM, Oneshot, Multishot, etc. |
|
Programming parameters |
Support |
|
Current detection |
Support |
|
RGB LED color light |
Support |
|
BEC(Programmable) |
6V/7.4V/8.4V/12V 5A (continuous current) |
|
Electronic switch |
Single press to start up, long press to shut down |
|
Wire specifications |
Power cable (105mm), motor cable (70mm), signal cable (130mm) |
|
Product size |
28*17.3*11mm (excluding wire) |
|
Product weight |
16.6g (including wire) |
|
Application scenarios |
1/12, 1/16, 1/18, 1/24 models |
|
Model |
1520 Motor |
|
Working voltage |
2-3S Lipo |
|
Number of slots/magnetic poles |
9N12P |
|
Output shaft diameter |
2.0mm |
|
Output shaft length |
9mm |
|
KV value |
3500KV |
|
Motor wire |
20AWG 100mm，PH2.0-3P male connector |
|
Mounting hole spacing |
M2 screw holes, with spacings of 9mm/10mm/12.5mm |
|
Product size |
15.8*20.7mm（excluding wire） |
|
Product weight |
16.8g(including wire) |
|
Application scenarios |
1/16, 1/18, 1/24 models |
Package included:

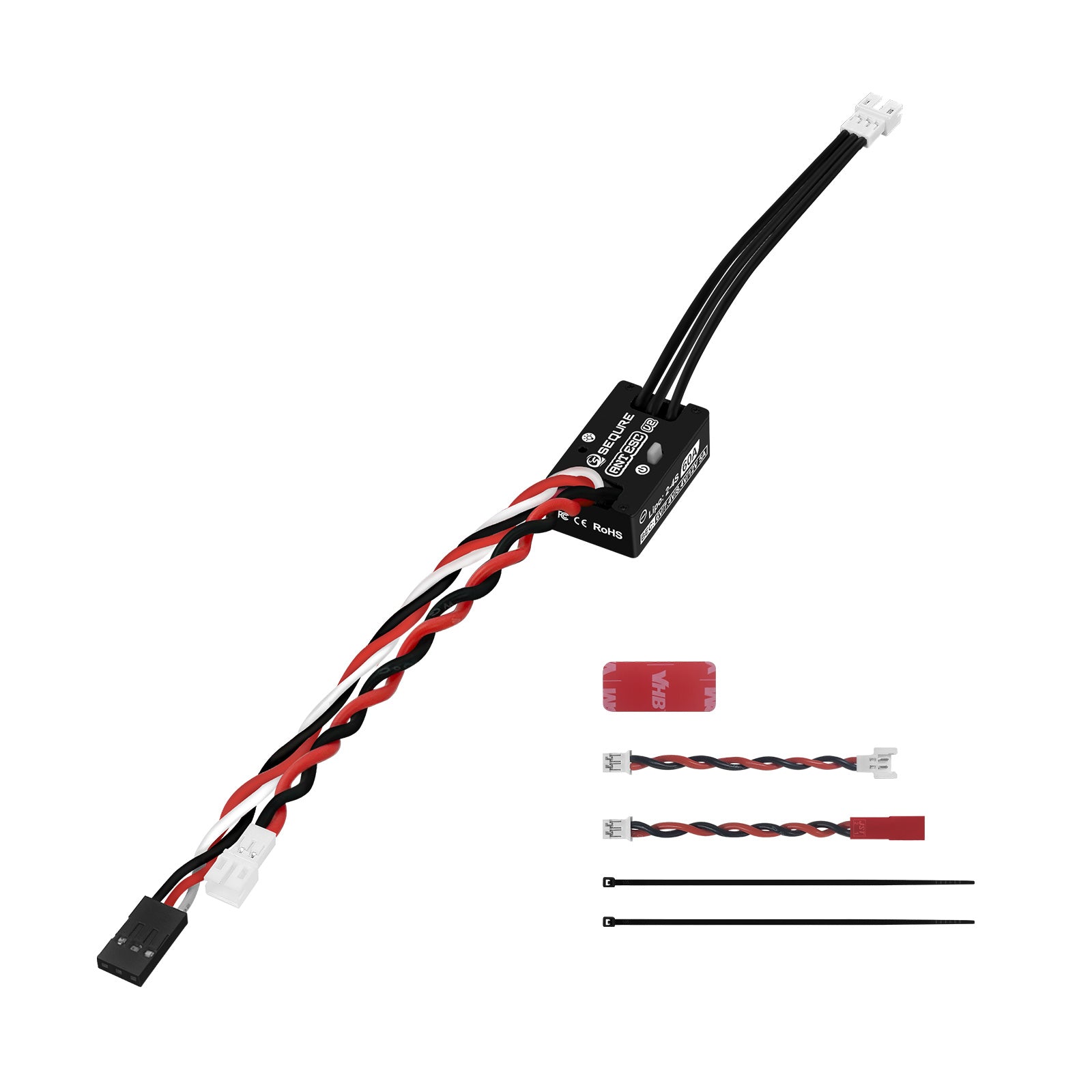

ANT ESC V2
ANT ESC V2×1
PH2.0 to JST cable ×1
PH2.0 to MX2.0 cable × 1
3M adhesive tape × 1
Cable ties ×2

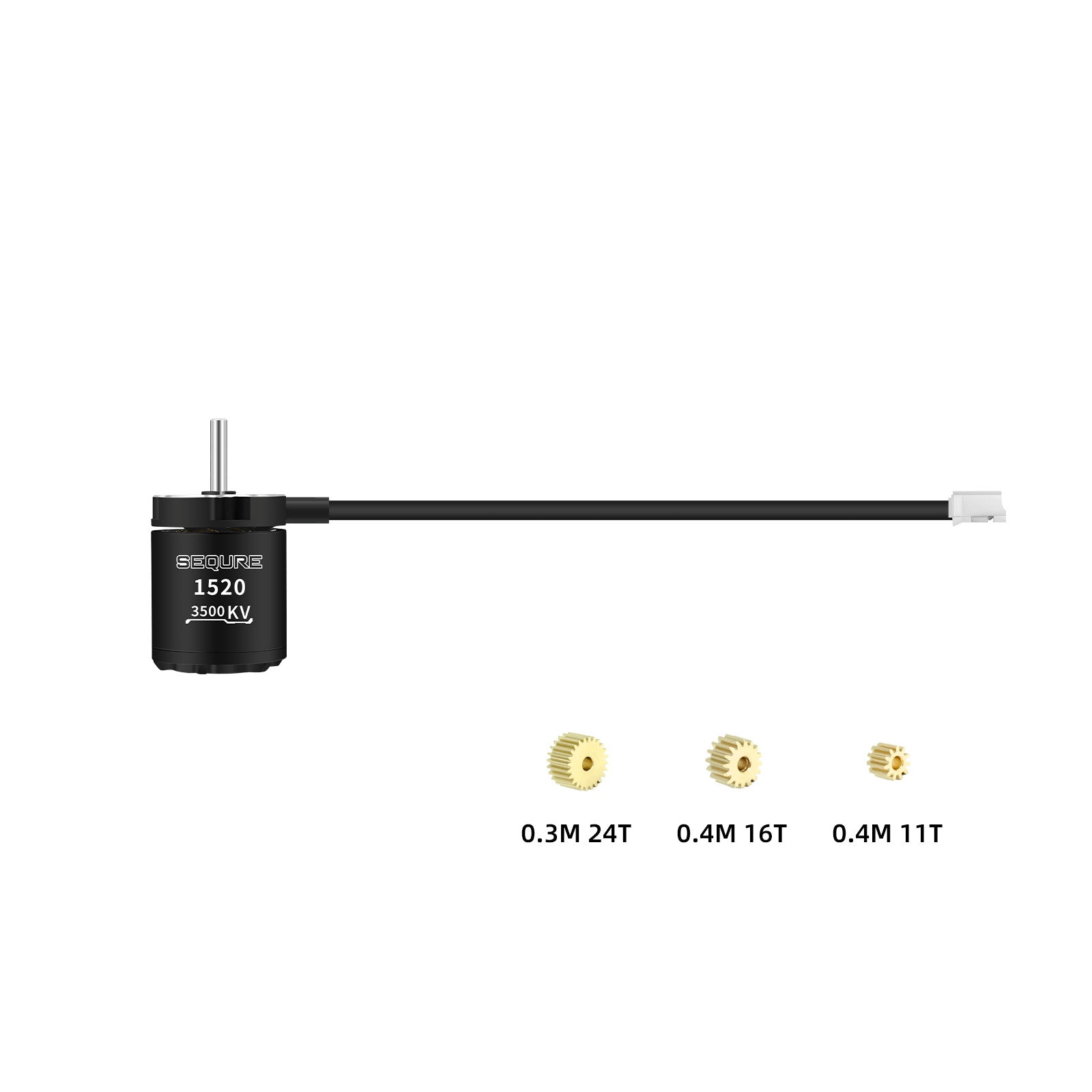

1520 Motor
1520 motor ×1
0.3M 24T gear ×1
0.4M 16T gear ×1
0.4M 11T gear ×1

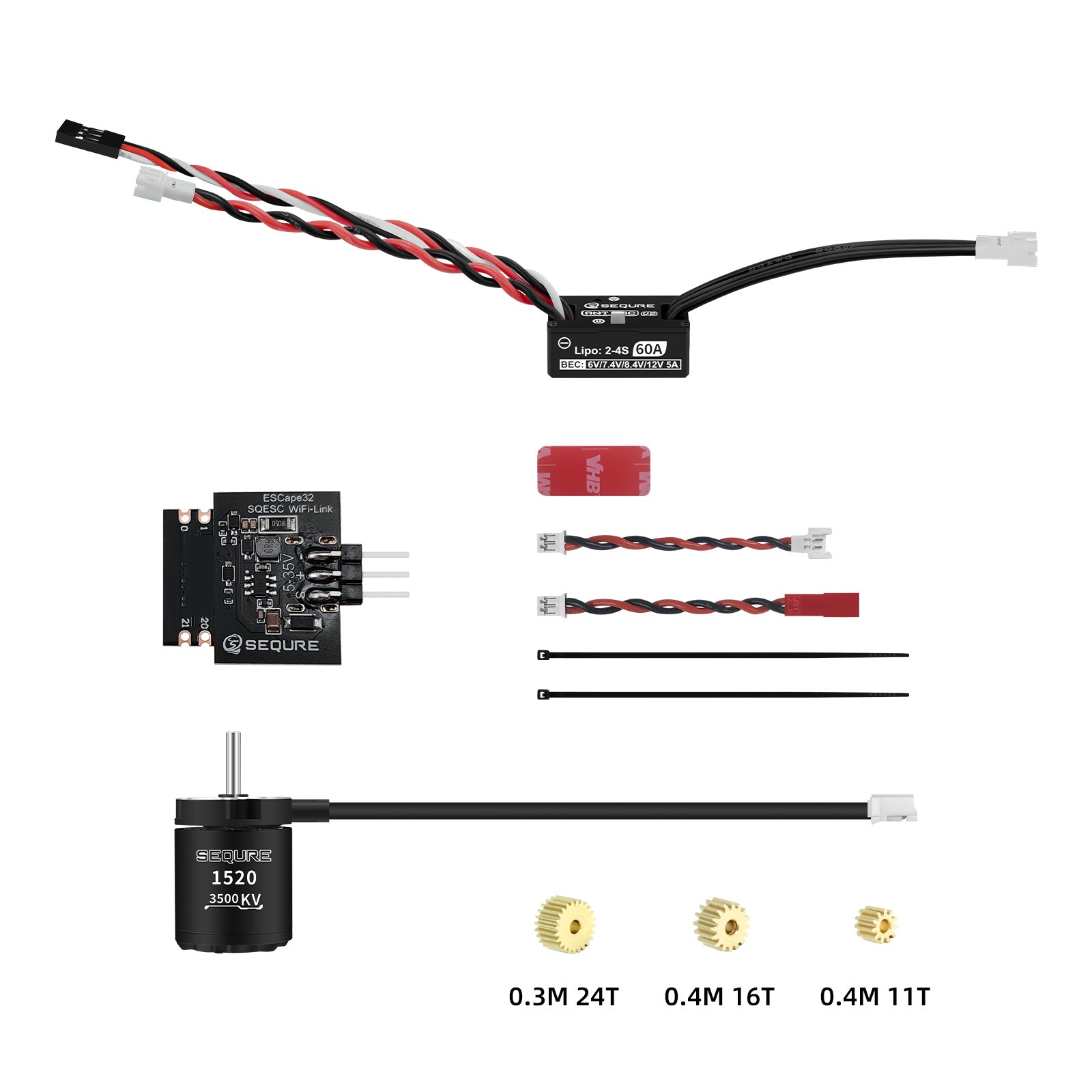

ANT ESC V2 & 1520 Motor & WiFi-Link
ANT ESC V2×1
PH2.0 to JST cable ×1
PH2.0 to MX2.0 cable × 1
3M adhesive tape × 1
Cable ties ×2
1520 motor ×1
0.3M 24T gear ×1
0.4M 16T gear ×1
0.4M 11T gear ×1
WIFI-LINK×1
Overall Dimension

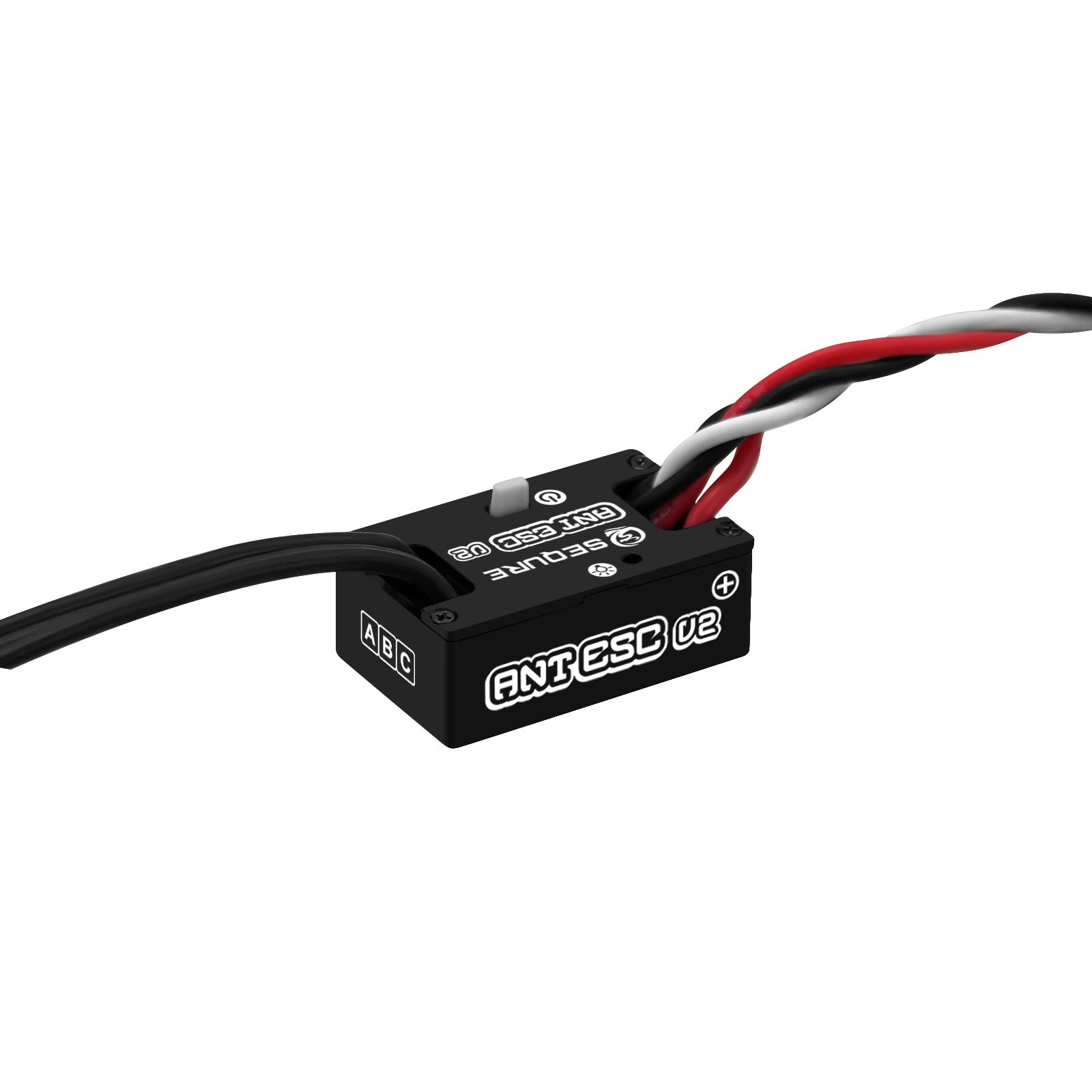

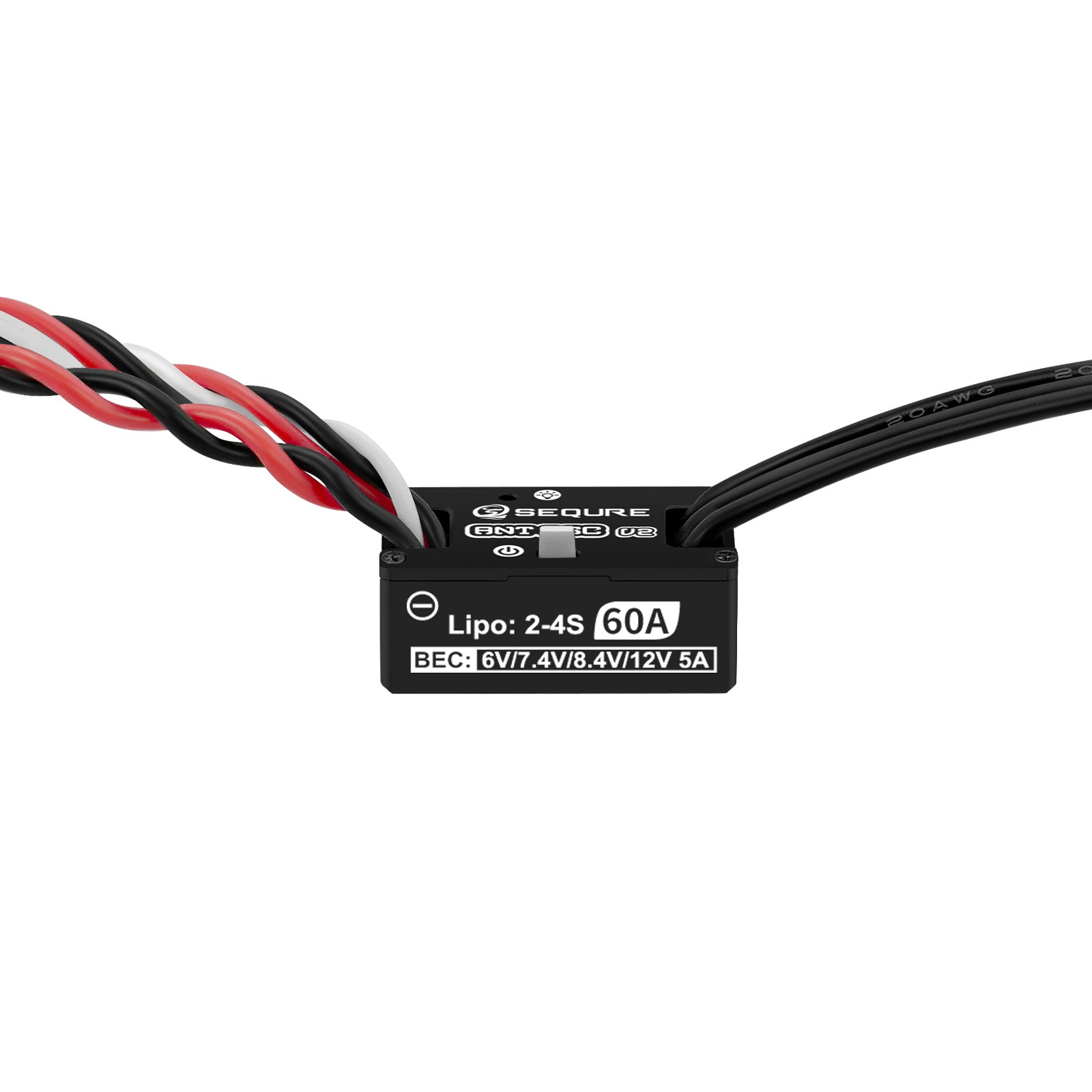

ANT ESC V2

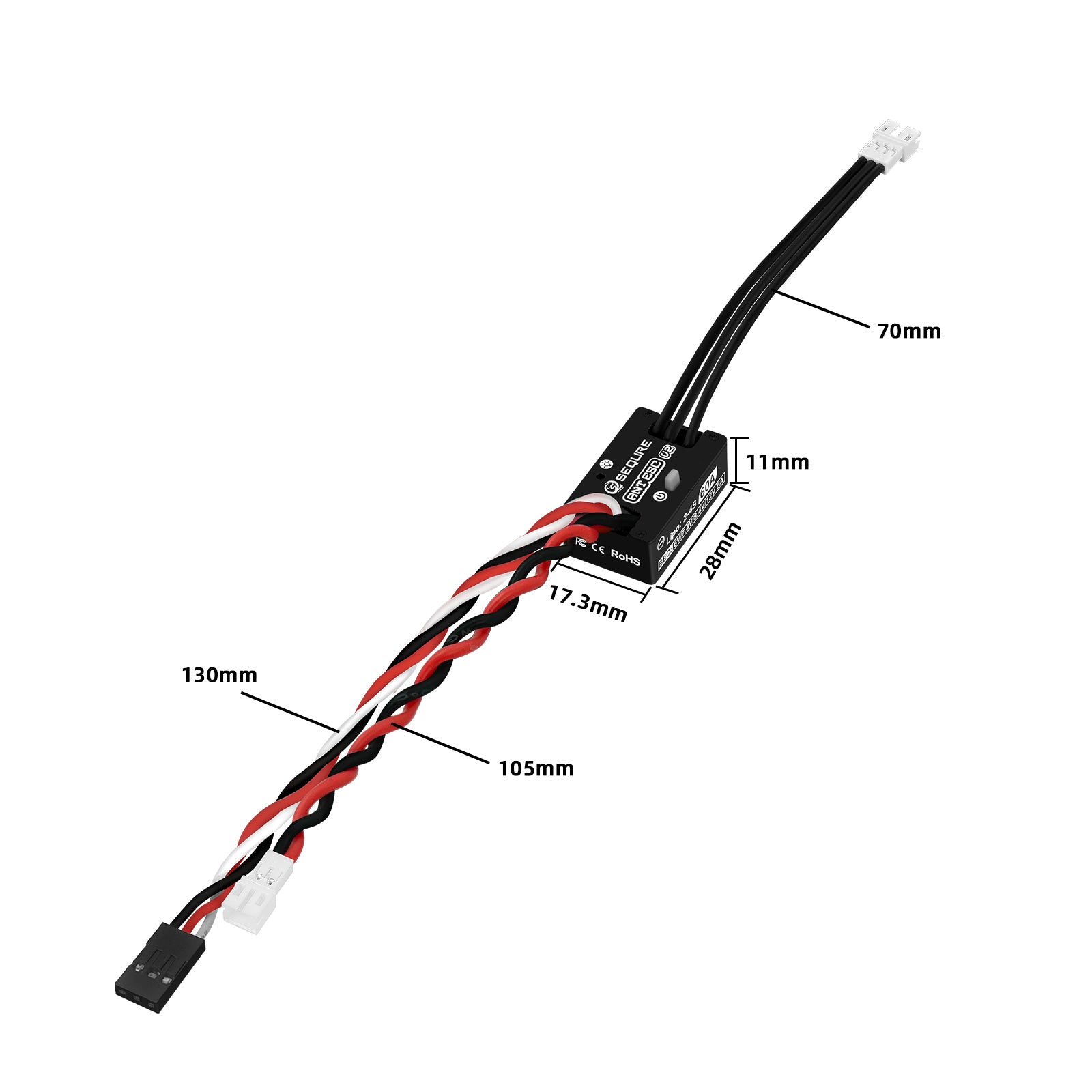

（1）Product Size: 28*17.3*11mm

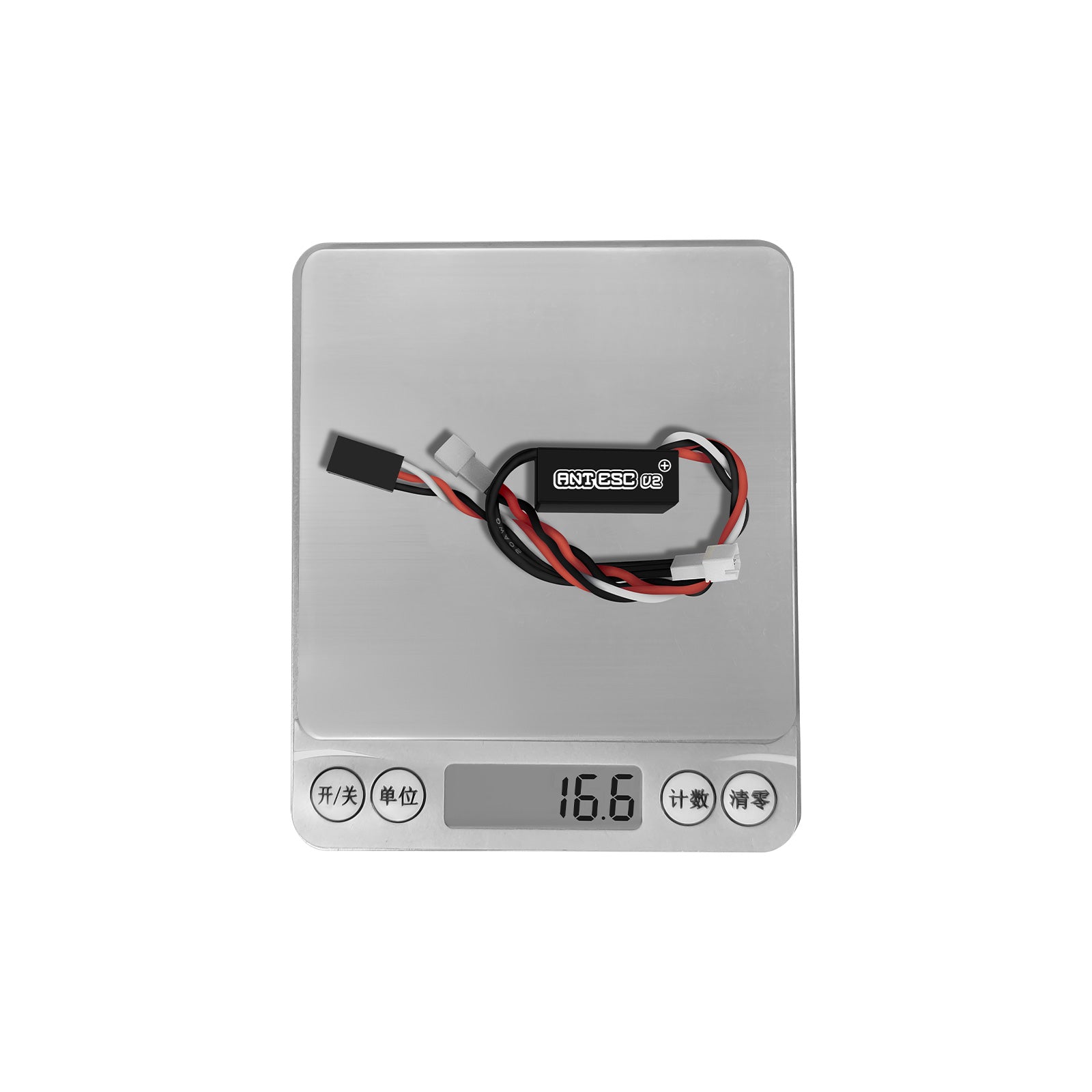

Net Weight of Product: 16.6g
（2）Package Size: 55*55*35mm
Packing Weight: 34.5g
（3）Package Size (Including Outer Carton)：155*105*40mm
Packing Weight (Including Outer Carton)：75g

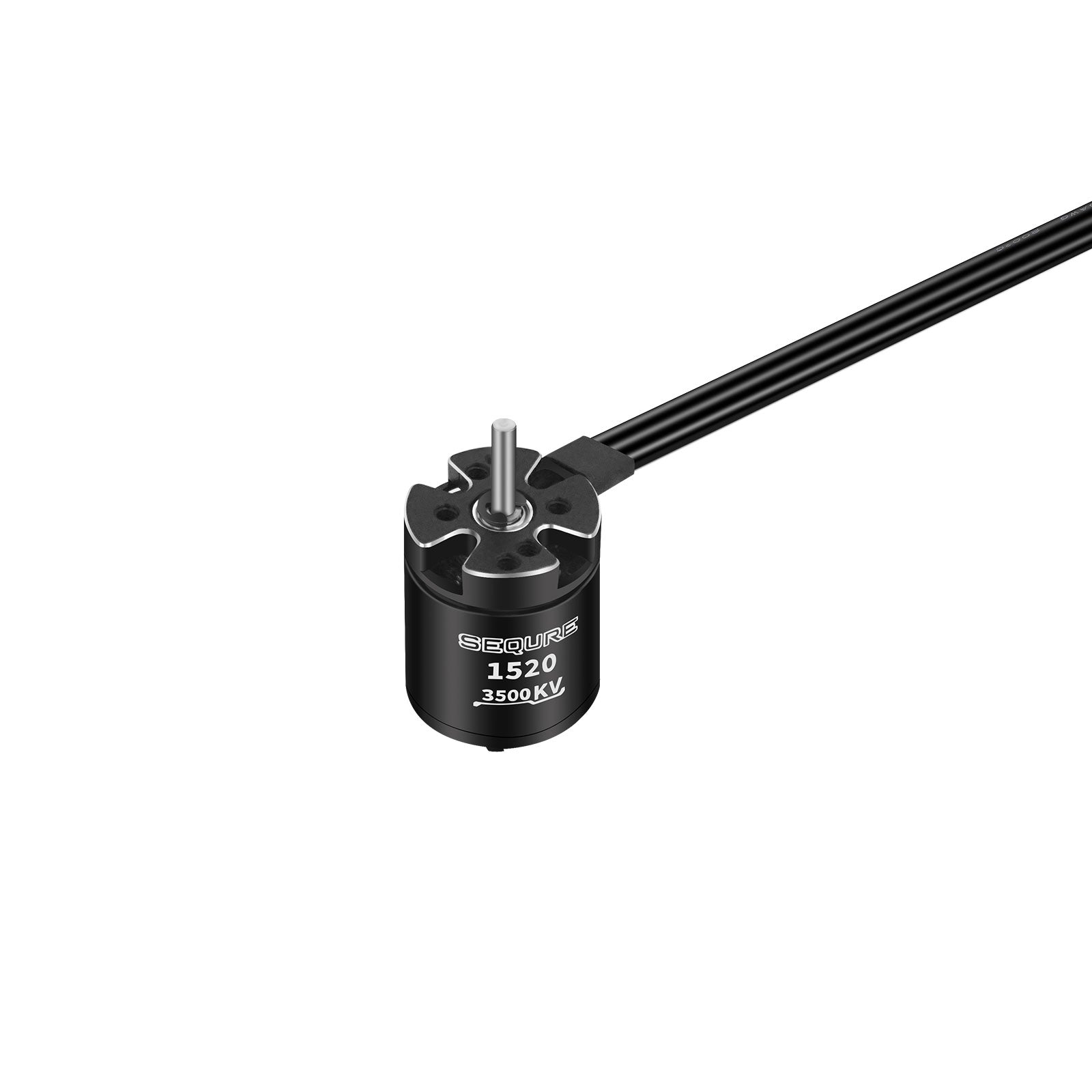

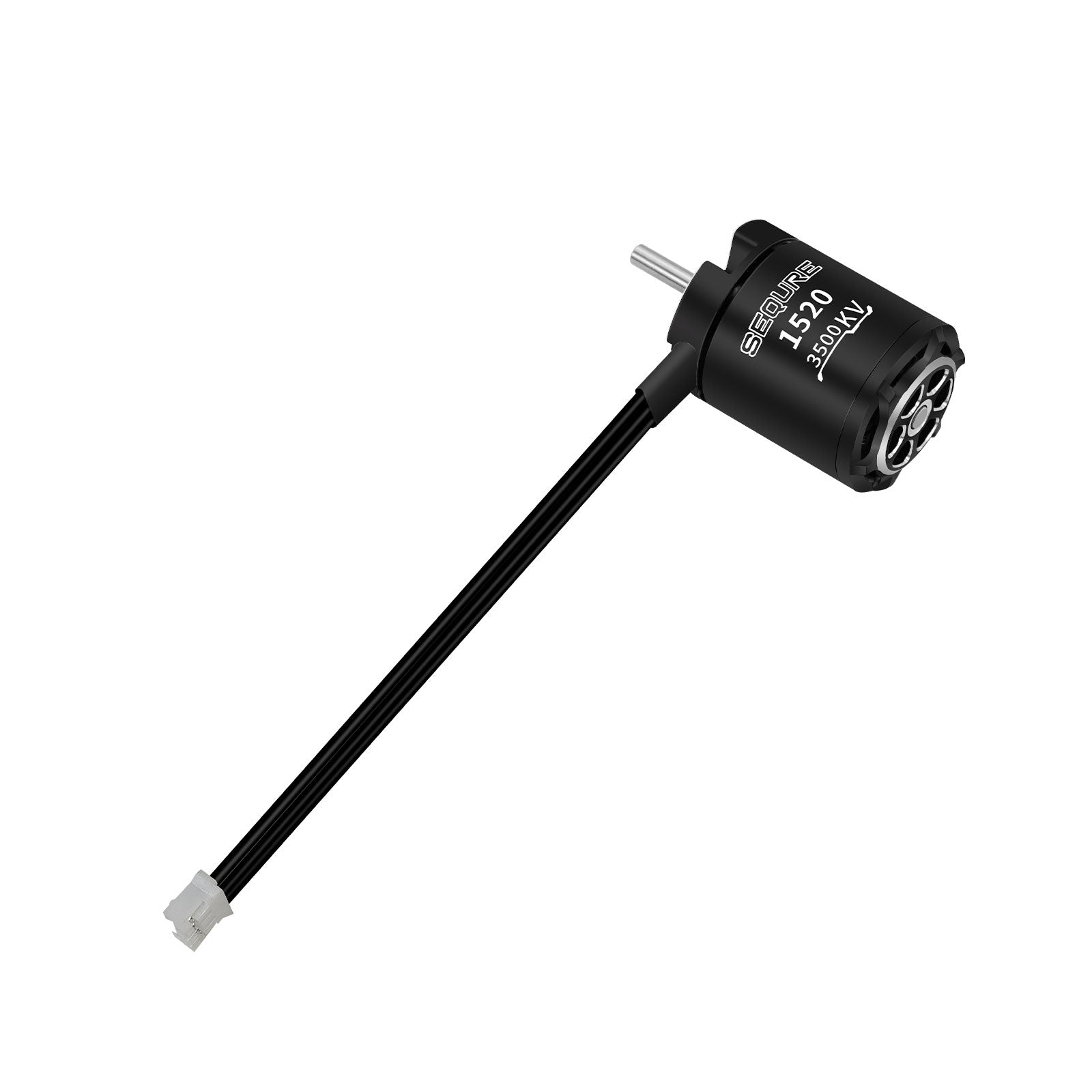

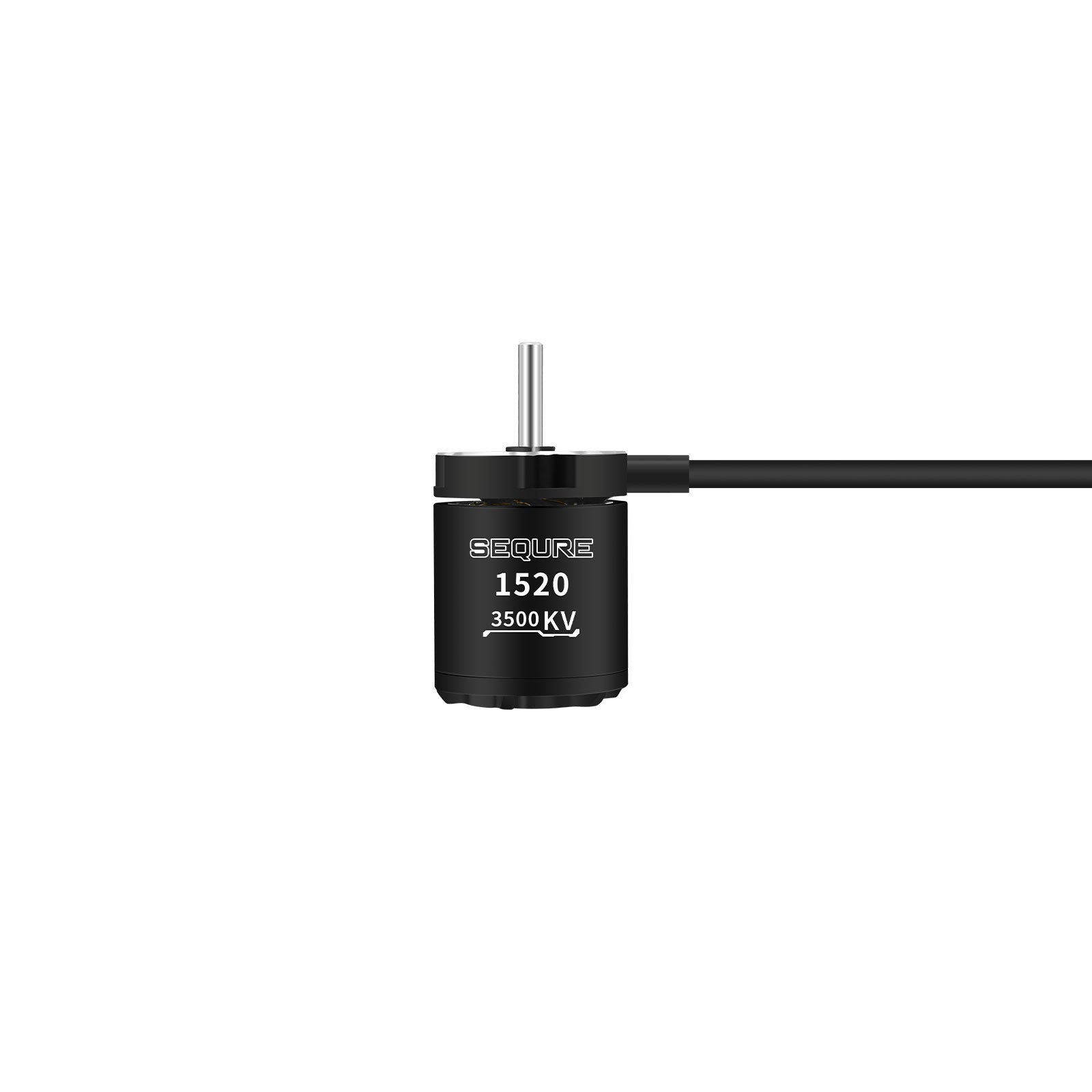

1520 Motor

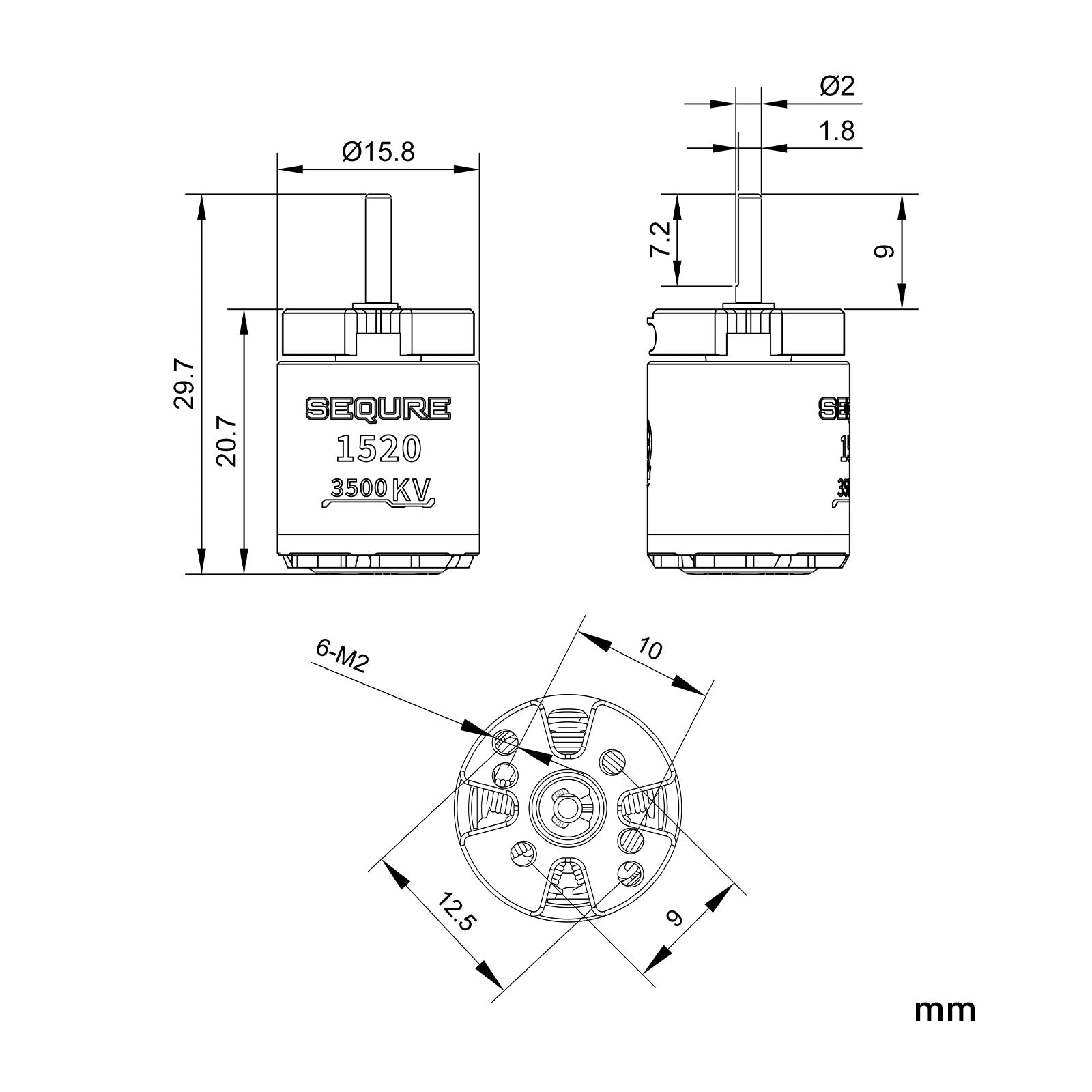

（1）Product Size: 15.8*20.7mm

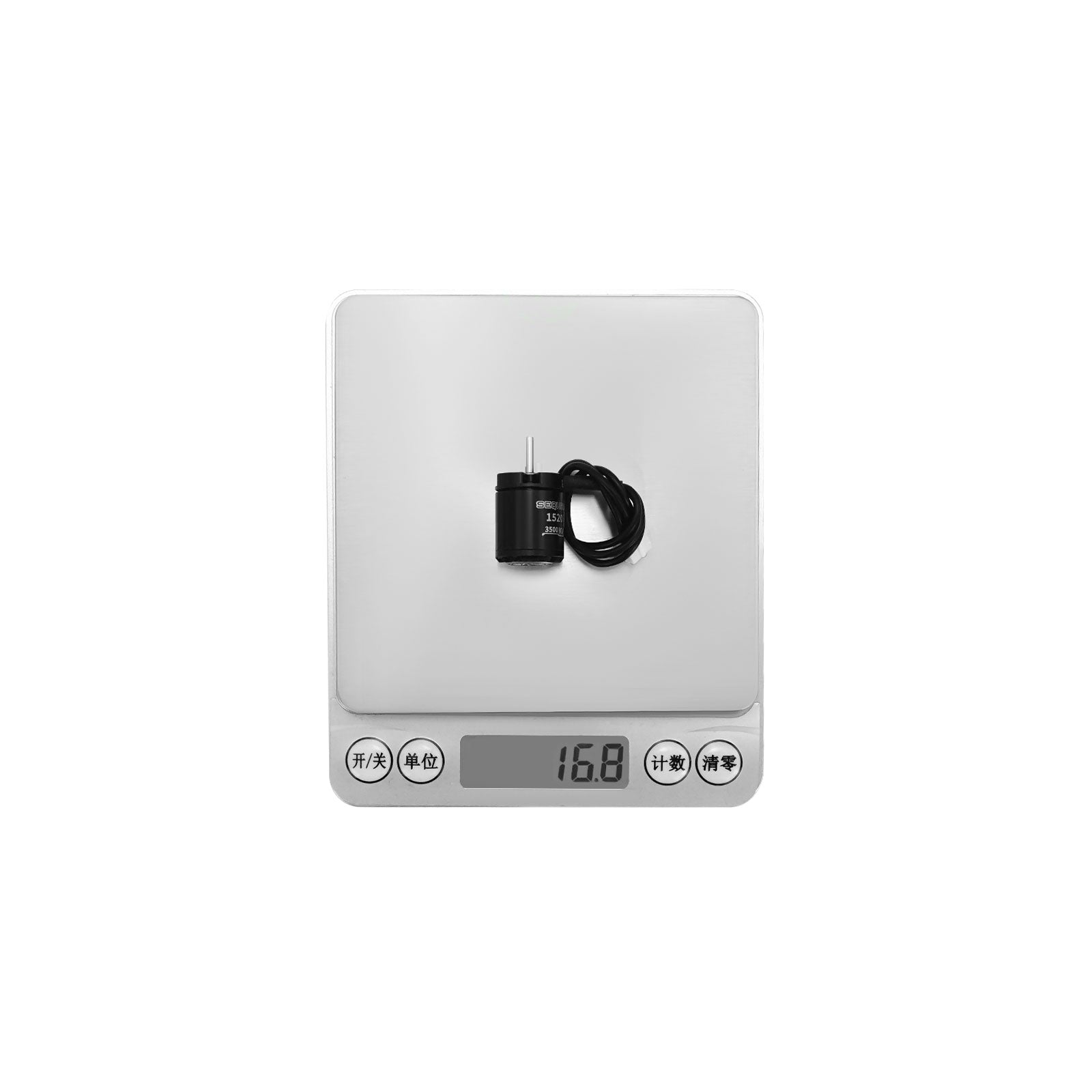

Net Weight Of Product: 16.8g
（2）Package Size: 55*55*35mm
Packing Weight: 33.5g
（3）Package Size (Including Outer Carton)：155*105*40mm
Packing Weight (Including Outer Carton): 73.5g
ANT ESC V2 & 1520 Motor & WiFi-Link
（1）Product Size: /
Net Weight Of Product: 36.2g
（2）Package Size: 65*65*40mm
Packing Weight: 64.5g
（3）Package Size (Including Outer Carton)：155*105*40mm
Packing Weight (Including Outer Carton):102g
