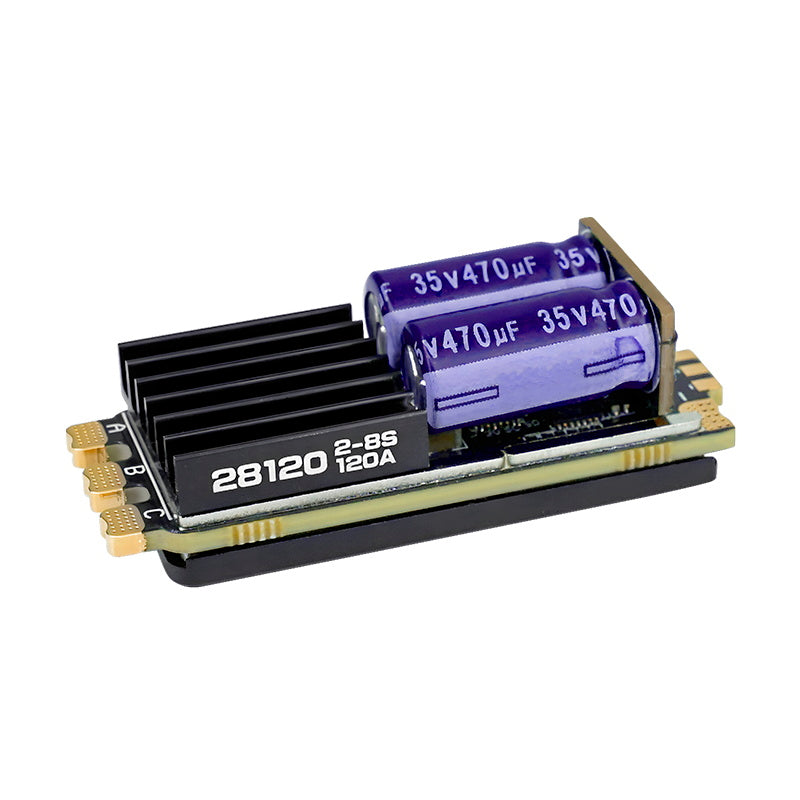

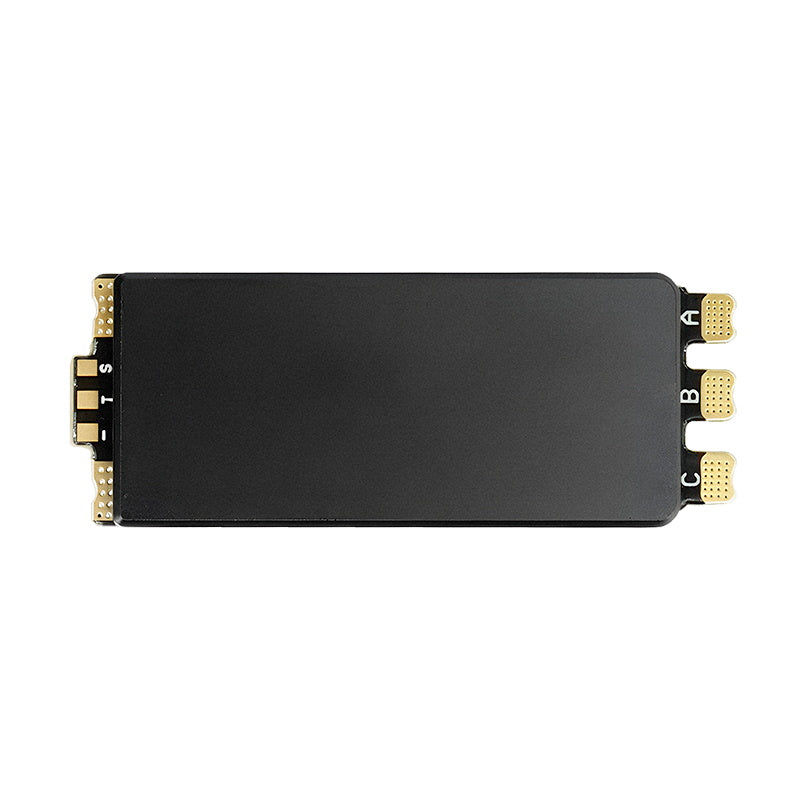

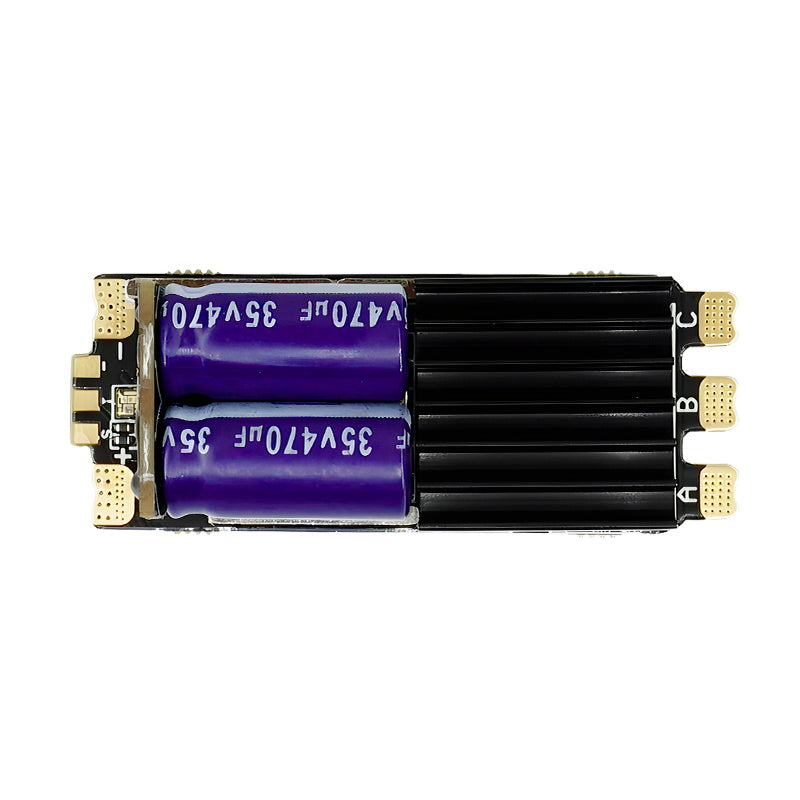

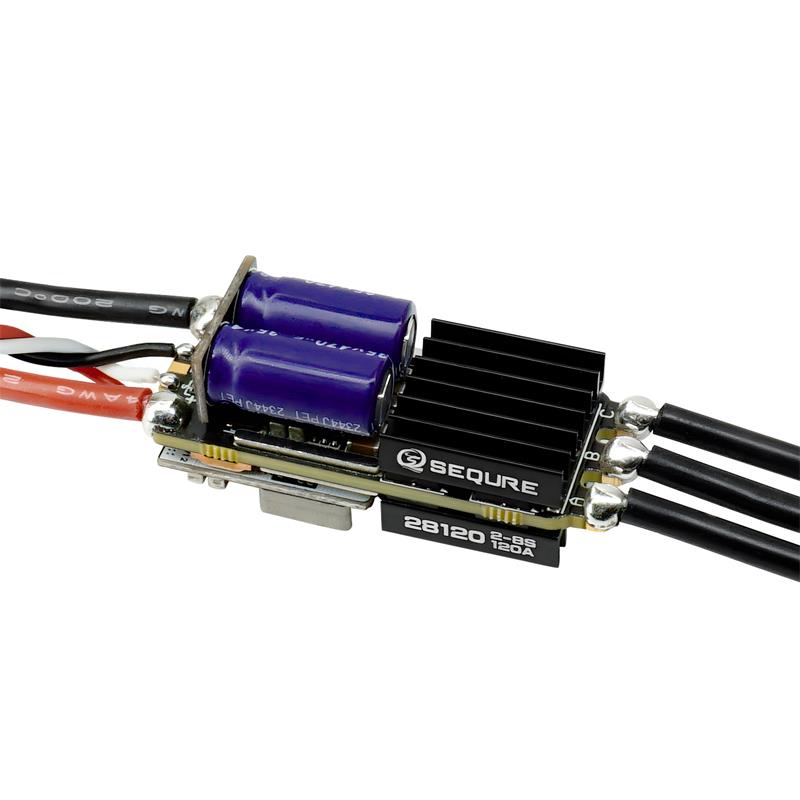

SEQURE SQESC 28120 Brushless Electric Speed Controller 2-8S Power Supply 120A BLHeli_32/AM32/ESCape32 Firmware Suitable for FPV Racing Drone Multi-axis Drones Fixed-wing UAV Model Boats Climbing Vehicles RC Car Models Helicopter 500
If you need WiFi-Link/ESC-Link parameter configuration tool, you can buy it through this link: https://bit.ly/4jvXvmn
Product Description:
(1) Adopting 32-bit high-performance processor STM32G071, with a working frequency of up to 64MHz and maximum support 128KHz motor PWM frequency.

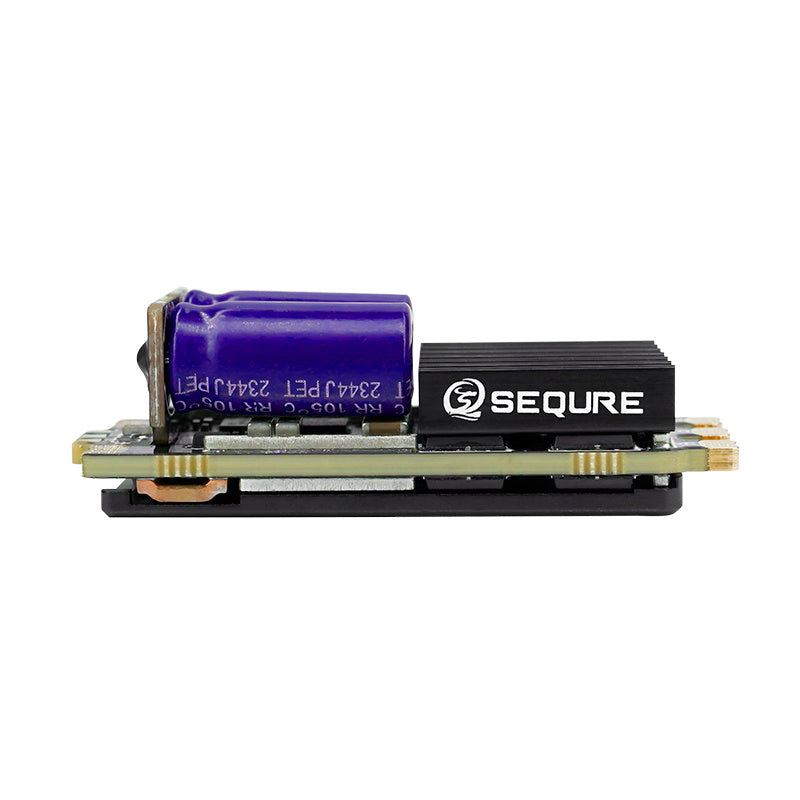

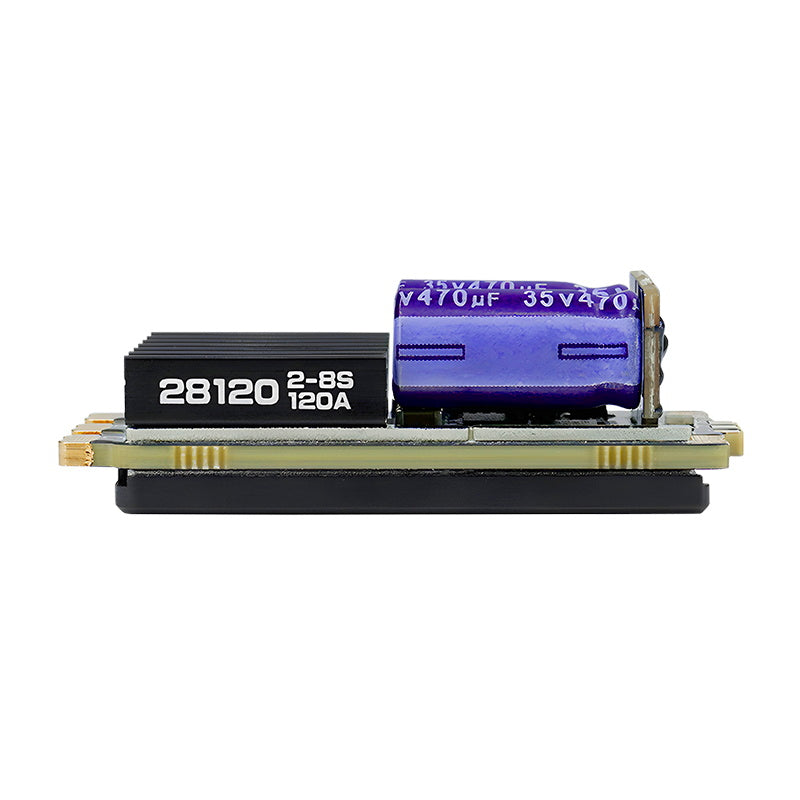

(2) Adopts high-power MOSFET, and combines with CNC metal radiator, this esc dissipates heat effectively under high current load and works stably & continuously.
(3) Supports multiple motion modes such as unidirectional, bidirectional, and braked motors.
(4) Supports multiple protections such as low voltage protection, temperature protection, locked rotor protection, and current protection.
(5) The ESC automatically detects the throttle signal when it is powered on, supports all Dshot signals, and also supports signal protocols such as PWM, Oneshot and Multishot.
(6) Visual programming parameter adjustment tool supports motor timing, throttle calibration, current detection, motor steering, telemetry signal and other settings.
(7) Onboard RGB LED color light settings, multiple LED colors can be customized.

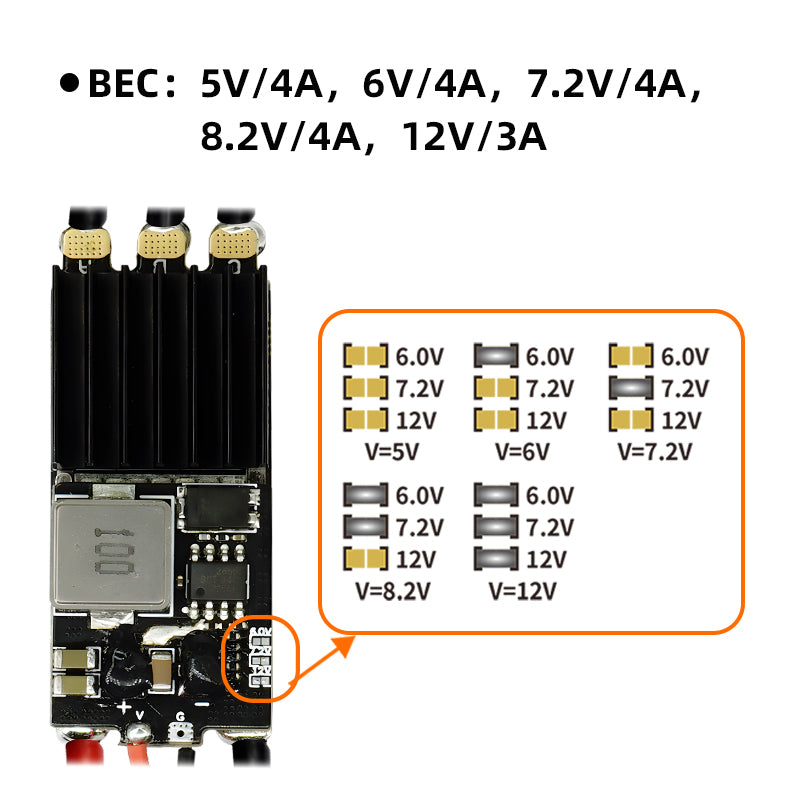

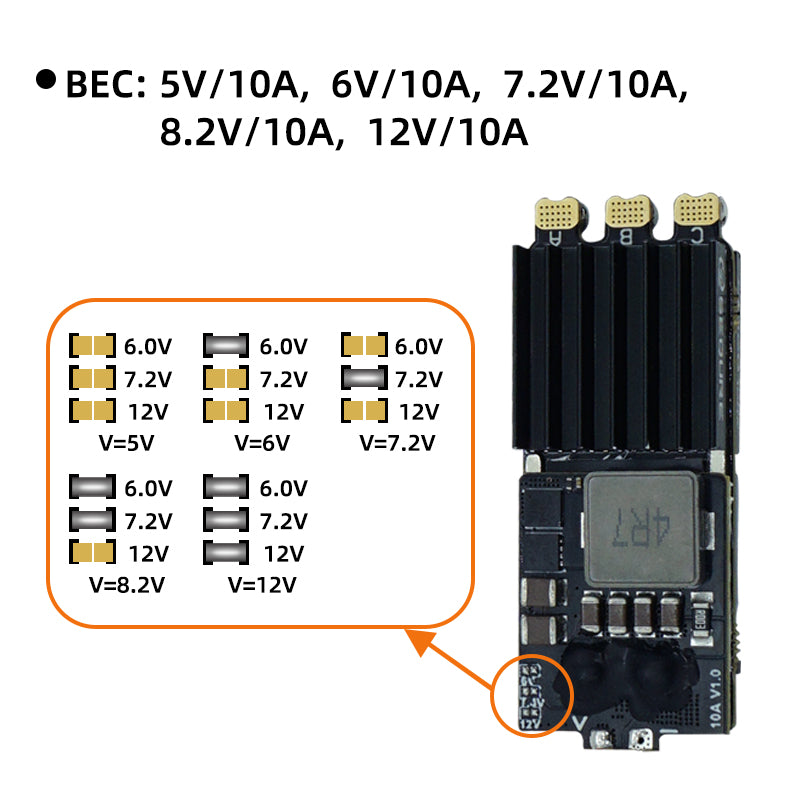

(8) BEC 4A supports adjustable outputs of 5V/4A, 6V/4A, 7.2V/4A, 8.2V/4A, and 12V/3A,BEC 10A supports adjustable outputs of 5V/10A, 6V/10A, 7.2V/10A, 8.2V/10A, and 12V/10A, which can directly supply power to external devices such as receivers and servos, making the application of ESC more extensive and flexible .
(9) Widely used in model airplane plant protection machines, multi-rotor drones, RC model ships and cars.
Parameters of Product:
|
Model |
SQESC 28120 |
|
Processor |
STM32G071 |
|
Input voltage |
DC 7V-35V（2-8S Lipo） |
|
Continuous current (good heat dissipation) |
120A |
|
Maximum current (good heat dissipation) |
150A |
|
Support firmware |
BLHeli_32，AM32, ESCape32 |
|
BEC(if any) |
5V/4A, 6V/4A, 7.2V/4A, 8.2V/4A, 12V/3A adjustable 5V/10A，6V/10A，7.2V/10A，8.2V/10A，12V/10A adjustable |
|
Signal protocol |
Dshot (All),PWM,Oneshot,Multishot,etc. |
|
Programming parameter adjustment |
Support |
|
Throttle calibration |
Support |
|
Timing angle setting |
Support |
|
Current detection |
Support |
|
Telemetry signal |
Support |
|
Motor steering settings |
Support |
|
RGB LED color lights |
Support |
|

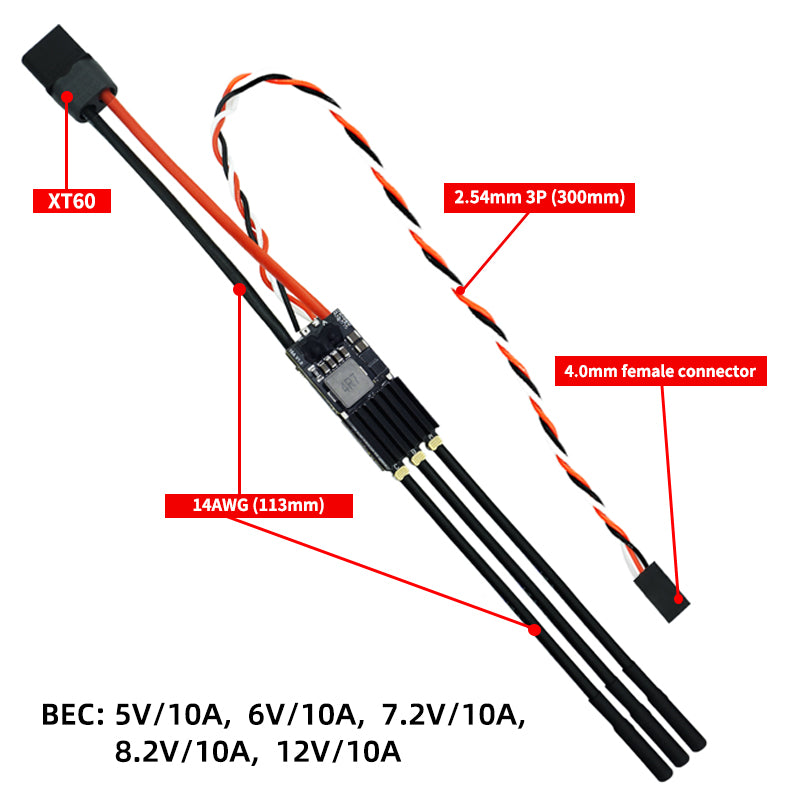

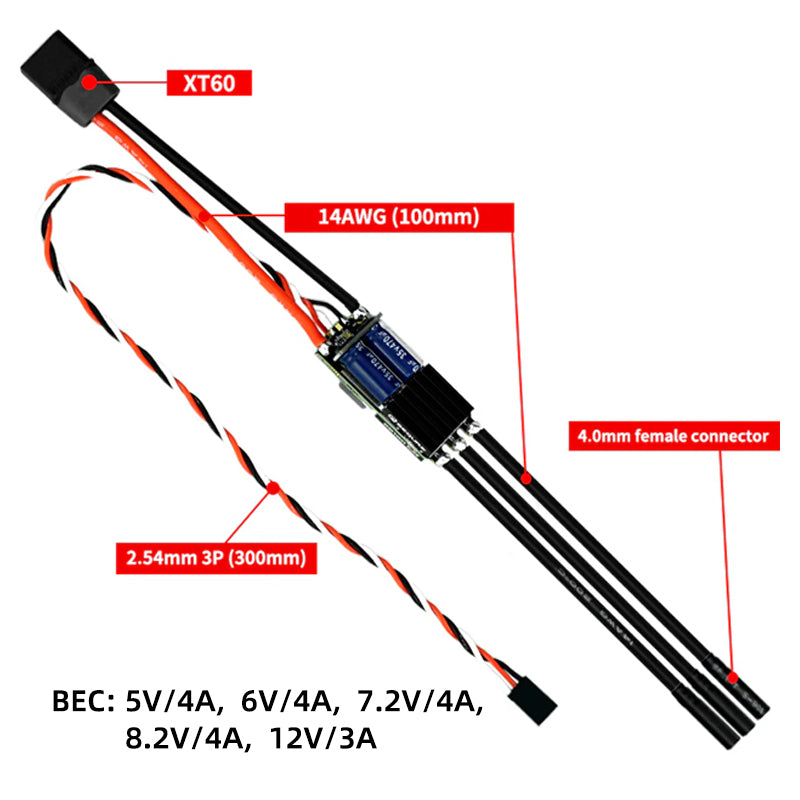

Power cable(if any) |
14AWG |
|
Application scenarios |
Suitable for multi-axis drones, fixed-wing aircraft models, multi-rotor drones, plant protection machines, model ships, RC model cars, rock crawlers，and Helicopter 500. |
Package included:

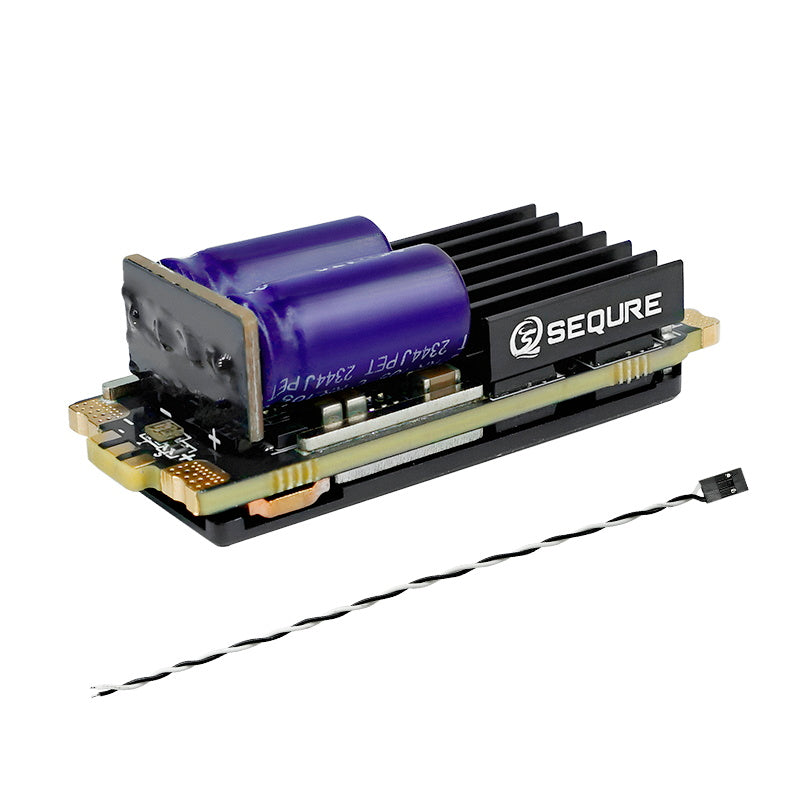

SQESC 28120 Set×1
Overall Dimension
28120（BLHeli_32）、28120（AM32）

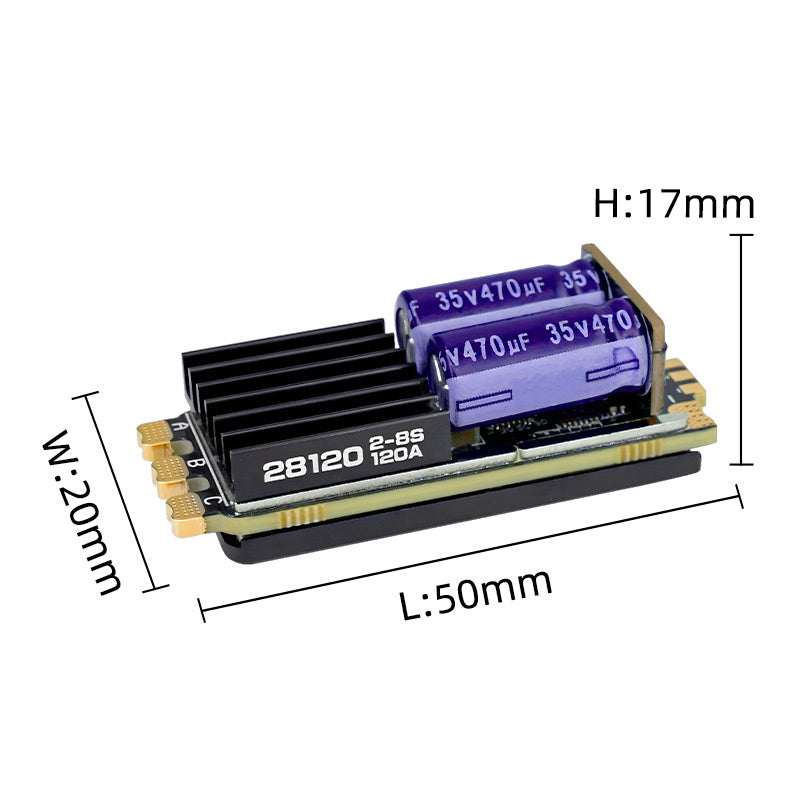

（1）Product Size: 50*20*17mm

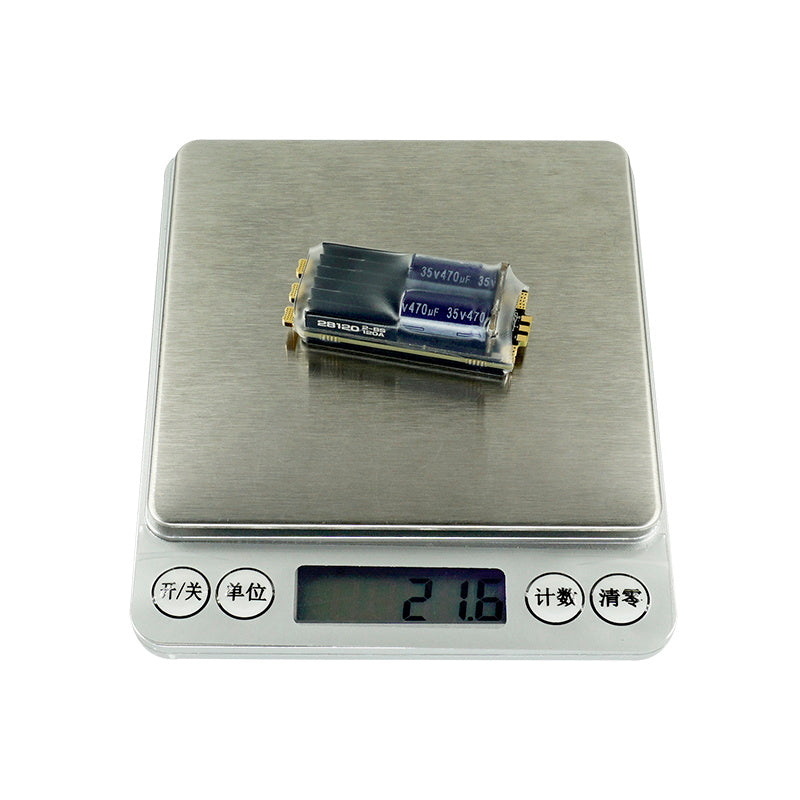

Net Weight Of Product: 21.6g
（2）Package Size: 120*80*18mm
Packing Weight: 26g
（3）Package Size (Including Outer Carton)：200*110*40mm
Packing Weight (Including Outer Carton)：70.7g

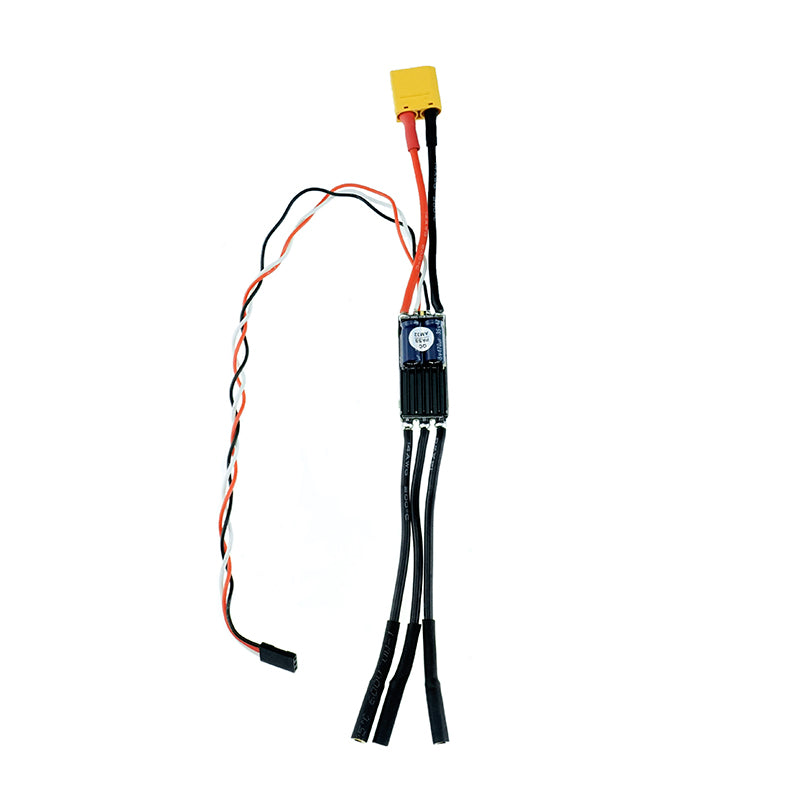

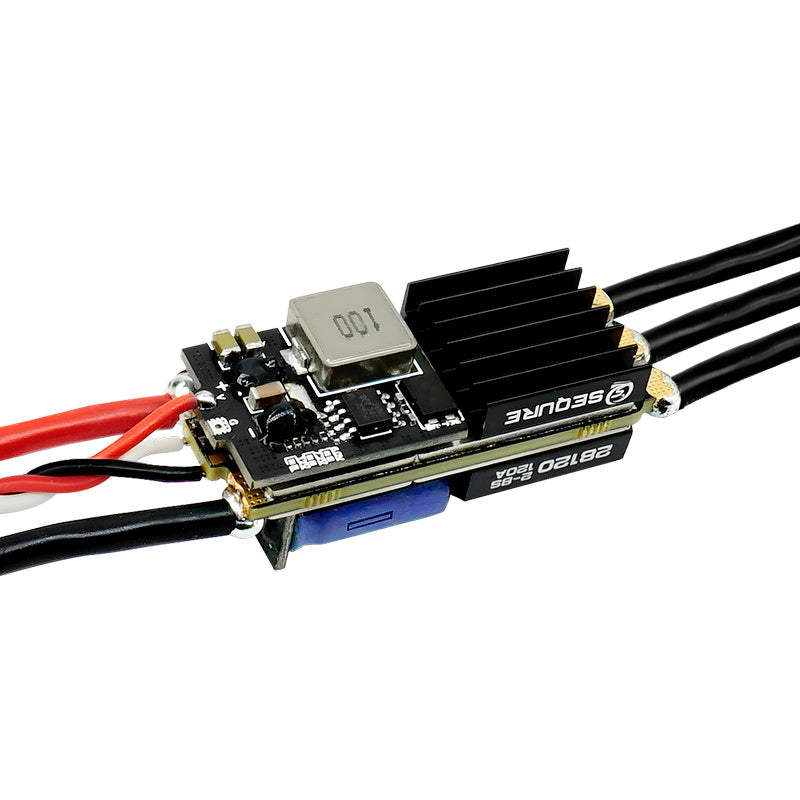

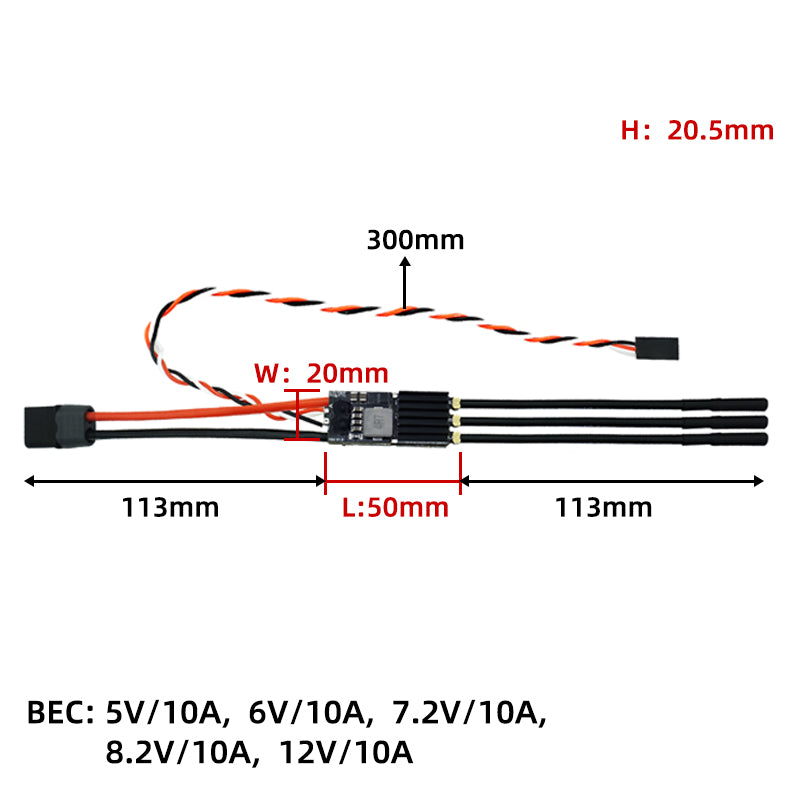

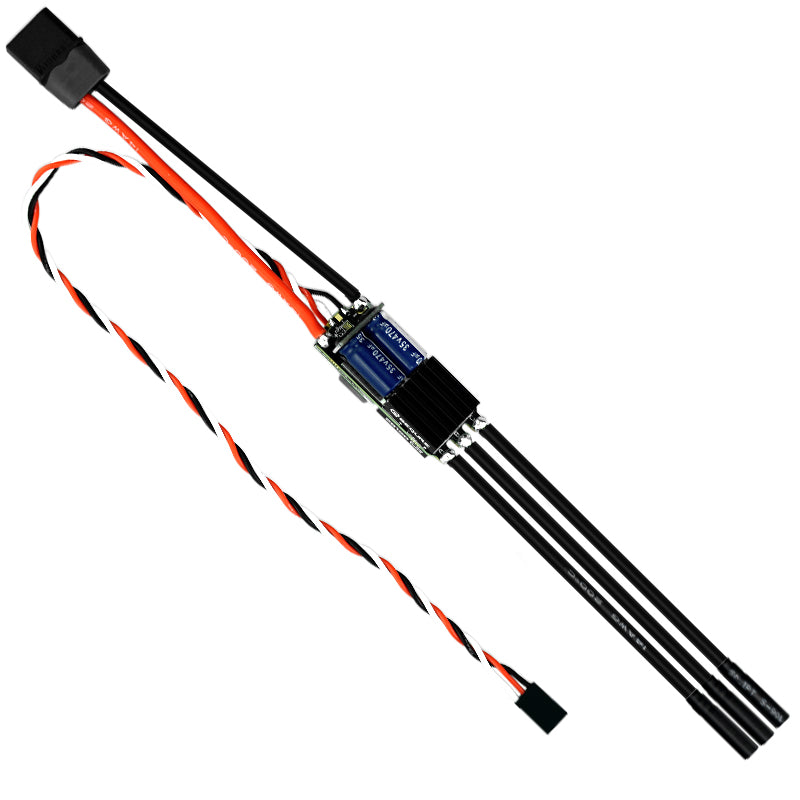

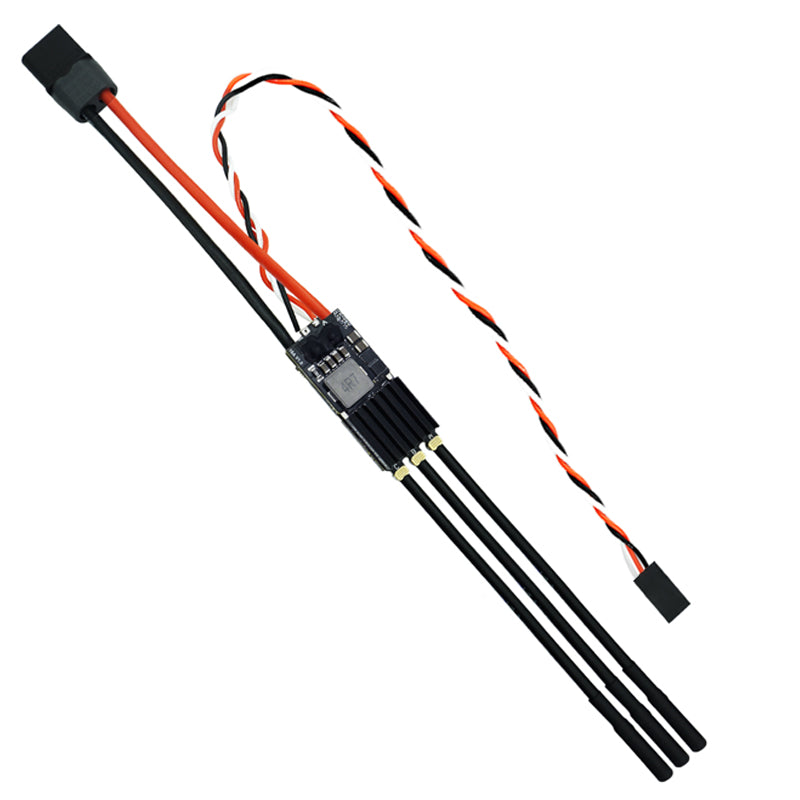

28120（BLHeli_32）+BEC，28120（AM32）+BEC，28120（ESCape32）+BEC
（1）Product Size: /

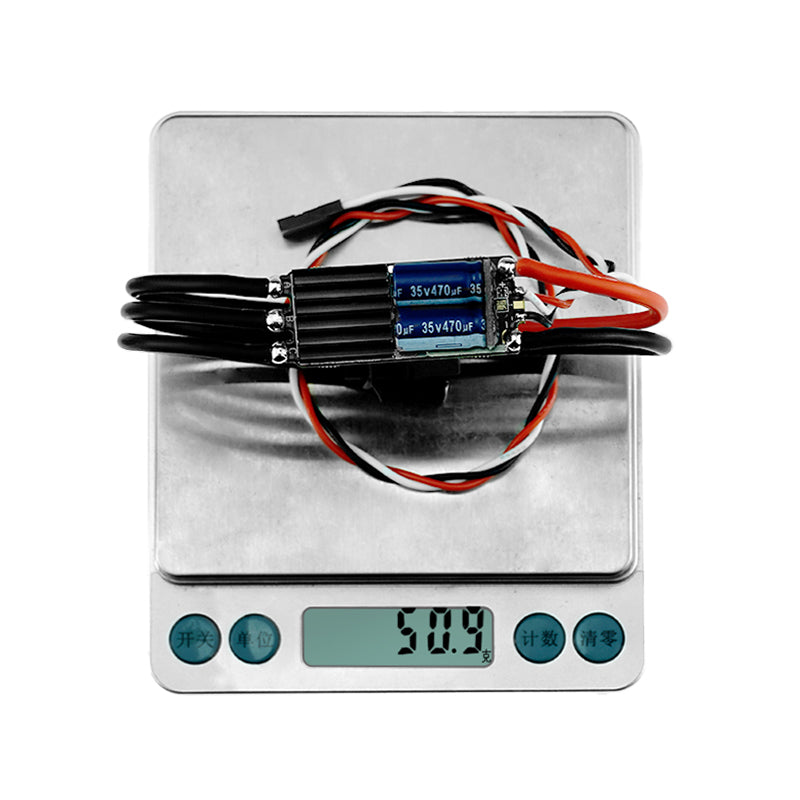

Net Weight Of Product: 52g
（2）Package Size: 150*100*30mm
Packing Weight: 59g
（3）Package Size (Including Outer Carton)：200*110*40mm
Packing Weight (Including Outer Carton)：104g
