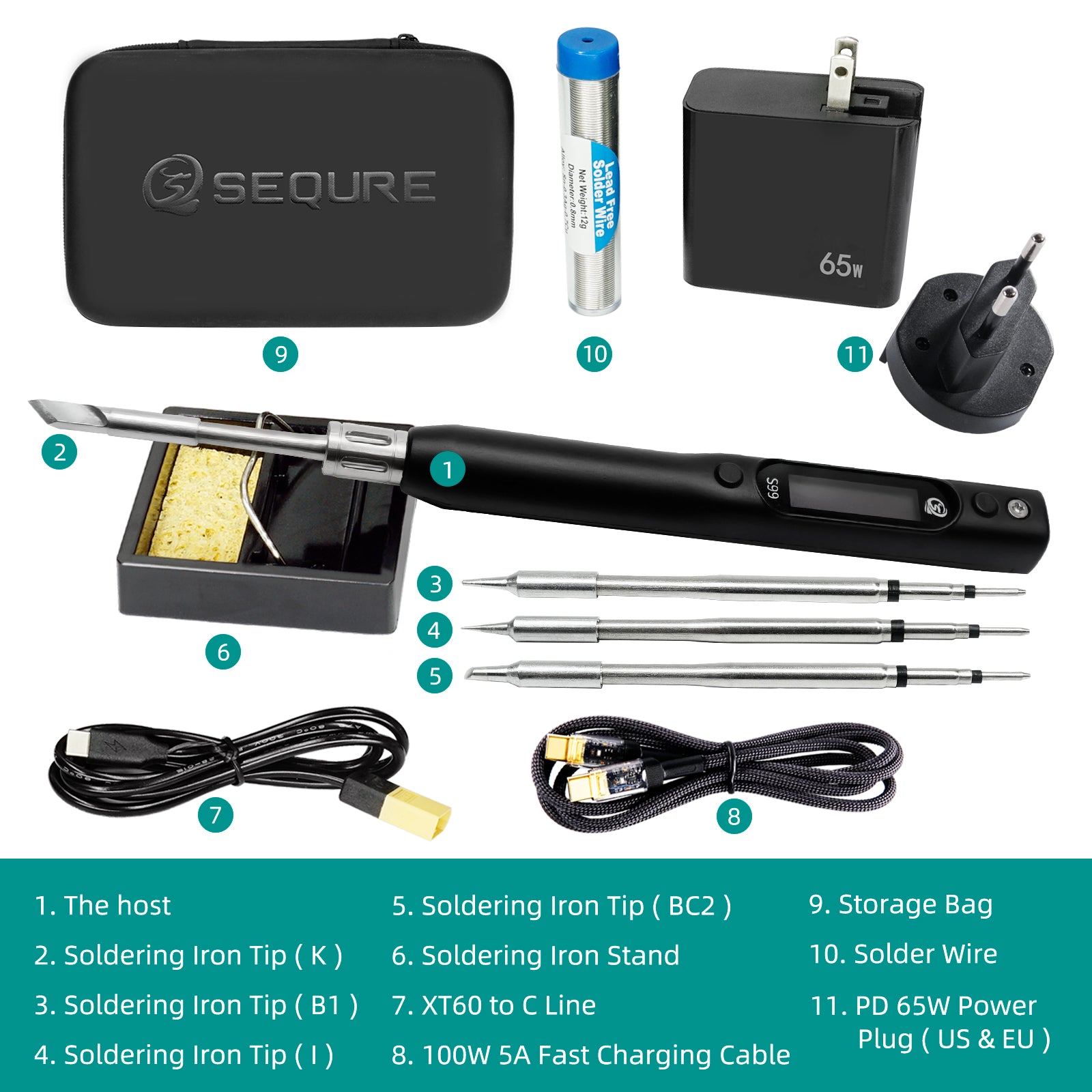

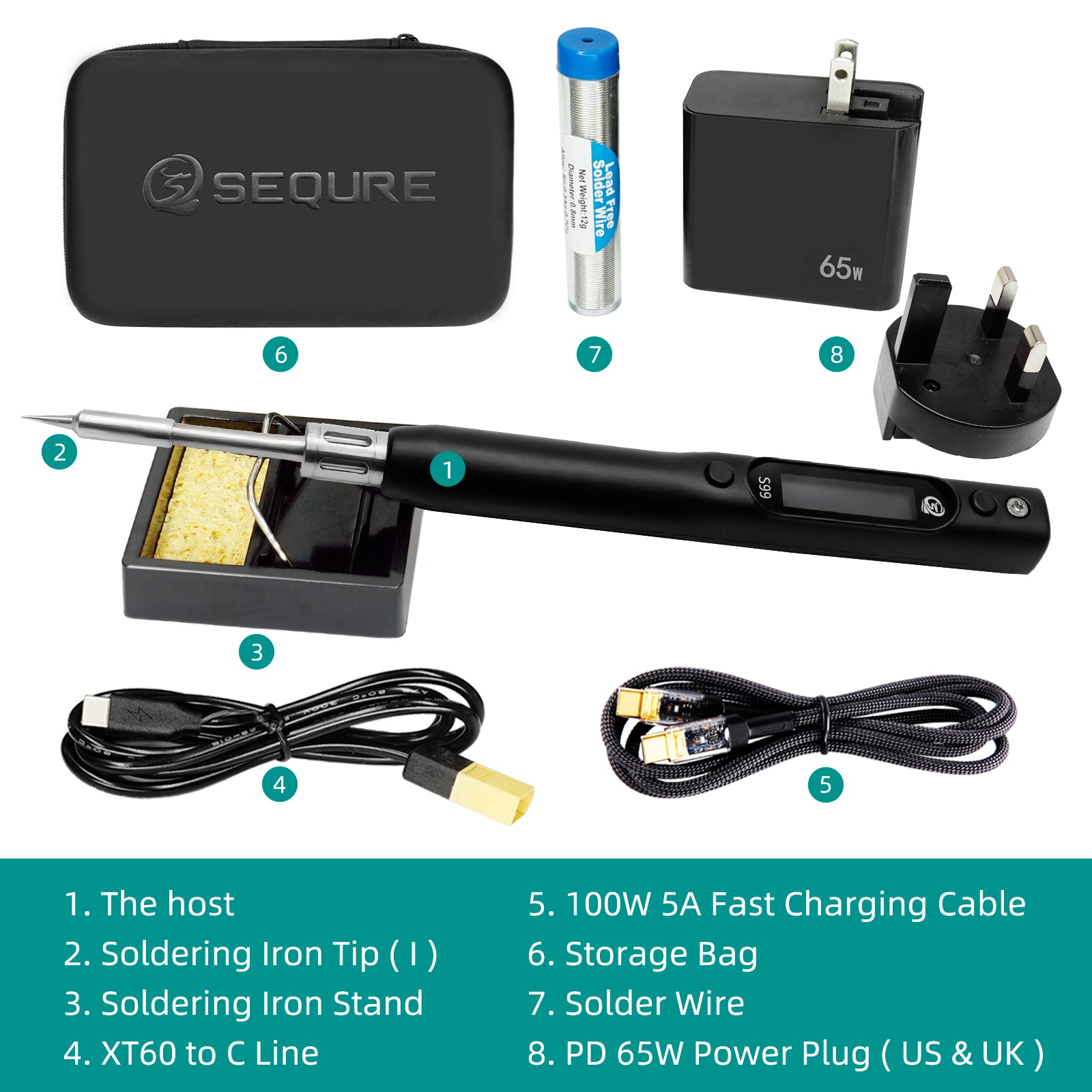

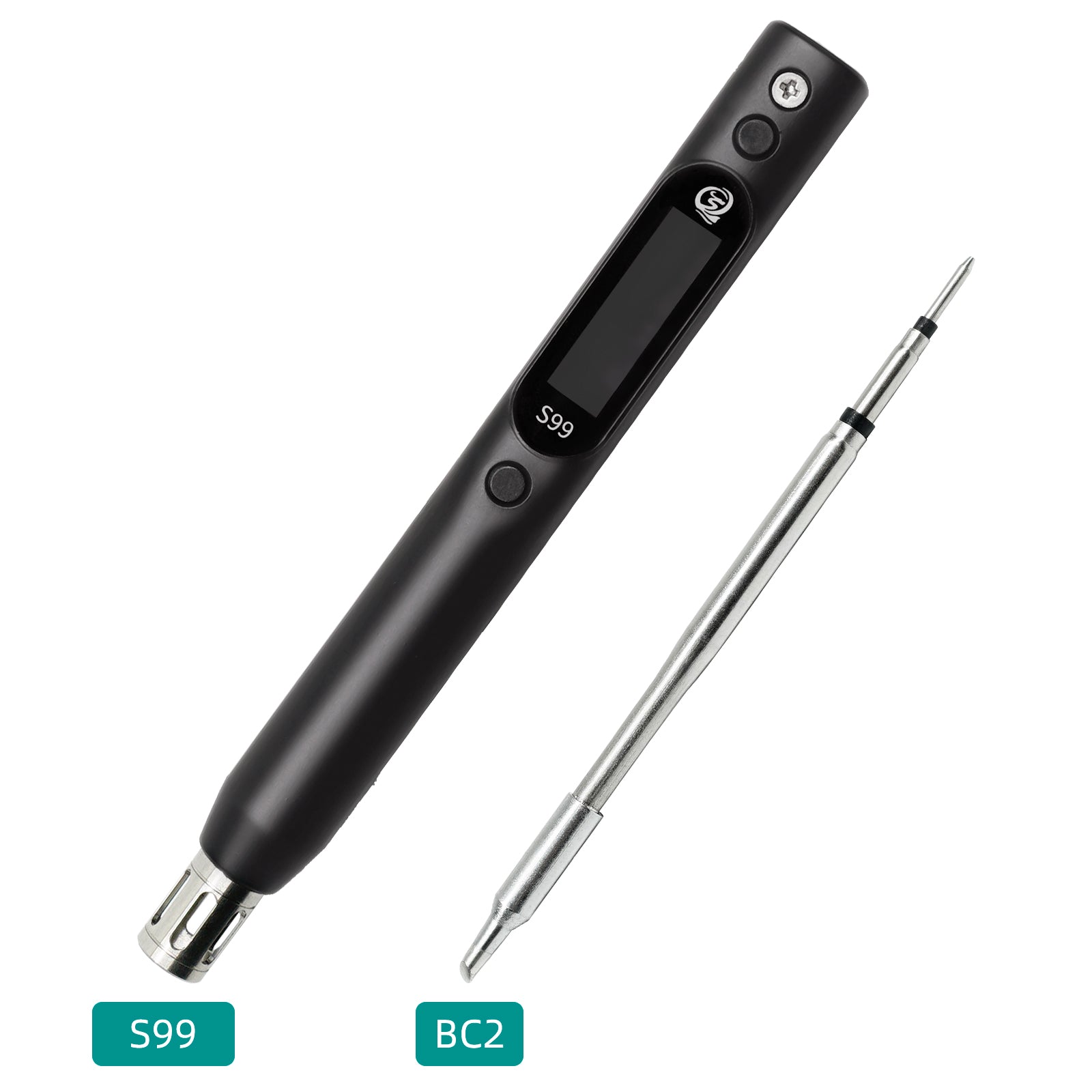

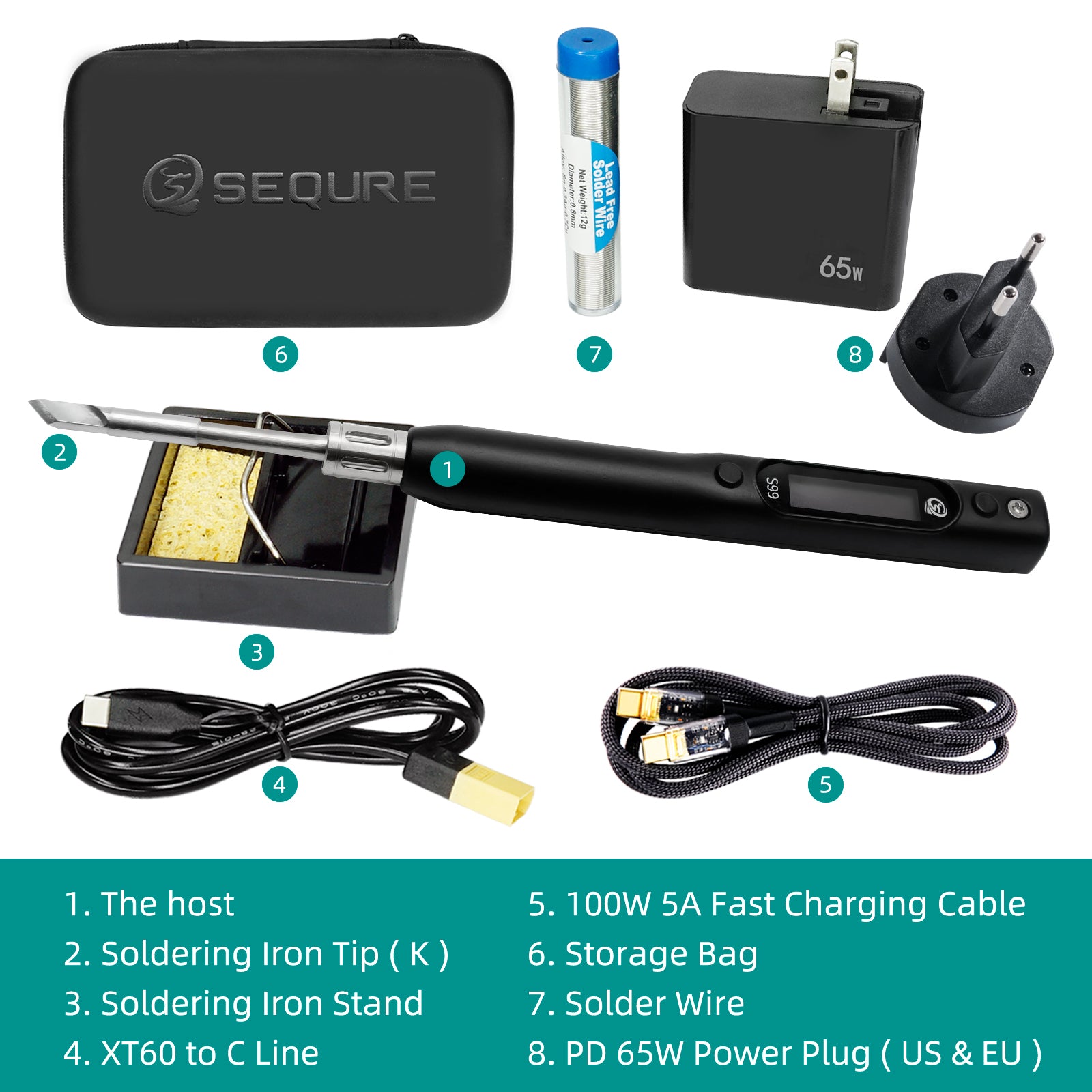

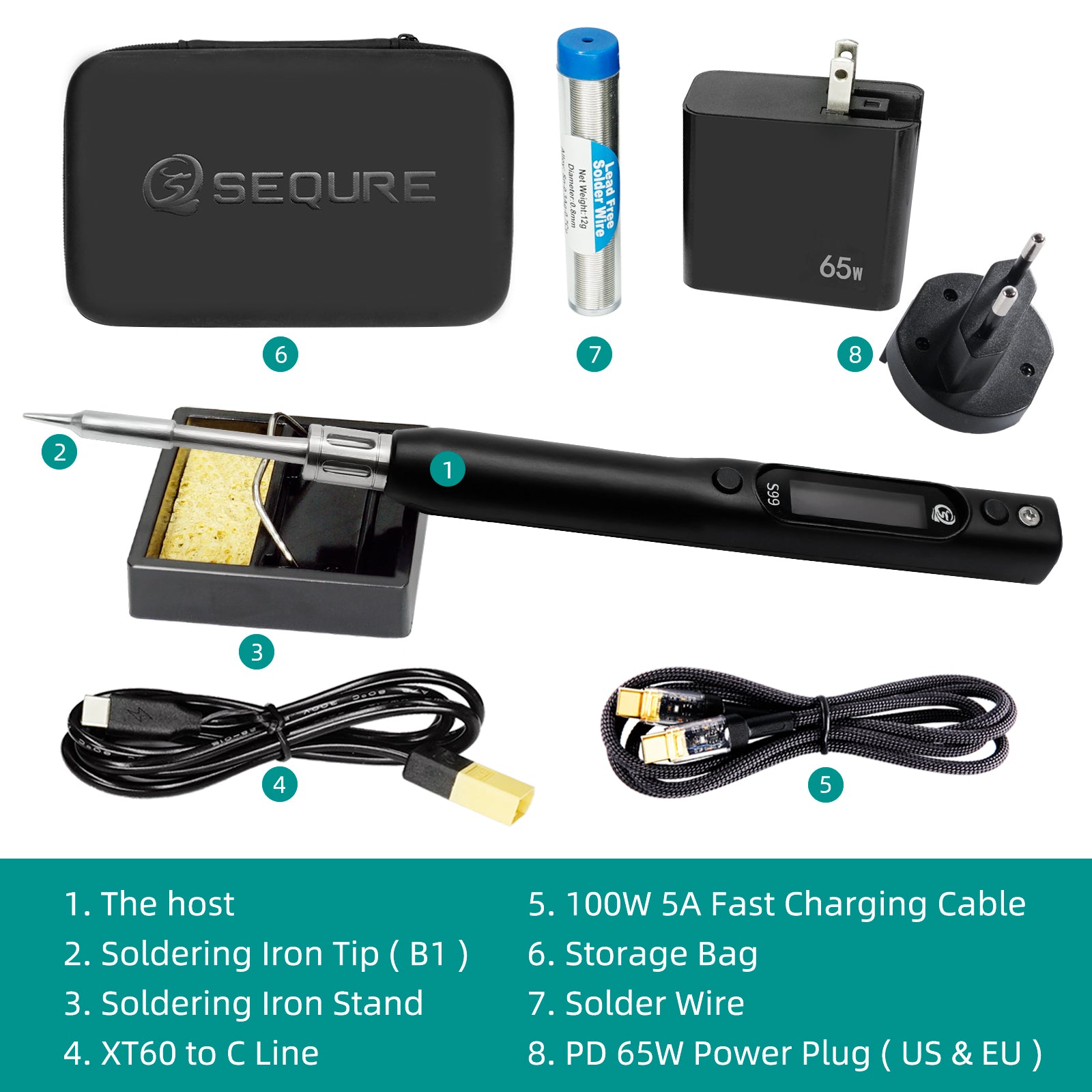

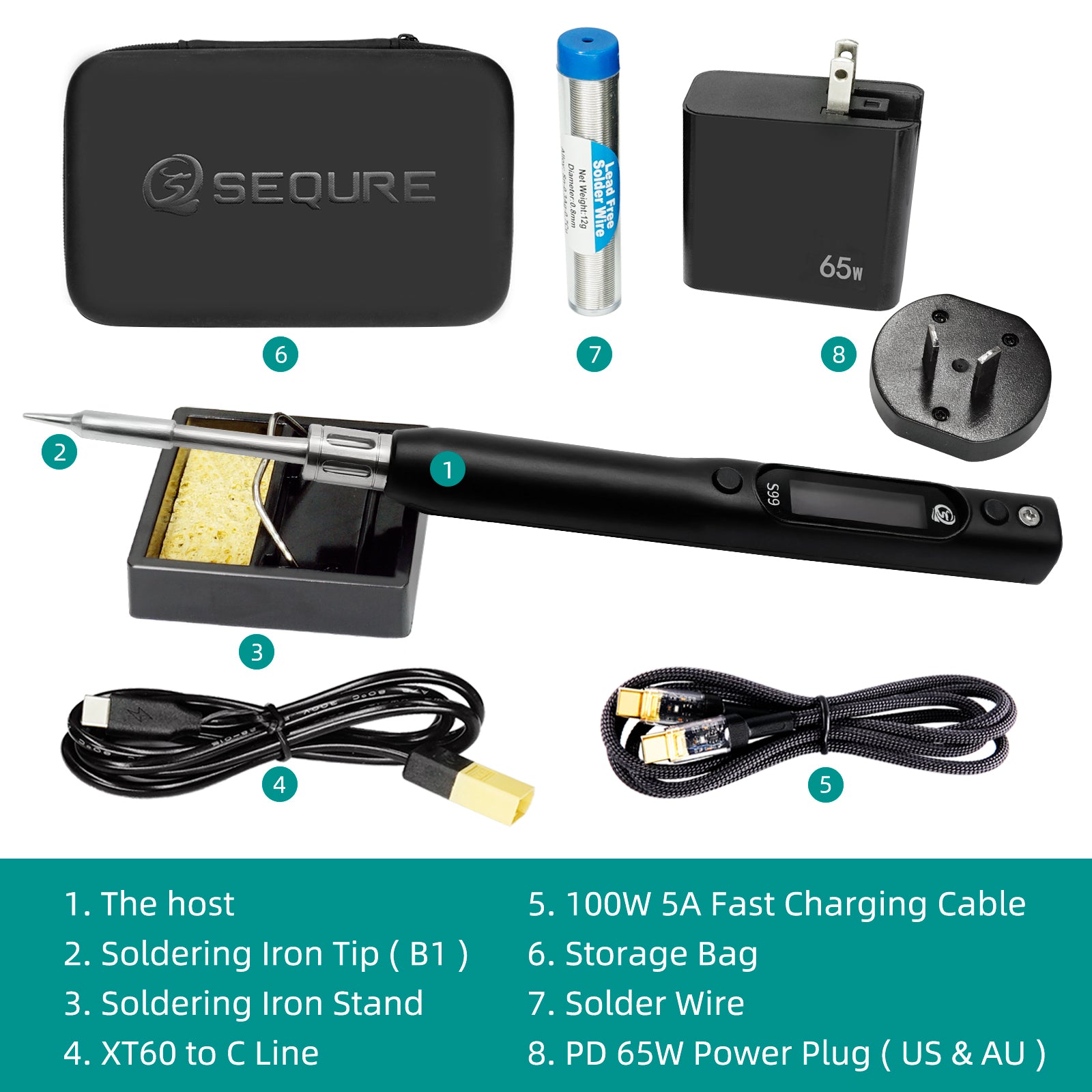

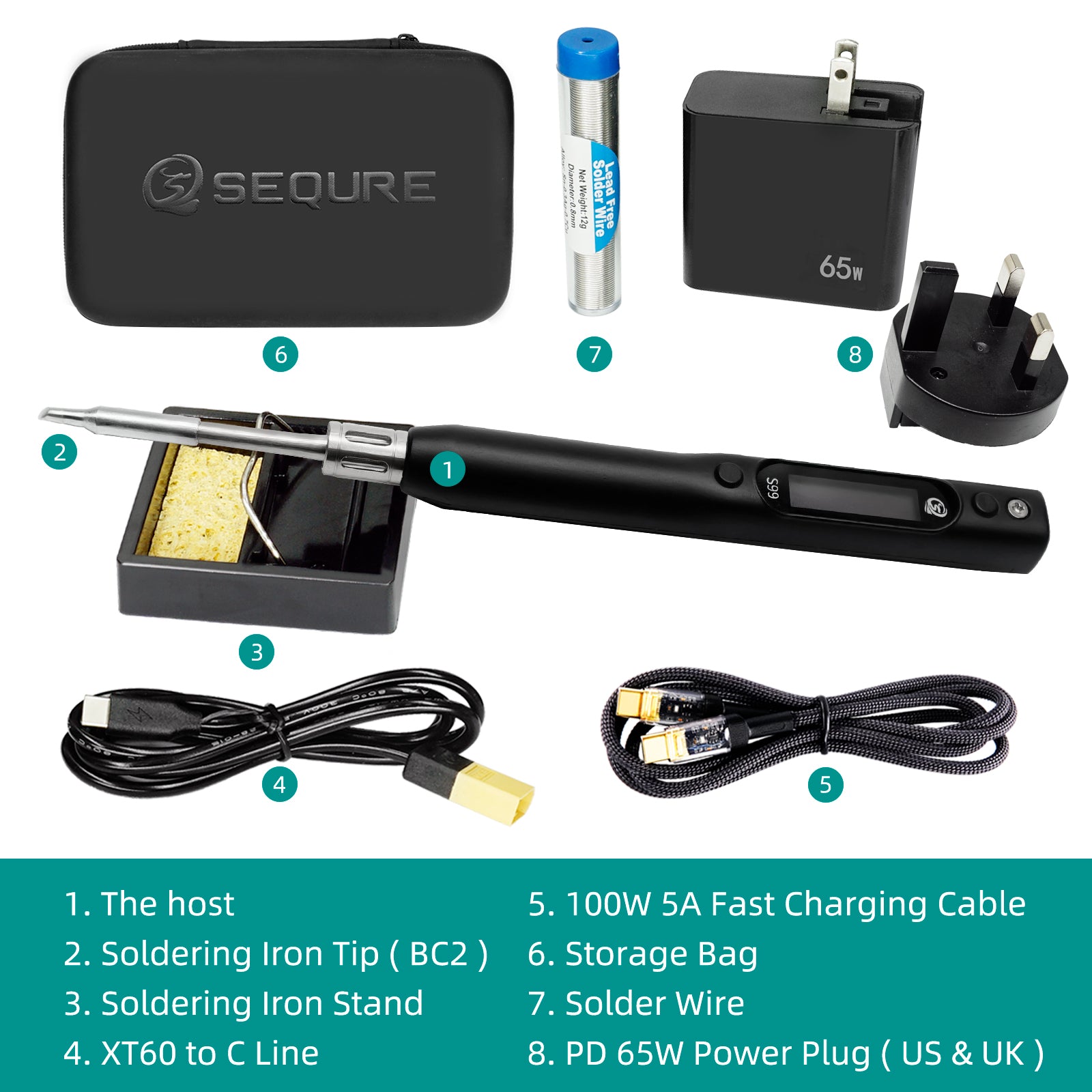

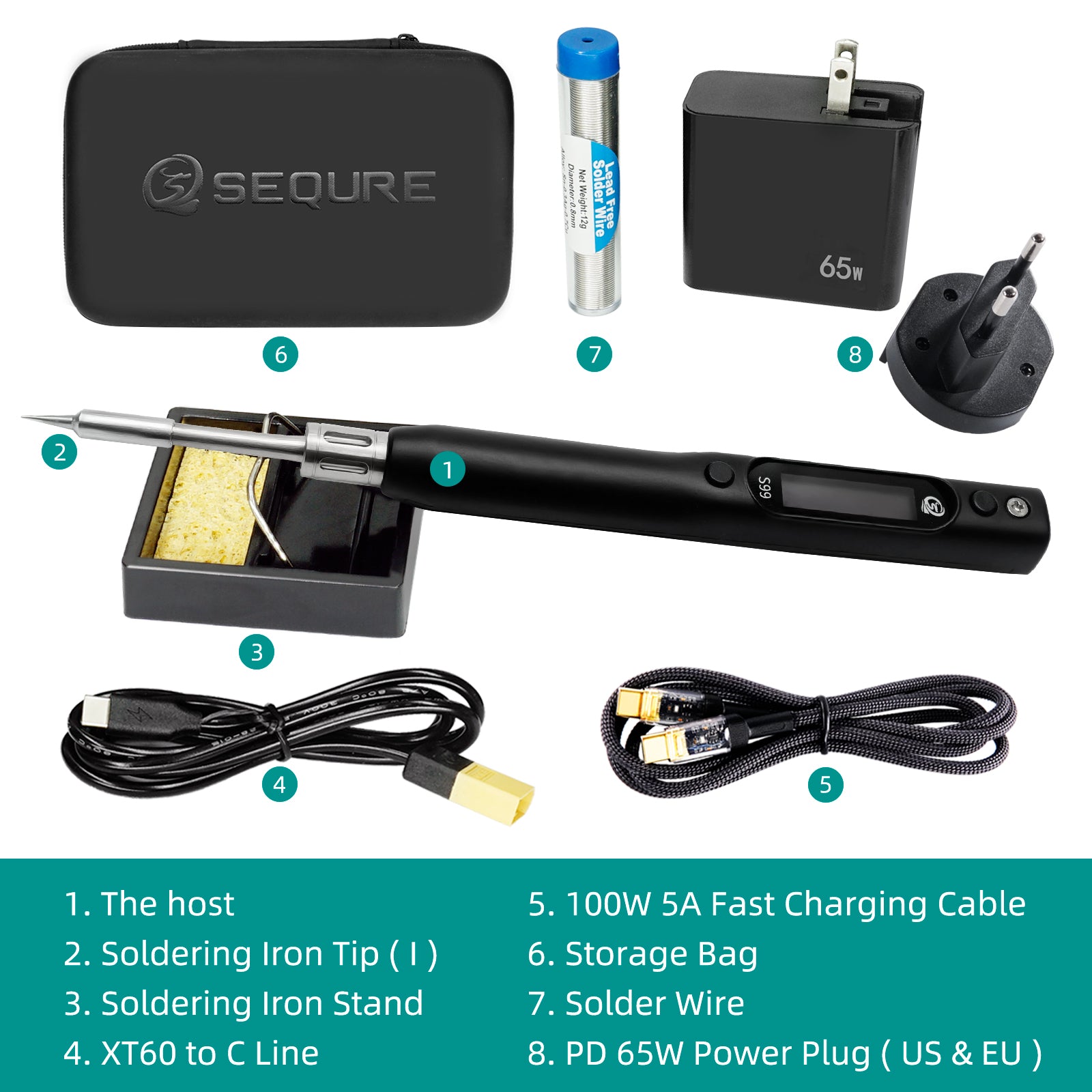

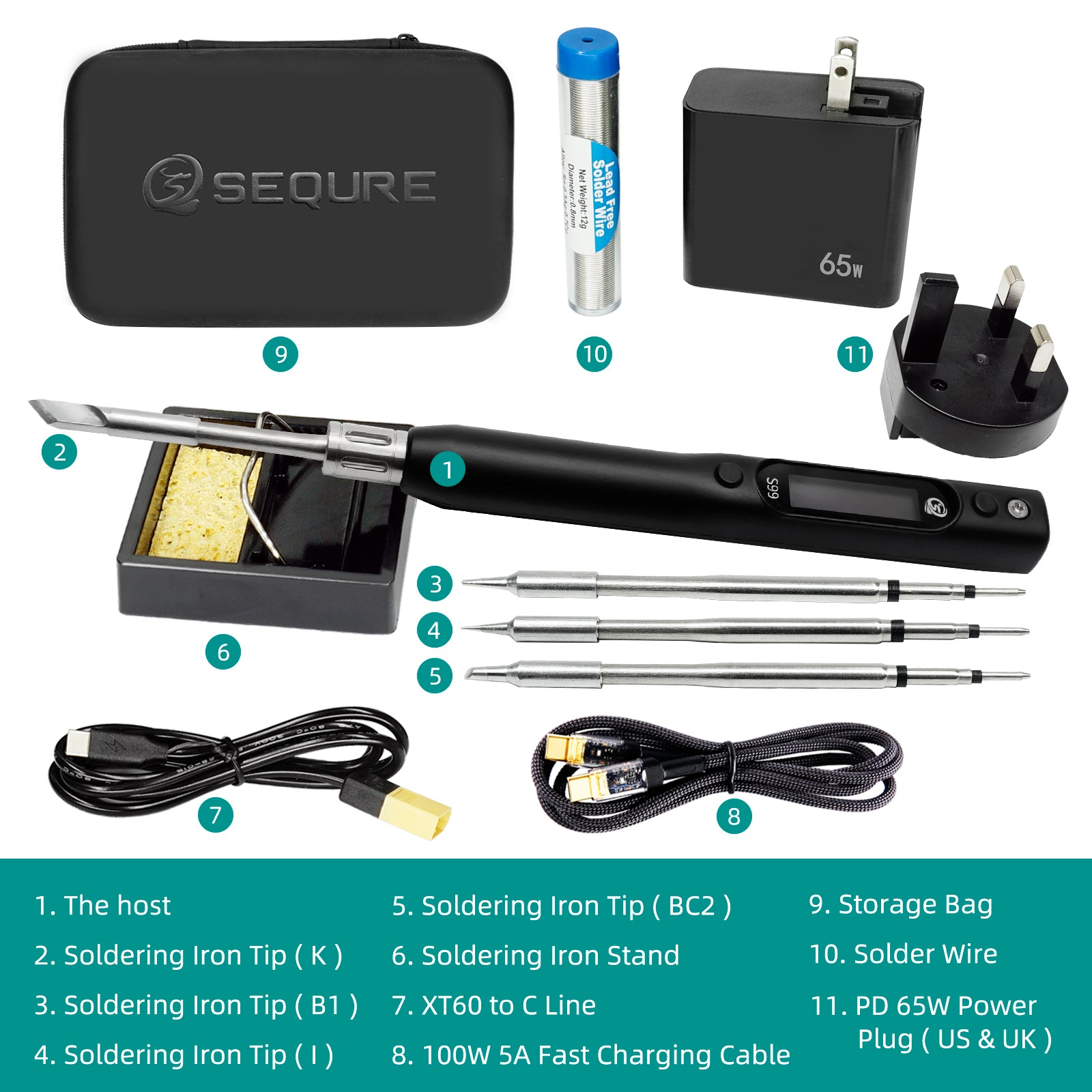

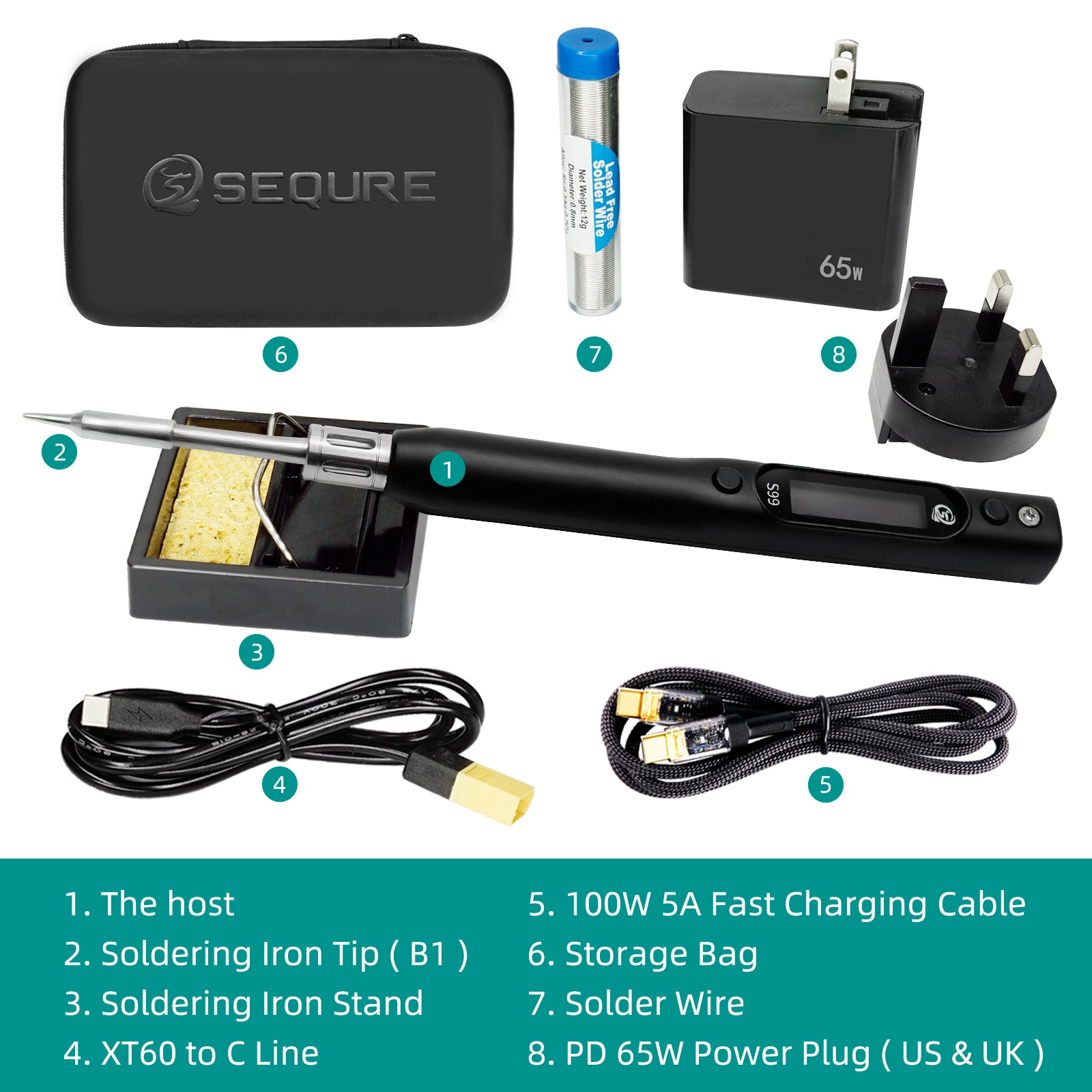

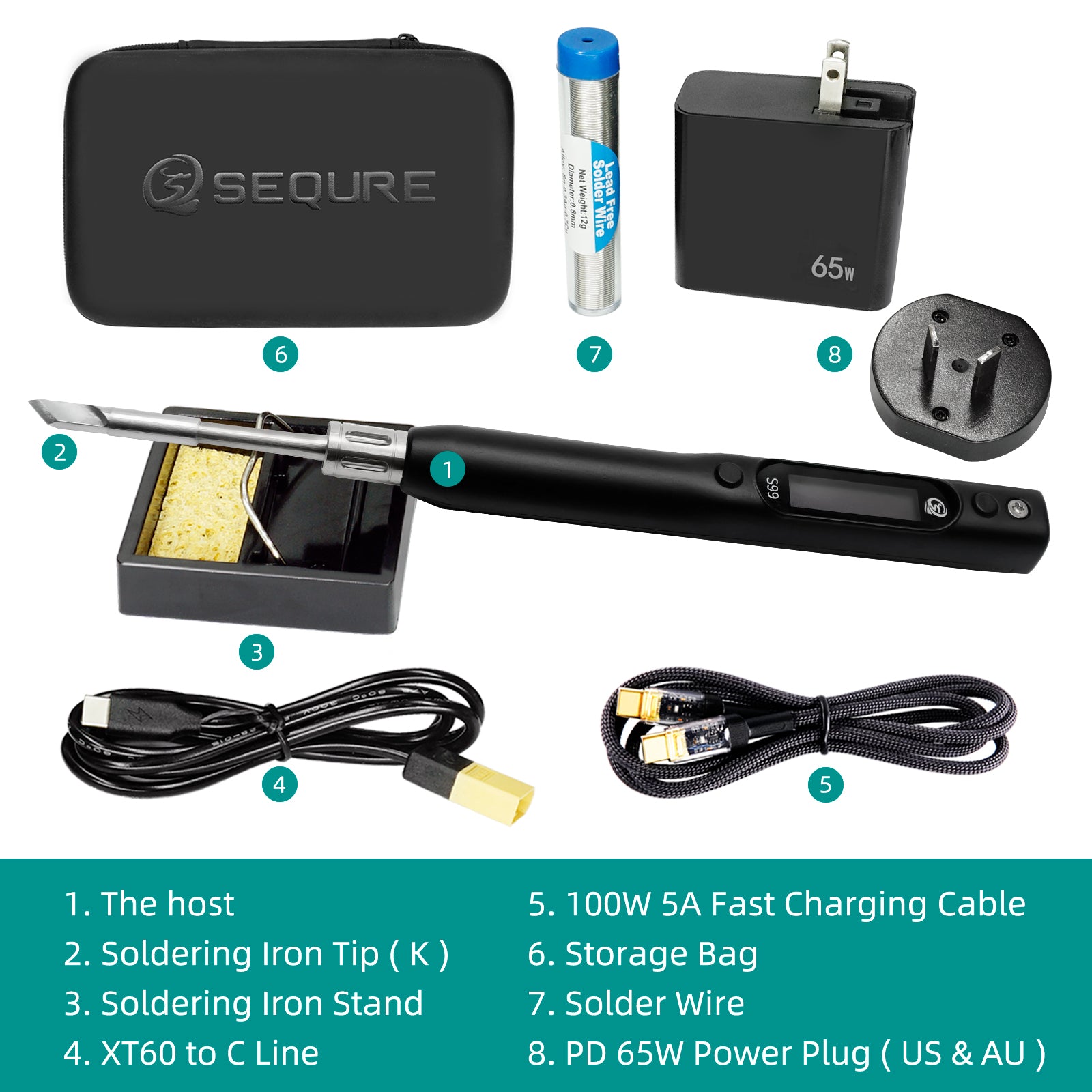

FPV Soldering Iron Kit - Compatible with JBC C245 Tip

- Compatible with C245 series soldering iron tips, temperature adjustable range 50℃-500℃/122℉-932℉.

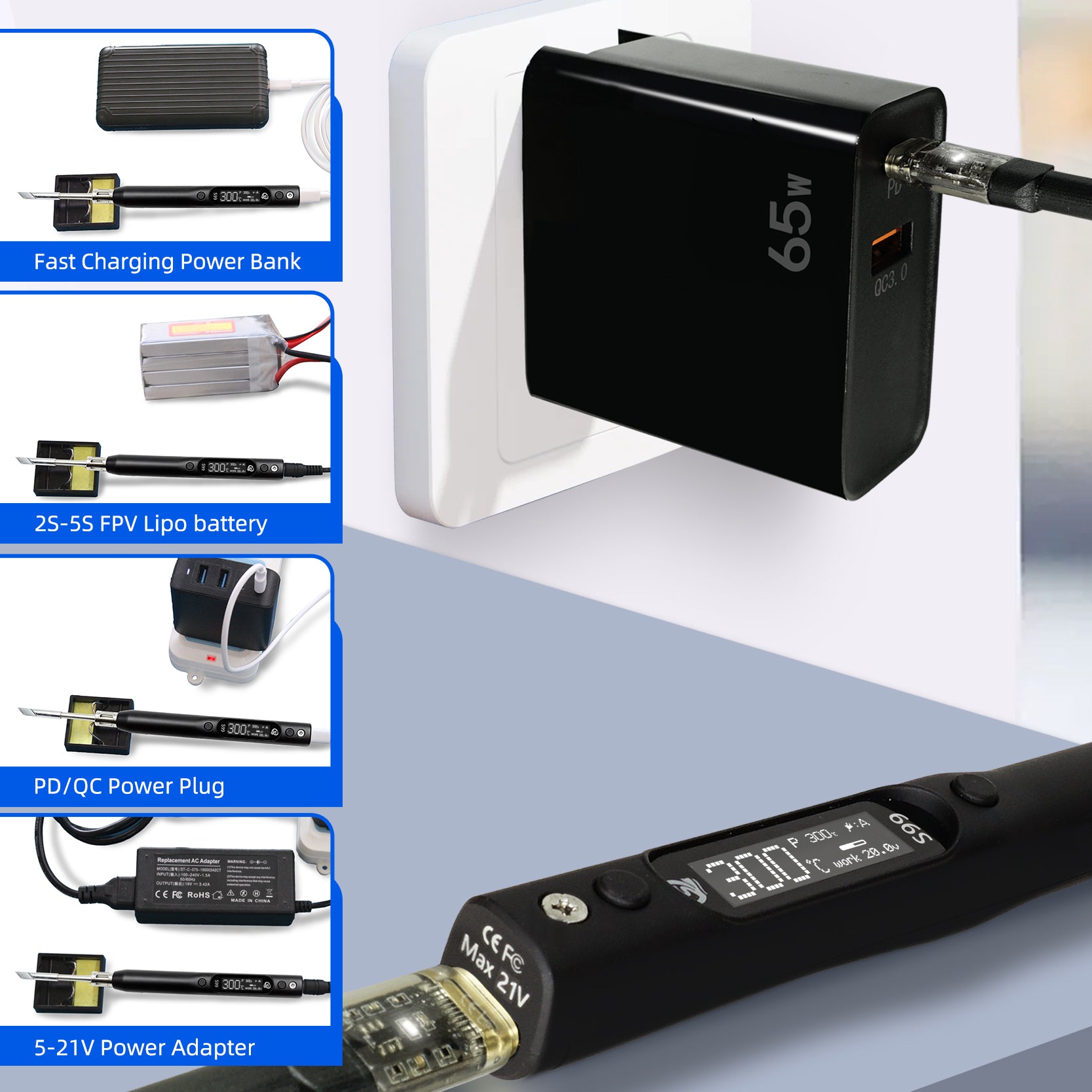

- Working power supply: support PD2.0/3.0, QC2.0/3.0, PPS, DC Max 21V.

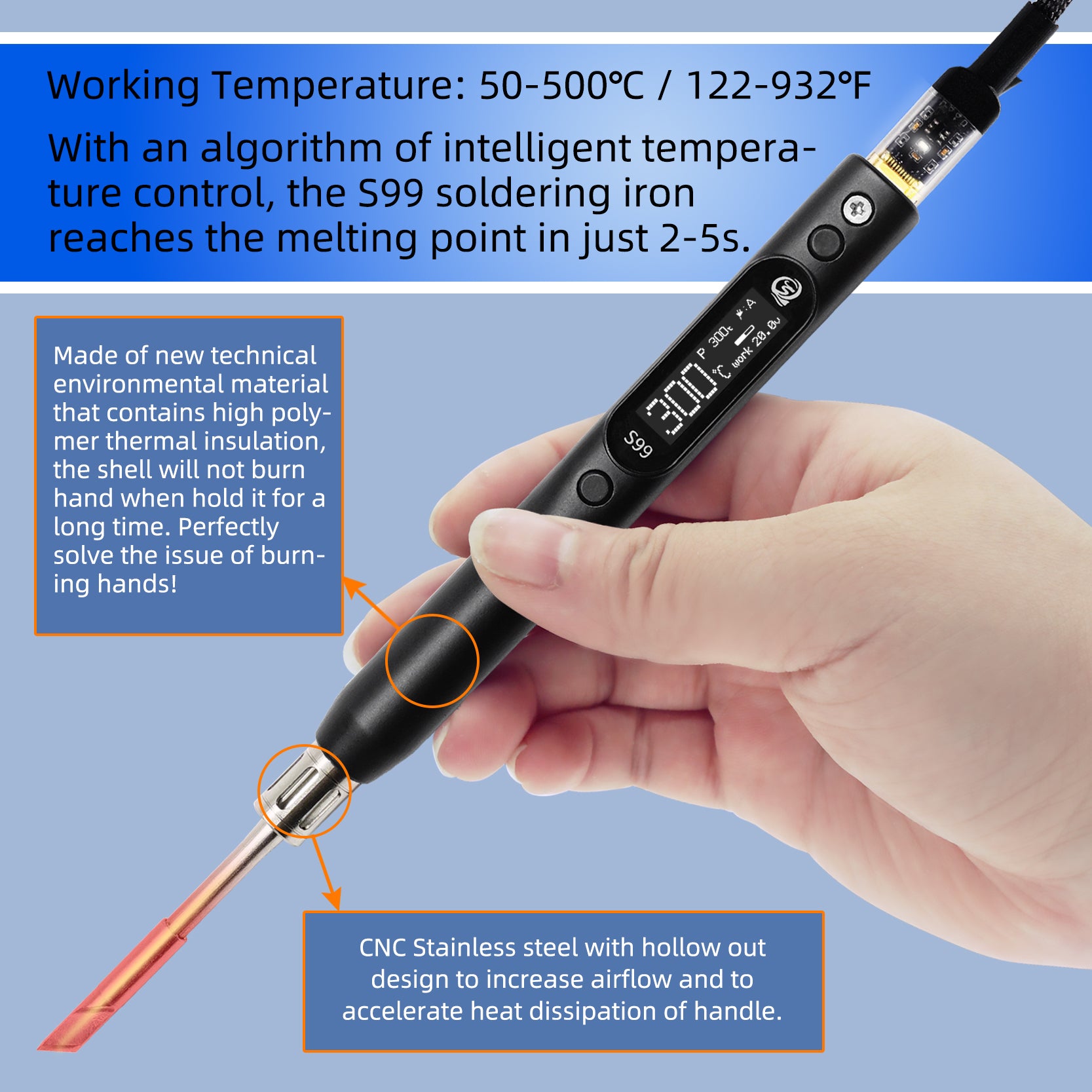

- Intelligent temperature control algorithm, supports temperature compensation and temperature self-calibration.

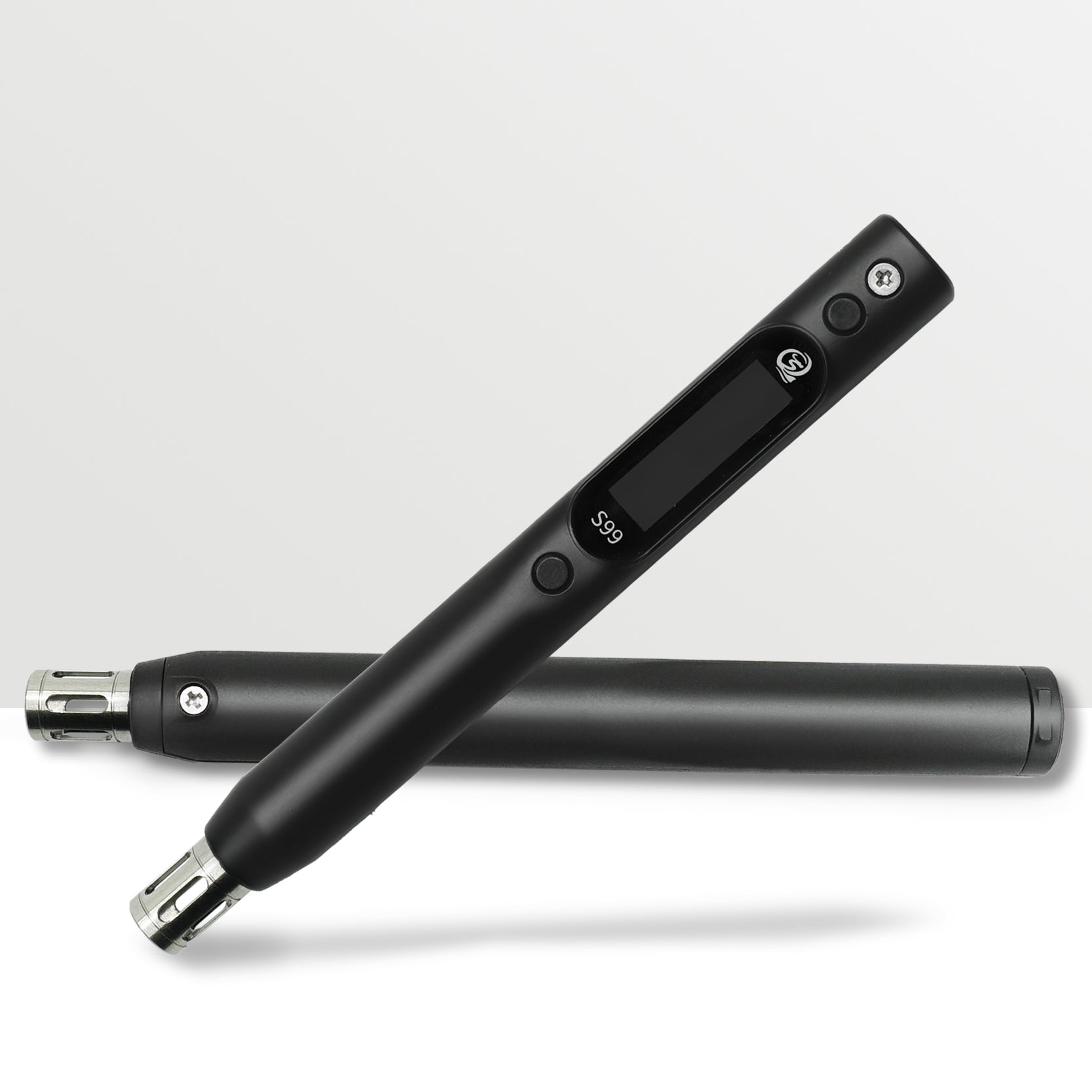

- The shell is made of industrial special materials, which is extremely resistant to high temperature and has effective anti-static treatment.

- 128*32 OLED display, built-in buzzer for work reminder.

- Sensitivity can be set to reject interference from environmental factors.

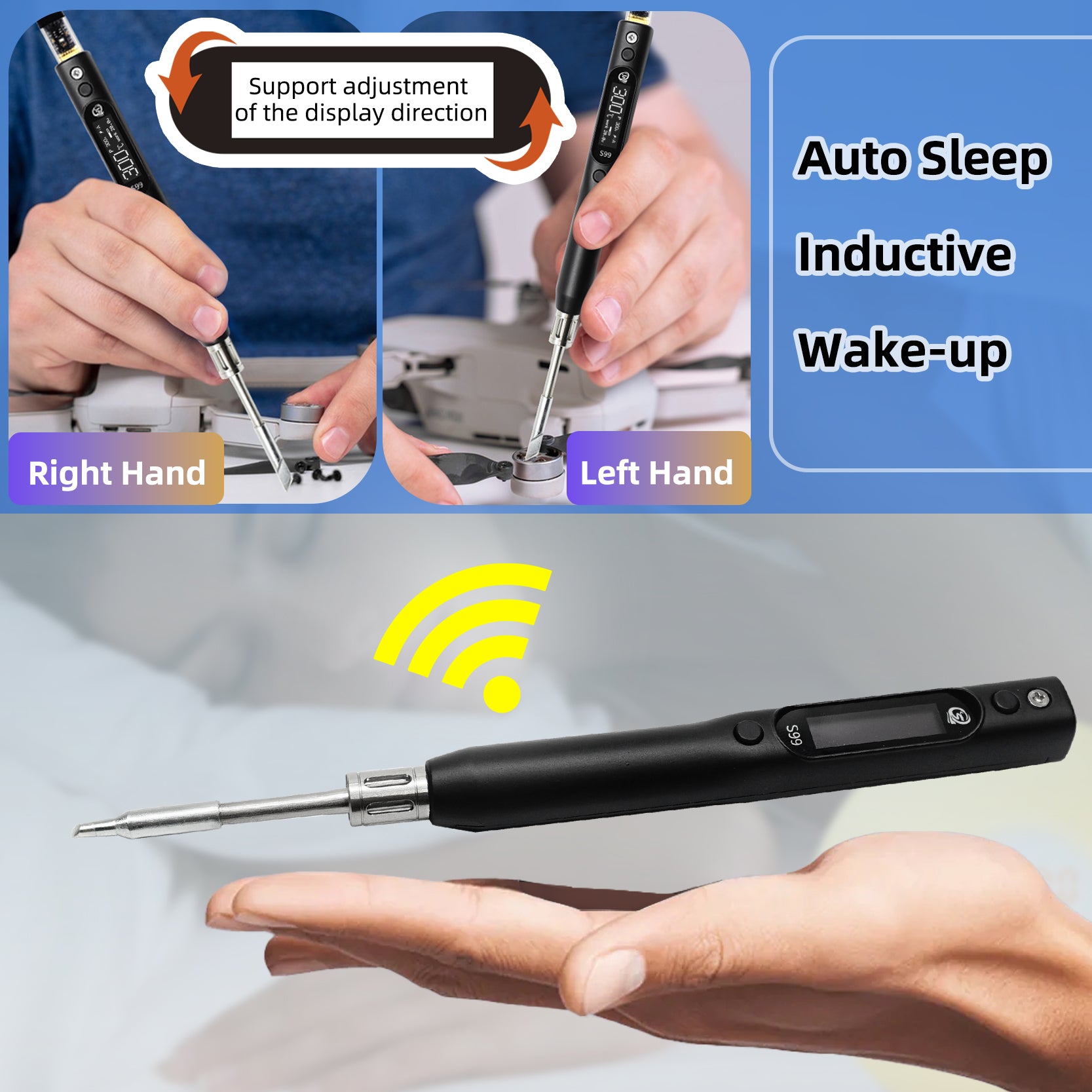

- Support ℃/℉ switch, left and right hand screen flip, firmware upgrade.

-Available in three languages： Chinese, English, and Russian

The resistance of the shipped soldering iron tip is about: 5.5 Ω

If you want to buy 2.5Ω soldering iron tip, you can purchase it through this link: https://bit.ly/3QdLDIu

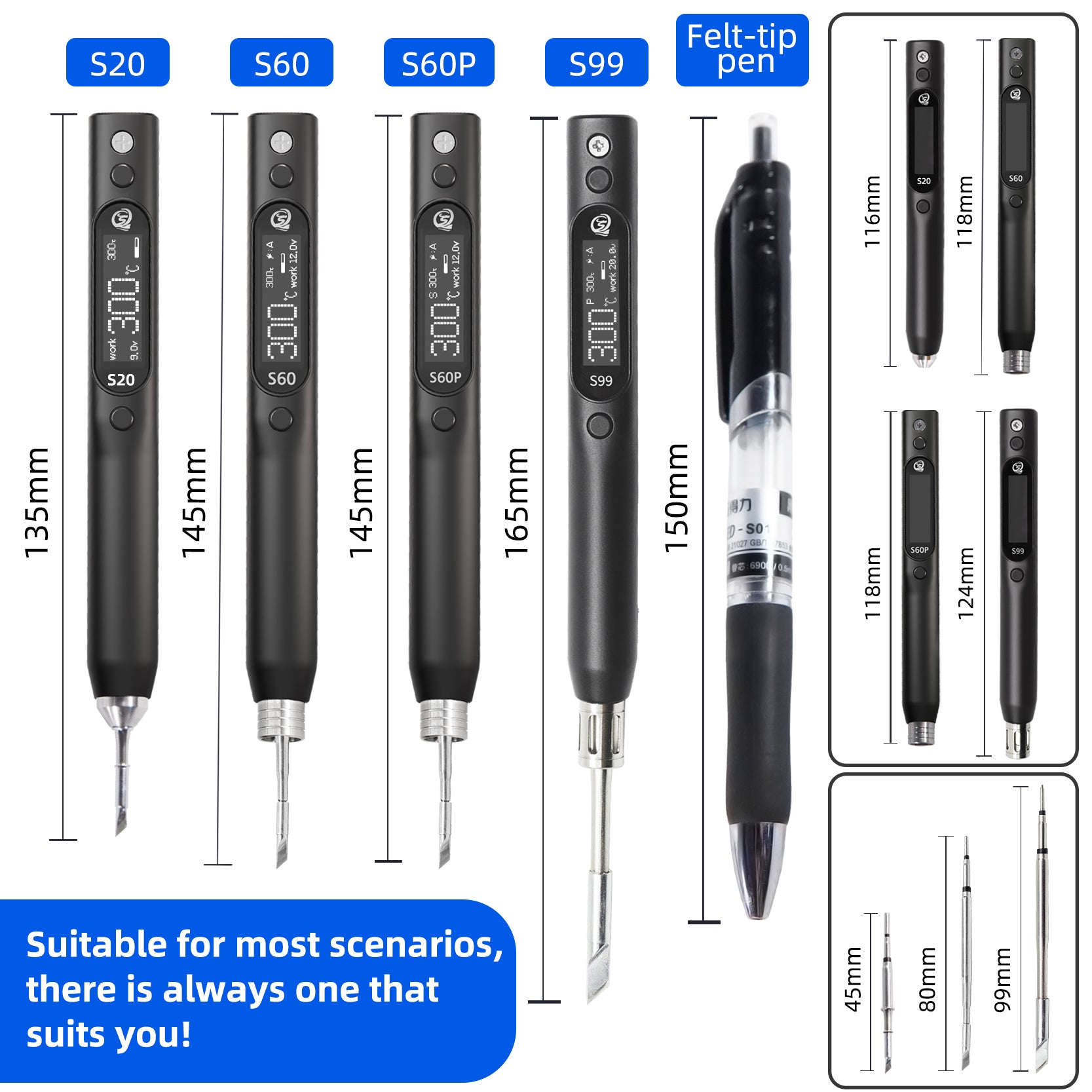

Model	S20	S60	S60P	S99
Maximum Voltage	9V	12V	21V	21V
Maximum Power	20W	60W	60W	150W（2.5Ω），75W（5.5Ω）
Fastest Melting Tin Time	3s	2s	2s	2s（2.5Ω），5s（5.5Ω）
Working Temperature	50-500℃	50-500℃	50-500℃	50-500℃
Screen Size	128*32 OLED	128*32 OLED	128*32 OLED	128*32 OLED
Interface Type	Type-C	Type-C	Type-C	Type-C
Power Supply	PD，QC，DC	PD，QC，DC	PD，QC，DC，PPS	PD，QC，DC，PPS
Protocol Selection	not support	not support	support	support
Host Size	1161315mm	1181315mm	1181315mm	1241315mm

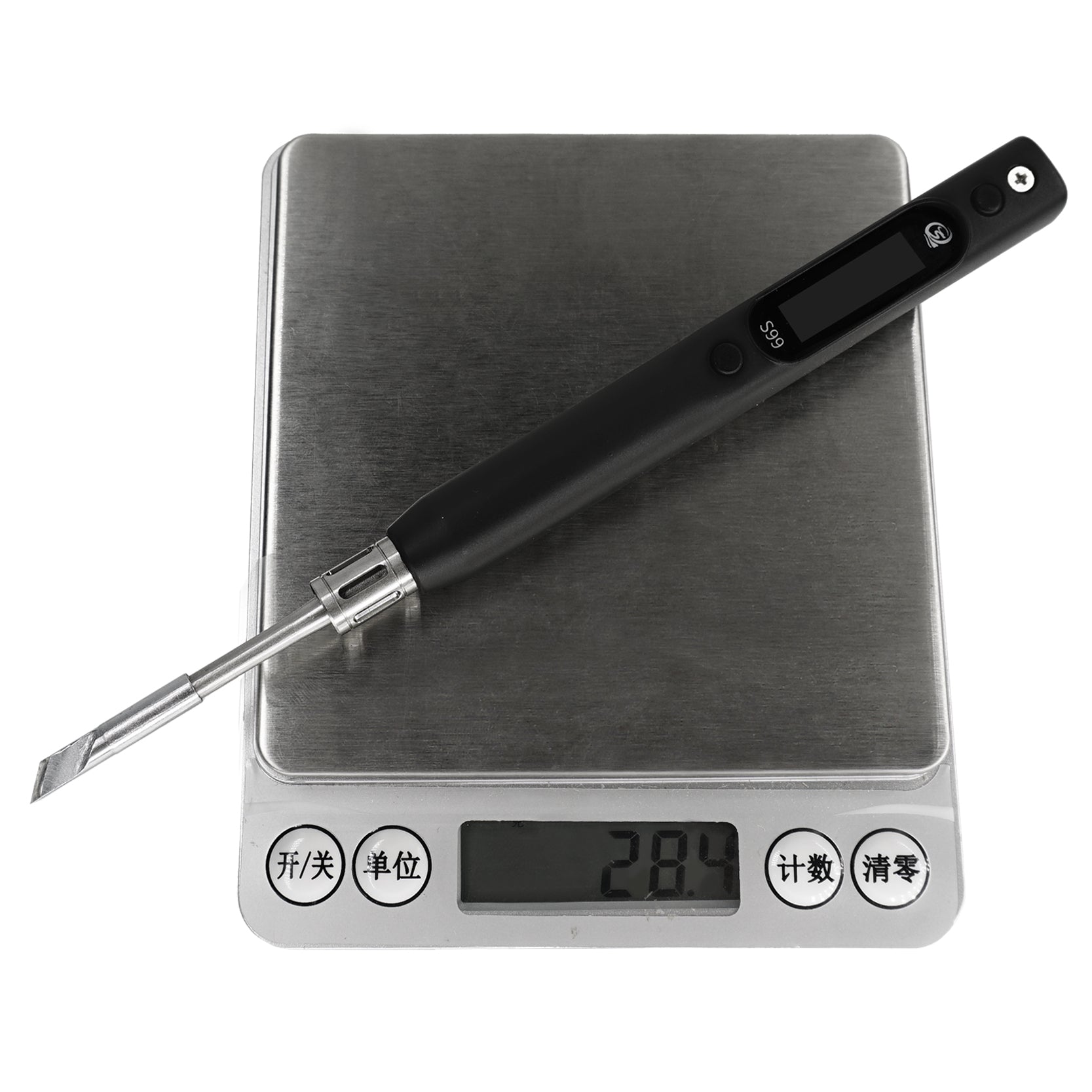

Host Weight	22g	22g	22g	22g
Soldering Iron Tip Length	45mm	80mm	80mm	99mm
Soldering Iron Tip Weight	1g	2g	2g	5g
Host+Soldering Iron Tip Size	1351315mm	1451315mm	1451315mm	1651315mm
Host+Soldering Iron Tip Weight	23g	24g	24g	28g
Application	Nano welding, chip flying lead	Mobile computer repair	Mobile computer repair	Drone, RC model welding
