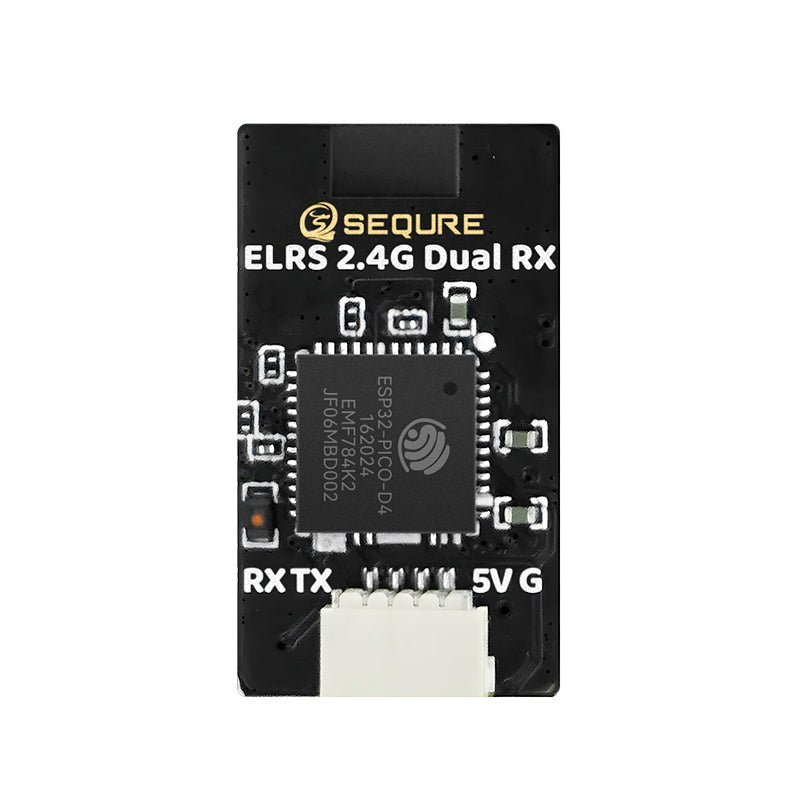

SEQURE 2.4GHz Dual RX True Diversity Dual Antenna Receiver FPV Racing Drone Fixed Wing Small Size Long Distance High Refresh Rate Low Latency
Product Description:

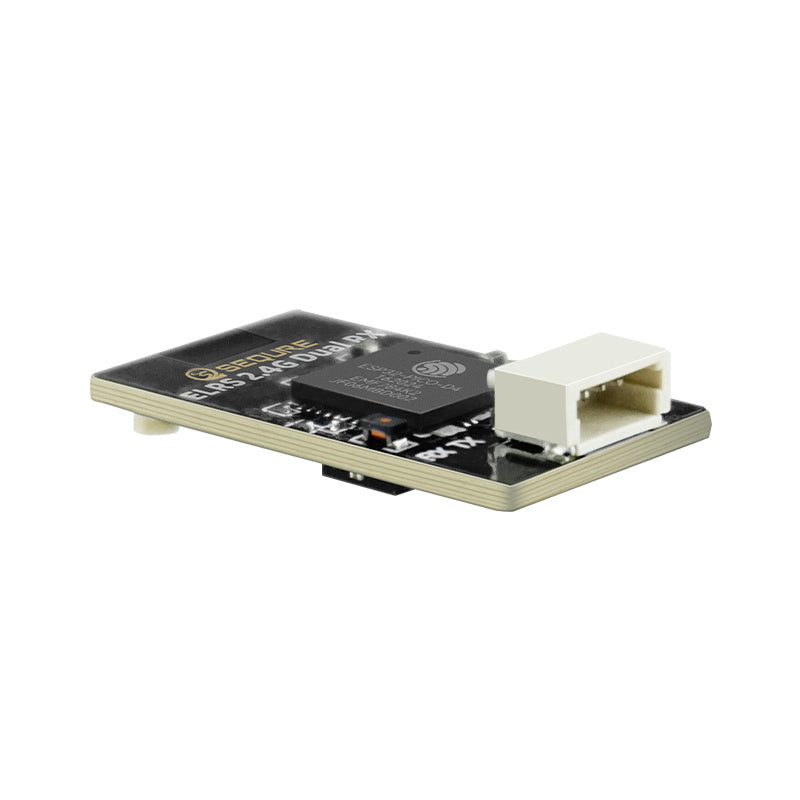

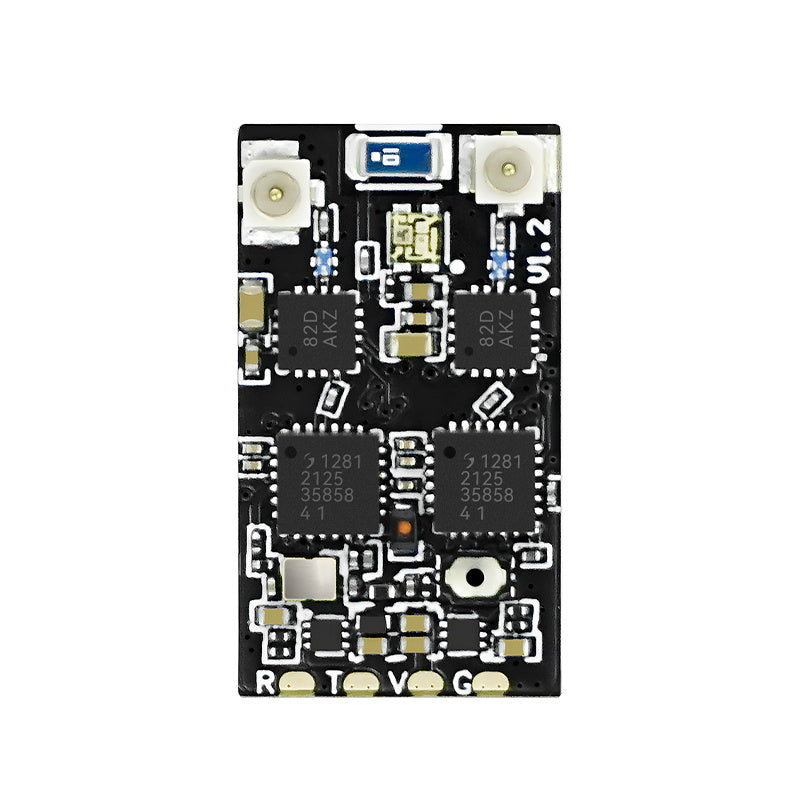

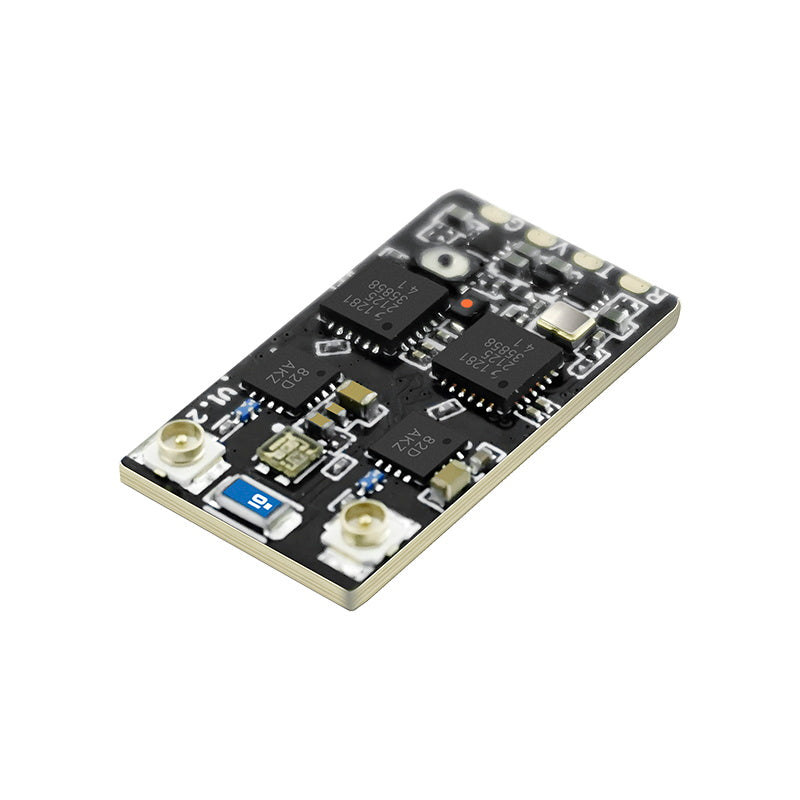

(1) High-performance ESP32-PICO-D4 master control, dual-frequency SX1281 chip, true diversity dual antenna receiver.
(2) High-frequency anti-interference, 2.4GHz frequency, strong signal penetration.
(3) High-speed data transmission, support F1000Hz and F500Hz ultra-high refresh rates, meet the low latency requirements of racing players.
(4) Onboard temperature-compensated crystal oscillator (TCXO), refuses ambient temperature to affect flight, maintains stable operation in high or cold environments, making flight safer.
(5) Integrated with dual-channel high-power PA+LNA low-noise amplifier and 100mW (20dBm)*2 telemetry return, the return of flight data is more stable.
(6) Onboard RGB color indicator, quickly identify different working status.
(7) Support SH1.0-4P socket and 2.54-4P pad, two connection methods to meet various scenarios.
Parameters of Product:
|
Model |
SEQURE ELRS 2.4GHz Dual RX |
|
Factory Firmware |
SEQURE 2.4GHz Dual RX_3.4.0 |
|
MCU |
ESP32-PICO-D4 |
|
RF Chip |
SX1281 |
|
Crystal Oscillator Type |
Temperature Compensated Crystal Oscillator（TCXO） |
|
PA Power (Telemetry Power) |
100mW（20dBm）* 2 |
|
LNA |
YES |
|
Indicator Light |
Colorful RGB Light |
|
Frequency Band |
2.4GHz ISM |
|
Protocol |
CRSF |
|
RF Mode |
Dual /True Diversity/True diversity dual antenna |
|
Antenna Interface |
Ipex1 |
|
Receiver Interface |
SH1.0-4P connector, 2.54-4P pad |
|
Working voltage |
5V |
|
Weight |
1.5g |
|
Size |
23*12.8*5mm |

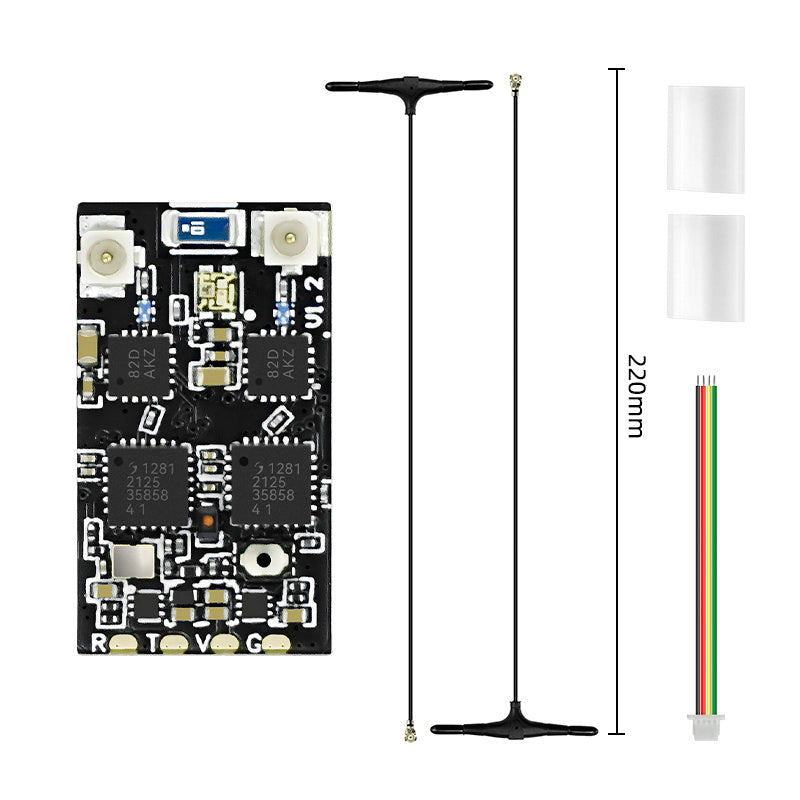

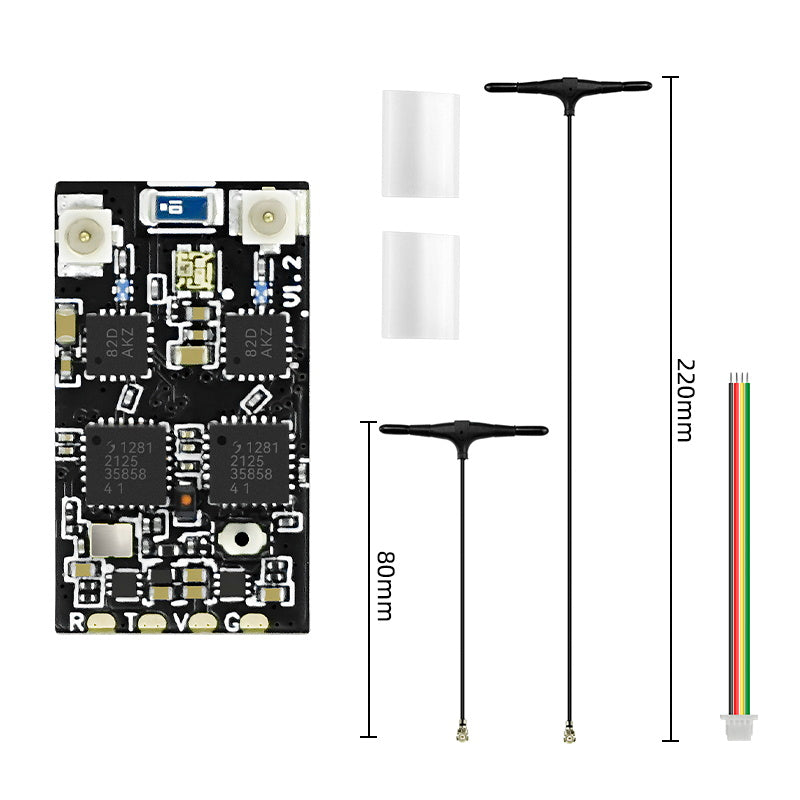

Package included:
SEQURE ELRS 2.4GHz Dual RX×1
2.4G antenna×2
30AWG 100mm single-end SH1.0-4P cable×1
12*30mm heat shrink tube×2
Overall Dimension:

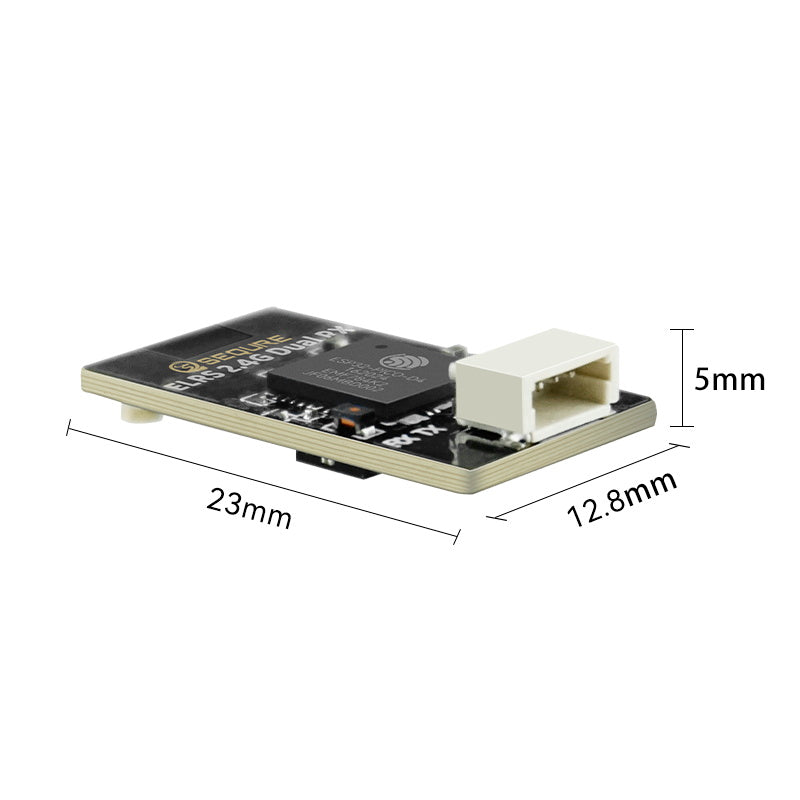

(1) Product Size: 23*12.8*5mm

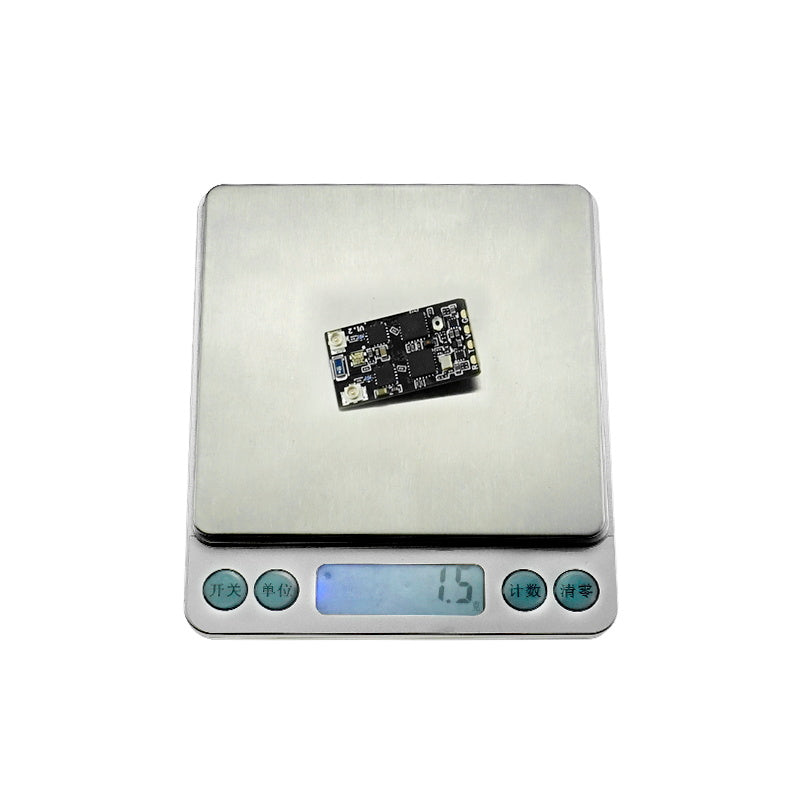

Net Weight Of Product: 1.5g
(2) Package Size: 150*100*15mm
Packing Weight: 11.5g
(3) Package Size (Including Outer Carton)：200*110*40mm
Packing Weight (Including Outer Carton)：56g
