SEQURE SQFPV Rison5 6S/8S FPV Racing Drone 5-inch DJI O4 VTX / Low-Latency Analog VTX T700 Carbon Fiber Plate
Product Description:
(1)The flight control uses the STM32H743 high-performance MCU, with the default Betaflight firmware, and also supports INAV and Ardupilot firmware, with a 32-bit 70A 4IN1 ESC, to achieve ultimate racing performance.
(2)The T700-grade high-strength carbon fiber fuselage and lightweight positive X-structure arm enhance rigidity and vibration resistance, making it as stable as a rock when cornering at high speeds.
(3) Equipped with high-strength aviation-grade aluminum columns to better protect the camera and fly tower.
(4) Supports 6S and 8S voltage configurations, 6S extreme control, 8S extreme speed, and enjoy the thrill of air racing.
(5) The low-latency RunCam Racer Nano4 camera provides stable VTX information and clear image quality, allowing you to control the flight status in real time and enjoy the fun of flying.
(6) The O4 VTX can be used with DJI Goggles3 glasses to enable low-latency mode, allowing high-definition image quality to be used in racing flights.
(7) Rison5 is specially designed for 5-inch FPV racing drone competitions. It adopts top-level competition configuration, high-burst racing motor, and precisely tuned PID parameters. The whole machine has a fast response speed and is easy to operate and fly.
Product Parameters:
|
Model |
Rison5 |
|
Frame structure |
Positive X |
|
Carbon plate material |
T700 |
|
Arm thickness |
5.5mm |
|
Wheelbase |
210mm |
|
Propellers |
Gemfan 51466 V2 |
|
Flight controller |
STM32H743(Betaflight) |
|
ESC |
Bluson A1 32Bit 70A 4IN1 |
|
OSD chip |
AT7456E |
|
Black box |
16MB |
|
Gyroscope |
ICM-42688P (default) MPU6000 (customizable) |
|
Motor |

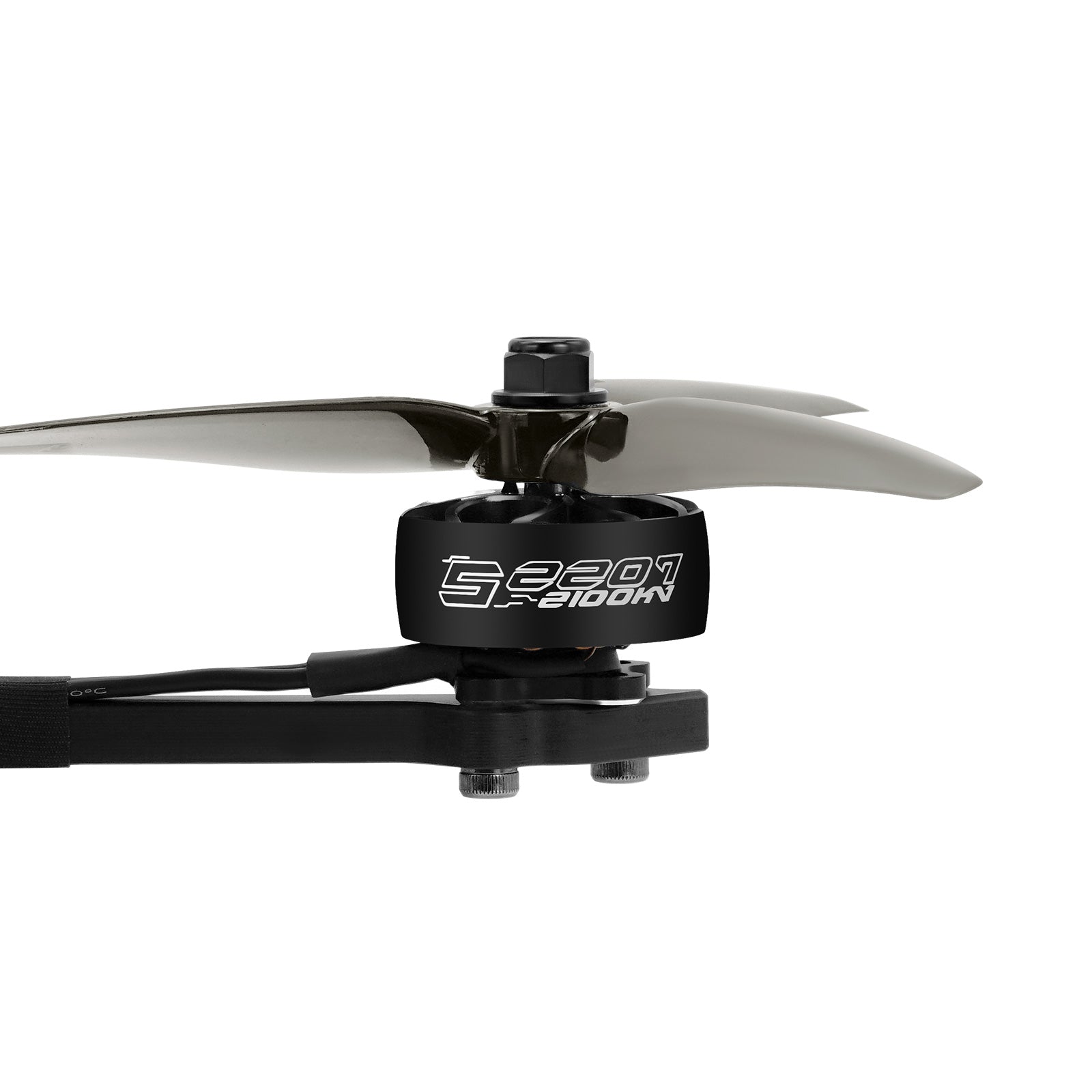

SEQURE S2207 2100KV(6S) |
|
VTX |
DJI O4 Air Unit / MINI VT5804 L1 600mw |
|
Camera |
DJI O4 Air Unit / RunCam Racer Nano4 |
|
VTX Antenna |
O4 Original Antenna / MMCX 5.8G Analog Right-Handed RHCP Lollipop Antenna |
|
Receiver |
ELRS 2.4G Single RX |
|
Operating Voltage |
4-6S(14V-26V)/4-8S(14V-35V) |
|
Recommended Battery |
6S LiPo/LiHV 1050-1400mah |
|
Battery Connector |
XT60 |
|
Recording |
DJI O4 Air Unit supports up to 4K 60fps |
|
Weight (excluding battery) |
300g |
Packaging Included:
Rison5 × 1
Gemfan 51466 V2 propellers × 2
20*280mm cable tie × 1
Silicone battery anti-slip pads × 1
USB data cable × 1
H2.0 wrench × 1
Propeller wrench × 1
Instruction manual QR code × 1
Overall Dimension
(1)Product Size: /
Net Weight Of Product: 300g
(2)Package Size: 225*210*80mm
Packing Weight: 545g
(3)Package Size (Including Outer Carton):240*230*100mm
Packing Weight (Including Outer Carton):680g
