      Note: This LiPo Battery Checker is not for single sale. Please don't order in single order. But you can make a cross buy or order bulk, order bulk 5 pcs min, cross buy without limit. Thank you for your support, enjoy your shopping!

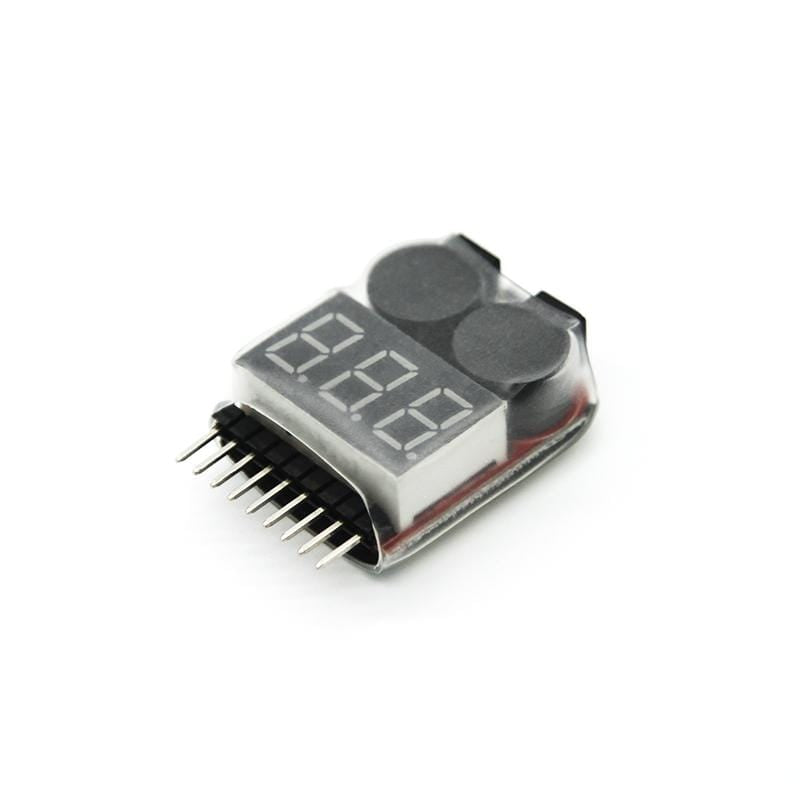

      Battery Checker Introduction:

      The voltage display is used for 1s ~ 8s lithium battery detection. It can automatically detect the voltage and total voltage of each cell of lithium battery. It supports reverse connection protection

      It can let you know the working state of your battery anytime and anywhere, so that the battery will not be damaged by over discharge or overcharge.

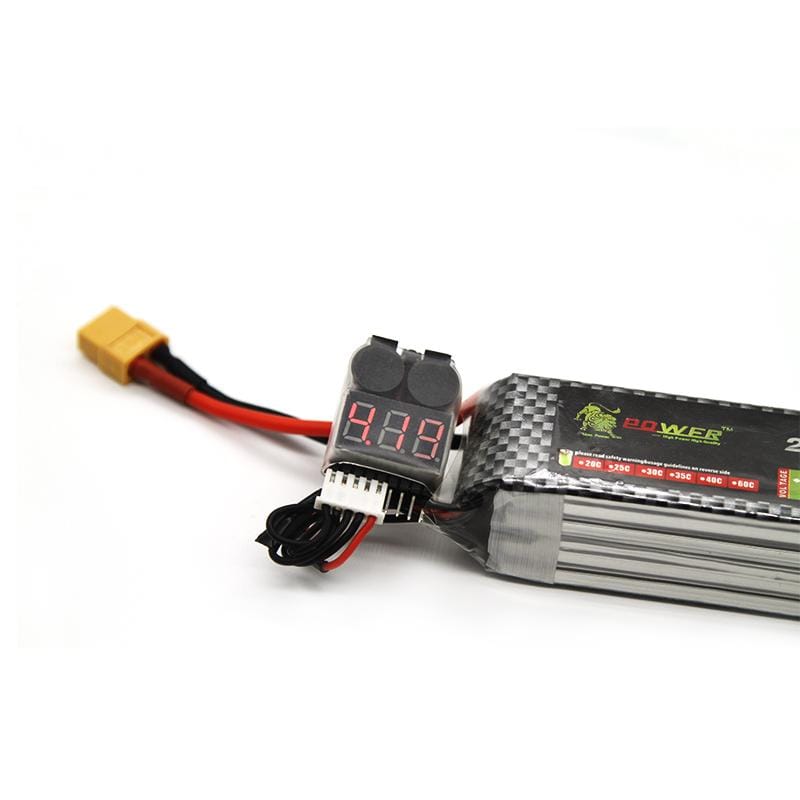

      Whether in flight or idle state, the display can be inserted into the battery balance charging connector to understand the battery power status.

      When the voltage is lower than the set value, the buzzer will sound and the red LED light will flash; when the setting value is 3.3V, press the key to change the voltage setting value and automatically save the user's current setting value.

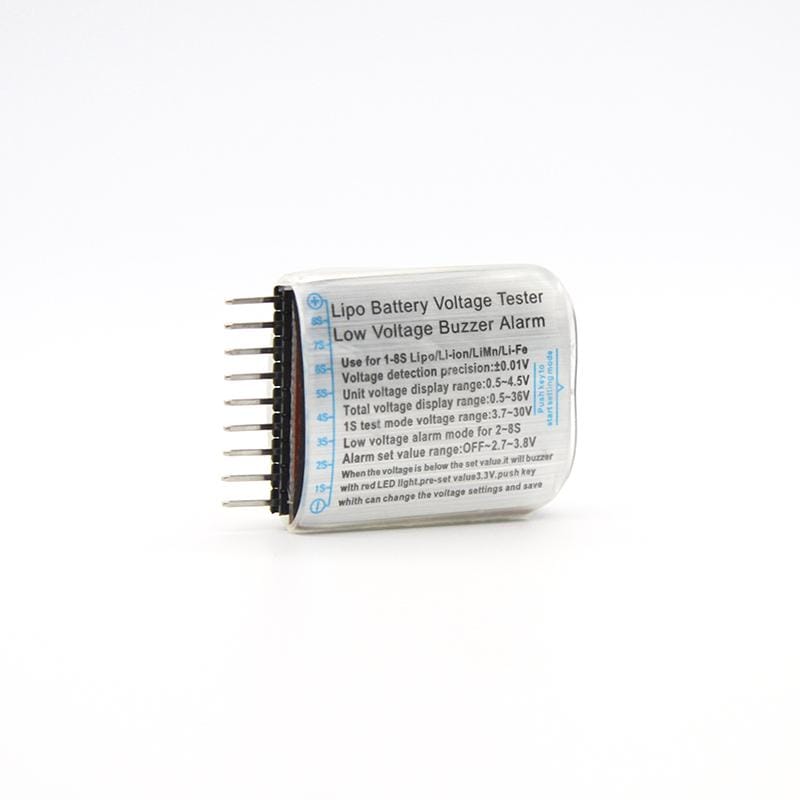

      Battery Checker Parameters:

      1. Used for 1s-8s Lipo battery detection
      2. Voltage detection accuracy: ± 0.01V.
      3. Group voltage display range: 0.5V ~ 4.5V
      4. Display range of total voltage: 0.5V ~ 36V
      5.1s test mode voltage range: 3.7V ~ 30V
      6. Low voltage buzzer alarm mode 2S - 8s

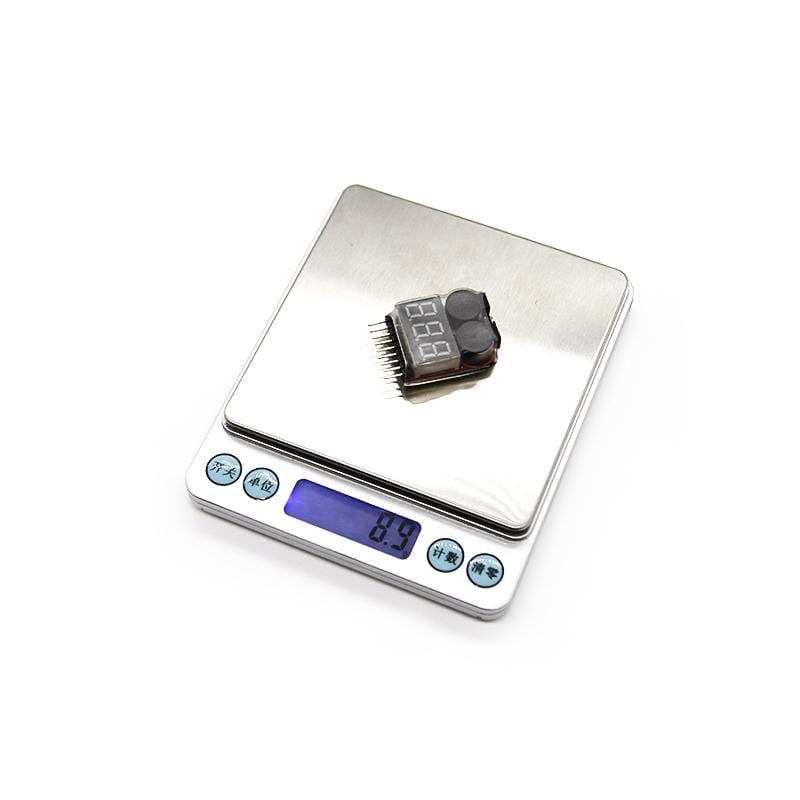

      7. Size: 40mm x 25mm x 11mm; weight: 9g

      Usage Method:

      Turn the display face up (digital display side).

      The pin is pointing at itself.

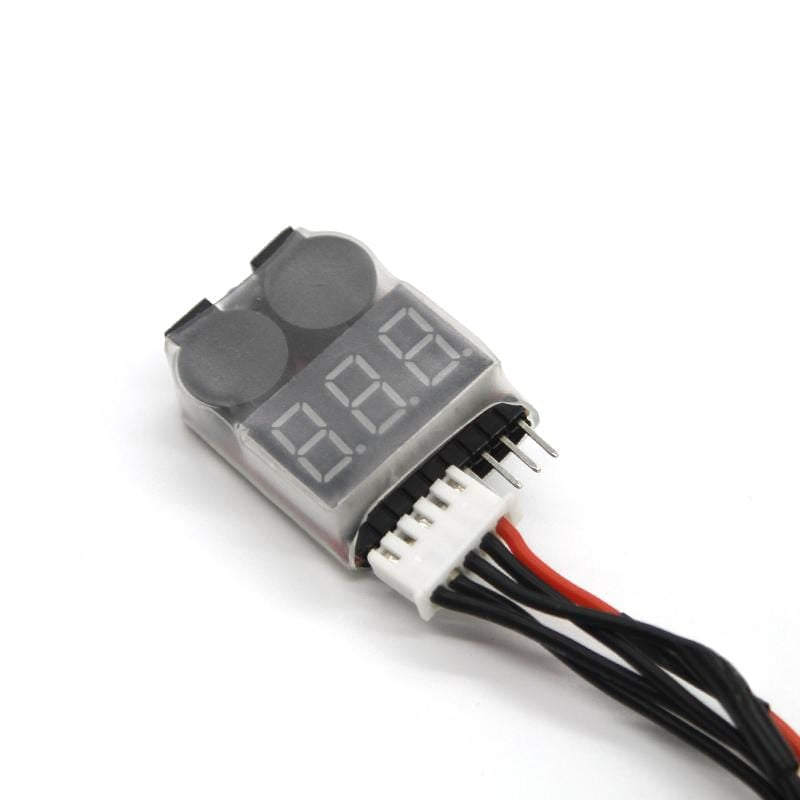

      Insert the white balanced charging plug of the battery along the left most pin of the display.

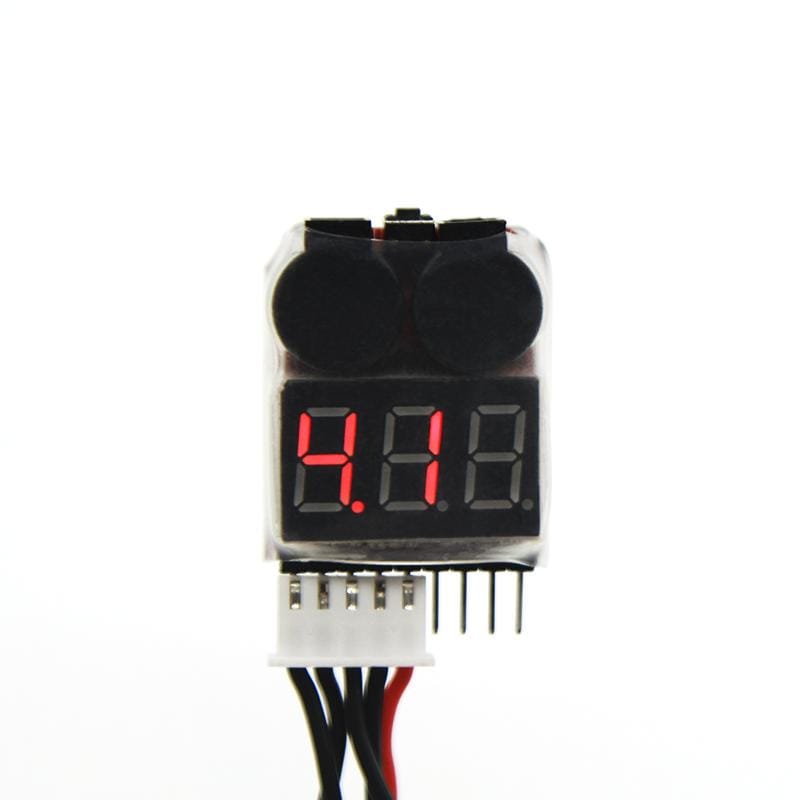

      The electronic display will immediately make two beeps of BB, and the jump number will be displayed on the screen.

      If there is no response, plug the balanced charging plug upside down.

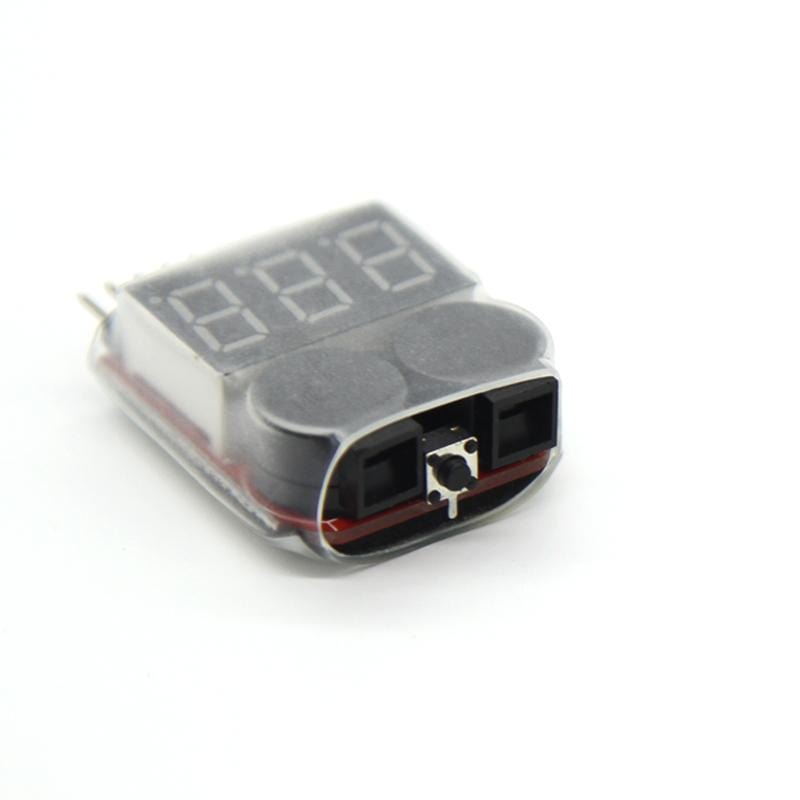

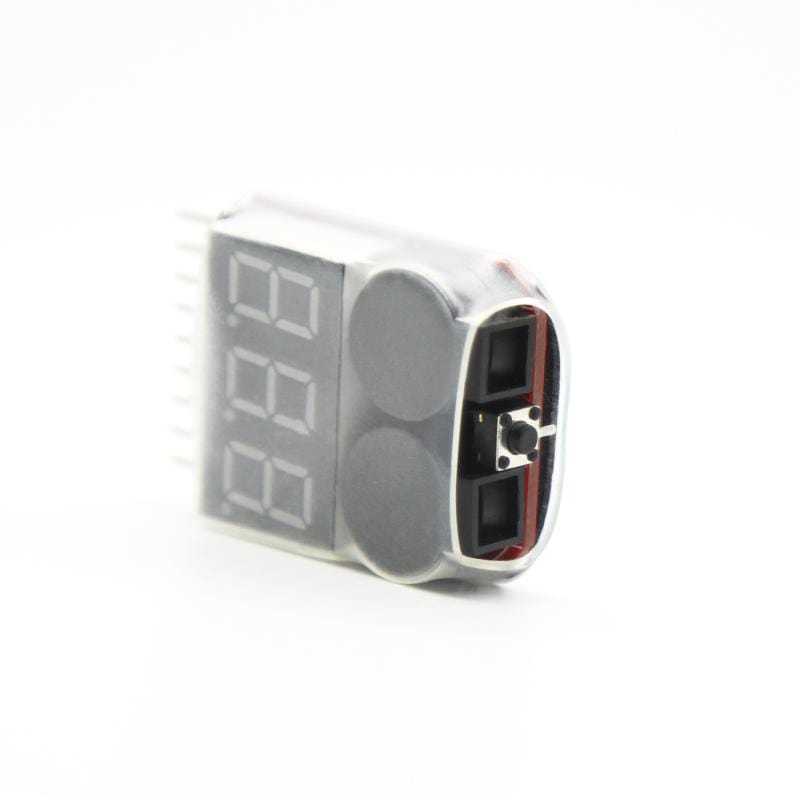

      There is a small button at the other end of the electric display, which is used to set the alarm voltage of the electric display.
