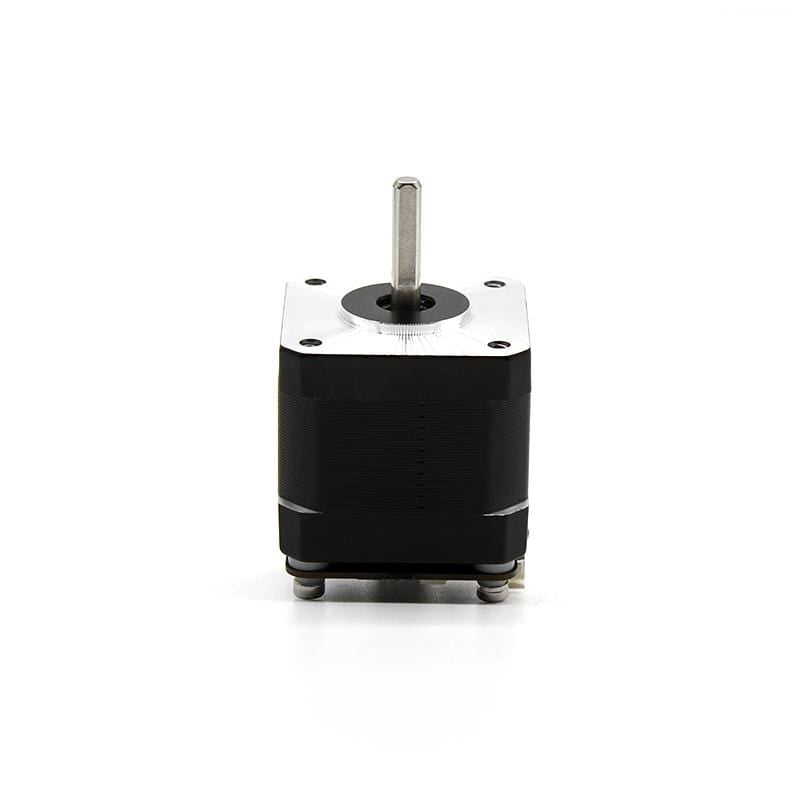

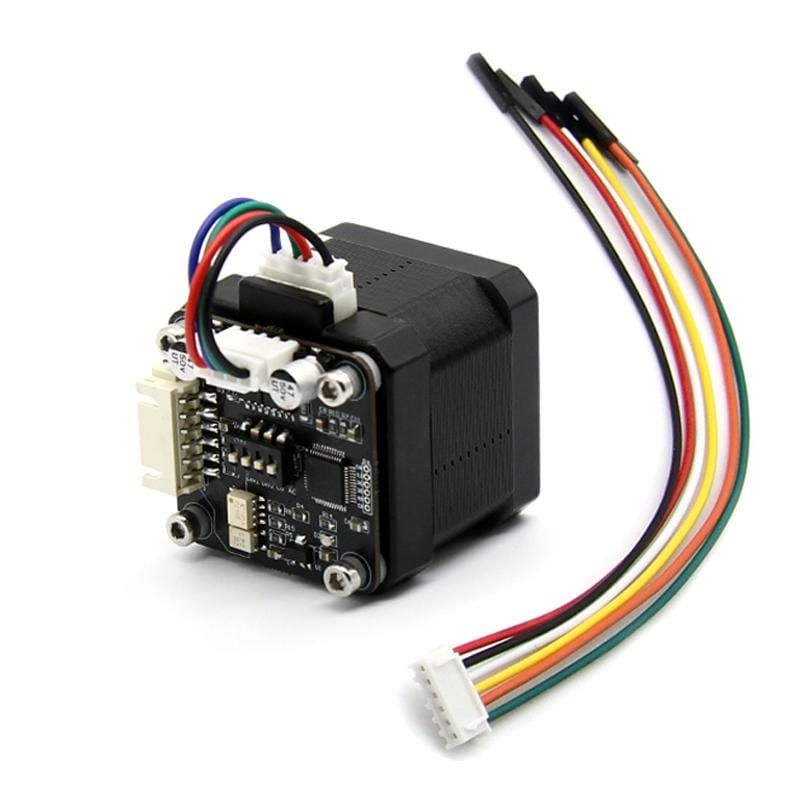

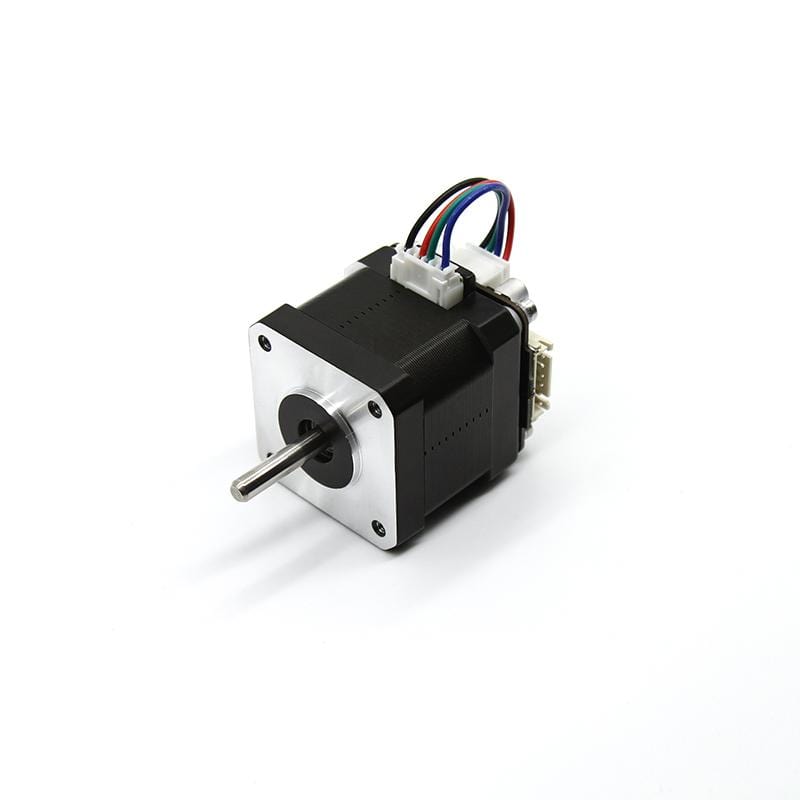

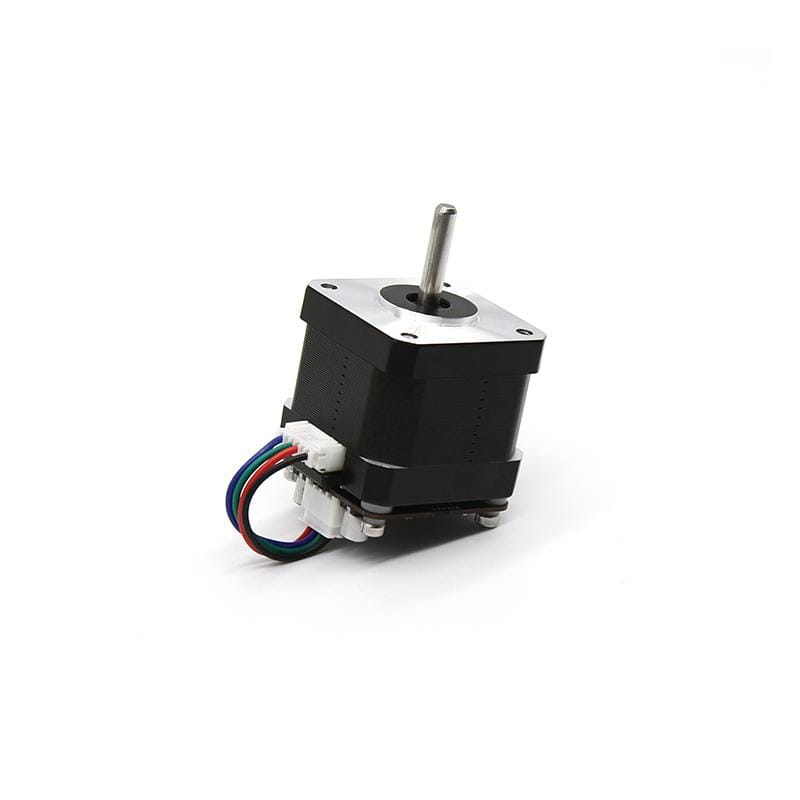

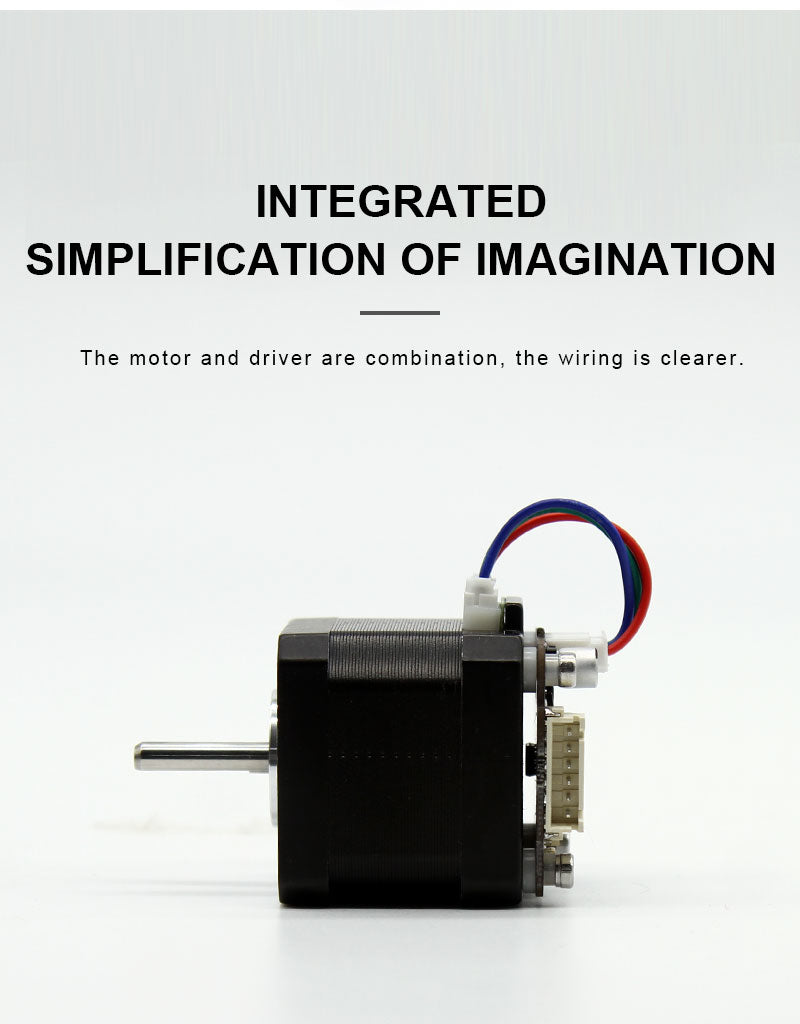

      Nema 17 Stepper Motor STM32 Closed-loop 42 Servo Stepper Motor Kit With Driver Board | Suitable for 3D Printing | Compatible Mechaduino

      DIY Large 60x70cm 3D Printer with CLOSE-LOOP Stepper

      How to wiring Close-loop motor with MKS GEN L

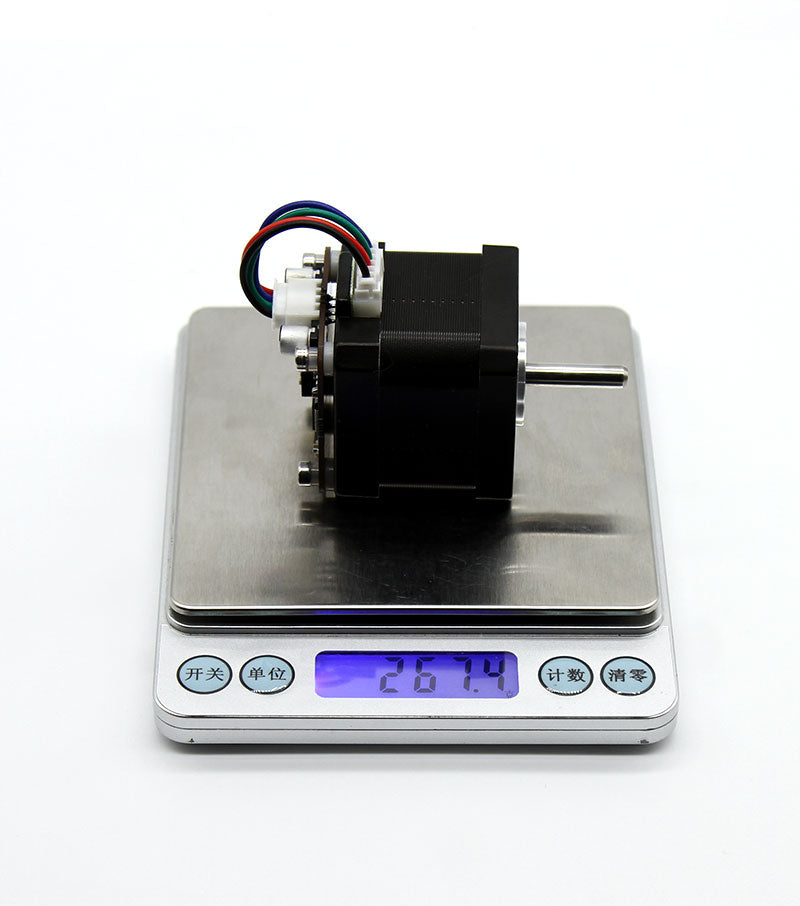

      Motor Parameters:
      Product Name: 42 two-phase stepper motor
      Model number :17HS4401
      Step angle : 1.8 °
      Maximum no-load starting frequency : ≥ 1400 PPS
      Rated voltage 3.6V
      Maximum no-load operating frequency : ≥ 4000 PPS
      Rated current : 1.5A / phase
      Phase inductance :3.7 × (1 + 20%) mH
      Holding torque : ≥420 mN.m
      Phase resistance : 2.4 × (1 + 15%) Ω / phase
      Positioning torque : 15 mN.m REF
      Electric strength : AC600V / 1mA / 1S

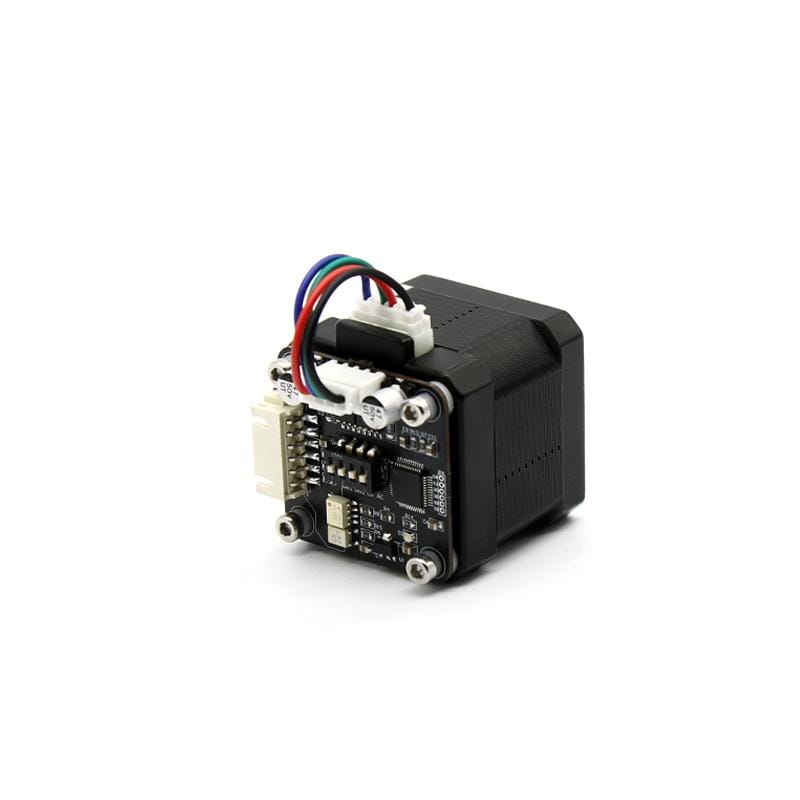

      Wiring Instructions:

      1.VCC : Connect 12-30V power supply ( Refer to the working voltage of the motor, general 24V )
      2.GND: Ground wire
      3.CLK : Control signal (Connected to pulse input )
      4.DIR: Direction control signal ( Floating forward, ground reverse )
      5.ENA: Connect to enable signal ( Default enable, grounding stops working )
      6.P2: Connect one phase to the motor on each side ( Refer to the motor parameter description,   the motor is divided into two phases AB, pins 1 and 2 are connected to one phase, and pins 3 and 4 are connected to the other phase. )

      stepper online review
      stepperonline closed loop



      nema stepper motor for cnc

      where to buy stepper motors near me
      where to buy stepper motors near me
      sequre stepper motor
      stepper motor instrument cluster


      good stepper motors
      stepper motors high torque
      programmable stepper motor controller

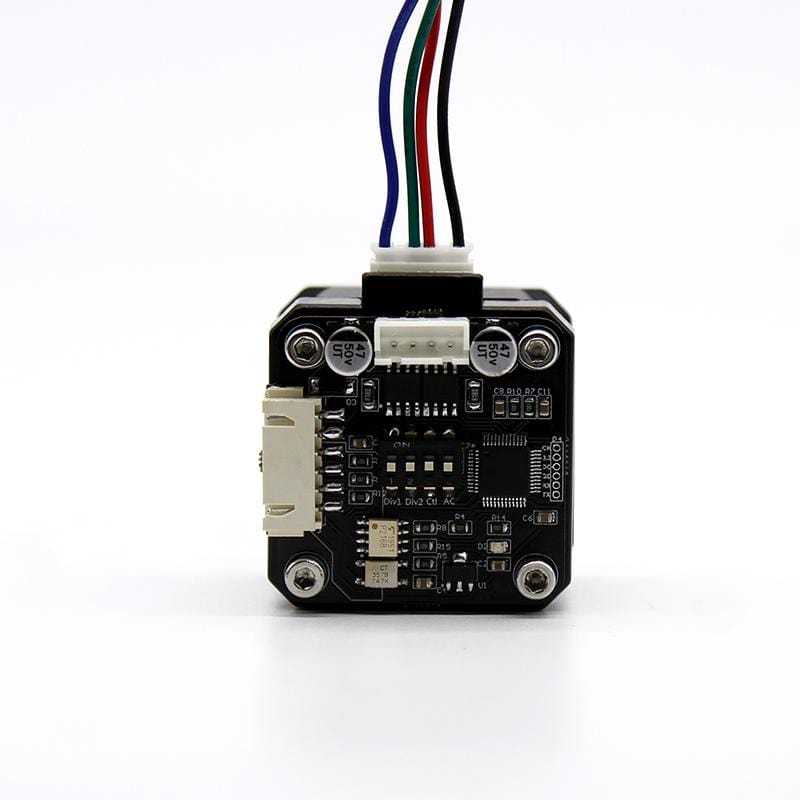

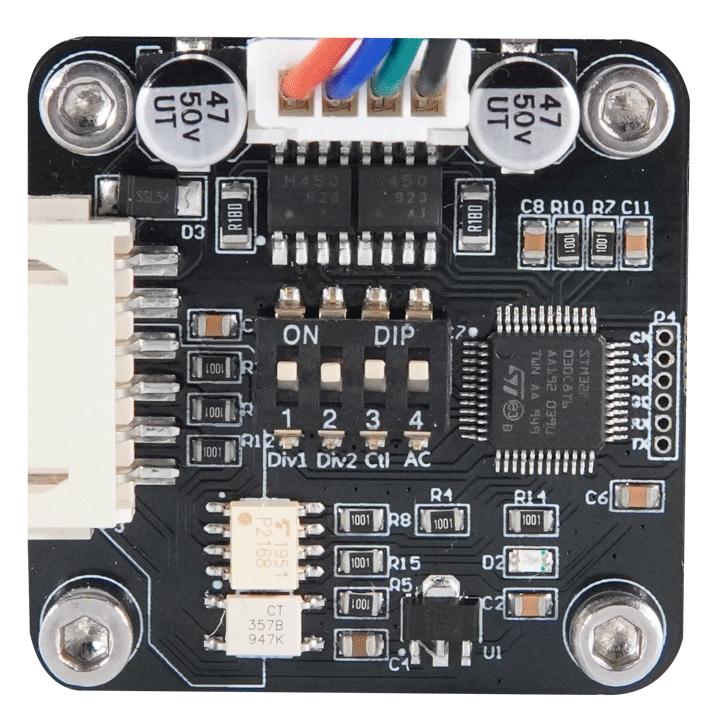

      DIP switch {ON (1) / OFF (0)}:
