SEQURE E70 G2 2-8S 70A BLHeli_32/AM32 Firmware 128K 4 IN 1 ESC for FPV Racing Drone Racing and Freestyle

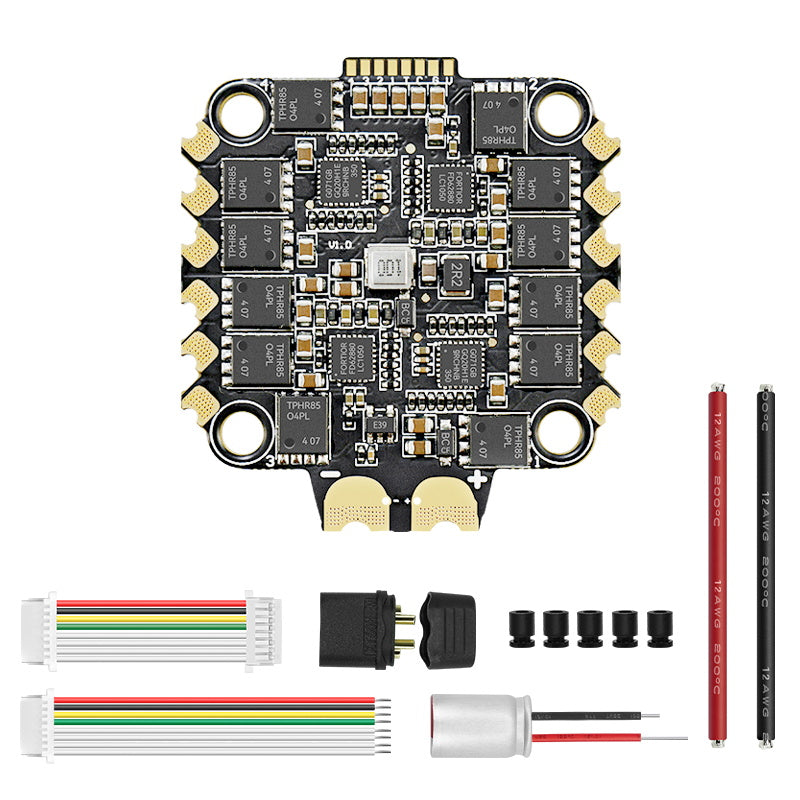

Package included:

SEQURE E70 G2 4 in 1 ESC × 1
30AWG 40mm reverse double plug SH1.0-8P cable × 1
30AWG 60mm single plug SH1.0-8P cable × 1
12AWG 100mm power cable (black/red)×2
XT60H-M black male connector×1
35V 680UF solid capacitor×1
M3*8mm shock absorbing washer (black) × 5

Parameters of Product：

Product Description:

 (1)STM32G071 high-performance processor,support BLHeli_32 | AM32 firmware, 2-8S wide voltage input, single-channel continuous current 70A, peak current up to 150A.
(2) Built-in galvanometer, supports telemetry return, and updates motor speed, temperature, current and other data in real time.
(3) High-quality high-power MOSFET, ultra-high efficiency conversion, reducing losses and extending flight time.
(4) High copper thickness multi-layer PCB design increases over-current capability, efficient heat dissipation performance, and is not afraid of load pressure.
(5) Precise switch interval time control, speeding up the response speed of the ESC, smooth control, and delicate feel.
(6) PWM frequency supports 16KHz-128KHz, and excellent circuit design to solve the out-of-step problem.
(7) Innovative design, oblique surface soldering pad, motor wiring layout is more beautiful and safe, while reducing welding difficulty.
(8) 30.5*30.5mm installation hole spacing design, compact structure, adaptable to various types of racks, easy to install.

Overall Dimension：

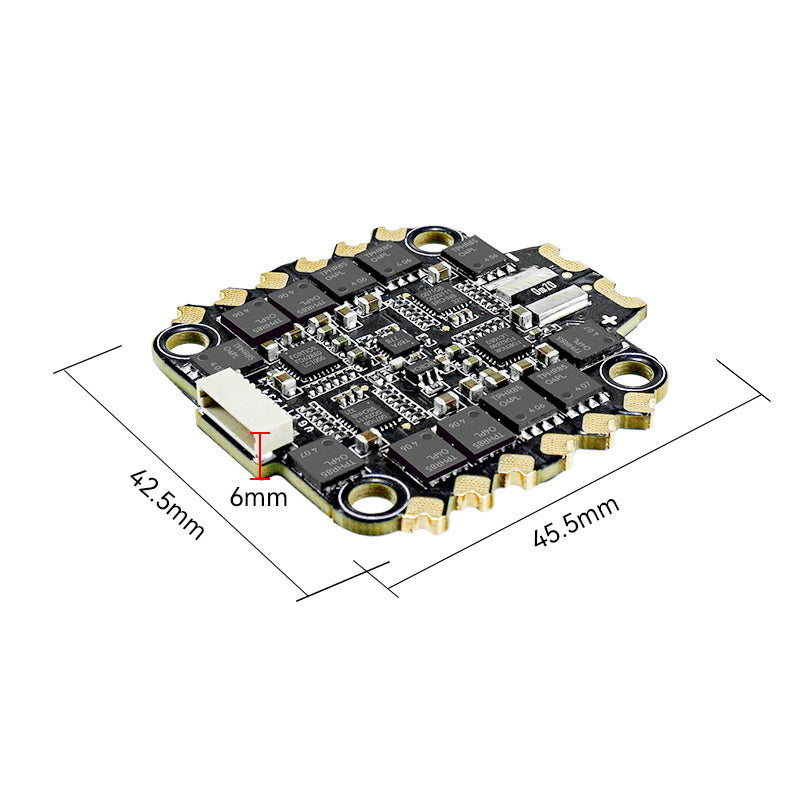

（1）Product Size: 45.5*42.5*6mm

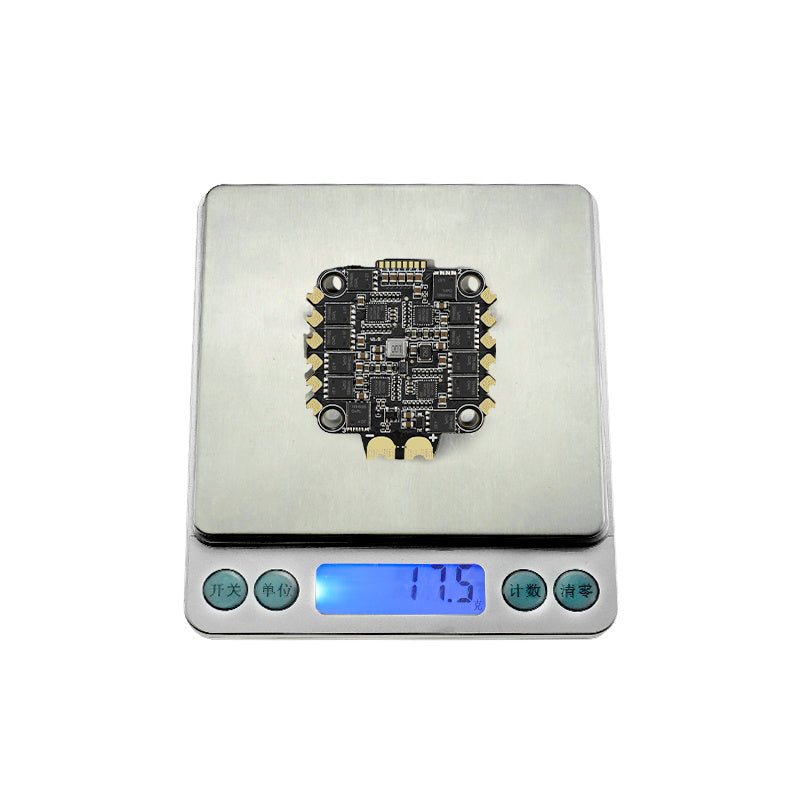

Net Weight Of Product: 17.5g
（2）Package Size: 95*65*35mm
Packing Weight: 63g
（3）Package Size (Including Outer Carton)：155*105*45mm
Packing Weight (Including Outer Carton)：115g
