ODESC3.6 optimizes high performance brushless motor high-power dual-drive controller FOC BLDC based on ODrive

OD036056D
$95.00 $54.99
$54.99

Description: SEQURE ODESC 3.6 high-performance brushless drive is based on the open-source project ODrive for hardware optimization and enhancement, stable performance, and matching the original firmware of Odrive. The supporting USB connection to the PC terminal can realize motor debugging and complex multi-axis control. And it can realize FOC control for most brushless motors on the market. With the use of encoders, it can also achieve arbitrary torque, speed loop, position loop, current loop, and position control based on trajectory planning, etc. It can be widely used in joint flexible robots, robotic arms, 3D printing, camera gimbals, Gimbal slide, CNC milling machine, ship model, car model, SimRacing,RC planes, hoverboard and other DIY industrial and automation fields.


Product Parameters

Hardware Version

ODESC3.6 Dual Drive

PCB description

4 layer 4 * 2oz = 8oz

Applicable Voltage

8-56V

Current Parameter

50A continuous/120A peak

Support Encoder

Incremental Encoder, Absolute Encoder, Houle Sensor, AMT102, AMT103, TLB5012, AS5047

Communication Interface

USB-Protocol Open Source (PC, Raspberry Pie, Ros) , UART (Embedded Devices) , PWM (RC Remote) ,

STEP/DIRECTION(PLC)、GPIO、CAN、ANALOG INPUT

Voltage Protection

Programmable Voltage Protection to Prevent Excessive Battery Discharge

Movement Pattern

Speed Mode, Torque Mode, Current Mode, Position Mode, Trajectory Mode, etc.

Overcurrent cooling

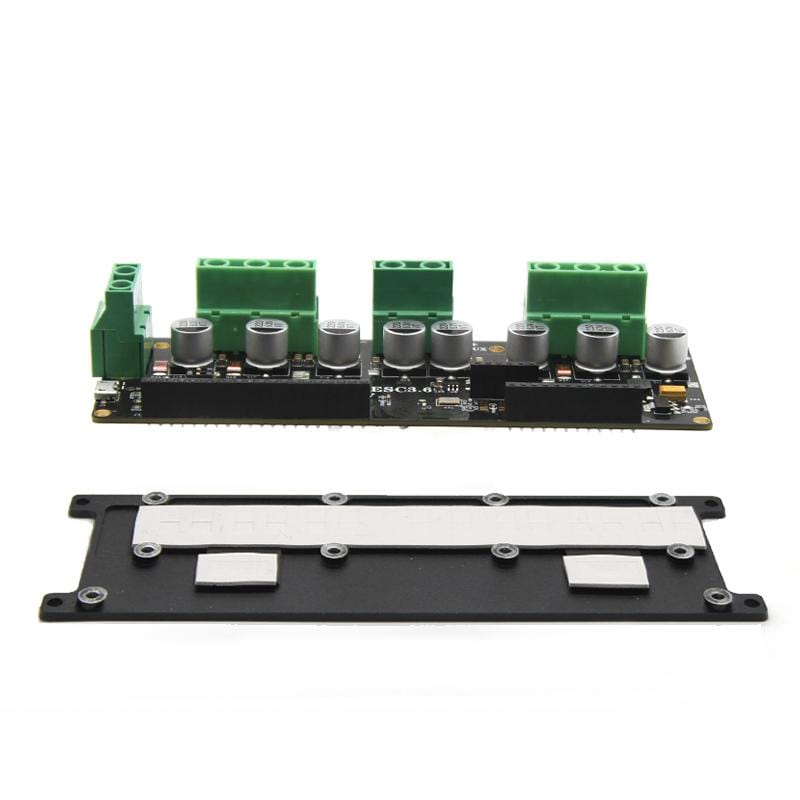

PCB integrates high-current opening skylights, tin pillars, and CNC customized heat sinks, continuous and stable overcurrent, and more efficient heat dissipation

Contour Dimension

155*50*30mm

Product Weight

160g


Odriver robotics
ODESC specification
Odriver dual ESC
ODESC3.6
ODrive ESC diagram
electric speed controller
esk8 esc
ESC for electric skateboard
ESC for rc car

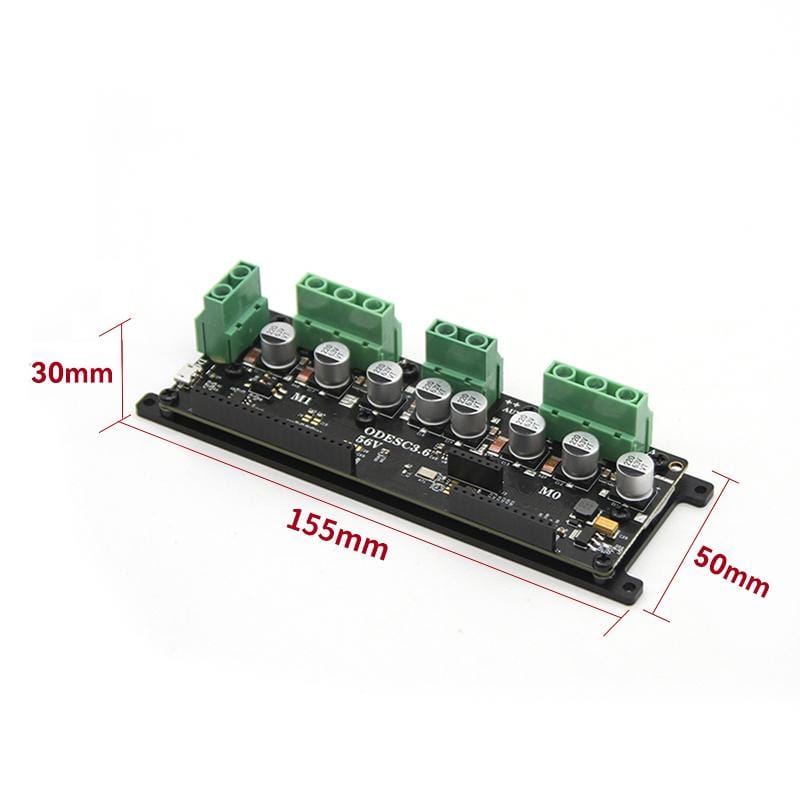

Overall Dimension

Product Size: 155*50*30mm

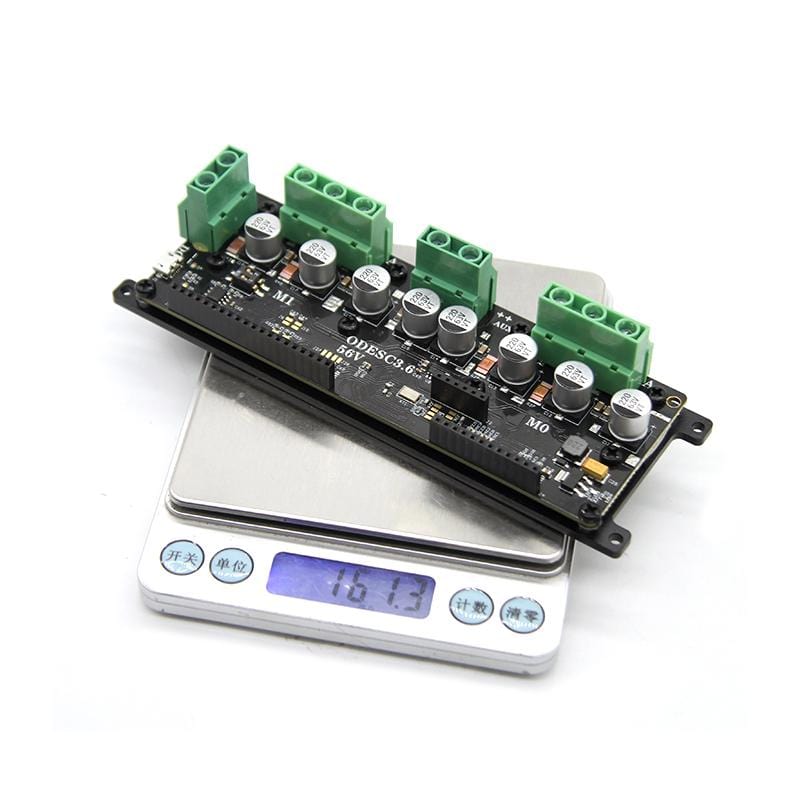

Net Weight Of Product: 160g

Package Size: 180*130*30mm

Packing Weight: 270g

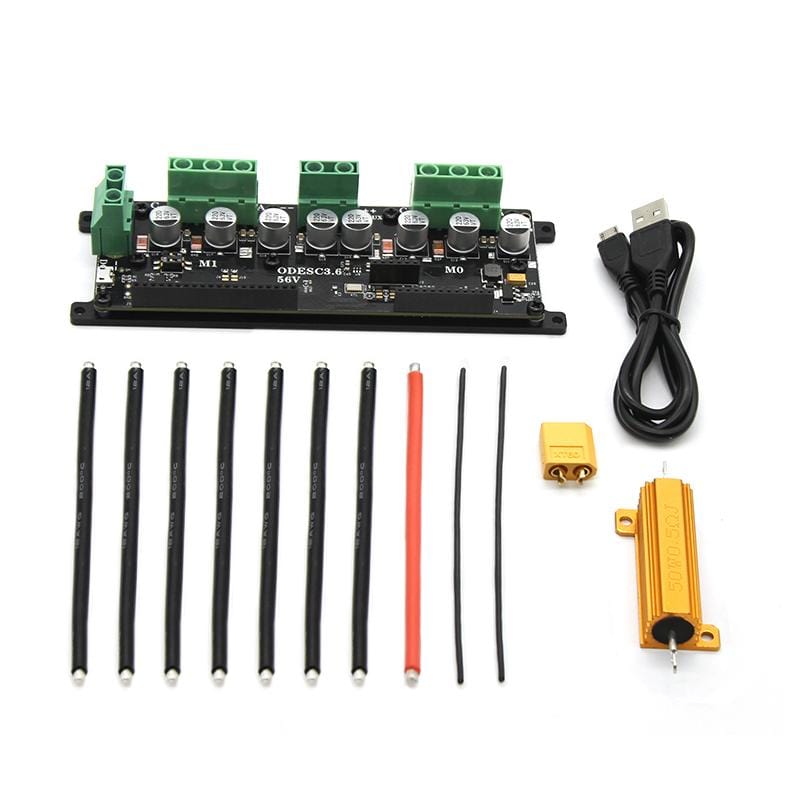

Packing list

Driver board ×1
Power resistance ×1
XT60 male  x 1
USB cable  ×1
20AWG resistance cable ×2
12AWG motor cable  ×6
12AWG power cable  ×2
