Stepper motor driver compatible mechaduino.

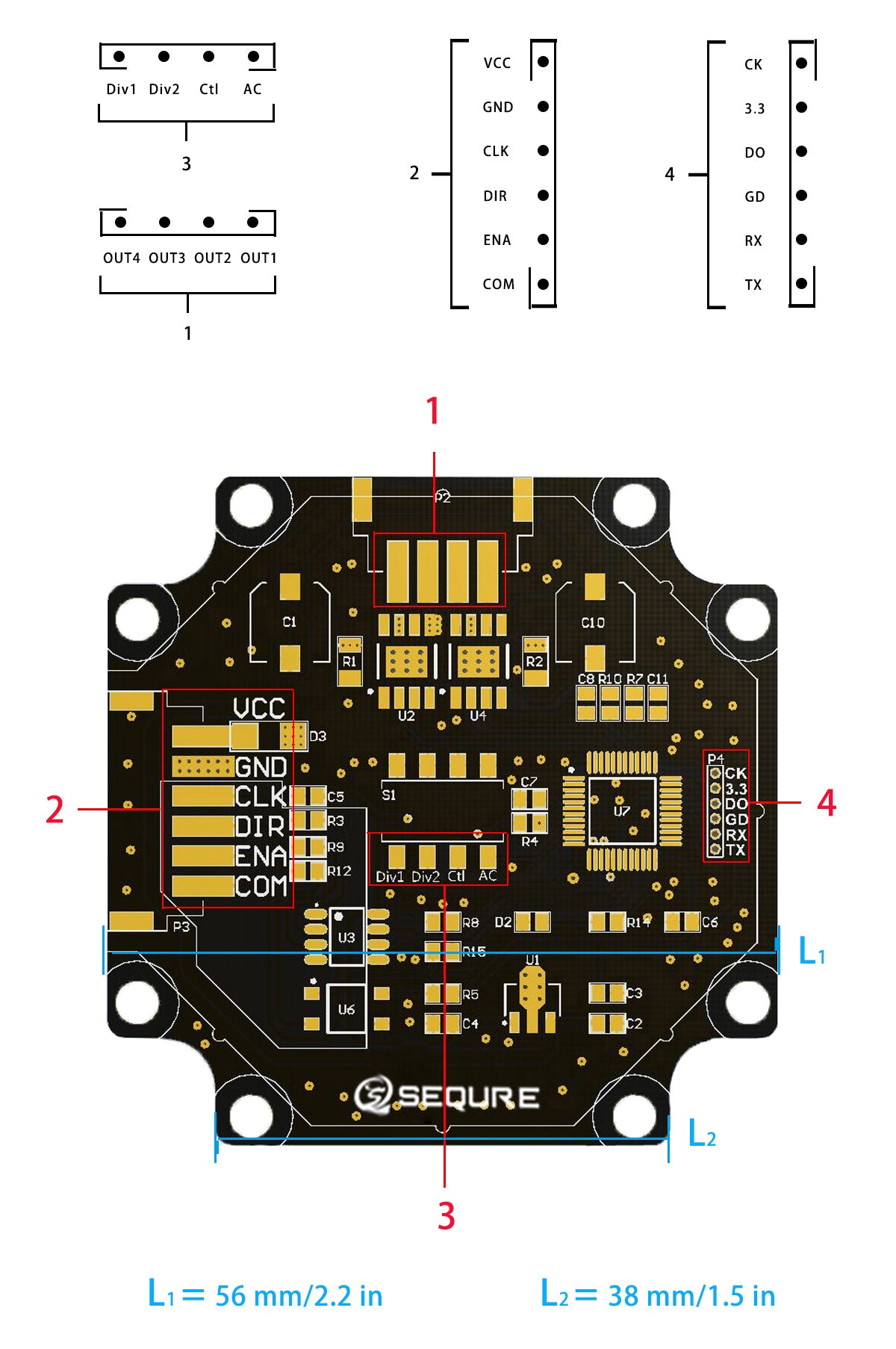

Wiring Instructions:
1. VCC : Connect 12-30V power supply ( Refer to the working voltage of the motor, general 24V )
2. GND: Ground wire
3. CLK : Control signal (Connected to pulse input )
4. DIR: Direction control signal ( Floating forward, ground reverse )
5. ENA: Connect to enable signal ( Default enable, grounding stops working )
6. P2: Connect one phase to the motor on each side ( Refer to the motor parameter description, the motor is divided into two phases AB, pins 1 and 2 are connected to one phase, and pins 3 and 4 are connected to the other phase. )

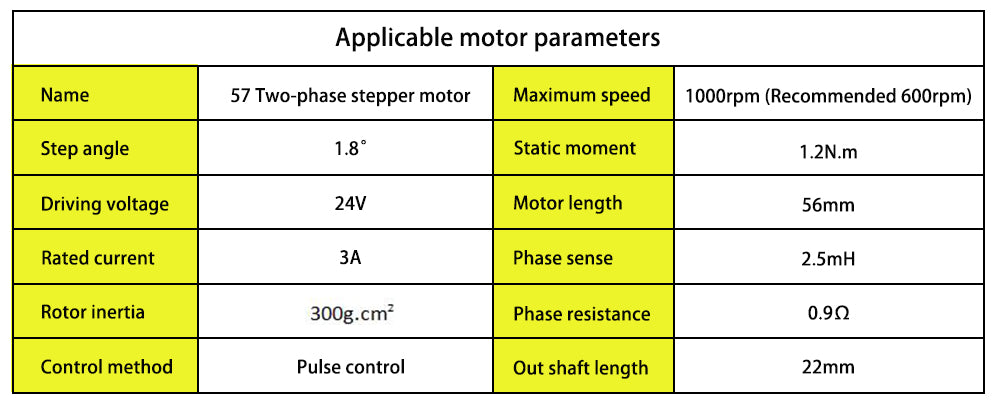

Motor parameter requirements:
- Phase: 2 phases
- Step angle: 1.8°
- Working voltage: 12-30V
- Current: maximum 3.5A
- Control method: Pulse control
DIP switch {ON (1) / OFF (0)}:
- Div1, Div2 control pulse frequency division
(1) 00: 4 subdivision
(2) 10: 8 subdivision
(3) 01:16 subdivision
(4) 11:32 subdivision
- Ctl setting control mode, open-loop / closed-loop
(1) 0 : Open-loop mode
(2) 1 : Closed-loop mode
- AC setting calibration
Turn the AC to position 1, and turn on the power. The LED blinks 3 times to start automatic calibration. The motor shaft rotates counterclockwise for one cycle and then clockwise for one cycle. The system automatic calibration complete and the LED continues to flash. The AC dial returns to position 0, and then restart power.
Application examples:
Package includes :
1 x Motor drive board
1 x Motor
1 x Motor line
1 x Dedicated radial magnet
1 x Dedicated screw bag
1 x Instruction Manual
